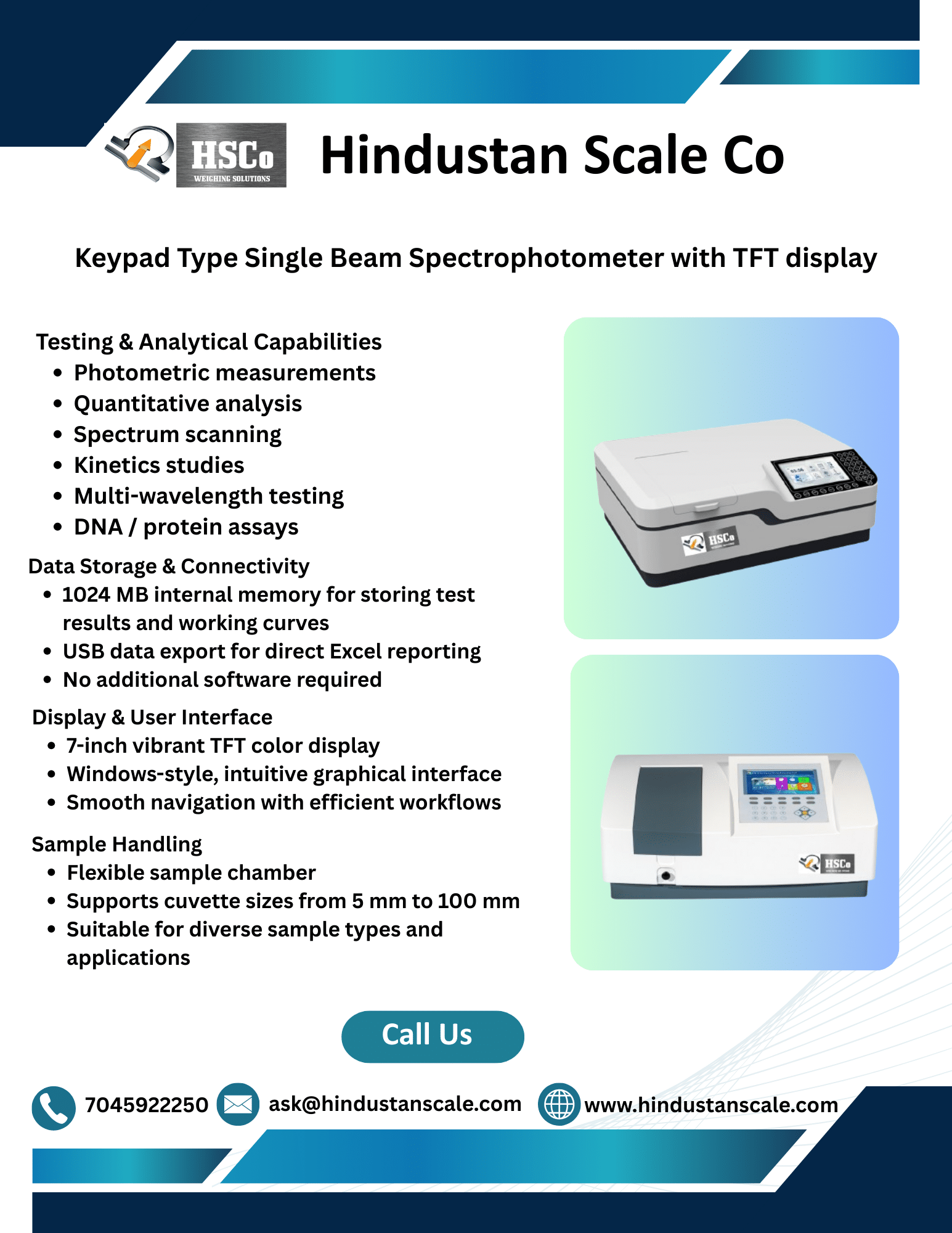

The HSCo HSCE-SPM-KS series is a single-beam UV-Vis spectrophotometer with a 7-inch colour TFT screen, a Windows-style interface and keypad control, for routine lab work in education, water testing, food and basic research. It covers 190 – 1,100 nm with 2 nm, 1 nm or variable 0.5 – 5 nm bandwidth, runs photometric, quantitative, scanning, kinetics, multi-wavelength and DNA/protein tests, stores 1,024 MB of results and curves, and exports to Excel by USB with no extra software.
Why labs choose it
- 7-inch colour TFT screen with an easy interface.
- 190 – 1,100 nm, three bandwidth options.
- All routine tests, including kinetics and DNA/protein.
- 1,024 MB memory, USB export to Excel.
- Socket-type lamps: replace without optical calibration.
Models
| Model | Bandwidth | Baseline flatness |
|---|---|---|
| HSCE-SPM-KS2 | 2 nm | ±0.002 A |
| HSCE-SPM-KS1 | 1 nm | ±0.001 A |
| HSCE-SPM-KS05 | 0.5 / 1 / 2 / 4 / 5 nm | ±0.001 A |
Specifications
| Optical system | Single beam, grating 1,200 lines/mm |
|---|---|
| Wavelength range | 190 – 1,100 nm |
| Wavelength accuracy / repeatability | ±0.1 nm at 656.1 nm, ±0.3 nm overall / ≤ 0.1 nm |
| Photometric accuracy | 0.2%T (0 – 100%T); ±0.002 A (0 – 0.5 A); ±0.004 A (0.5 – 1 A) |
| Photometric repeatability | ≤ 0.15%T (0 – 100%T); 0.001 A (0 – 0.5 A); 0.002 A (0.5 – 1 A) |
| Photometric range | 0 – 200%T; −0.3 to 3 A; 0 – 9,999 C |
| Stray light | ≤ 0.03%T at 220 nm and 360 nm |
| Stability / noise | ±0.0005 A/h at 500 nm / 0.0005 A at 500 nm |
| Work modes | T, A, C, E |
| Scanning speed | High, medium, low (up to 3,000 nm/min) |
| Wavelength setting | Automatic |
| Display | 7-inch colour screen; keypad |
| Functions | Photometric, quantitative, spectrum scan, kinetics, multi-wavelength, DNA/protein |
| Memory | 1,024 MB for results and working curves |
| Light source / detector | Imported deuterium and tungsten lamps (socket type) / imported silicon photodiode |
| Cuvettes | 10 mm manual 4-cell holder supplied; chamber takes 5 – 100 mm cuvettes |
| Outputs | USB drive, USB host, RS232 |
| Power | AC 110 – 220 V, 50 – 60 Hz |
| Shipping size / gross weight | 810 × 660 × 390 mm / 27 kg |
| Supplied with | 4 × 10 mm glass cuvettes, 2 × 10 mm quartz cuvettes, power cord, user’s manual, PC software |
| Options | Auto 8-cell holder; film and tube holders; Peltier / sipper temperature control; integrating sphere and reflection accessories |
| Warranty | 1 year |
Which spectrophotometer?
For a lower-cost LCD model, see the KLS single-beam spectrophotometer; for double-beam stability, the double-beam keypad spectrophotometer. Holders and temperature control are on the spectrophotometer accessories page. Browse all spectrophotometers.
Where it is used
Teaching labs, water testing, food analysis and basic research.
Questions buyers ask
A 7-inch colour TFT screen with a Windows-style interface, worked from the keypad.
2 nm (KS2), 1 nm (KS1) or variable 0.5 / 1 / 2 / 4 / 5 nm (KS05).
By USB into Excel, with no extra software; RS232 is also fitted.
Path lengths from 5 mm to 100 mm; a 10 mm manual 4-cell holder is supplied.
Order or ask for a quotation
Tell us the bandwidth you need. Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
