TECHNICAL FEATURES

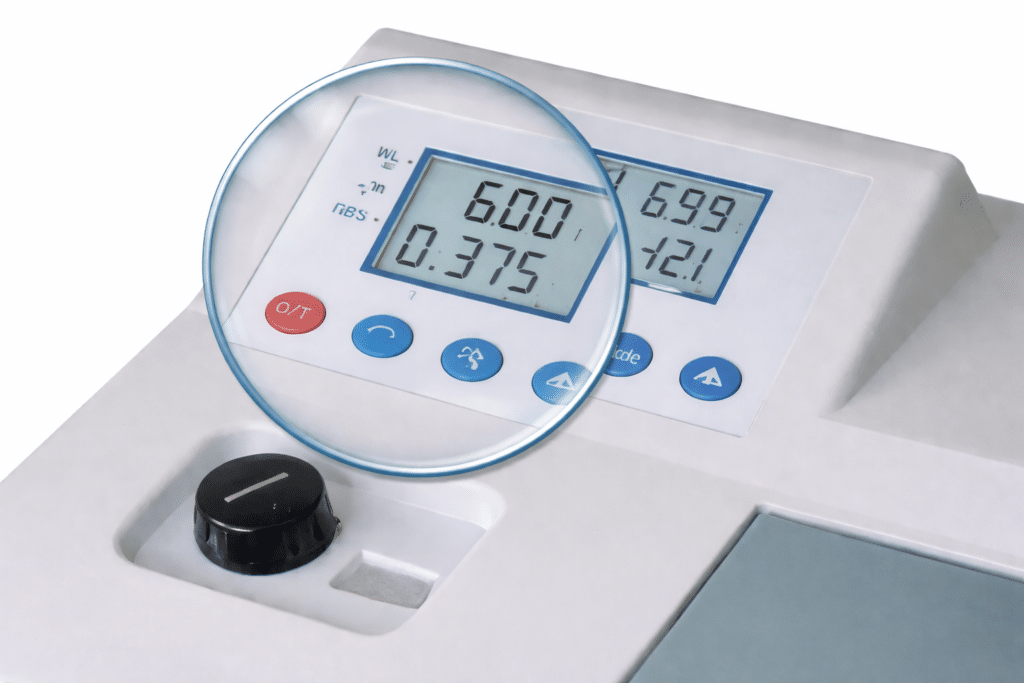

BACKLIT LED DISPLAY
High-resolution LED screen for clear and detailed readings.
Easy-to-read digital interface that simplifies data interpretation.
Displays real-time measurements and settings for user convenience.
User-friendly navigation through on-screen options.
Compact screen size ideal for limited workspace.
Low power consumption with a long-lasting display panel.
Single Beam Measurement System
Offers precise, accurate measurements for various samples.
Reliable optical design ensures consistent performance.
Ideal for both research and industrial applications.
Provides high sensitivity and low noise in measurements.
Efficient for both liquid and solid sample testing.
Ensures fast and reproducible results with minimal error.

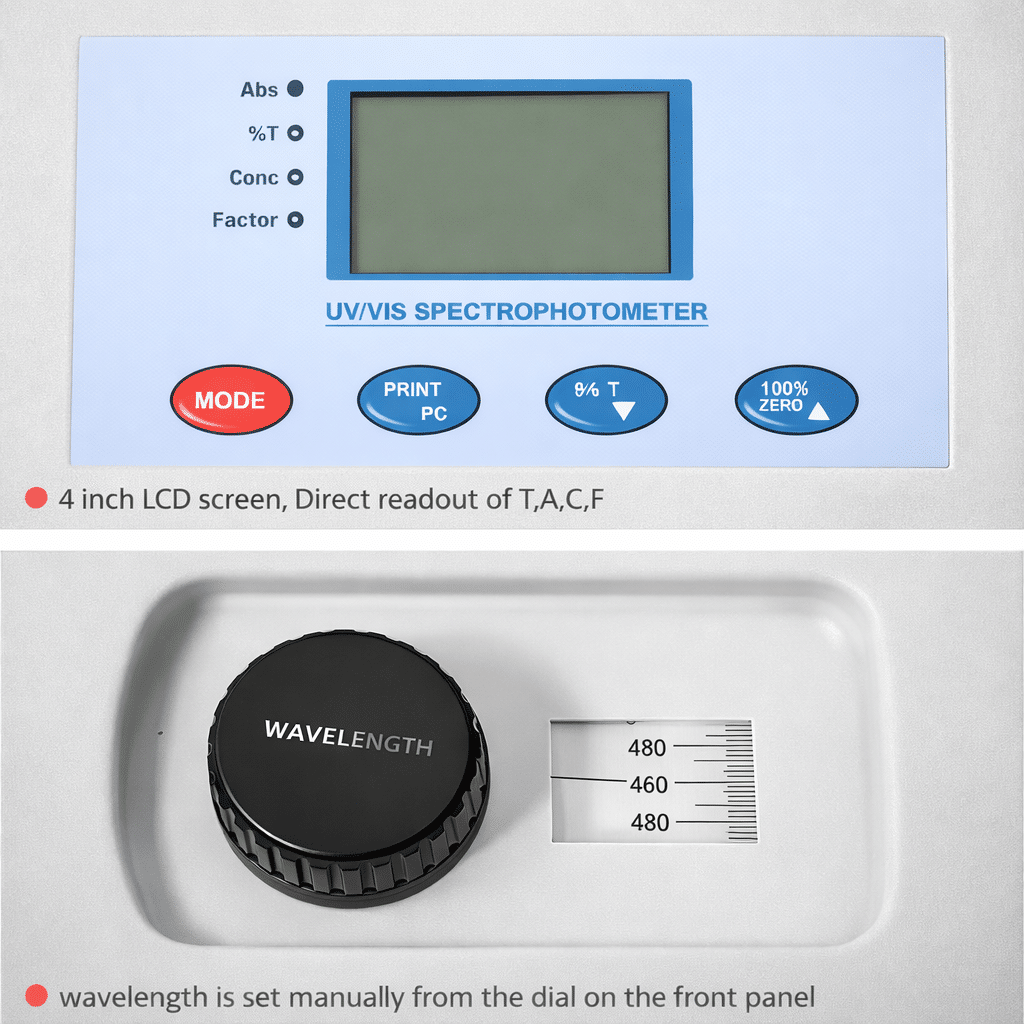

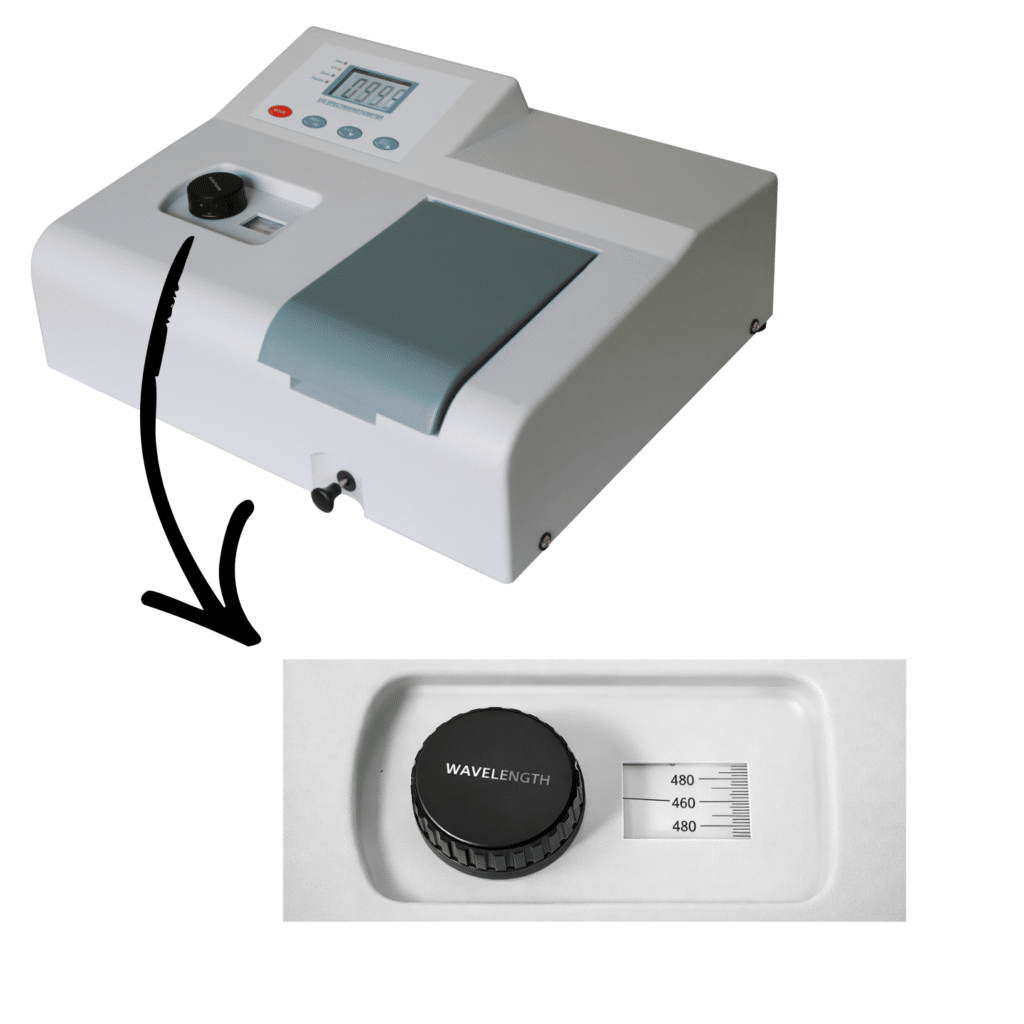

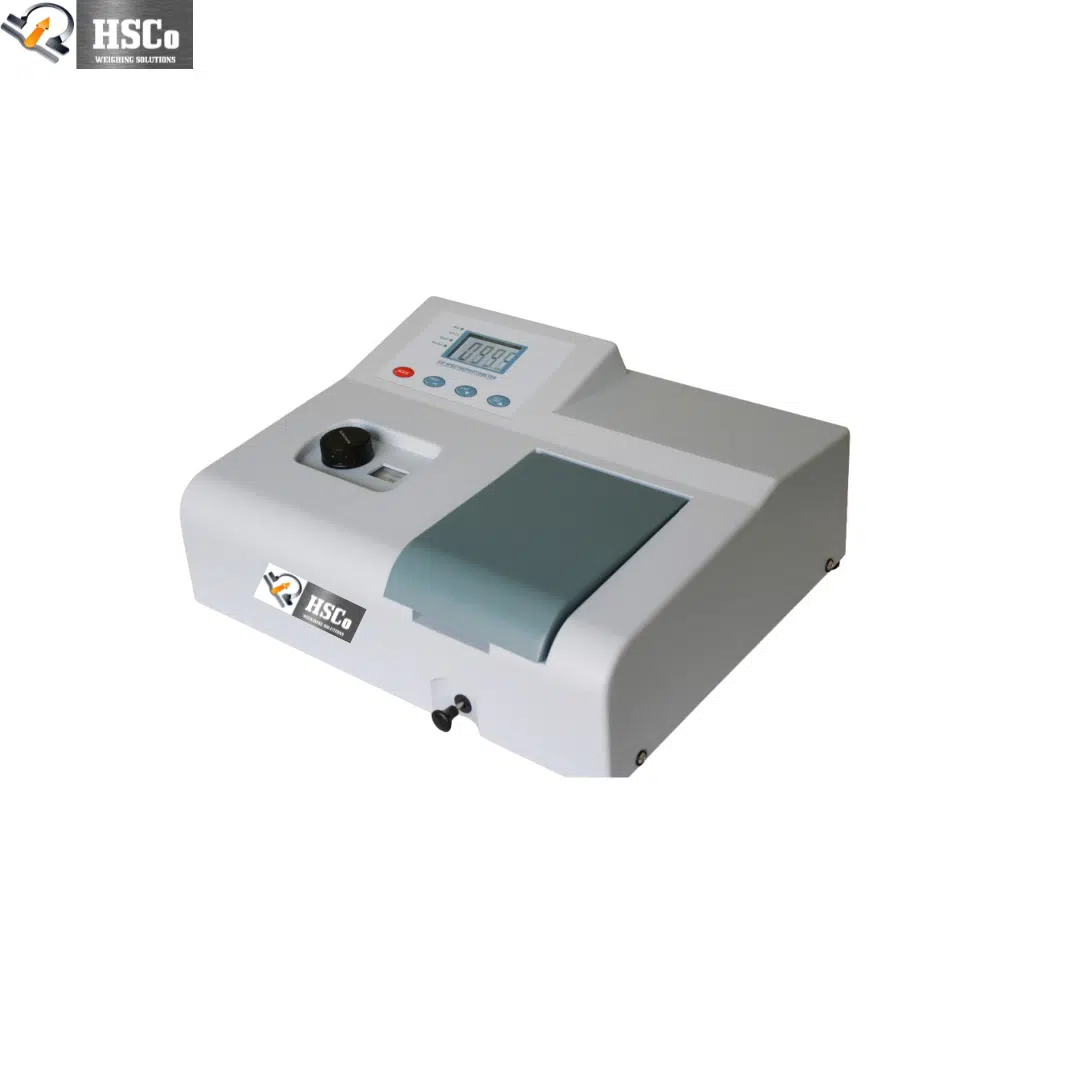

Knob-Type Control for Fine Wavelength Adjustment
Allows smooth, precise adjustments for measurements.
Easy-to-use interface for adjusting light intensity.
Convenient knob control for quick settings.
Offers better handling of measurements for different sample types.
Simplifies manual calibration process for users.
Enhances the accuracy of readings with minute adjustments.

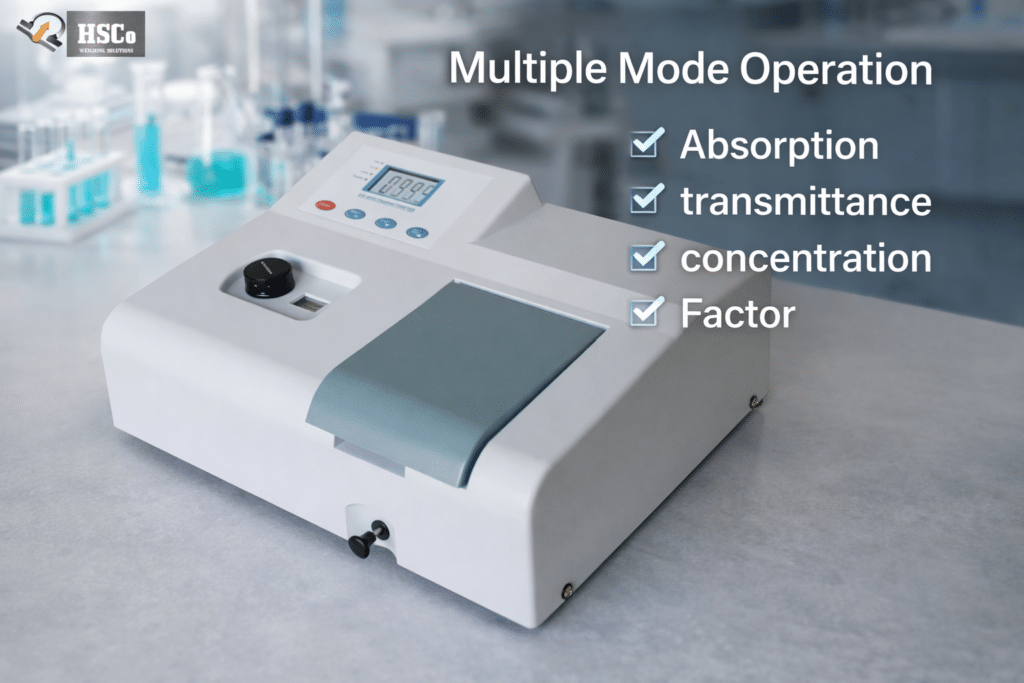

Multiple Mode Operation
Supports multiple test modes including absorbance, transmittance, and concentration.
Offers versatility in sample analysis for various research needs.
Capable of measuring a wide range of wavelengths.
Easy switching between different measurement modes.
Suitable for diverse applications such as quality control and research.
Optimized for different sample types and volume
APPLICATIONS
Video
FAQ
Series 2 offers enhanced spectral bandwidth options and improved measurement accuracy compared to earlier models.
This spectrophotometer supports absorbance, transmittance, and concentration test modes for flexible analysis.
Yes. It’s designed for environmental, food & beverage, chemical, pharmaceutical, and industrial testing labs.
It includes a high‑resolution backlit LED LCD that makes reading results clear and simple.
Yes — precise manual wavelength adjustment is possible using the built‑in knob control.
Yes. Measured data can be transferred easily to a PC through an RS232 port for deeper analysis with optional software.
It’s effective for both liquid and solid samples across a broad wavelength range.
Yes. Built with a robust optical design and reliable electronics, it delivers consistent performance for everyday lab work.
OTHER DETAILS
Model | HSCE-SPM-KLS6KB3 | HSCE-SPM-KLS5KB2 |
|
|
|
|
|
|
|
| |
Optical System | Single Beam, Grating 1200 lines/mm | ||||
Wavelength Range | 350-1020 nm | 320-1020 nm |
|
|
|
Spectral Bandwidth | 6 nm | 5 nm |
|
|
|
Wavelength Accuracy | ±3 nm | ±2nm | |||
Wavelength Repeatability | 1nm | ||||
Photometric Range | 0-200%T, -0.3-3.0A | ||||
Photometric Accuracy | ±1%T | ±0.5%T | |||
Photometric Repeatability | 0.5%T | 0.2%T | |||
Stray light | 0.5%T | 0.3%T | |||
Stability | 0.004A | 0.002A | |||
Wavelength Setting | Manual | ||||
Work Mode | T, A, C | ||||
Display | 4 LCD | ||||
Light Source | Tungsten lamp | Deuterium &Tungsten lamp | |||
Detector | Silicon Photodiode | ||||

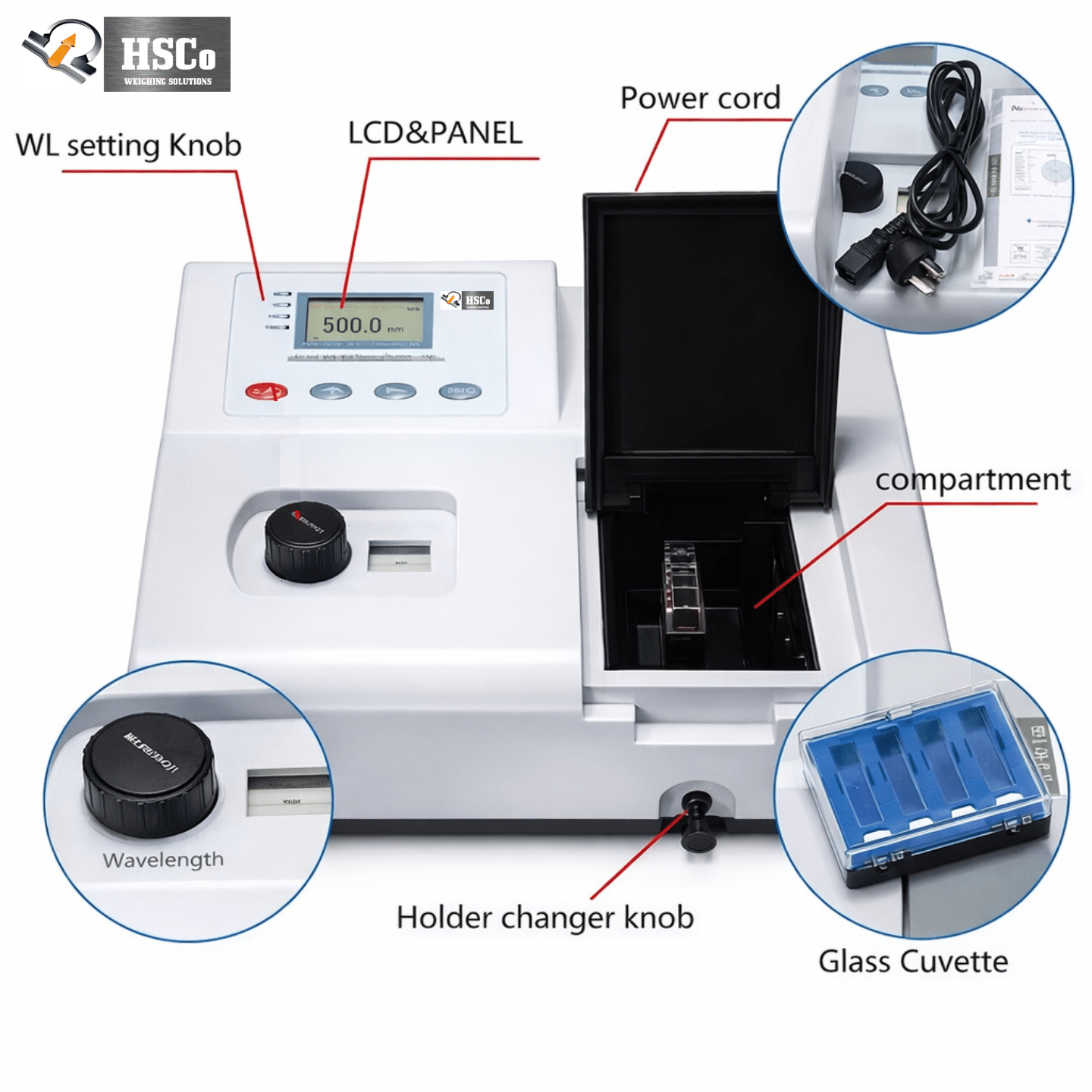

Cuvette Holder | 10mm manual 4-cell holder | ||||
Power | AC 110-220V 50-60Hz | ||||
Shipping Size | 520*450*320mm | ||||
Gross Weight | 10kg | ||||
Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV) , Power cord, User’s Manual | ||||
