Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display

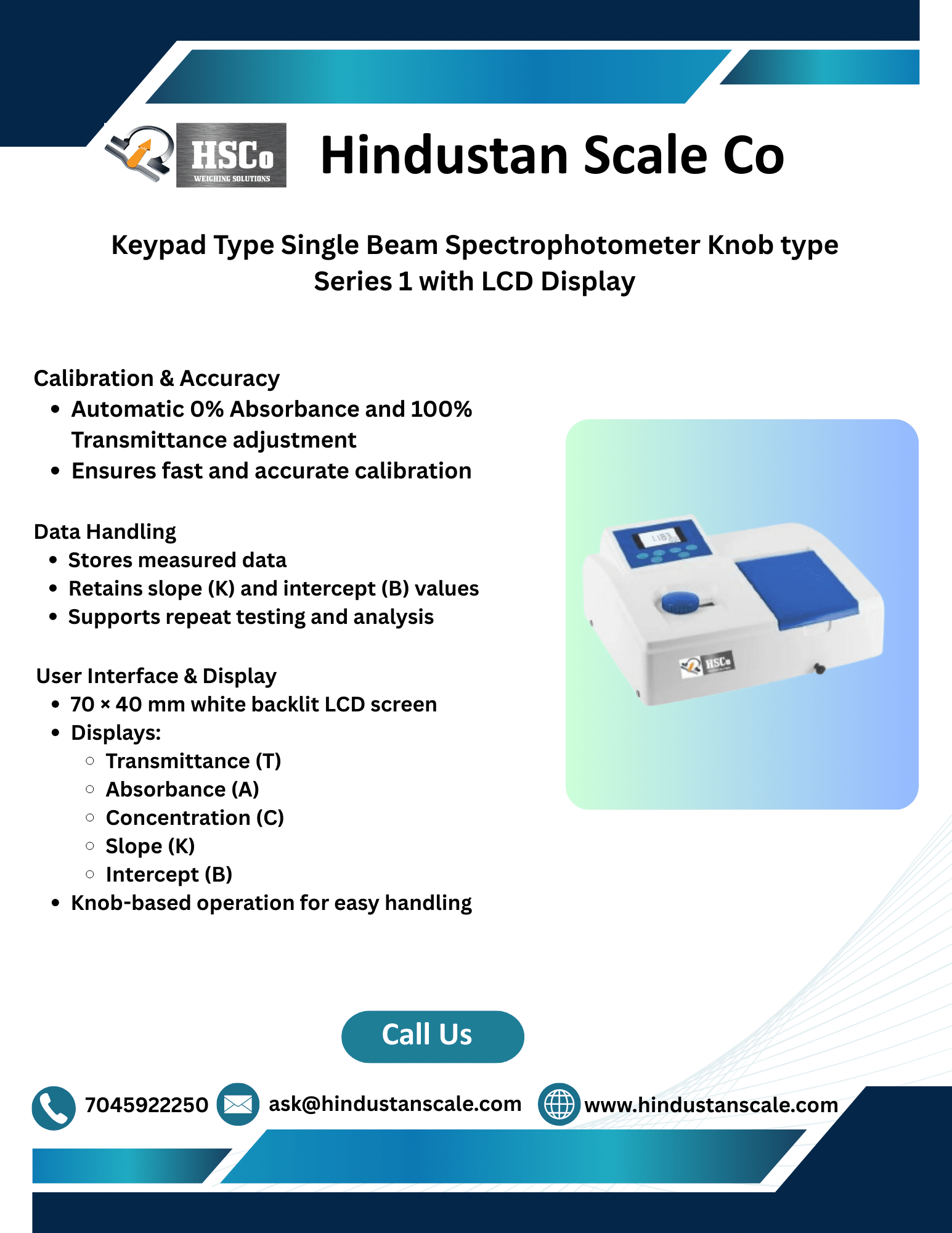

Product broachers 75
Click to enlarge
Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display
Keypad Type Single Beam Spectrophotometer Econ 2 Series with LCD Display
Keypad Type Single Beam Spectrophotometer Econ 2 Series with LCD Display Price range: ₹135,110.00 through ₹141,541.00
Back to products
Keypad Type Single Beam Spectrophotometer Knob type Series 2 with LCD Display
Keypad Type Single Beam Spectrophotometer Knob type Series 2 with LCD Display Price range: ₹50,150.00 through ₹55,106.00

Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display

Price range: ₹43,660.00 through ₹123,900.00

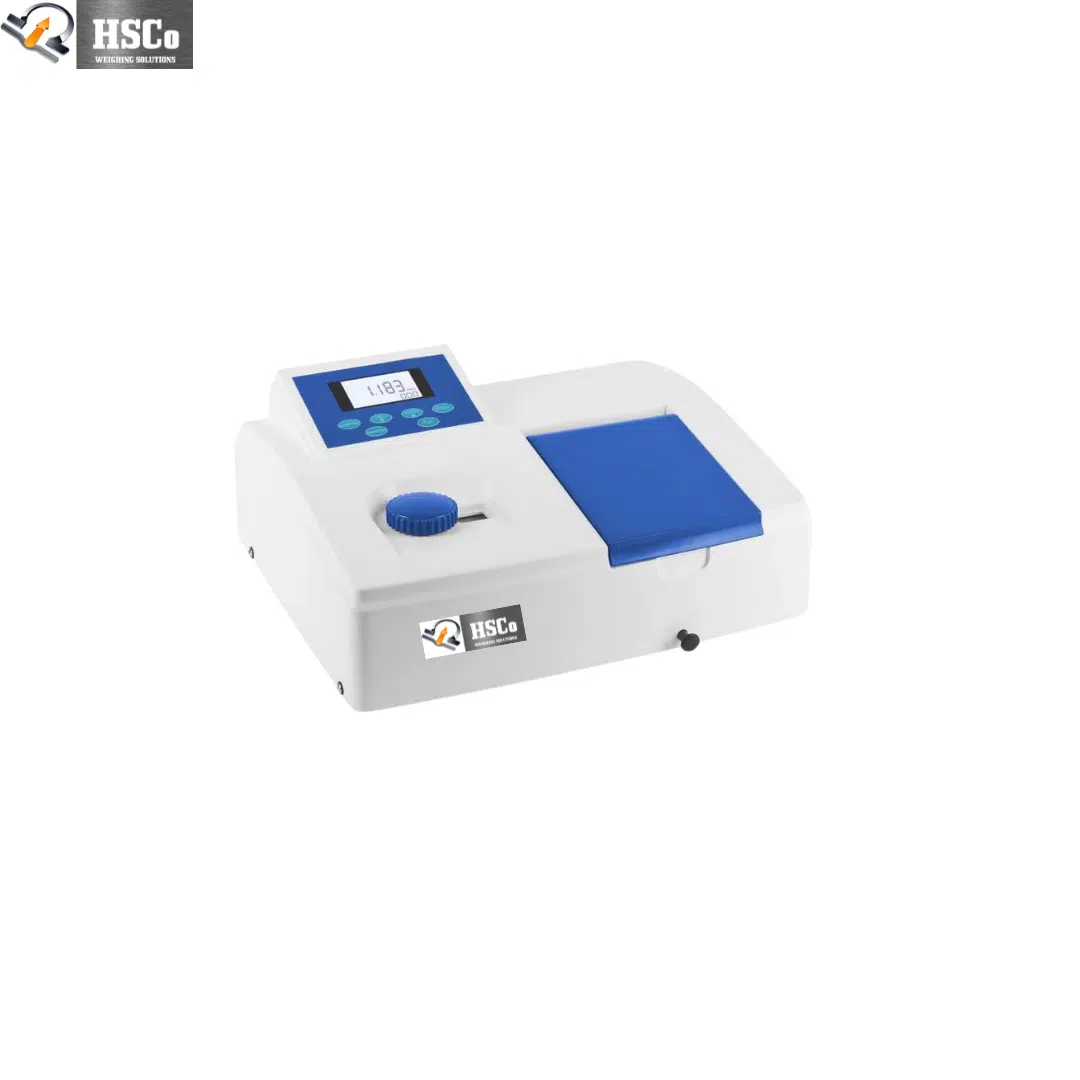

HSCE-SPM-KLS4 – Knob Type Single Beam Spectrophotometer with LCD Display

The HSCE-SPM-KLS4 from Hindustan Scale Co. is a durable and cost-effective single beam spectrophotometer designed for basic lab applications in education, environmental testing, and routine quality checks. With its easy-to-use knob-based interface and clear LCD display, this model offers straightforward operation without compromising on reliability. Ideal for labs seeking simple photometric and quantitative analysis, the KLS4 model delivers consistent performance, minimal maintenance, and excellent value—making it a dependable choice for everyday testing needs.

  • Features a 70 × 40 mm white backlit LCD screen capable of displaying Transmittance (T), Absorbance (A), Concentration (C), Slope (K), and Intercept (B) clearly.

  • Supports Quantitative and Kinetics analysis when paired with optional PC software, expanding its application range for advanced testing.

  • Allows for automatic adjustment of 0% Absorbance and 100% Transmittance, ensuring quick and accurate calibration.

  • Capable of storing measured data, including values for slope (K) and intercept (B) for repeated testing and analysis.

  • Equipped with a spacious sample compartment compatible with a wide range of cuvettes from 5 mm to 100 mm, offering flexibility for different sample sizes.

Clear
Compare
Description
TECHNICAL FEATURES
VIDEO
FAQ
READ BLOG

TECHNICAL FEATURES

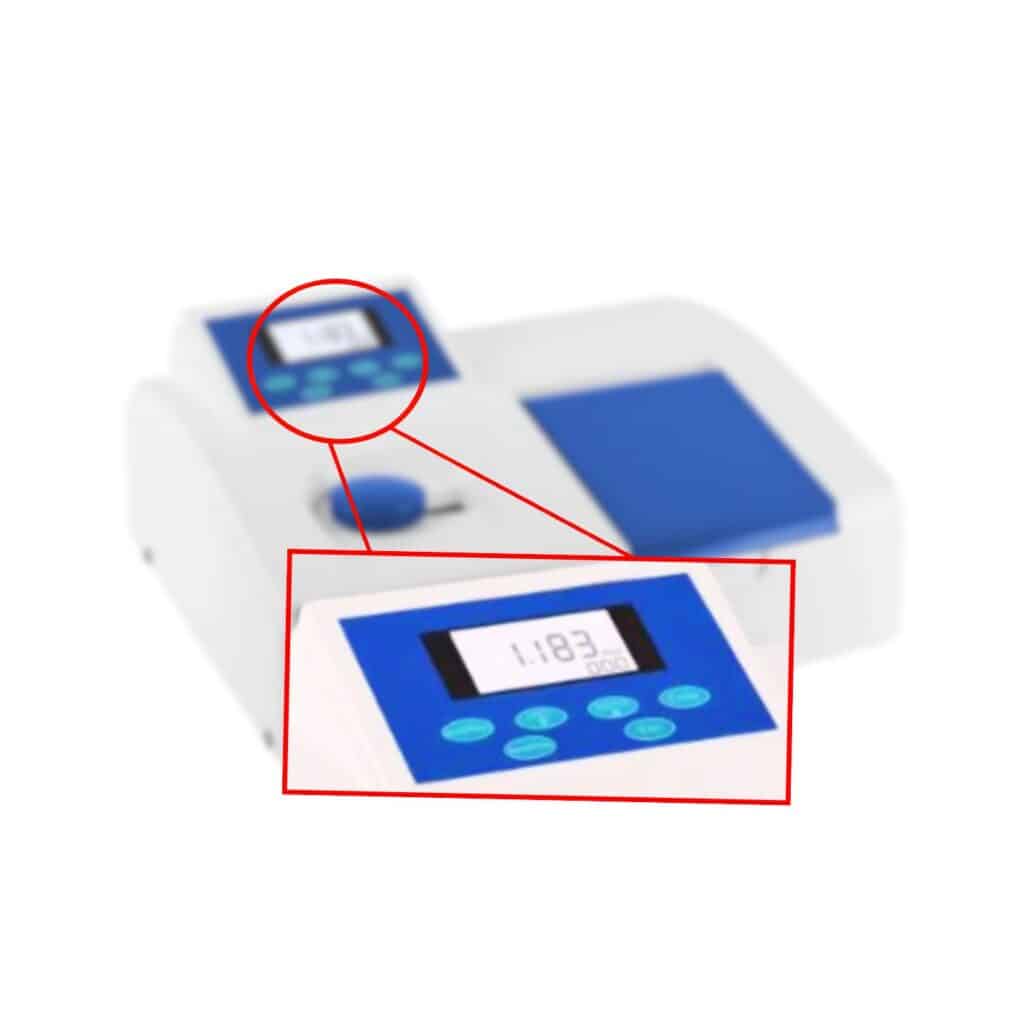

LCD screen can display

BACKLIT LCD DISPLAY

  • Compact size of 70x40mm white backlit LCD screen.
  • Can display T, A, C, K, B clearly.
  • Energy-efficient backlit design for enhanced visibility.

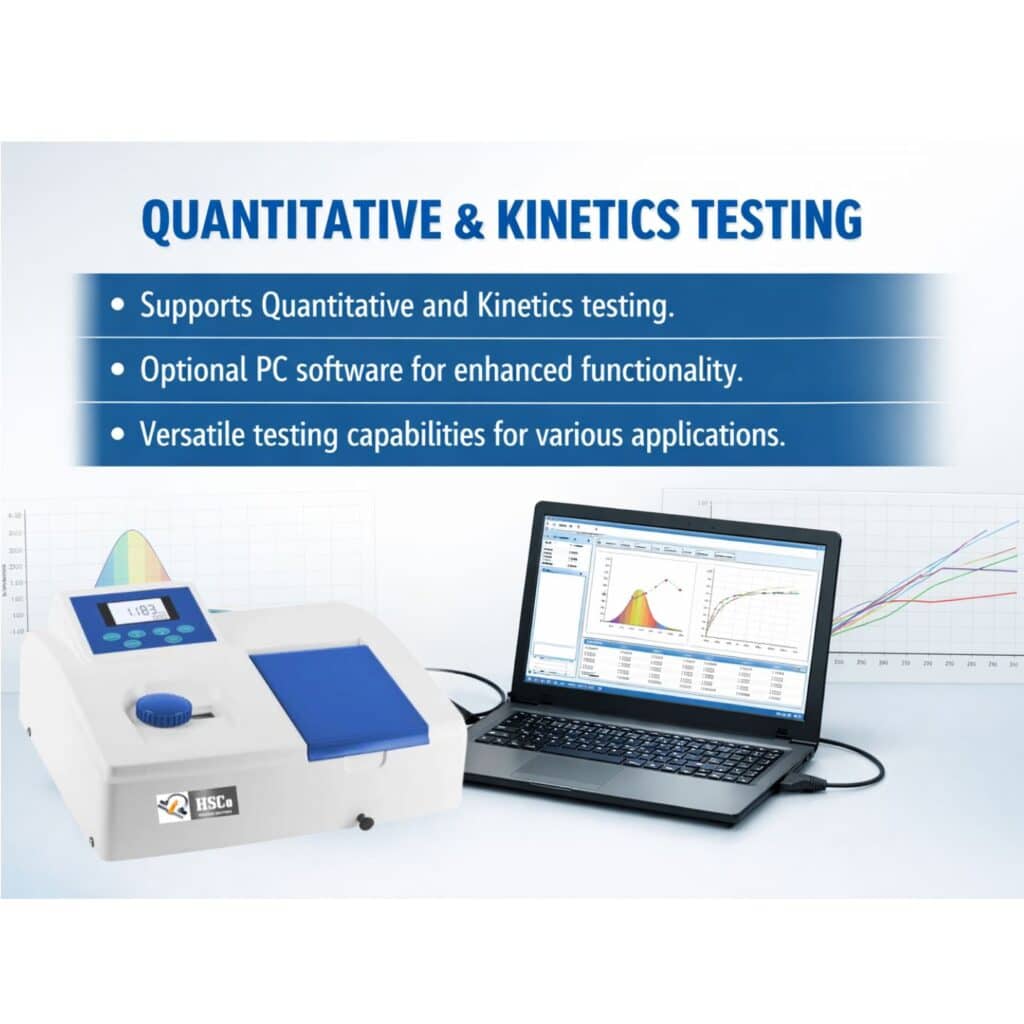

QUANTITAIVE & KINETICS TESTING

  • Supports Quantitative and Kinetics testing.
  • Optional PC software for enhanced functionality.
  • Versatile testing capabilities for various applications.
quantitative kinetics testing
Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display ₹43,660.00 – ₹123,900.00 HSCE-SPM-KLS4 – Knob Type Single Beam Spectrophotometer with LCD Display

Single Beam Measurement System

  • Offers precise, accurate measurements for various samples.

  • Reliable optical design ensures consistent performance.

  • Ideal for both research and industrial applications.

  • Provides high sensitivity and low noise in measurements.

  • Efficient for both liquid and solid sample testing.

  • Ensures fast and reproducible results with minimal error.

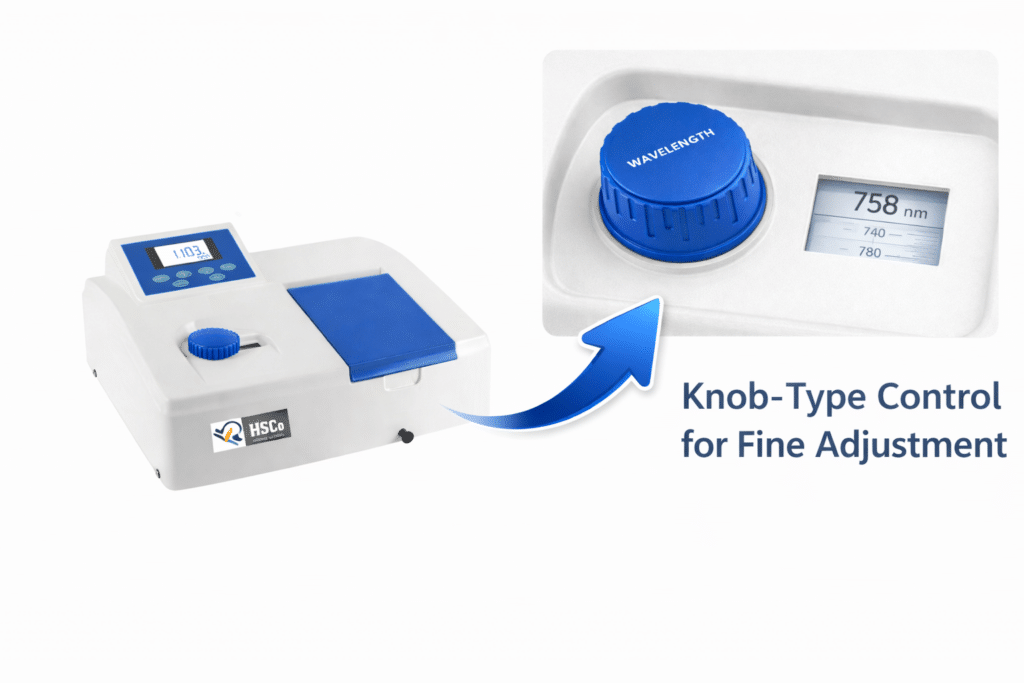

Knob-Type Control for Fine Wavelength Adjustment

  • Allows smooth, precise adjustments for measurements.

  • Easy-to-use interface for adjusting light intensity.

  • Convenient knob control for quick settings.

  • Offers better handling of measurements for different sample types.

  • Simplifies manual calibration process for users.

  • Enhances the accuracy of readings with minute adjustments.

Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display
Keypad Type Single Beam Spectrophotometer Knob type Series 1 with LCD Display

Multiple Mode Operation

  • Supports multiple test modes including absorbance, transmittance, and concentration.

  • Offers versatility in sample analysis for various research needs.

  • Capable of measuring a wide range of wavelengths.

  • Easy switching between different measurement modes.

  • Suitable for diverse applications such as quality control and research.

  • Optimized for different sample types and volume

APPLICATIONS

Pharmaceutical
Pharmaceutical
Paints & Inks
Paints & Inks
Food & Beverage
Food & Beverage
Chemical Industry
Chemical Industry
Laboratory & R&D Testing
Laboratory & R&D Testing
Environmental & Research Laboratories
Environmental & Research Laboratories
Water & Wastewater Treatment
Water & Wastewater Treatment

Video

FAQ

It’s a single beam UV‑Vis spectrophotometer with an easy‑use knob interface and LCD display for basic lab testing.

It shows Transmittance (T), Absorbance (A), Concentration (C), Slope (K), and Intercept (B) on the LCD.

Yes. It supports automatic adjustment of 0% Absorbance and 100% Transmittance for quick calibration.

Yes. Advanced Quantitative and Kinetics testing is possible with optional PC software.

It accommodates a wide range of cuvette sizes from 5 mm up to 100 mm.

Yes. It can store measured data including slope (K) and intercept (B) for repeated analysis.

Yes. Designed for basic photometric and quantitative testing in education, environmental, and quality control labs.

OTHER DETAILS

Model

HSCE-SPM-KLS2B1

HSCE-SPM-KLS4B1

Optical System

Single Beam, Grating 1200 lines/mm

Wavelength Range

190-1000nm

Spectral Bandwidth

2 nm

4 nm

Wavelength Accuracy

1nm

Wavelength Repeatability

<=0.5nm

Photometric Accuracy

0.5%T

Photometric Repeatability

0.3%T

Photometric Range

0-200%T, -0.3~3A, 0-9999C

Stray light

0.3%T

Stability

±0.002A/h @500nm

Baseline Flatness

±0.002 A

Noise

±0.001 A

Work Mode

T, A, C, E

Wavelength Setting

Auto

Display

128*64 LCD

Light Source

Deuterium & Tungsten lamp

Detector

Silicon Photodiode

Cuvette Holder

10mm manual 4-cell holder

Output

USB, RS232

Power

AC 110-220V 50-60Hz

Shipping Size

700*580*340mm

Gross Weight

20kg

Standard Accessaries

10mm glass cuvette x 4, 10mm quartz cuvette x 2 (UV) , Power cord, User’s Manual

Additional information
Spectral Bandwidth

320-110nm/4nm, 190-110nm/4nm, 190-110nm/2nm
Beam Type

Single Beam
