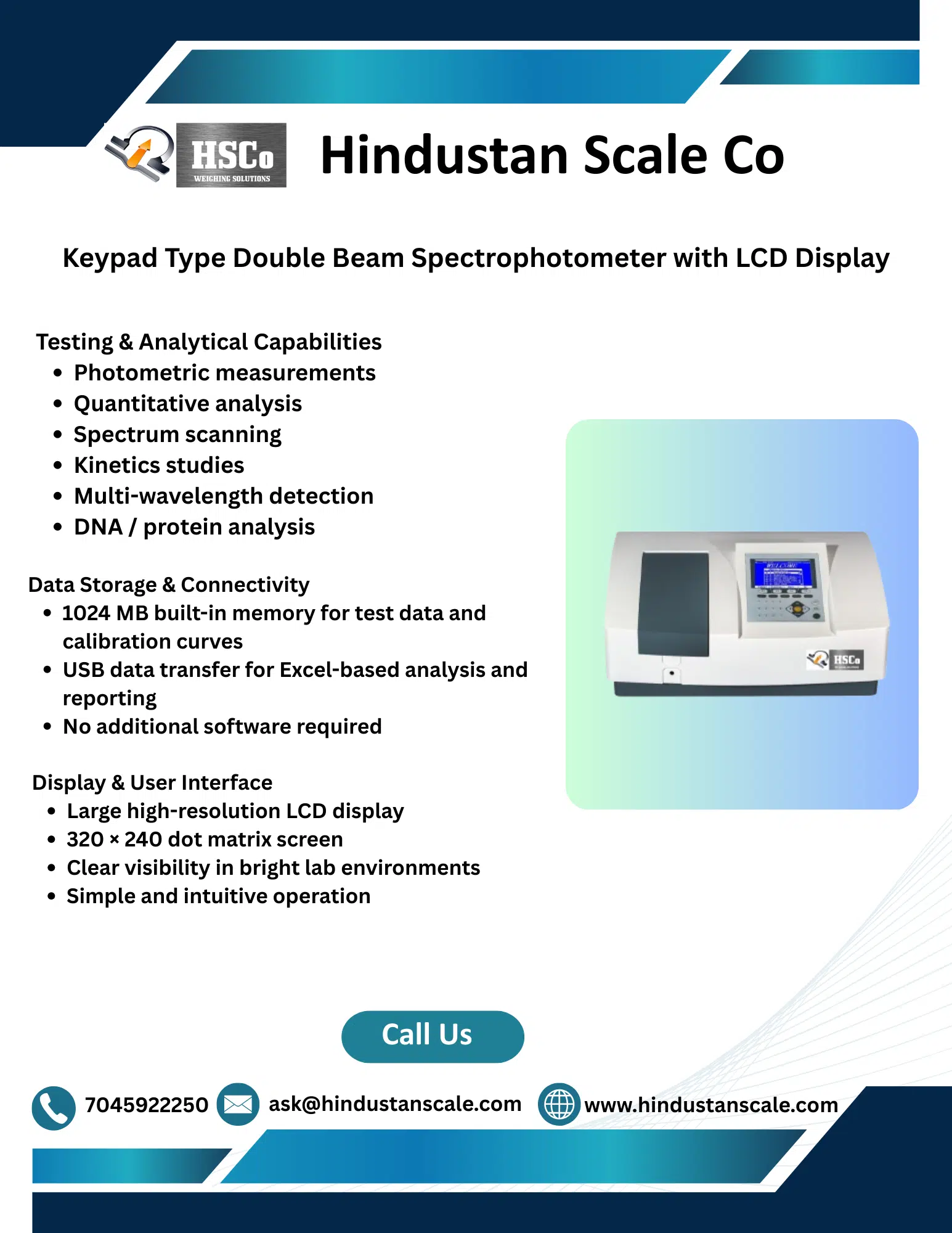

Product broachers 71
Click to enlarge
Keypad type double beam spectrophotometer with LCD display
hsc standard solution accessories
Accessories for pH and Conductivity Meters - Standard Solutions for Desktop Type, Pen Type and Portable Type - Master and Edge Series Original price was: ₹13,688.00.Current price is: ₹11,800.00.
Back to products
Keypad type double beam spectrophotometer with LCD display
Keypad Type Single Beam Spectrophotometer with LCD Display Price range: ₹241,900.00 through ₹542,800.00

Keypad Type Double Beam Spectrophotometer with LCD Display

Price range: ₹45,784.00 through ₹720,980.00

HSCE-SPM-KLD Series – Double Beam Spectrophotometer with LCD Display

The HSCE-SPM-KLD Series from Hindustan Scale Co. is a robust and reliable double beam spectrophotometer equipped with a clear, high-resolution LCD display designed for effortless operation in laboratory environments. Ideal for routine and advanced testing in pharmaceuticals, academics, water analysis, and chemical labs, this model supports essential functions such as photometric and quantitative measurements, spectrum scans, DNA/protein analysis, and more. Built for precision and durability, the KLD Series combines user-friendly controls with powerful performance—making it a trusted tool for labs that need accuracy without complexity.

Key Features of the HSCo Double Beam Spectrophotometer – LCD Display Type

  • Large High-Resolution LCD Screen
    Equipped with a 320×240 dot matrix LCD, the display offers clear visibility of data and settings, even in high-light environments, ensuring ease of use during long lab sessions.

  • Advanced Analytical Functions
    Perform a variety of essential laboratory tests including photometric measurements, quantitative analysis, spectrum scanning, kinetics, multi-wavelength detection, and DNA/protein testing—making it a versatile choice for academic, industrial, and research labs.

  • Built-In High-Capacity Memory
    Store up to 1024MB of test data and calibration curves directly in the instrument, ensuring long-term accessibility and efficient data management.

  • USB Data Transfer for Easy Export
    Easily transfer your data via the USB port and open files in Excel for further analysis, reporting, or record-keeping—no additional software required.

  • Easy Lamp Replacement System
    Features socket-type deuterium and tungsten lamps that can be replaced without requiring optical realignment—saving time and reducing the risk of setup errors.

  • Versatile Sample Chamber
    The spacious chamber is designed to support 5–100 mm cuvettes, accommodating a wide range of testing needs and sample types with ease.

  • Expandable with Optional Accessories
    Customize your setup with a variety of optional accessories, including:
    – Auto 8-cell holder
    – Film and tube holders
    – Peltier/sipper system for temperature control
    – Integrating sphere and reflection accessories
    – 21 CFR Part 11 compliant software for regulated lab environments

Clear
Compare
Description
TECHNICAL FEATURES
VIDEO
FAQ
READ BLOG

TECHNICAL FEATURES

Keypad Type Double Beam Spectrophotometer with LCD Display

BRIGHT DISPLAY FOR EASY TO USE AND CLEAR VIEW

  • Extra Bright Display for Easy Viewing
  • Wide angle display for viewing from all sides of the scale
  • Anti-Heat Dissipating LED with One Year Warranty
  • Decimal Point to indicate stability of the weight on the platter

SMOOTH BUTTON SENSETIVITY

  • Effortless Interaction: Easy to press with minimal force.

  • Ergonomic Design: Comfortable shape for natural use.

  • Premium Feel: High-quality, luxurious texture.

  • Tactile Feedback: Soft click or vibration for confirmation.

  • Sleek Appearance: Clean, modern look that integrates well.

  • Durability: Long-lasting with wear resistance.

  • Easy Maintenance: Simple to clean and keep tidy.

Keypad Type Double Beam Spectrophotometer with LCD Display
Keypad Type Double Beam Spectrophotometer with LCD Display double

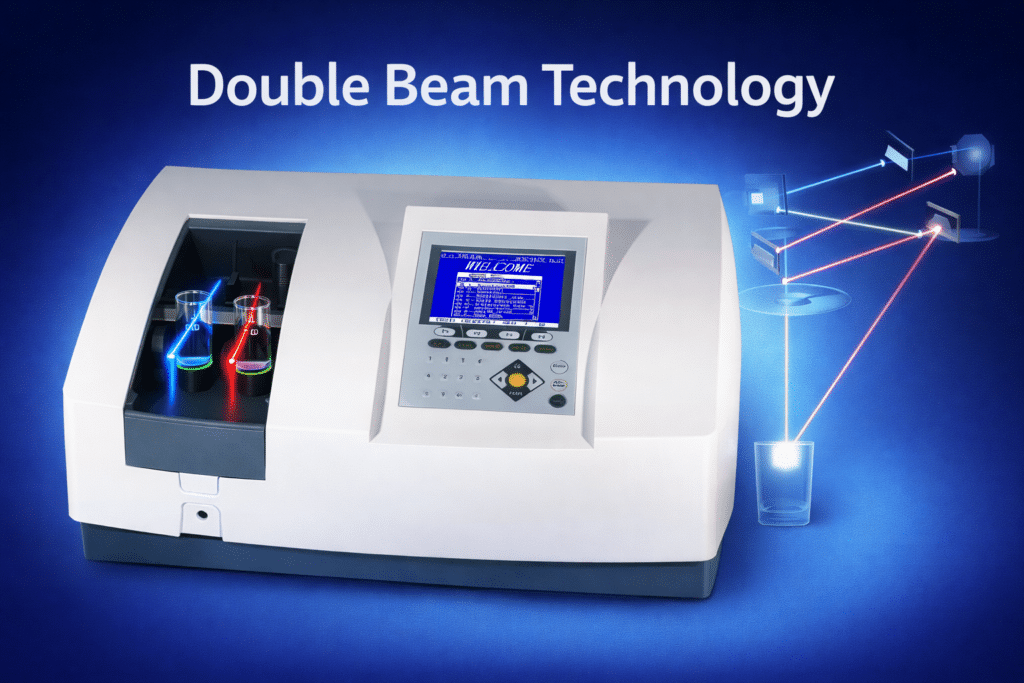

Double Beam Technology

  • Simultaneous measurement of both sample and reference beams.

  • Increases accuracy by compensating for variations in light source intensity.

  • Provides higher stability and consistent readings over time.

  • Reduces measurement errors caused by sample imperfections.

  • Ideal for applications requiring high levels of precision, such as analytical research.

  • Improves repeatability by ensuring steady and reliable beam intensity.

  • Ensures reliable performance across a wide wavelength range.

Enhanced Data Accuracy

  • Provides highly reproducible results with minimal variation.
  • Advanced calibration techniques improve measurement precision.
  • Compensates for environmental fluctuations, enhancing reliability.
  • Equipped with noise reduction features to improve data quality.
  • High-accuracy sensors ensure precise readings at both low and high concentrations.
  • Suitable for complex and critical applications requiring absolute accuracy.
  • Ensures data integrity for research, testing, and quality control purposes.
Enhanced Data Accuracy​

APPLICATIONS

Pharmaceutical
Pharmaceutical
Paints & Inks
Paints & Inks
Food & Beverage
Food & Beverage
Chemical Industry
Chemical Industry
Laboratory & R&D Testing
Laboratory & R&D Testing
Environmental & Research Laboratories
Environmental & Research Laboratories
Water & Wastewater Treatment
Water & Wastewater Treatment

Video

FAQ

It’s a precision lab instrument that uses a dual‑beam optical system to measure light absorption with high accuracy and stability.

It covers a wide wavelength range from 190 nm to 1100 nm, suitable for UV‑Vis analysis.

Yes, it features a high‑resolution 320×240 LCD for easy viewing of data and results.

The instrument includes built‑in memory (up to 1024MB) and USB data transfer for exporting results to Excel.

It supports photometric measurements, quantitative analysis, spectral scans, kinetics, and DNA/protein testing.

Yes, the deuterium and tungsten lamps are socket‑type and can be replaced without optical realignment.

The sample chamber accommodates 5–100 mm cuvettes, offering flexibility for different tests.

Ideal for pharmaceutical, academic, chemical, environmental, and research laboratories needing accurate UV‑Vis analysis.

OTHER DETAILS

Model

HSCE-SPM-KLD2

HSCE-SPM-KLD1

HSCE-SPM-KLD05



Optical System

Double Beam, Grating 1200 lines/mm

Wavelength Range

190-1100 nm

Spectral Bandwidth

2nm

1nm

0.5/1/2/4/5nm



Wavelength Accuracy

±0.1nm@656.1nm, ±0.3nm@all

Wavelength Repeatability

<=0.1nm

Photometric Accuracy

0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)

Photometric Repeatability

≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)

Photometric Range

0-200%T, -0.3~3A, 0-9999C

Stray Light

<=0.03%T@220nm, 360nm

Stability

±0.0005A/h@500nm

Baseline Flatness

±0.002A

±0.001A



Noise

0.0005A@500nm

Work Mode

T, A, C, E

Scanning Speed

Hi, Med, Low (Max. 3000nm/min)

Wavelength Setting

Auto

Display

320*240 LCD

Light Source

  Imported Deuterium & Tungsten lamp

Detector

Imported Silicon Photodiode

Cuvette Holder

10mm manual 4-cell holder

Output

USB, RS232

Power

AC 110-220V 50-60Hz

Shipping Size

810*660*390mm

880*690*520mm

Gross Weight

27kg

45kg

Standard Accessaries

10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User’s Manual, PC software





Additional information
Beam Type

Double Beam
Spectral Bandwidth

2nm, 1nm, 0.5/1/2/4/5nm
