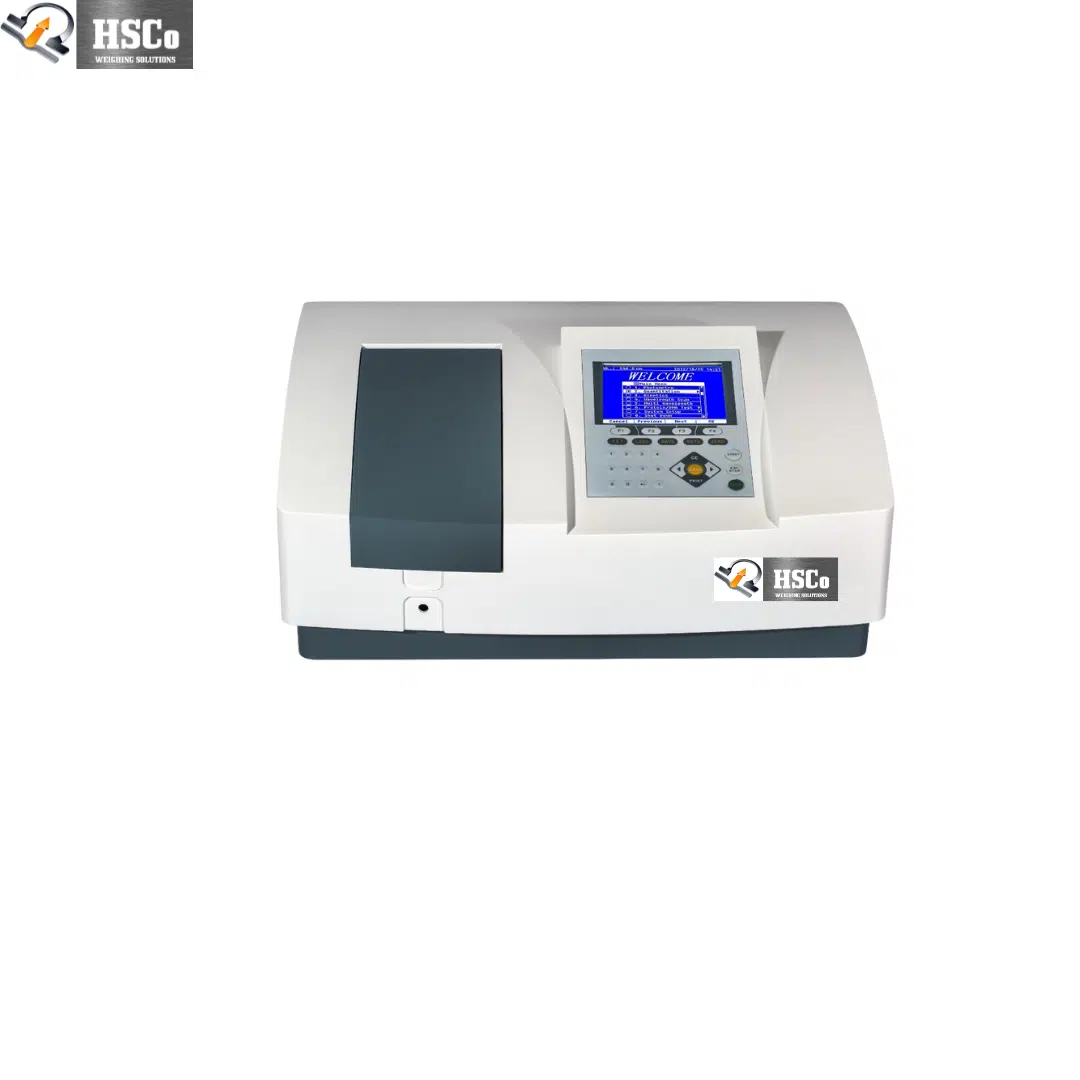

Single Beam UV-Vis Spectrophotometer HSCE-SPM-KLS Series – 190 to 1,100 nm, Keypad and LCD
Price range: ₹205,000.00 through ₹460,000.00 (ex. GST) (₹241,900.00 – ₹542,800.00 incl. GST)
Single-beam UV-Vis spectrophotometer HSCE-SPM-KLS series: four models, 190 – 1,100 nm (KLS32: 320 – 1,100 nm), bandwidth 2 nm, 1 nm or variable 0.5 – 5 nm, photometric accuracy up to ±0.3%T, 320 × 240 LCD with keypad, 1,024 MB memory, USB export to Excel, socket-type lamps, 5 – 100 mm cuvettes. 1-year warranty.
The HSCo HSCE-SPM-KLS series is a single-beam UV-Vis spectrophotometer with keypad control and a 320 × 240 LCD, for routine lab work on a sensible budget. It runs photometric and quantitative tests, spectrum scans, kinetics, multi-wavelength and DNA/protein measurements, stores up to 1,024 MB of data and calibration curves, and exports results by USB into Excel with no extra software. Four models cover 190 – 1,100 nm (or 320 – 1,100 nm) with bandwidths from 0.5 to 5 nm.
Why labs choose it
- Four models: 2 nm, 1 nm or variable 0.5 – 5 nm bandwidth.
- All the routine tests: photometry, quantitation, scans, kinetics, DNA/protein.
- 1,024 MB memory and USB export to Excel.
- Easy lamp change: socket-type deuterium and tungsten lamps, no realignment.
- 5 – 100 mm cuvettes in a large sample chamber.
Models
| Model | Wavelength range | Bandwidth | Wavelength accuracy | Wavelength repeatability | Photometric accuracy |
|---|---|---|---|---|---|
| HSCE-SPM-KLS2 | 190 – 1,100 nm | 2 nm | 0.5 nm | 0.2 nm | ±0.5%T |
| HSCE-SPM-KLS1 | 190 – 1,100 nm | 1 nm | ±0.1 nm at 656.1 nm; ±0.3 nm overall | 0.1 nm | ±0.3%T |
| HSCE-SPM-KLS05 | 190 – 1,100 nm | 0.5 / 1 / 2 / 4 / 5 nm | ±0.1 nm at 656.1 nm; ±0.3 nm overall | 0.1 nm | ±0.3%T |
| HSCE-SPM-KLS32 | 320 – 1,100 nm | 2 nm | ±0.1 nm at 656.1 nm; ±0.3 nm overall | 0.2 nm | ±0.5%T |
Specifications
| Optical system | Single beam, grating 1,200 lines/mm |
|---|---|
| Photometric repeatability | 0.1%T (0 – 100%T) |
| Photometric range | 0 – 200%T; −0.3 to 3 A; 0 – 9,999 C |
| Stray light | 0.05%T at 220 nm and 360 nm |
| Stability / baseline / noise | ±0.0005 A/h at 500 nm / ±0.002 A / ±0.001 A |
| Work modes | T, A, C, E |
| Scanning speed | High, medium, low (up to 3,000 nm/min) |
| Wavelength setting | Automatic |
| Display | 320 × 240 dot-matrix LCD; keypad |
| Functions | Photometric, quantitative, spectrum scan, kinetics, multi-wavelength, DNA/protein |
| Memory | 1,024 MB for test data and calibration curves |
| Light source / detector | Deuterium and tungsten lamps (socket type) / imported silicon photodiode |
| Cuvettes | 10 mm manual 4-cell holder supplied; chamber takes 5 – 100 mm cuvettes |
| Outputs | USB, RS232 |
| Power | AC 110 – 220 V, 50 – 60 Hz |
| Shipping size / gross weight | 810 × 660 × 390 mm / 27 kg |
| Supplied with | 4 × 10 mm glass cuvettes, 2 × 10 mm quartz cuvettes, power cord, user’s manual, PC software |

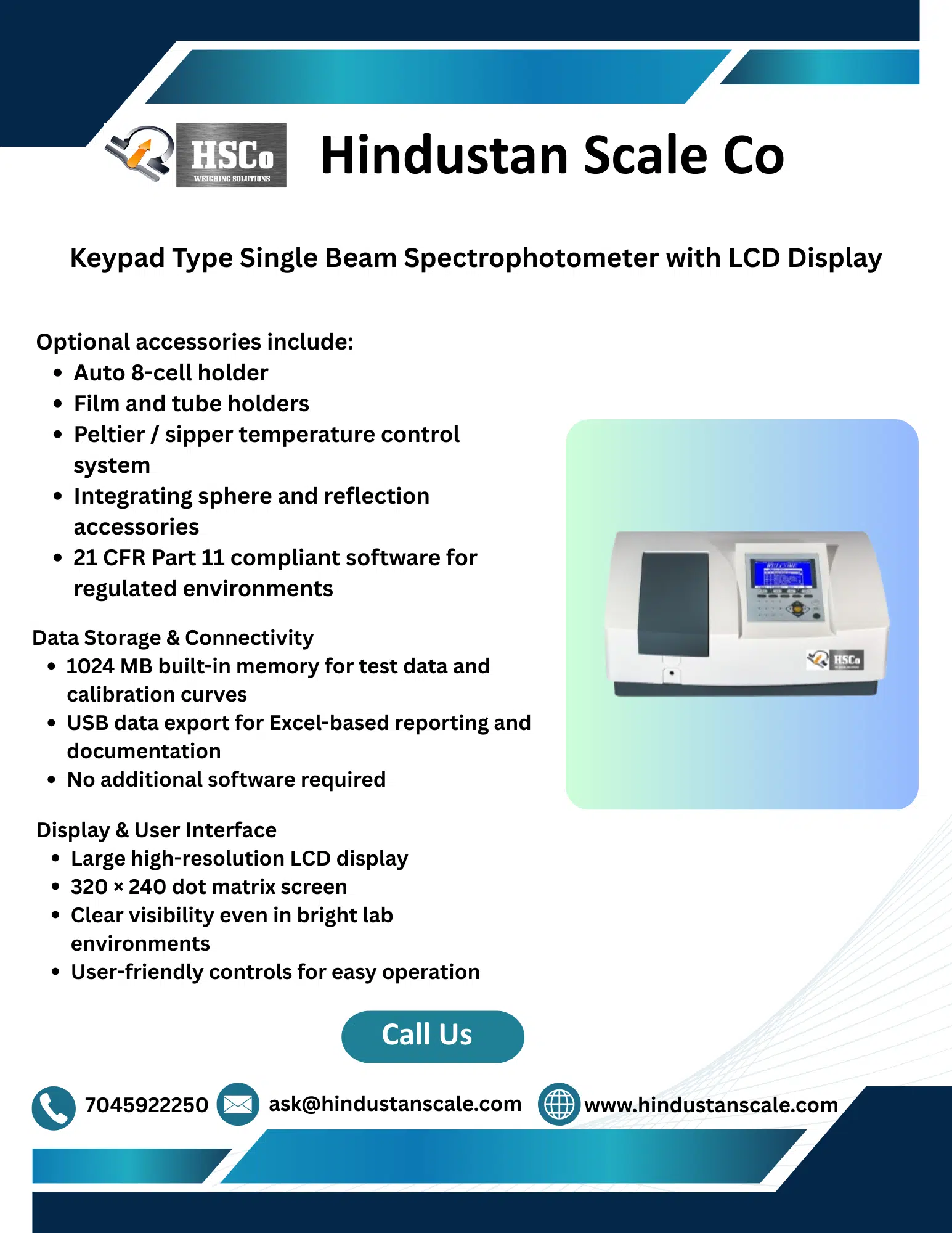

| Options | Auto 8-cell holder; film and tube holders; Peltier / sipper temperature control; integrating sphere and reflection accessories |
| Warranty | 1 year |
Which spectrophotometer?
For double-beam stability with the same LCD and keypad, see the double-beam keypad spectrophotometer; for a lower-cost single-beam model, the Econ 2 series. Optional holders and temperature control are on the spectrophotometer accessories page. Browse all spectrophotometers.
Where it is used
Water and wastewater testing, teaching labs, food and beverage analysis, pharmaceuticals, paints and inks, chemicals, and environmental and research labs.
Questions buyers ask
Photometric, quantitative, spectrum scanning, kinetics, multi-wavelength and DNA/protein measurements.
Path lengths from 5 mm to 100 mm. A 10 mm manual 4-cell holder is supplied.
By USB into Excel, with no extra software; RS232 is also fitted.
No. The deuterium and tungsten lamps are socket type and need no optical realignment.
Order or ask for a quotation
Tell us the bandwidth and wavelength range you need. Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Spectral Bandwidth | 2nm, 1nm, 0.5/1/2/4/5nm, 0.5/1/2/4/5nm with W320-1100 |
|---|---|
| Beam Type | Single Beam |
