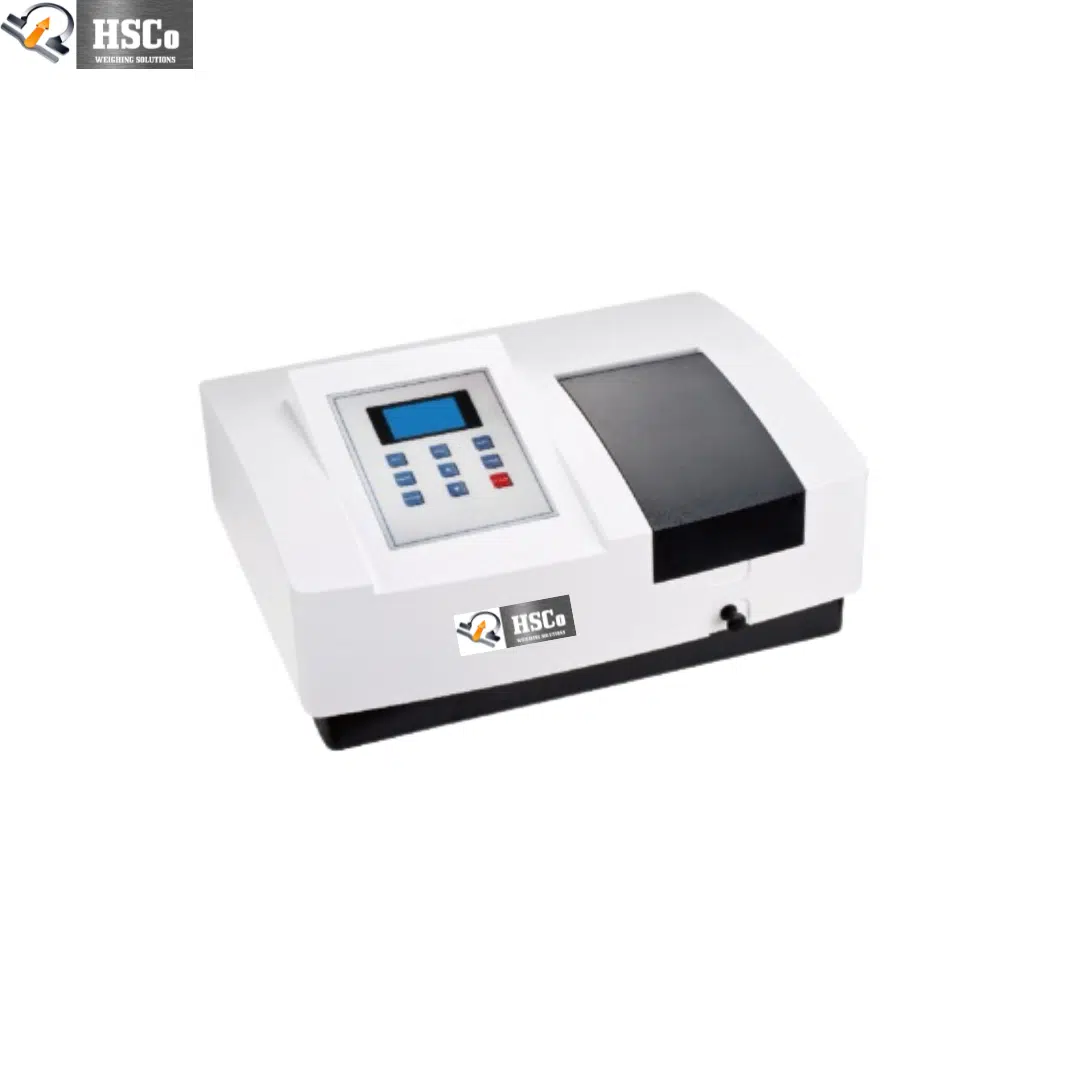

Keypad Single Beam UV-Vis Spectrophotometer Econ 2 – 190 to 1000 nm, LCD
Price range: ₹114,500.00 through ₹119,950.00 (ex. GST) (₹135,110.00 – ₹141,541.00 incl. GST)
Keypad single-beam UV-Vis spectrophotometer: 190–1,000 nm, 2 or 4 nm bandwidth, 1 nm accuracy, automatic wavelength setting, 128 × 64 LCD, stores 200 results and 100 curves, USB and RS232. 1-year warranty.
The HSCo Econ 2 series is a keypad-operated single-beam UV-Visible spectrophotometer with an LCD, for routine analysis in teaching labs, water testing and quality control. It covers 190 – 1,000 nm with 1 nm wavelength accuracy, sets the wavelength automatically, and stores up to 200 results and 100 standard curves. Deuterium and tungsten lamps cover the UV and visible ranges, and USB and RS232 outputs connect it to a PC or printer.
Why labs choose the Econ 2
- Full UV-Vis range. 190 – 1,000 nm, deuterium and tungsten lamps.
- Accurate. 1 nm wavelength accuracy, 0.5%T photometric accuracy, 1,200 lines/mm grating.
- Easy to use. Keypad with automatic wavelength setting; 128 × 64 LCD.
- Remembers. 200 test results and 100 standard curves.
- Four work modes: transmittance, absorbance, concentration and energy.
- Grows with you. Optional PC software for scanning, kinetics and multi-wavelength work; 4-cell and 8-cell holders.
Specifications
| Model | HSCE-SPM-KLS2B1 | HSCE-SPM-KLS4B1 |
|---|---|---|
| Spectral bandwidth | 2 nm | 4 nm |
| Optical system | Single beam, 1,200 lines/mm grating |
|---|---|
| Wavelength range | 190 – 1,000 nm |
| Wavelength accuracy / repeatability | 1 nm / ≤ 0.5 nm |
| Photometric accuracy / repeatability | 0.5%T / 0.3%T |
| Photometric range | 0 – 200%T; −0.3 to 3 A; 0 – 9,999 C |
| Stray light | 0.3%T |
| Stability | ±0.002 A/h at 500 nm |
| Baseline flatness / noise | ±0.002 A / ±0.001 A |
| Work modes | T, A, C, E |
| Wavelength setting | Automatic |
| Display | 128 × 64 LCD; keypad |
| Light source / detector | Deuterium and tungsten lamps / silicon photodiode |
| Memory | 200 test results, 100 standard curves |
| Cuvette holder | 10 mm manual 4-cell holder (cuvettes from 5 to 100 mm with optional holders) |
| Output | USB, RS232 |
| Power | 110 – 220 V AC, 50–60 Hz |
| Shipping size / weight | 700 × 580 × 340 mm / 20 kg |
| Standard accessories | 4 × 10 mm glass cuvettes, 2 × 10 mm quartz cuvettes (UV), power cord, manual |
| Options | PC software; 50 / 100 mm 4-cell holders; automatic 8-cell holder; film holder |
| Warranty | 1 year |
Which spectrophotometer?
For a double-beam instrument with a touch screen, see the double beam touchscreen spectrophotometer; for a knob-operated model, the single beam spectrophotometer Series 1. Browse all spectrophotometers.
Questions buyers ask
190 – 1,000 nm, UV and visible.
Spectral bandwidth: 2 nm on the KLS2B1, 4 nm on the KLS4B1.
Yes: 200 test results and 100 standard curves.
Yes, by USB or RS232. Optional PC software adds scanning, kinetics and multi-wavelength analysis.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the bandwidth and accessories you need. Hindustan Scale Company, Mumbai, since 1955.
| Beam Type | Single Beam |
|---|---|
| Spectral Bandwidth | 2nm, 4nm |
