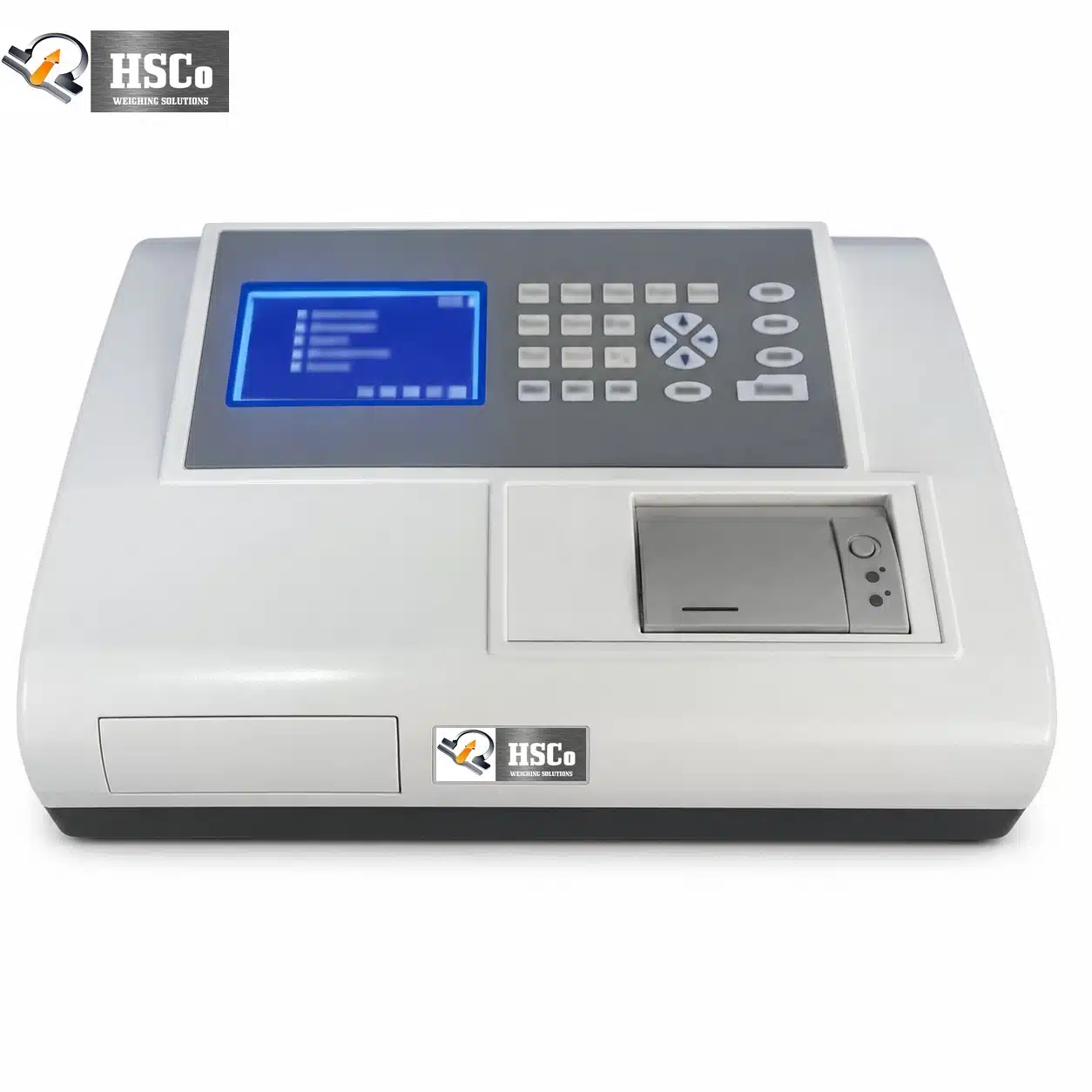

The HSC-ER ELISA reader is a microplate reader for 96-well plates. It measures absorbance for ELISA assays, antibody and antigen detection and enzyme-activity tests. An 8-position filter wheel, with 405, 450, 492 and 630 nm filters as standard, covers 400 – 750 nm. It reads from 0 to 4.000 Abs and scans a full plate in under 5 seconds. It runs end-point, kinetic and multi-standard-curve methods, can shake the plate before reading, stores up to 10,000 results and prints them. It is made for clinical laboratories, hospitals, biotech companies and research labs.
Why labs choose it
- Fast. A full 96-well plate in under 5 seconds.
- Accurate. ±1% or ±0.01 Abs; repeatability 0.5% CV or better.
- Flexible methods. End-point, kinetic and multi-standard curve.
- Plate shaking. Linear and orbital, with programmable time and speed.
- Keeps and shares results. 10,000-result memory, printer, USB and RS-232 (LAN optional), plus Windows analysis software.
Specifications
| Model | HSC-ER |
|---|---|
| Display / controls | LCD with keypad |
| Plate | 96-well microplate |
| Reading modes | End-point, kinetic, multi-standard curve |
| Wavelength range | 400 – 750 nm |
| Filters | 8-position filter wheel; 405, 450, 492, 630 nm standard; others optional |
| Photometric range | 0.000 – 4.000 Abs |
| Accuracy | ±1% or ±0.01 Abs |
| Repeatability | ≤ 0.5% CV |
| Light source / detector | Halogen-tungsten lamp or LED (by model) / silicon photodiode |
| Reading speed | Under 5 s per 96-well plate |
| Shaking | Linear and orbital; programmable time and speed |
| Software | Windows analysis software: curve fitting, data storage, result printing |
| Memory | Up to 10,000 results |
| Connectivity | USB, RS-232; LAN optional |
| Printer | Built-in thermal printer; external printer supported |
| Power | 220 V AC ±10%, 50/60 Hz |
| Size / weight | About 430 × 340 × 200 mm / 8 – 12 kg, by model |
| Warranty | 1 year |
Which instrument?
To wash the plates between ELISA steps, see the ELISA washer HSC-EW. Browse all immunoassay instruments.
Where it is used
ELISA assays, antibody and antigen detection, enzyme-activity measurement, clinical diagnostics and research, in clinical labs, hospitals and biotech facilities.
Questions buyers ask
It shines light of a set wavelength through each well of a microplate and measures how much is absorbed, which shows how much of the target substance each sample holds.
405, 450, 492 and 630 nm as standard, in an 8-position wheel with room for more.
Under 5 seconds for a full 96-well plate.
Yes: a built-in thermal printer, USB and RS-232, and Windows software for curve fitting and storage.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the tests you run and the filters you need. Hindustan Scale Company, Mumbai, since 1955.
