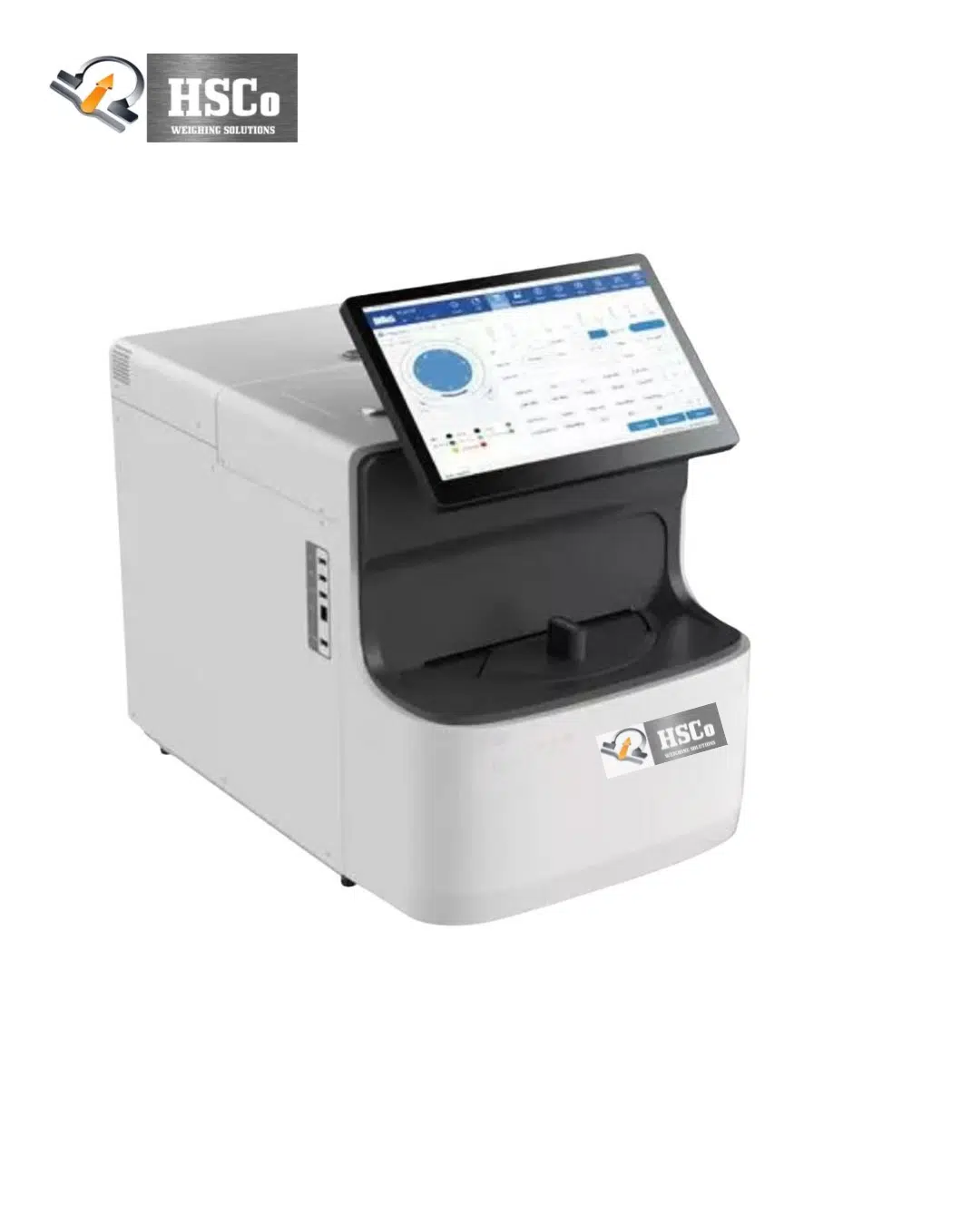

HSC – CLIA Analyzer β Technical Specification
Measurement Principle:
Chemiluminescence Immunoassay (CLIA) for highly sensitive detection of analytes (hormones, tumor markers, infectious disease markers, etc.).
Throughput / Capacity:
Typical throughput: 60β200 tests/hour, depending on model.
Sample capacity: 20β100 samples per batch.
Reagent carousel or tray for multiple reagents.
Detection Method:
High-sensitivity photomultiplier tube (PMT) or luminometer-based detection.
Linear detection range with low background noise.
Sample Types:
Serum, plasma, whole blood, or urine (depending on assay).
Sample volume: typically 10β200 Β΅L per test.
Automation:
Fully or semi-automated operation.
Features: automatic sample/reagent handling, incubation, washing, and reading.
Reagent System:
Pre-packaged reagents with barcode identification.
Onboard cooling or refrigeration for reagent stability.
Calibration & Quality Control:
Supports multi-point calibration and onboard QC checks.
Software alerts for out-of-range calibration or control failures.
Display & Interface:
Touchscreen or LCD display with step-by-step workflow guidance.
PC interface for data logging, report generation, and LIMS integration.
Precision & Accuracy:
Intra-assay CV: β€5%
Inter-assay CV: β€8%
Power Supply:
AC 220V Β±10%, 50/60 Hz, single-phase.
Environmental Conditions:
Operating temperature: 15Β°C β 30Β°C
Relative humidity: β€80%, non-condensing
Safety Features:
Over-temperature protection, spill detection, and automatic shutdown in case of errors.
Construction:
Compact benchtop design with chemical-resistant ABS or stainless steel body.
User-friendly loading and unloading of samples and reagents.
Compliance:
Conforms to ISO 13485, CE, and international clinical laboratory standards.
Optional Accessories:
Barcode reader, automatic sample loader, printer, UPS, and refrigeration module for reagents.
