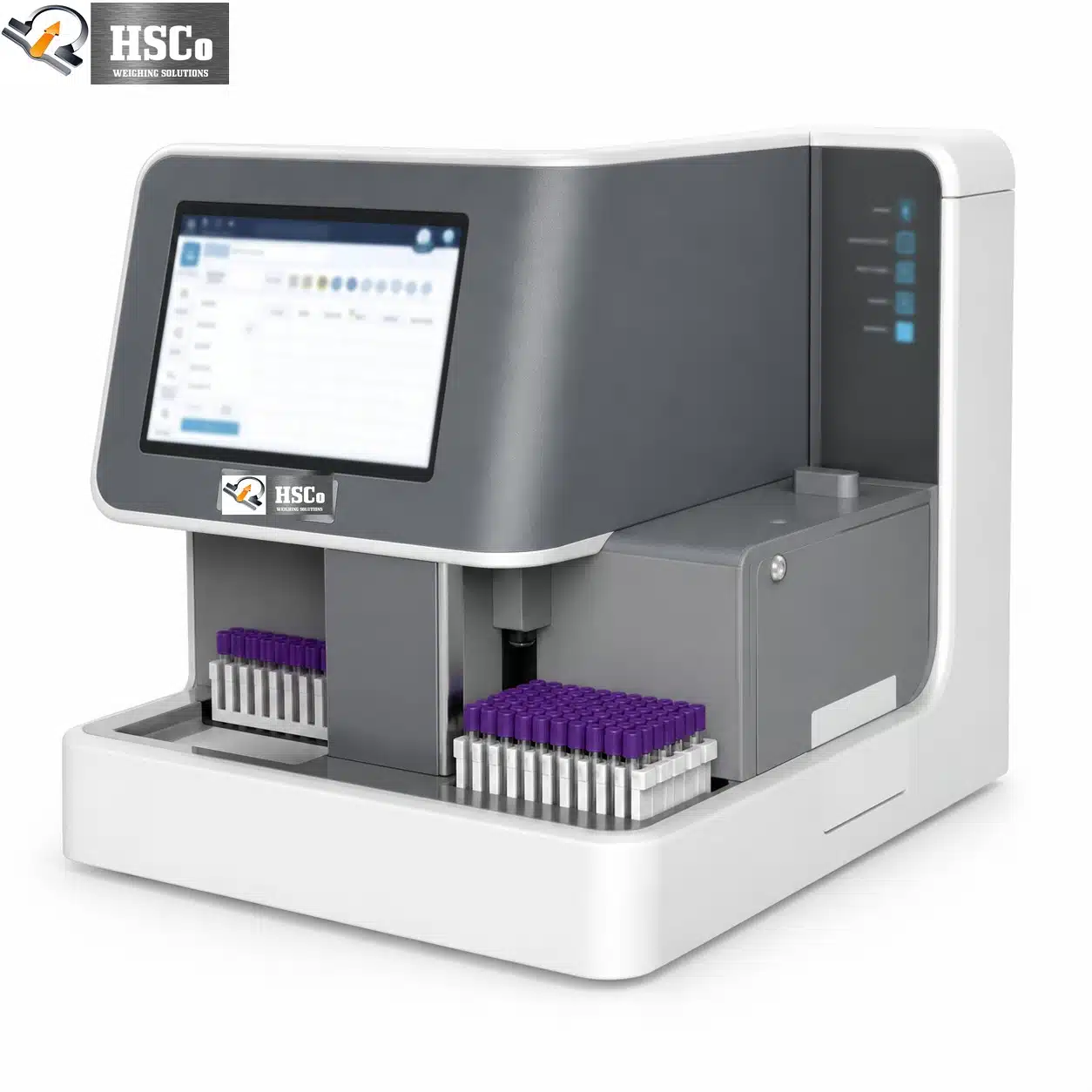

The HSC CLIA analyzer is a chemiluminescence immunoassay (CLIA) system for hospital and diagnostic laboratories. It uses magnetic-particle separation with photomultiplier detection to measure hormones, tumour markers, infectious-disease markers, thyroid function, cardiac markers and other immunoassays, fully automatically with continuous sample loading.
What it does for a lab
- Fully automatic runs. Continuous loading keeps samples moving without batch interruptions.
- Common immunoassay methods. Sandwich, competitive and indirect assays.
- Quality control built in. Multi-level QC with Levey–Jennings statistics, and multi-point automatic calibration with stored curves.
- Stable incubation. 37 °C ± 0.5 °C.
- Connects to your systems. Windows-based software with LIS/HIS connectivity over USB, LAN and RS232.
Specifications
| Series | HSC-CLIA |
|---|---|
| Principle | Chemiluminescent immunoassay, magnetic-particle separation |
| Assay methods | Sandwich, competitive, indirect |
| Throughput | 100 – 300 tests per hour, depending on model |
| Sample capacity | 50 – 100 samples (expandable), depending on model |
| Reagent positions | 15 – 25 refrigerated slots, depending on model |
| Sample / reagent volume | 10 – 150 µL / 50 – 300 µL, programmable |
| Detector | Photomultiplier tube; 300 – 650 nm emission range |
| Incubation | 37 °C ± 0.5 °C |
| Data | 100,000 or more test results |
| Display | 10-inch colour LCD touchscreen |
| Interfaces | USB, LAN, RS232; LIS/HIS connectivity |
| Printer | Built-in thermal printer or external printer |
| Power | AC 220 V ± 10%, 50/60 Hz |
| Size and weight | About 800 × 600 × 500 mm; 35 – 50 kg, depending on model |
| Warranty | 1 year |
Where a figure is a range, it depends on the model in the series; tell us your daily test volume and we will recommend the right one.
Questions buyers ask
An instrument that measures substances in patient samples by an immunoassay whose signal is light (chemiluminescence), read by a photomultiplier.
Hormones, tumour markers, infectious diseases, thyroid function, cardiac markers and other immunoassays.
100 to 300, depending on the model.
Yes, through its Windows software over USB, LAN or RS232.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your daily test volume, the assay menu you need and your LIS details. Hindustan Scale Company, Mumbai, since 1955.
