ELISA Microplate Washer HSC-ELW – 96 and 48 Well, Touch Screen
Price on Request
Automatic ELISA microplate washer: 96/48-well, flat/U/V plates, residual ≤1 µL, 1–99 cycles, 100 programs, colour touch screen, self-cleaning.

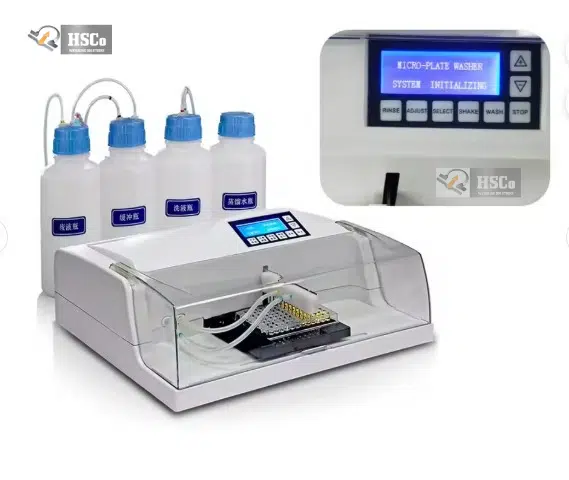

The HSC ELISA washer (HSC-ELW series) washes 96- and 48-well microplates automatically, with programmable cycles, soak time and dispense volume, and a residual volume of 1 µL or less per well for clean, low-background assays. A manifold to suit your plates, flat, U and V-bottom plate modes and up to 100 stored programs make it a practical partner for the ELISA reader in clinical, diagnostic and research labs.
Why labs choose it
- Low residual volume: 1 µL or less per well.
- Programmable: 1–99 wash cycles, 0–999 s soak, 50–1,000 µL dispense.
- Manifold to suit your plates – ask us for the channel count.
- Flat, U and V-bottom plates; 96- and 48-well.
- 100 stored programs on a colour touch screen.
- Self-check and calibration, plus automatic rinse and disinfection.
Specifications
| Model | HSC-ELW series |
|---|---|
| Plates | 96-well and 48-well; flat, U and V-bottom |
| Manifold | Channel count to suit your plates – ask us |
| Wash cycles | 1 – 99, programmable |
| Dispense volume / accuracy | 50 – 1,000 µL per well / ±2% |
| Residual volume | ≤ 1 µL per well |
| Soak time | 0 – 999 s |
| Aspiration | Single or double, programmable |
| Bottles | Four bottles (wash solutions and waste), 1,000 mL each |
| Display | 4.3″ or 7″ colour LCD touch screen |
| Memory | Up to 100 wash programs |
| Maintenance | Automatic self-check and calibration; automatic rinse and disinfection |
| Noise | ≤ 60 dB |
| Connectivity | USB (optional) |
| Power | AC 220 V ±10%, 50/60 Hz |
| Size / weight | About 430 × 355 × 180 mm / 8 – 10 kg |
| Warranty | 1 year |
Where it is used
ELISA plate washing for diagnostic assays, antibody and antigen detection, immunology and biochemical research. Pair it with the ELISA reader; browse all immunoassay instruments.
Questions buyers ask
96- and 48-well plates with flat, U or V bottoms.
1 µL or less.
Yes, up to 100.
Yes, it has automatic rinse and disinfection modes.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the plate types and manifold you need. Hindustan Scale Company, Mumbai, since 1955.
