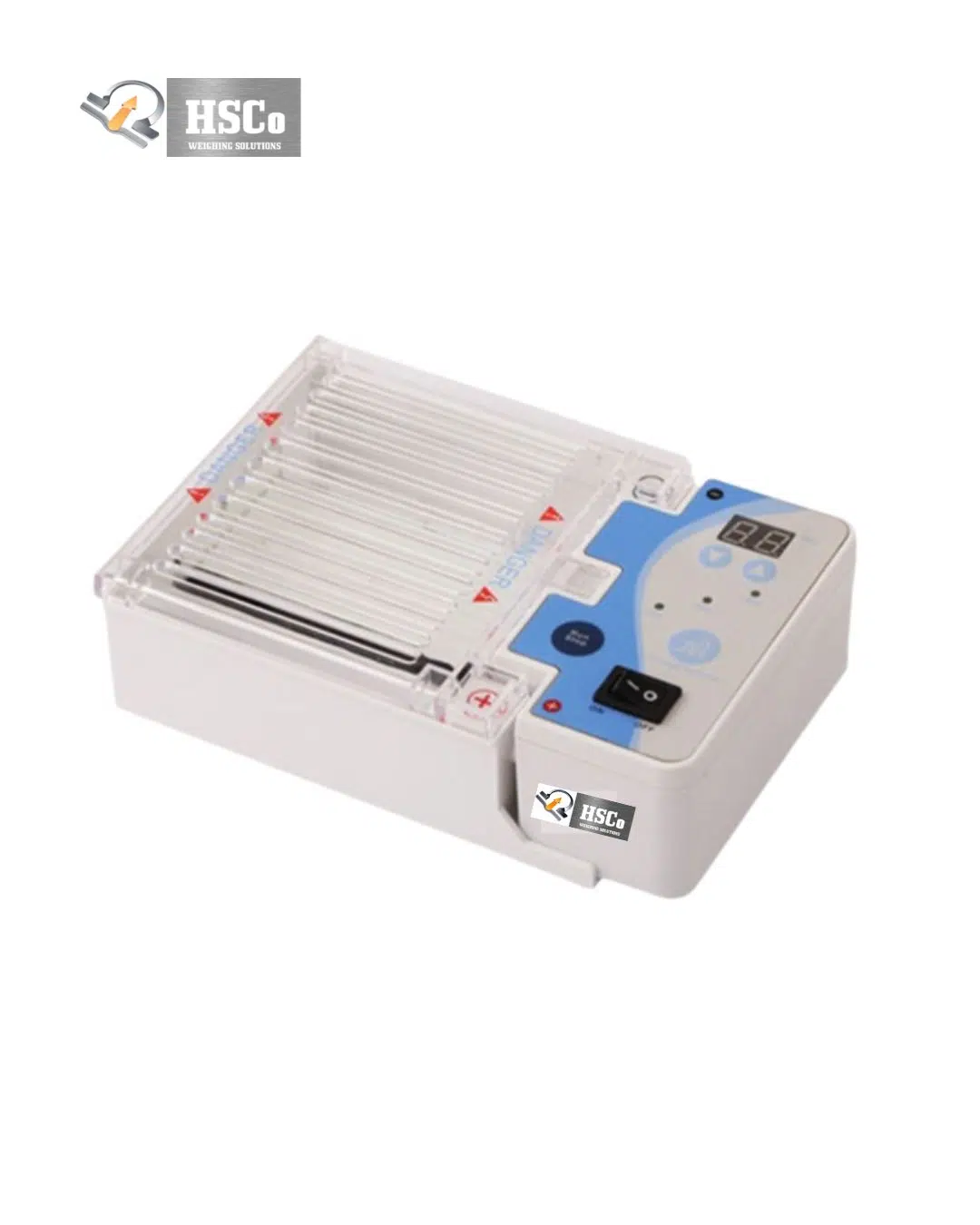

The HSC gel electrophoresis unit separates DNA, RNA and proteins by size in an agarose or polyacrylamide gel under an electric field. It is used in molecular biology, genetics, biochemistry, biotechnology and clinical research labs. It comes as a horizontal or vertical unit, with gel trays from 7 × 7 cm up to 15 × 20 cm. The tank is leak-proof acrylic, with detachable electrodes of 99.99% pure platinum wire. A lid interlock stops the current whenever the lid is open. It is suitable for teaching labs as well as advanced research.
Why labs choose it
- DNA, RNA and protein work on agarose or polyacrylamide gels, horizontal or vertical.
- Sharp, repeatable bands. A transparent tank with an even electric field for consistent migration.
- Long-life electrodes. 99.99% pure platinum wire, corrosion resistant and detachable.
- Safe. The lid interlock cuts the current when the lid is opened; non-slip base.
- Flexible combs. 1.0, 1.5 or 2.0 mm thick; 8, 10, 12 or 20 wells.
Specifications
| Type | Horizontal and vertical units available |
|---|---|
| Gels | Agarose and polyacrylamide |
| Gel tray sizes | Mini 7 × 7 cm; medium 10 × 10 cm; large 15 × 20 cm (customisable by model) |
| Buffer volume | 200 – 1,500 ml, depending on gel size and tank |
| Construction | Leak-proof acrylic |
| Electrodes | 99.99% pure platinum wire; corrosion resistant, detachable |
| Combs | Fixed and adjustable; 1.0, 1.5, 2.0 mm thick; 8, 10, 12 or 20 wells |
| Safety | Lid interlock (no current with the lid open); non-slip base |
| Power supply | Built in, with digital display |
| Supplied with | Gel casting tray and combs; red and black power leads; level indicator |
| Operating conditions | 10 – 40 °C; up to 80% RH, non-condensing |
| Options | UV-transparent gel tray; cooling system for high-voltage runs; gel documentation and imaging system |
| Warranty | 1 year |
Where it is used
Molecular biology, genetics, biochemistry and biotechnology labs, clinical research, and teaching labs in colleges and universities. Browse all laboratory analytical instruments.
Questions buyers ask
Separating DNA, RNA or protein fragments by size, so they can be checked, compared or cut out for further work.
Horizontal units are used for agarose gels, typically for DNA and RNA; vertical units for polyacrylamide gels, typically for proteins. Both are available.
Mini 7 × 7 cm, medium 10 × 10 cm and large 15 × 20 cm; other sizes can be made to order.
The lid interlock cuts the current as soon as the lid is opened.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the type, gel size and number of wells you need. Hindustan Scale Company, Mumbai, since 1955.
