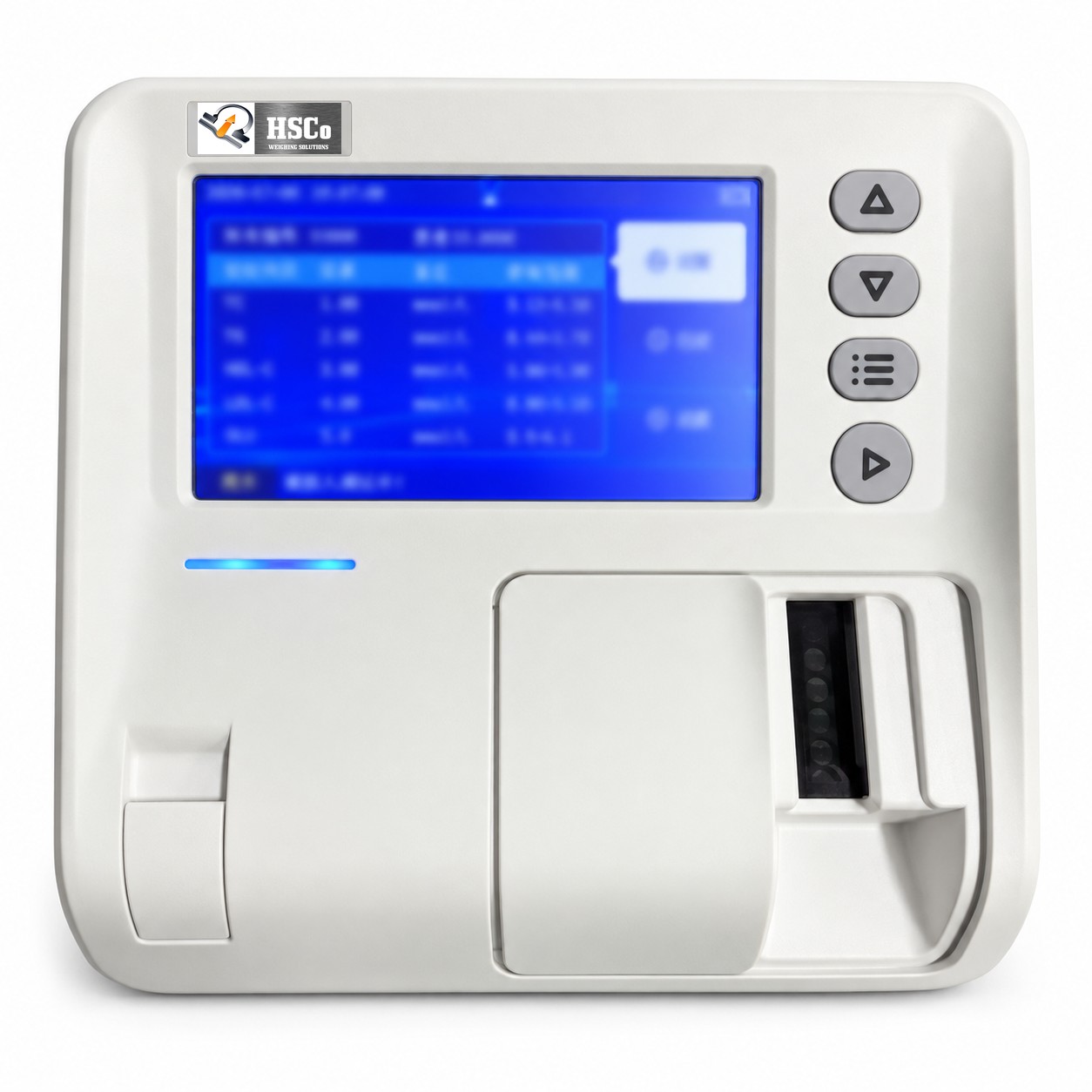

The HSCo HSC-BA biochemical analyzer runs clinical chemistry tests quickly and accurately for hospitals, diagnostic labs and research centres. It is available fully automatic or semi-automatic and handles up to 200 – 500 tests an hour depending on the model. It reads 340 – 800 nm with ±1% photometric accuracy, controls the reaction at 25, 30 or 37 °C, and stores at least 10,000 results. A colour touchscreen runs it, and results print on a built-in thermal printer or go to a PC over USB, RS-232 or LAN.
Why labs choose it
- Up to 200 – 500 tests an hour, fully or semi-automatic.
- 340 – 800 nm, ±1% photometric accuracy.
- Small samples: 2 – 50 µL sample, 150 – 500 µL reagent.
- 25, 30 or 37 °C programmable temperature.
- Flexible calibration: linear, multi-point, factor and blank correction.
- Records: ≥ 10,000 results, built-in printer, USB / RS-232 / LAN.
Specifications
| Model | HSC-BA |
|---|---|
| Type | Fully automatic or semi-automatic |
| Throughput | Up to 200 – 500 tests per hour (by model) |
| Wavelength range | 340 – 800 nm |
| Photometric accuracy | ±1% |
| Light source / detector | Halogen / tungsten lamp, long life / silicon photodiode |
| Cuvette | Flow cell, 10 mm path; disposable cuvettes optional |
| Sample / reagent volume | 2 – 50 µL / 150 – 500 µL |
| Temperature | 25, 30 or 37 °C, programmable |
| Calibration | Linear, multi-point, factor, blank correction |
| Memory | ≥ 10,000 test results; USB transfer |
| Display | 7-inch or 10-inch colour LCD touchscreen |
| Interfaces | USB, RS-232, LAN |
| Printer | Built-in thermal printer, or external printer |
| Power | 220 V AC ±10%, 50 Hz |
| Size / weight | About 400 × 320 × 180 mm / 8 – 15 kg (by model) |
| Warranty | 1 year |
Related
For general absorbance work, see the Econ-1 spectrophotometer; to spin down samples, the high-speed centrifuge HSC-C-NK16.5TT. Browse all misc laboratory equipment.
Where it is used
Clinical laboratories, hospitals, diagnostic centres and research centres: biochemical analysis and diagnostic testing.
Questions buyers ask
Up to 200 – 500, depending on the model.
Both configurations are offered; tell us your daily test load.
Yes, on a built-in thermal printer, or on an external printer.
Order or ask for a quotation
Tell us your tests per day and the tests you run. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
