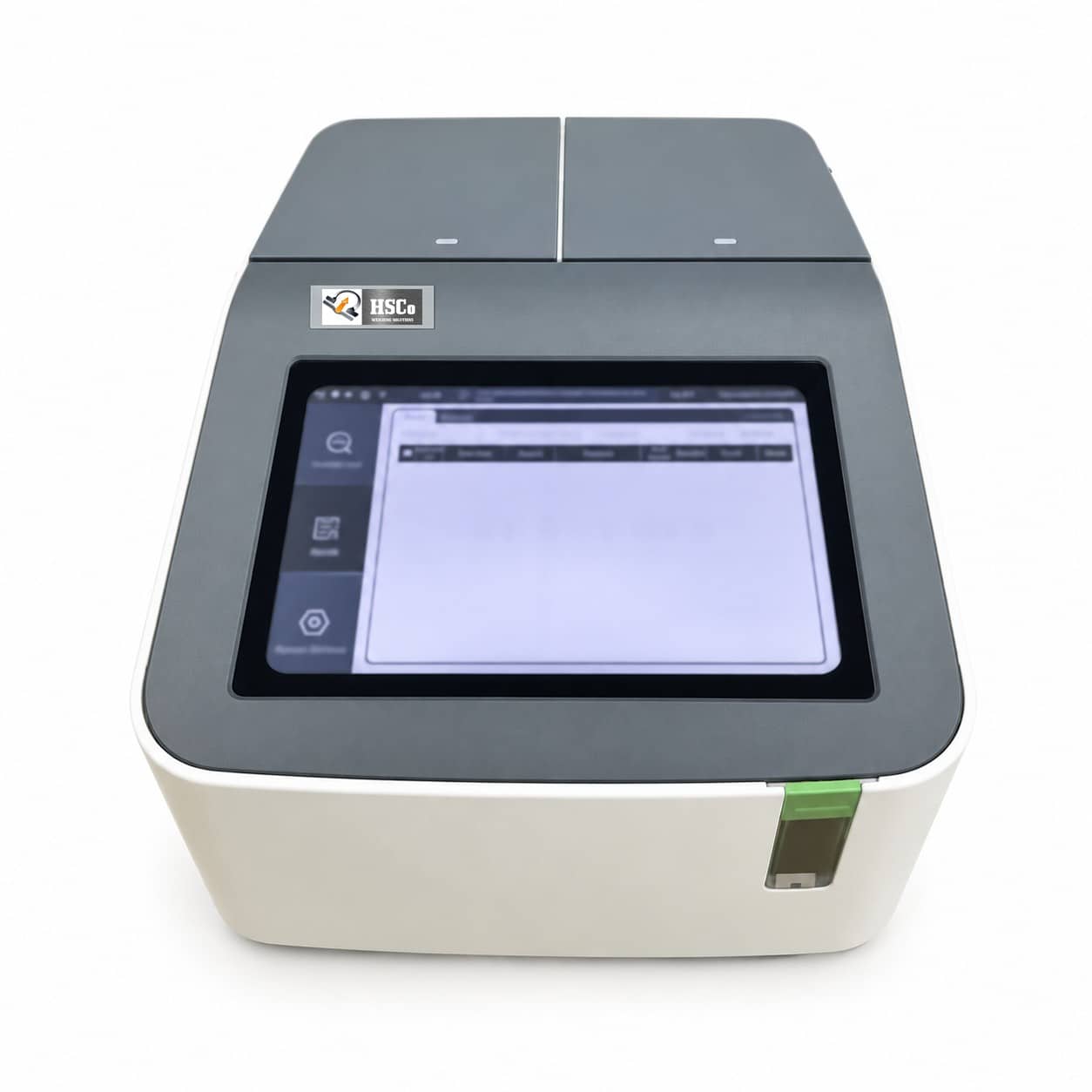

The HSCo PCR system is a thermal cycler that amplifies DNA and RNA for diagnostics and research. Depending on the model it is a conventional, gradient or real-time PCR system. It takes 96-well or 48-well plates or 0.2 mL tubes, cycles between 4 and 99 °C with ±0.2 °C accuracy, and is run from a colour touch screen with room for 100 programs. It is used in clinical diagnostics, research laboratories and biotechnology units.
Why labs choose it
- Three types: conventional, gradient or real-time PCR, by model.
- Accurate block: ±0.2 °C accuracy, ±0.3 °C uniformity, 3 – 6 °C per second ramp.
- Gradient function across 30 °C to find the best annealing temperature.
- Real-time models read FAM, HEX/VIC, ROX and Cy5 fluorescence.
- Easy to run: 7 – 10 inch colour touch screen, 100 programs of 100 steps, heated lid.
- Keeps the data: 10,000+ run records, USB export and Windows software.
Specifications
| Type | Conventional, gradient or real-time PCR (by model) |
|---|---|
| Heating | Peltier or block heating |
| Samples | 96-well or 48-well plates; 0.2 mL PCR tubes |
| Temperature range | 4 – 99 °C |
| Accuracy / uniformity | ±0.2 °C / ±0.3 °C across the block |
| Ramp rate | 3 – 6 °C per second, heating and cooling |
| Gradient | 30 °C span, programmable |
| Heated lid | 40 – 110 °C, adjustable |
| Programs | Up to 100, with 100 steps each |
| Detection (real-time models) | Fluorescence: FAM, HEX/VIC, ROX, Cy5 (multi-channel optional) |
| Display | 7 – 10 inch colour touch screen |
| Data | 10,000+ run records; USB export; Windows software for set-up, monitoring and analysis |
| Connections | USB, RS-232; LAN / Ethernet optional |
| Power | 220 V AC ±10%, 50/60 Hz |
| Size / weight | About 450 × 380 × 280 mm; 12 – 18 kg (by model) |
| Warranty | 1 year |
Other molecular biology equipment
To run the PCR product on a gel, see the gel electrophoresis unit; to set up plates, the eight-channel pipette; for keeping reagents at a set temperature, the dry bath. Browse all laboratory equipment.
Where it is used
Clinical and molecular diagnostics, pathogen detection, genetic testing, cloning, and life-science research in hospitals, universities and biotech units.
Questions buyers ask
Real-time models are available, with fluorescence detection; conventional and gradient models are also offered.
96-well or 48-well plates, or 0.2 mL PCR tubes.
Up to 100 programs of 100 steps each, and more than 10,000 run records.
Yes, by USB, and it comes with Windows software for analysis.
Ask for a quotation
Tell us the type (conventional, gradient or real-time) and plate format you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
