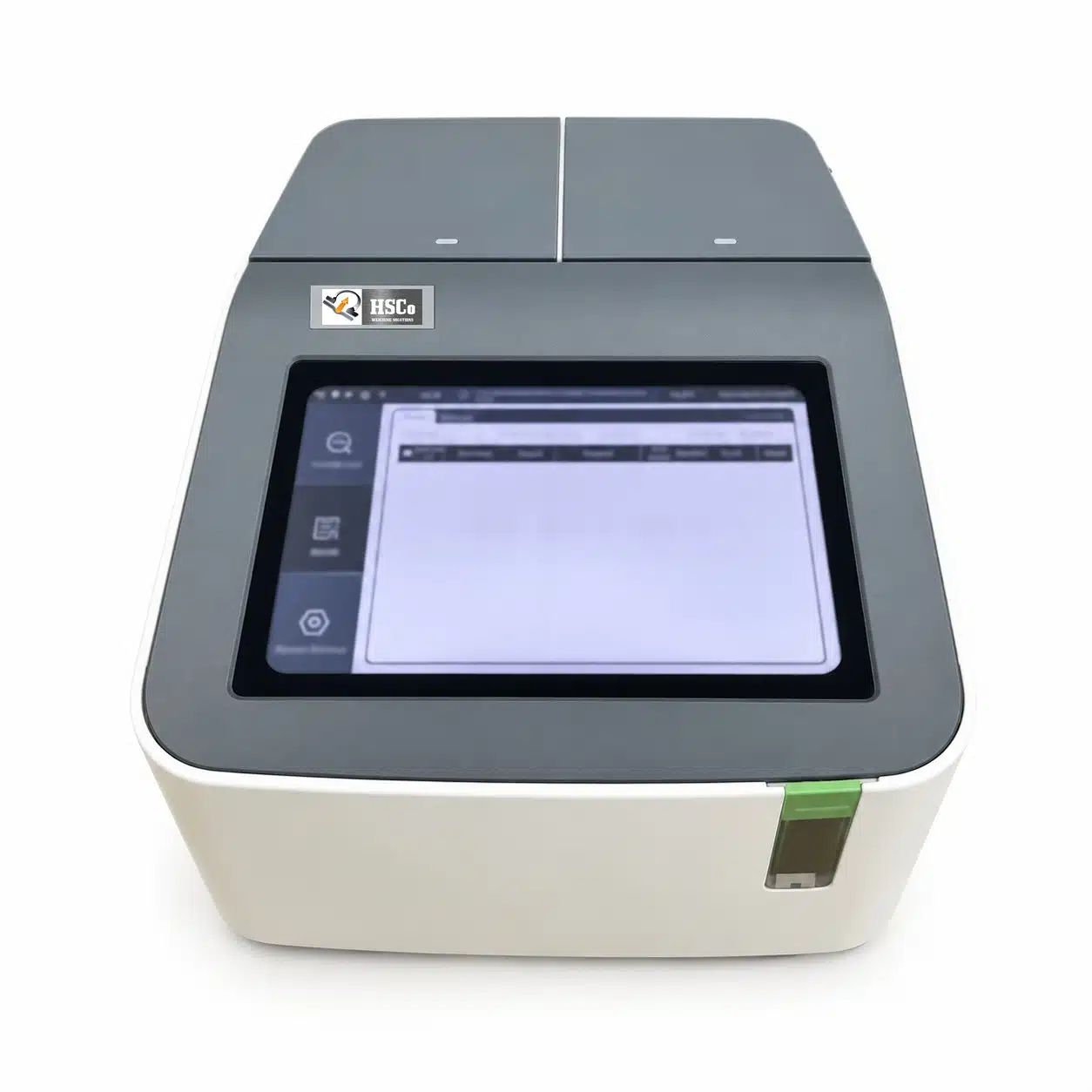

Technical Specifications β PCR System (Polymerase Chain Reaction)
Model: HSC-PCR Series
Type: Gradient / Conventional / Real-Time PCR (depending on model)
Thermal Cycling Method: Peltier-based or block heating system
Sample Capacity: 96-well / 48-well microplates or 0.2 mL PCR tubes
Temperature Range: 4Β°C to 99Β°C
Temperature Accuracy: Β±0.2Β°C
Temperature Uniformity: Β±0.3Β°C across block
Ramp Rate: 3β6Β°C/sec (heating & cooling)
Gradient Function: 30Β°C range (programmable for optimization)
Programming: Up to 100 programs with 100 steps each
Lid Type: Heated lid adjustable 40β110Β°C
Detection Method: Real-time fluorescence detection (for RT-PCR models)
Fluorescence Channels: FAM, HEX/VIC, ROX, Cy5 (optional multi-channel)
Display: 7β10 inch color touchscreen with graphical interface
Data Storage: β₯10,000 run records with USB export
Software: Windows-based for program setup, monitoring, and analysis
Connectivity: USB, RS232, and optional LAN/Ethernet
Power Supply: AC 220V Β±10%, 50/60 Hz
Dimensions (Approx.): 450 Γ 380 Γ 280 mm
Weight: 12β18 kg (depending on model)
Applications: Gene amplification, pathogen detection, genetic testing, molecular diagnostics, cloning, and research in life sciences.
