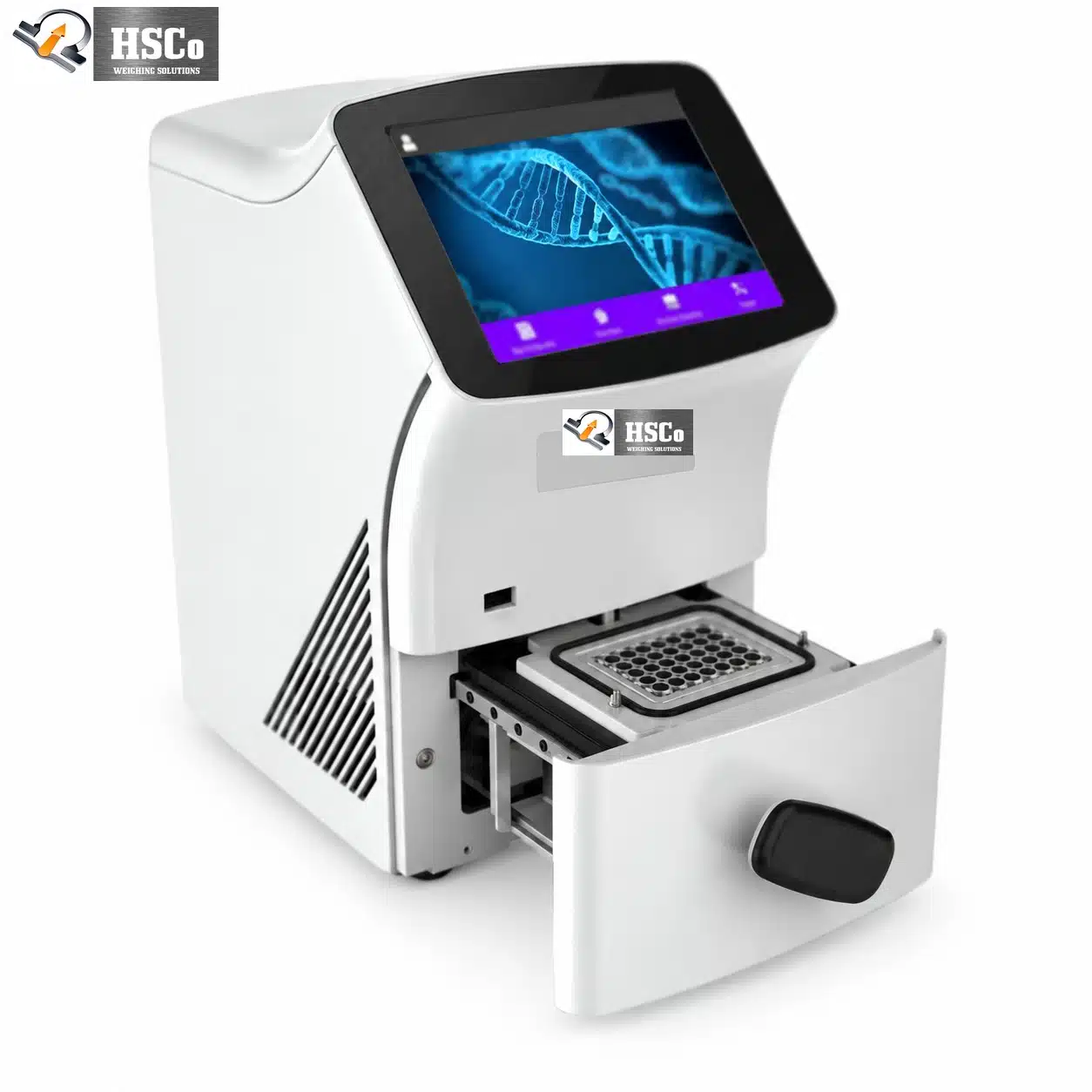

RT-PCR System- HSC – RTPCRS

Technical Specifications – HSC Real-Time PCR (PCR) System

• Technology: Real-Time PCR (Quantitative PCR)

• Detection Channels: 4 to 6 fluorescence channels (depending on model)

• Sample Capacity: 96-well plate (0.2 mL tubes or strips)

• Reaction Volume: 10–100 µL per well

• Temperature Range: 4°C – 100°C

• Temperature Accuracy: ±0.2°C

• Temperature Uniformity: ±0.3°C across block

• Heating/Cooling Rate: Up to 5°C per second

• Optical System: High-sensitivity LED excitation with photodiode or CCD detection

• Dynamic Range: ≥9 orders of magnitude

• Display: 7-inch or 10-inch color touchscreen interface

• Software Features: Quantification, melt curve analysis, genotyping, and relative expression analysis

• Connectivity: USB, LAN, and optional Wi-Fi for data transfer

• Power Supply: 220V ±10%, 50/60 Hz AC

• Dimensions: Approx. 350 × 300 × 400 mm

• Weight: 10–15 kg (approx.)

• Applications: Gene expression analysis, pathogen detection, SNP genotyping, and DNA quantification
