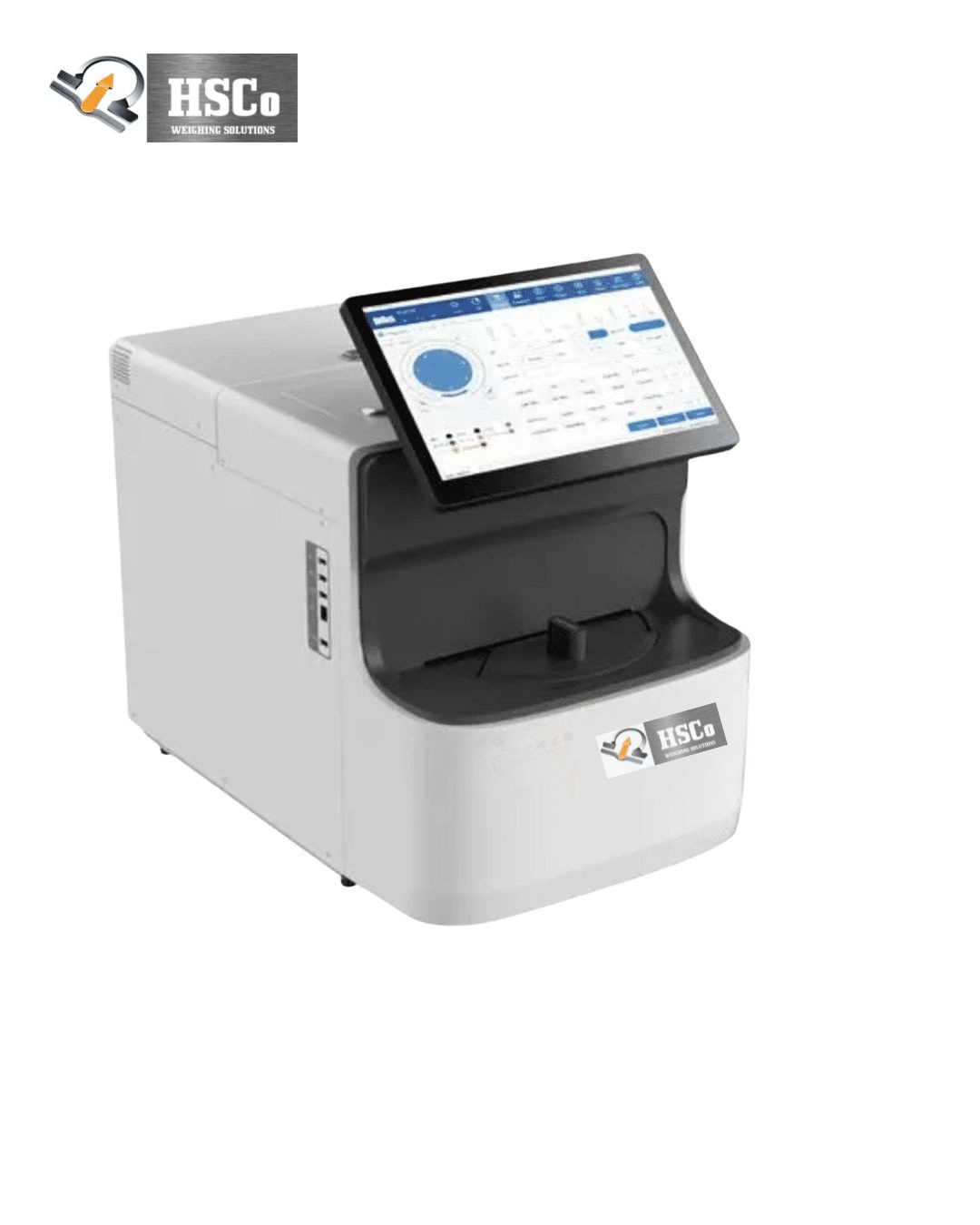

The HSC CLIA-A is a compact benchtop chemiluminescence immunoassay (CLIA) analyzer for hospital and diagnostic laboratories. It detects hormones, tumour markers, infectious-disease markers, antigens and antibodies with high sensitivity, and handles samples, reagents, incubation, washing and reading automatically, with 60 to 200 tests per hour depending on the model.
What it does for a lab
- Automated workflow. Automatic sample and reagent handling, incubation, washing and reading cut manual steps.
- Barcoded reagents. Pre-packaged reagents are identified by barcode and kept cool on board.
- Calibration and QC checks. Multi-point calibration and on-board QC, with alerts when a calibration or control is out of range.
- Guided operation. A touchscreen shows step-by-step workflow guidance.
- Reports and LIMS. PC interface for data logging, report generation and LIMS integration.
- Safety. Over-temperature protection, spill detection and automatic shutdown on errors.
Specifications
| Series | HSC-CLIA, model A |
|---|---|
| Principle | Chemiluminescence immunoassay (CLIA) |
| Throughput | 60 – 200 tests per hour, depending on model |
| Sample capacity | 20 – 100 samples per batch |
| Sample types | Serum, plasma, whole blood or urine (depending on assay) |
| Sample volume | Typically 10 – 200 µL per test |
| Detection | High-sensitivity photomultiplier tube (PMT) or luminometer |
| Reagents | Reagent carousel or tray; barcode identification; on-board cooling |
| Precision | Intra-assay CV ≤ 5%; inter-assay CV ≤ 8% |
| Display | Touchscreen or LCD with workflow guidance |
| Power | AC 220 V ± 10%, 50/60 Hz, single phase |
| Operating conditions | 15 – 30 °C; humidity ≤ 80%, non-condensing |
| Body | Compact benchtop, chemical-resistant ABS or stainless steel |
| Options | Barcode reader, automatic sample loader, printer, UPS, reagent refrigeration module |
| Warranty | 1 year |
Which CLIA analyzer suits you?
The CLIA-A is the compact benchtop choice for small and mid-sized labs, with 60 to 200 tests per hour. For higher volumes, the HSC-CLIA analyzer runs 100 to 300 tests per hour with continuous loading. Tell us your daily test count and we will recommend one.
Questions buyers ask
Serum, plasma, whole blood or urine, depending on the assay.
60 to 200, depending on the model.
Intra-assay CV of 5% or better and inter-assay CV of 8% or better.
Yes. Its PC interface supports data logging, reports and LIMS integration.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your daily test volume, the assays you need and your LIMS details. Hindustan Scale Company, Mumbai, since 1955.
