Thermal Cycler (PCR Machine) HSC-TC – 4 to 100 °C, ±0.2 °C, up to 5 °C/s, Gradient Option
Price on Request
Thermal cycler (PCR machine) HSC-TC: Peltier block 4 – 100 °C, ±0.2 °C, ±0.3 °C uniformity, up to 5 °C/s, optional 1 – 30 °C gradient, heated lid 100 – 110 °C, up to 500 programs, touch screen, USB; tubes or 96 / 384-well plates by model. 1-year warranty.

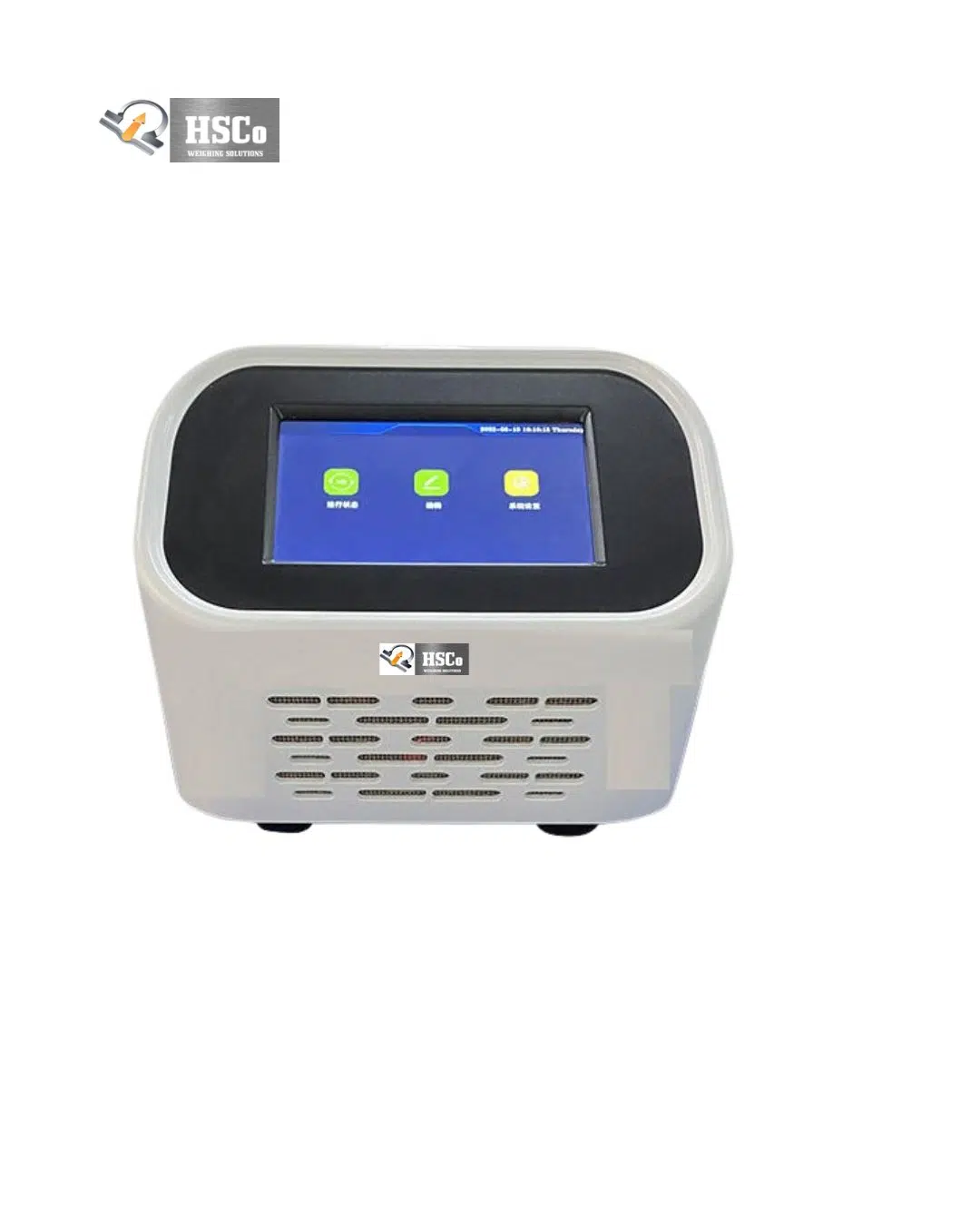

The HSCo HSC-TC thermal cycler (PCR machine) amplifies DNA and RNA by the polymerase chain reaction, for molecular biology, genetic testing, clinical diagnostics, forensics and biotechnology. A microprocessor-controlled Peltier block heats and cools from 4 to 100 °C within ±0.2 °C, even across the block to ±0.3 °C, at up to 5 °C per second. A heated lid (100 – 110 °C) stops condensation, an optional gradient block helps find the best annealing temperature, and up to 500 programs can be stored and set up on the touch screen. Blocks take 0.2 or 0.5 ml tubes or 96- or 384-well plates, depending on the model.
Why labs choose the HSC-TC
- Accurate: ±0.2 °C, ±0.3 °C across the block.
- Fast: up to 5 °C per second (typically 3 – 4 °C/s).
- Gradient option spanning 1 to 30 °C for annealing tests.
- Stores up to 500 programs; USB transfer and backup.
- Protected: over-temperature and power-failure protection.
Specifications
| Principle | PCR thermal cycling; microprocessor-controlled Peltier heating and cooling |
|---|---|
| Samples | 0.2 / 0.5 ml tubes, or 96- / 384-well plates (by model) |
| Temperature range | 4 – 100 °C, programmable |
| Accuracy / uniformity | ±0.2 °C / ±0.3 °C across the block |
| Ramp rate | Up to 5 °C/s (typically 3 – 4 °C/s, by model) |
| Gradient | Optional; 1 – 30 °C across the block |
| Heated lid | 100 – 110 °C; adjustable pressure |
| Display | LCD or colour touch screen, on-screen program set-up |
| Programs | Up to 500; USB transfer and backup |
| PC connection | USB or RS-232 (optional) |
| Protection | Over-temperature and power-failure protection; auto-resume after power cut (optional) |
| Power | AC 220 V ±10%, 50 / 60 Hz |
| Size / weight | About 25 – 35 × 30 – 40 × 20 – 25 cm; 6 – 10 kg (by model) |
| Warranty | 1 year |
Which PCR machine?
For conventional, gradient or real-time models with a 96-well block, see the PCR system HSC-PCRS; for real-time detection in 4 to 6 channels, the real-time PCR system HSC-RTPCRS. Browse all immunoassay instruments.
Where it is used
Molecular biology, genetic testing, clinical diagnostics, forensic analysis and biotechnology research.
Questions buyers ask
It heats and cools the samples in cycles to copy (amplify) DNA or RNA by PCR.
A gradient block is optional, spanning 1 to 30 °C, to find the best annealing temperature.
0.2 or 0.5 ml tubes, or 96- or 384-well plates, depending on the model.
Ask for a quotation
Tell us your tube or plate format and whether you need a gradient. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
