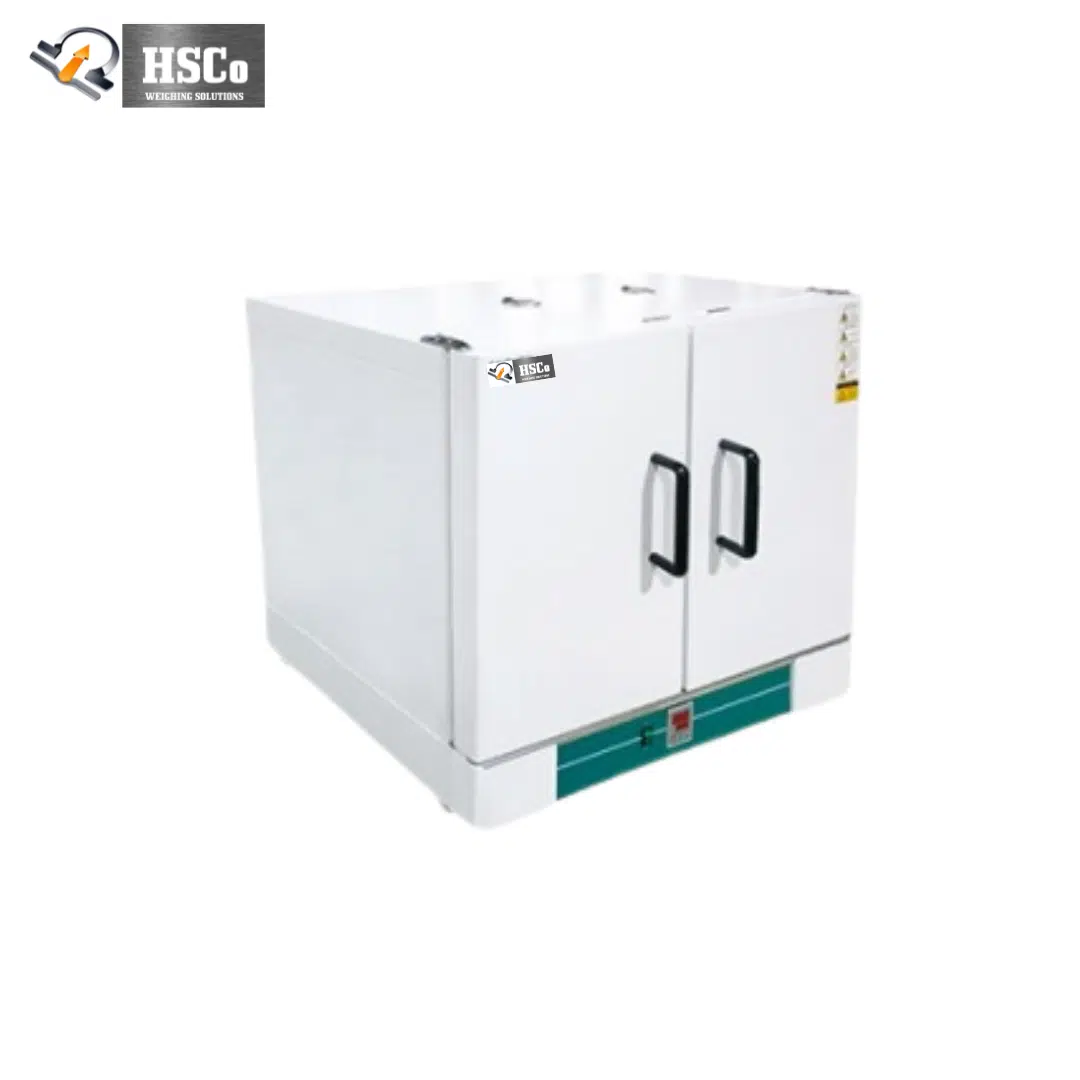

The HSC-I-DDI double door incubator is a large forced-air incubator for laboratories, research centres, pharmaceutical labs and industry. Its two doors give easy, safe access to samples while letting out less heat, which keeps the temperature steadier and lowers the risk of contamination. It runs from 5 °C above room temperature to 120 °C with an intelligent PID controller and PT100 sensor, holds ±0.5 °C, and has a mirror-finished stainless-steel chamber. It comes in 235 and 450 litres.
Why labs choose it
- Double doors for easy, safe access with less temperature loss.
- Forced air circulation: ±0.5 °C fluctuation, ±1 °C uniformity (at 37 °C).
- RT + 5 °C to 120 °C, 0.1 °C resolution, intelligent PID with PT100 sensor.
- Timer up to 9,999 minutes with auto stop; power-off memory.
- Over-temperature alarm with sound and light.
- 235 or 450 litres, up to 6 or 10 shelves.
Specifications
| Model | HSC-I-DDI-250B | HSC-I-DDI-450B |
|---|---|---|
| Internal volume | 235 L | 450 L |
| Working chamber (W × D × H) | 950 × 450 × 550 mm | 950 × 600 × 790 mm |
| External size (W × D × H) | 1,087 × 727 × 807 mm | 1,087 × 877 × 1,047 mm |
| Packed size (W × D × H) | 1,137 × 777 × 942 mm | 1,137 × 927 × 1,182 mm |
| Maximum shelves | 6 | 10 |
| Power supply | 220 V AC, 6.4 A, 50/60 Hz | 220 V AC, 12.7 A, 50/60 Hz |
| Net / gross weight | 94 / 120 kg | 150 / 190 kg |
| Air flow | Forced convection |
|---|---|
| Temperature range | Room temperature + 5 °C to 120 °C |
| Resolution / fluctuation | 0.1 °C / ±0.5 °C |
| Uniformity | ±1 °C (tested at 37 °C) |
| Controller | Intelligent PID; touch buttons; two 4-digit LED rows (actual and set temperature); PT100 sensor |
| Timer | 0 – 9,999 minutes, with timer hold |
| Modes | Constant value, timer, auto stop |
| Other functions | Sensor calibration, overshoot auto-tuning, parameter lock, power-off memory |
| Safety | Over-temperature alarm (sound and light) |
| Chamber / shell | Mirror-finished stainless steel / cold-rolled steel, electrostatic powder coated |
| Insulation | Composite silicate board |
| Heater / rated power | Nickel-chromium wire / 1.4 kW |
| Vents | Two Ø 32 mm ports on top (also test holes) |
| Shelves | 2 supplied; 35 mm spacing; 15 kg per shelf; more shelves optional |
| Warranty | 1 year |
Which incubator?
For a smaller single-door cabinet, see the high precision constant temperature incubator or the bacteriological lab incubator; for cooling below room temperature, the cooling / BOD incubator (−10 to 65 °C). Browse all ovens and furnaces.
Where it is used
Laboratories, research centres, pharmaceutical and industrial QC labs: microbial culture growth, cell incubation and sample conditioning.
Questions buyers ask
Opening only the door you need lets out less heat, so the temperature stays steadier and there is less risk of contamination.
From 5 °C above room temperature up to 120 °C, within ±0.5 °C.
Two are supplied; up to 6 fit in the 235 L model and 10 in the 450 L model.
Yes. It has power-off memory.
Order or ask for a quotation
Tell us the size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
