Double Door Drying Oven HSC-O-DDDO – 235 and 450 Litres, up to 250 °C, Forced Air
Price on Request
Large double-door forced-air drying oven HSC-O-DDDO: 235 or 450 litres, room temperature +10 °C to 250 °C, ±0.5 °C, mirror stainless chamber, PID with PT100, timer to 9,999 min, over-temperature alarm. For pharma, electronics, chemicals and polymers. 1-year warranty.

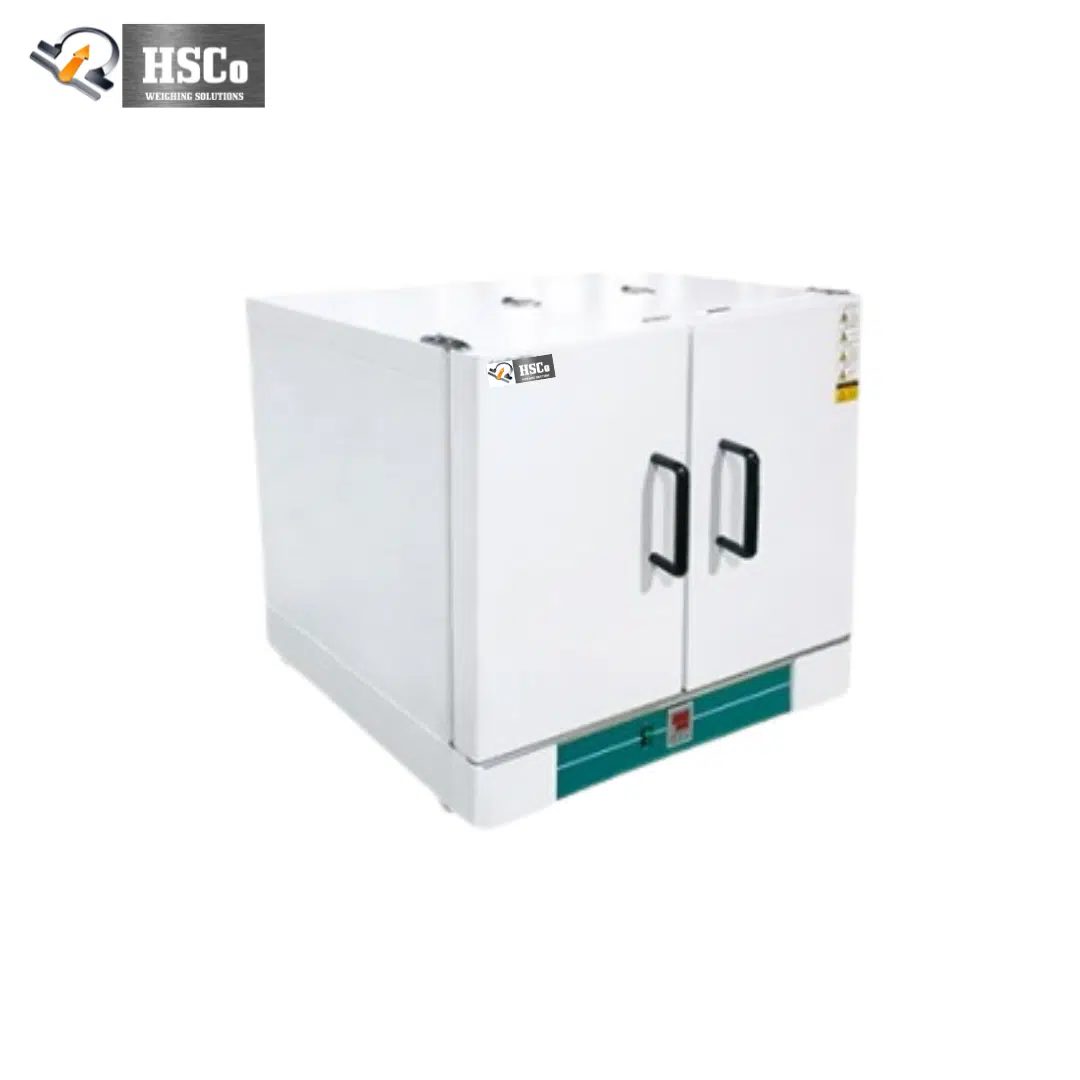

The HSCo HSC-O-DDDO double-door drying oven is a large forced-air oven with two front doors that open wide for loading bulky trays and materials. It heats from 10 °C above room temperature up to 250 °C, holding within ±0.5 °C, with PID control, a PT100 sensor and a timer up to 9,999 minutes. It comes in 235 and 450 litre sizes with a mirror stainless-steel chamber, for drying pharmaceuticals, electronics, chemicals, polymers and industrial parts.
Why buyers choose it
- Two front doors for easy loading of large items.
- Big capacity: 235 or 450 litres.
- Forced air, RT +10 °C to 250 °C, ±0.5 °C.
- PID control with PT100 and overshoot self-tuning.
- Timer up to 9,999 minutes with auto stop.
- Safe: over-temperature sound and light alarm.
Specifications
| Model | HSC-O-DDDO-250B | HSC-O-DDDO-450B |
|---|---|---|
| Volume | 235 L | 450 L |
| Inner size (W × D × H) | 950 × 450 × 550 mm | 950 × 600 × 790 mm |
| Outer size (W × D × H) | 1,087 × 727 × 807 mm | 1,087 × 877 × 1,047 mm |
| Power | 2.4 kW | 3.6 kW |
| Current (220 V AC) | 11.0 A | 16.4 A |
| Maximum shelves | 6 | 10 |
| Net weight | 94 kg | 150 kg |
| Temperature range | Room temperature +10 °C to 250 °C |
|---|---|
| Resolution / fluctuation / uniformity | 0.1 °C / ±0.5 °C / ±2.5% |
| Air circulation | Forced convection |
| Chamber | Mirror stainless steel |
| Body / insulation / heater | Cold-rolled steel, powder-coated / composite silicate board / nickel-chromium wire |
| Control | PID, touch buttons; LCD display of measured (upper) and set (lower) temperature; PT100 sensor |
| Timer | 0 – 9,999 min, with timed-wait function and auto stop |
| Other functions | Sensor correction, overshoot self-tuning, parameter lock, settings kept after power failure |
| Safety | Over-temperature sound and light alarm |
| Shelves | 2 supplied (more optional); 15 kg per shelf; shelf positions 35 mm apart |
| Exhaust / test holes | 2 × 32 mm, on top |
| Warranty | 1 year |
Which oven?
For bigger loads still, see the big forced air drying oven; for sterilising up to 300 °C, the hot air sterilizing oven. Browse all ovens and furnaces.
Where it is used
Pharmaceutical, electronics, chemical and polymer industries, research labs and production floors: drying and heat-treating trays and components.
Questions buyers ask
235 litres and 450 litres.
From 10 °C above room temperature up to 250 °C.
The double front doors open wide, which makes loading large trays and bulky items easy.
Ask for a quotation
Tell us the size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
