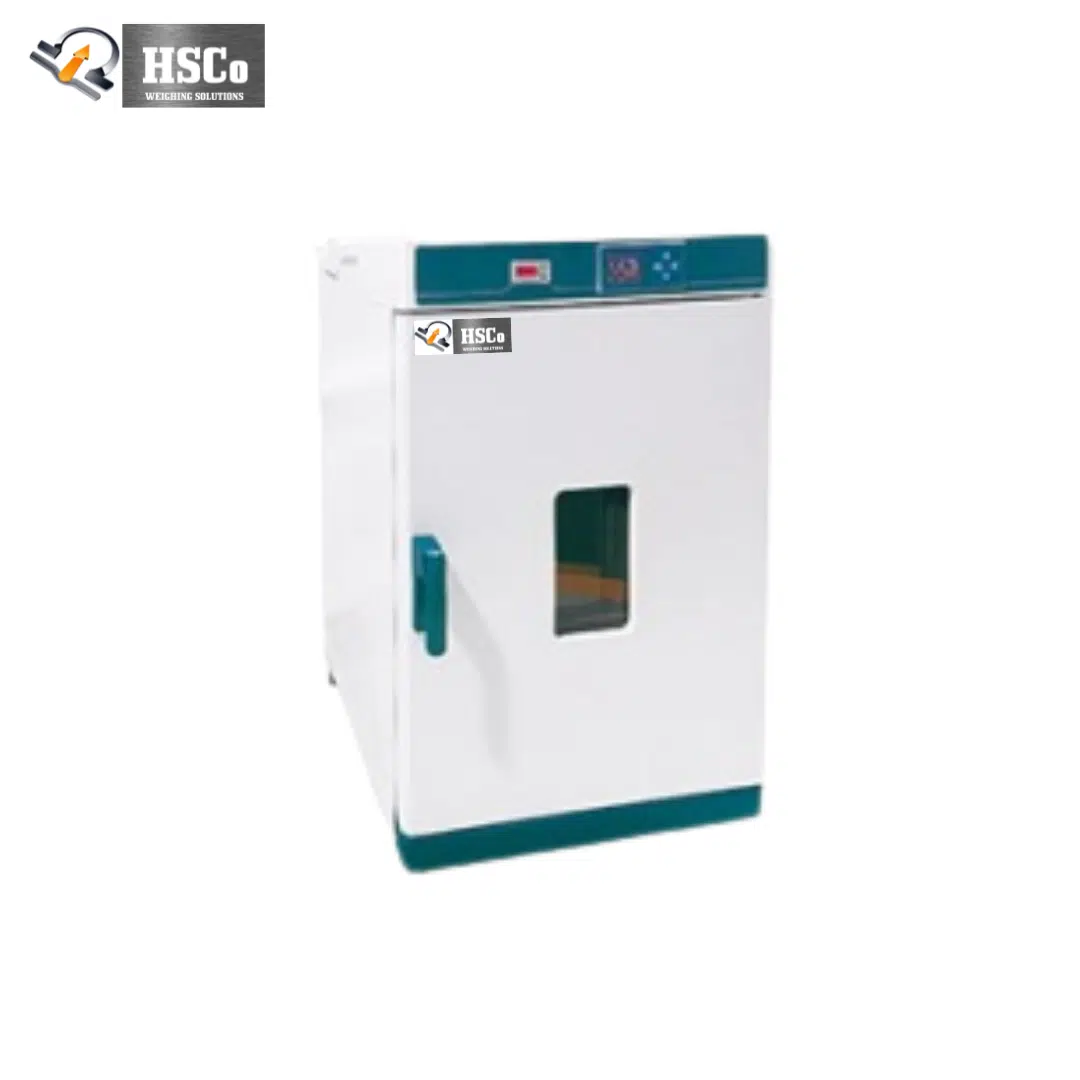

Constant Temperature Incubator HSC-I-CTIB (B Series) – Forced Air, up to 120 °C, 30 to 230 L
Price on Request
Forced-air constant temperature incubator HSC-I-CTIB: room temperature +5 °C to 120 °C, ±1 °C, mirror stainless chamber, two-stage PID with PT100, independent digital temperature limiter, 3-speed fan, timer to 9,999 min. 30, 45, 65, 85, 125 or 230 litres. 1-year warranty.
The HSCo HSC-I-CTIB (B series) constant temperature incubator uses forced air and a mirror stainless-steel chamber to hold samples from 5 °C above room temperature up to 120 °C, within ±1 °C. It has two-stage PID control with a PT100 sensor, a separate digital temperature limiter for safety, an adjustable-speed fan and a timer up to 9,999 minutes. It comes in six sizes from 30 to 230 litres.
Why labs choose it
- Forced air for an even temperature, ±1 °C uniformity.
- Wide range: room temperature +5 °C up to 120 °C.
- Mirror stainless-steel chamber, easy to clean.
- Double safety: over-temperature alarm plus an independent digital temperature limiter.
- Fan speed you can set (3 speeds; the 230 L model has a fixed-speed fan).
- Six sizes: 30, 45, 65, 85, 125 and 230 litres.
Specifications
| Model | Volume | Inner size (W × D × H) | Outer size (W × D × H) | Power | Current (220 V) | Max shelves | Net weight |
|---|---|---|---|---|---|---|---|
| HSC-I-CTIB-30BE | 30 L | 310 × 310 × 310 mm | 460 × 510 × 695 mm | 0.4 kW | 1.8 A | 5 | 33 kg |
| HSC-I-CTIB-45BE | 45 L | 350 × 350 × 350 mm | 500 × 550 × 735 mm | 0.5 kW | 2.3 A | 6 | 37 kg |
| HSC-I-CTIB-65BE | 65 L | 400 × 360 × 450 mm | 550 × 550 × 840 mm | 0.7 kW | 3.2 A | 8 | 44 kg |
| HSC-I-CTIB-85BE | 85 L | 450 × 420 × 450 mm | 590 × 610 × 830 mm | 0.9 kW | 4.1 A | 8 | 50 kg |
| HSC-I-CTIB-125BE | 125 L | 500 × 450 × 550 mm | 636 × 680 × 915 mm | 1.1 kW | 5.0 A | 11 | 60 kg |
| WPL-230BE | 230 L | 600 × 500 × 700 mm | on request | 1.5 kW | 6.8 A | 17 | 94 kg |
| Temperature range | Room temperature +5 °C to 120 °C |
|---|---|
| Resolution / fluctuation / uniformity | 0.1 °C / ±1 °C / ±1 °C |
| Air circulation | Forced convection; fan with 3 speeds (230 L model: fixed speed) |
| Chamber | Mirror stainless steel |
| Body / insulation / heater | Cold-rolled steel, powder-coated / foam board / stainless-steel heating tubes |
| Control | Two-stage PID, touch buttons; LCD display of measured (upper) and set (lower) temperature; PT100 sensor |
| Timer | 0 – 9,999 min, with timed-wait function and auto stop |
| Other functions | Sensor correction, overshoot self-tuning, parameter lock, settings kept after power failure |
| Safety | Over-temperature sound and light alarm; independent digital temperature limiter |
| Shelves | 2 supplied; 15 kg per shelf; shelf positions 40 mm apart |
| Exhaust / test hole | 35 mm, on top |
| Warranty | 1 year |
Which incubator?
For natural convection up to 70 °C, see the HSC-I-CTI (A series) incubator; for BOD tests with cooling, the BOD incubator. Browse all ovens and furnaces.
Where it is used
Microbiology, pharmaceutical, food and research laboratories, and industrial sample preparation: culture growth, sample conditioning and other work at a fixed temperature.
Questions buyers ask
The B series uses forced air, a mirror stainless chamber and goes up to 120 °C; the A series uses natural convection and goes up to 70 °C.
30, 45, 65, 85, 125 and 230 litres.
An over-temperature alarm and a separate digital temperature limiter.
Ask for a quotation
Tell us the size you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
