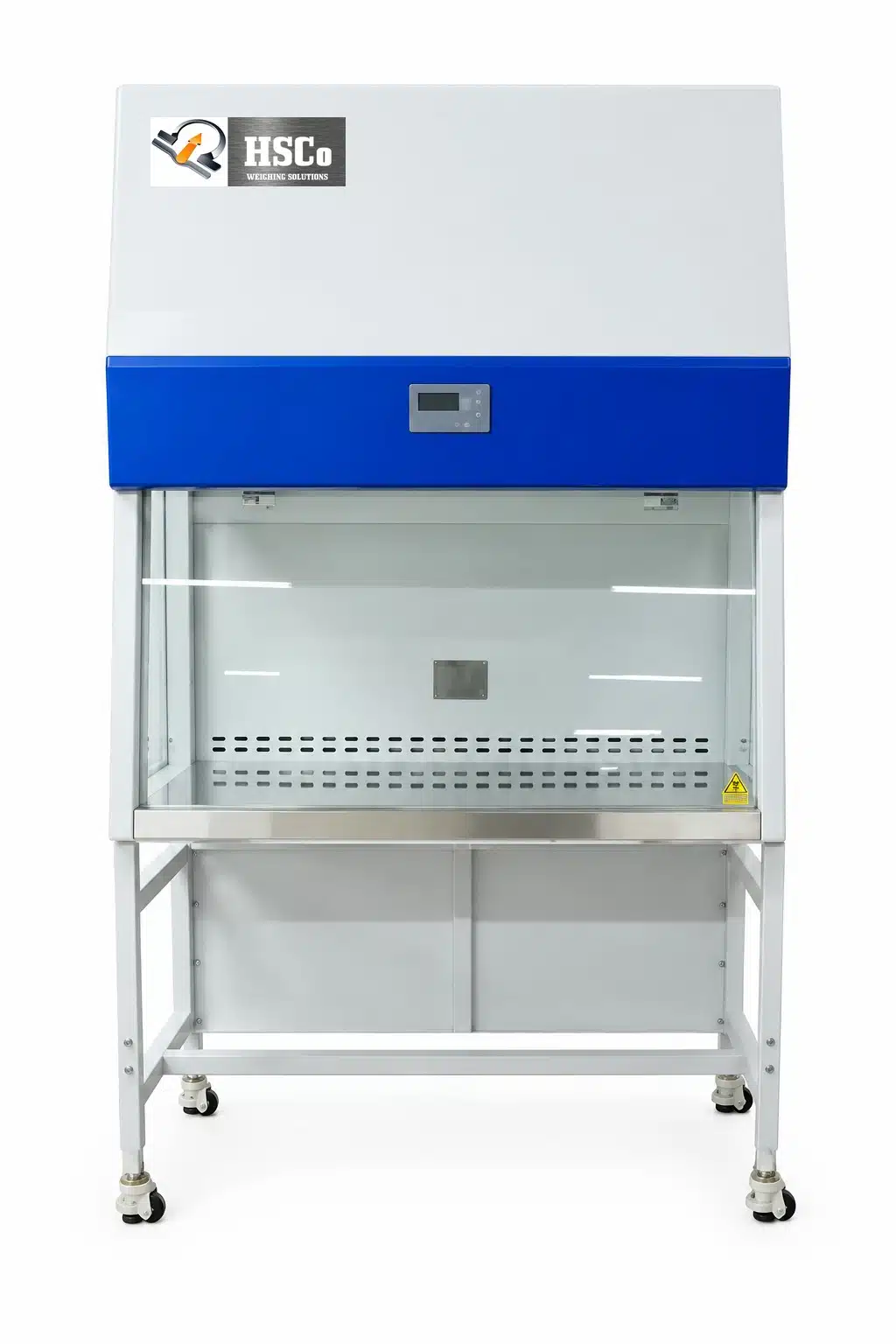

Laminar Flow Cabinet HSC-I-NLFC – Vertical, Class 100, HEPA, One or Two Persons
Price on Request
Vertical laminar flow cabinet HSC-I-NLFC: class 100 clean air, HEPA ≥ 99.995% at 0.3 µm, one-person or two-person widths, used from one side or both, SUS304 work area, tempered-glass door, UV and fluorescent lamps, LCD controller with adjustable air speed, 2 sockets. 1-year warranty.
The HSCo HSC-I-NLFC laminar flow cabinet gives a clean, particle-free work area by blowing HEPA-filtered air vertically down over the work surface. It reaches cleanliness class 100, with a HEPA filter that stops at least 99.995% of 0.3 µm particles. It comes in one-person and two-person widths, for use from one side or both. It has a SUS304 stainless-steel work area, a tempered-glass front, UV and fluorescent lamps, and an LCD controller with adjustable air speed. It is used for microbiology, tissue culture, pharmaceutical compounding and electronics assembly.
Why labs choose it
- Vertical laminar flow, cleanliness class 100.
- HEPA filtration: ≥ 99.995% at 0.3 µm, with a pre-filter.
- One or two operators, working from one side or both.
- UV sterilisation lamp and fluorescent lighting, one-key on/off.
- LCD colour controller with multi-level air speed and filter and lamp replacement reminders.
- Quiet and steady: ≤ 62 dB, ≤ 3 µm vibration.
Specifications
| Specification | One-person (1D / 1S) | Two-person (2D / 2S) |
|---|---|---|
| Inner work area (W × D × H) | 920 × 690 × 650 mm | 1,320 × 690 × 650 mm |
| Outer size (W × D × H) | 1,060 × 763 × 1,834 mm | 1,460 × 763 × 1,834 mm |
| HEPA filter | 900 × 640 × 50 mm | 1,300 × 640 × 50 mm |
| Pre-filter | 464 × 360 × 5 mm | 712 × 360 × 5 mm |
| Fluorescent / UV lamp | 16 W / 20 W | 24 W / 30 W |
| Fan | 180 W × 1 | 180 W × 2 |
| Rated power / current | 240 W / 1.8 A | 440 W / 3.6 A |
| Net weight | 160 – 165 kg | 200 – 205 kg |
| Models | HSC-I-NLFC-1D, 1S, 2D, 2S (II and III versions); 1 = one person, 2 = two persons; D = used from one side, S = used from both sides |
|---|---|
| Airflow | Vertical; 0.2 – 0.6 m/s, multi-level adjustable |
| Cleanliness | Class 100; ≥ 99.995% at 0.3 µm; ≤ 0.5 colonies per 90 mm dish |
| Noise / vibration | ≤ 62 dB / ≤ 3 µm |
| Lighting | ≥ 500 lx |
| Work surface load | 50 kg |
| Construction | SUS304 stainless inner; powder-coated cold-rolled steel outer; tempered-glass door |
| Controller | LCD colour screen; filter and UV-lamp replacement reminders; one-key light / UV |
| Sockets | 2 built-in, up to 800 W each |
| Power | 220 V AC, 50/60 Hz |
| Warranty | 1 year |
Which cabinet?
A laminar flow cabinet protects the sample. To protect the operator as well when working with pathogens, choose the Class II A2 biosafety cabinet. Browse all laboratory furniture.
Where it is used
Microbiology and tissue-culture labs, pharmaceutical compounding and QC, hospitals, research institutes, and electronics assembly.
Questions buyers ask
D models are used from one side; S models from both sides (as listed in the model table).
Class 100: the HEPA filter stops at least 99.995% of 0.3 µm particles.
No. A laminar flow cabinet protects the sample. For work with pathogens, use a biosafety cabinet.
Yes, for sterilising the work area, with a one-key switch and a replacement reminder.
Ask for a quotation
Tell us how many operators and whether they work from one side or both. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
