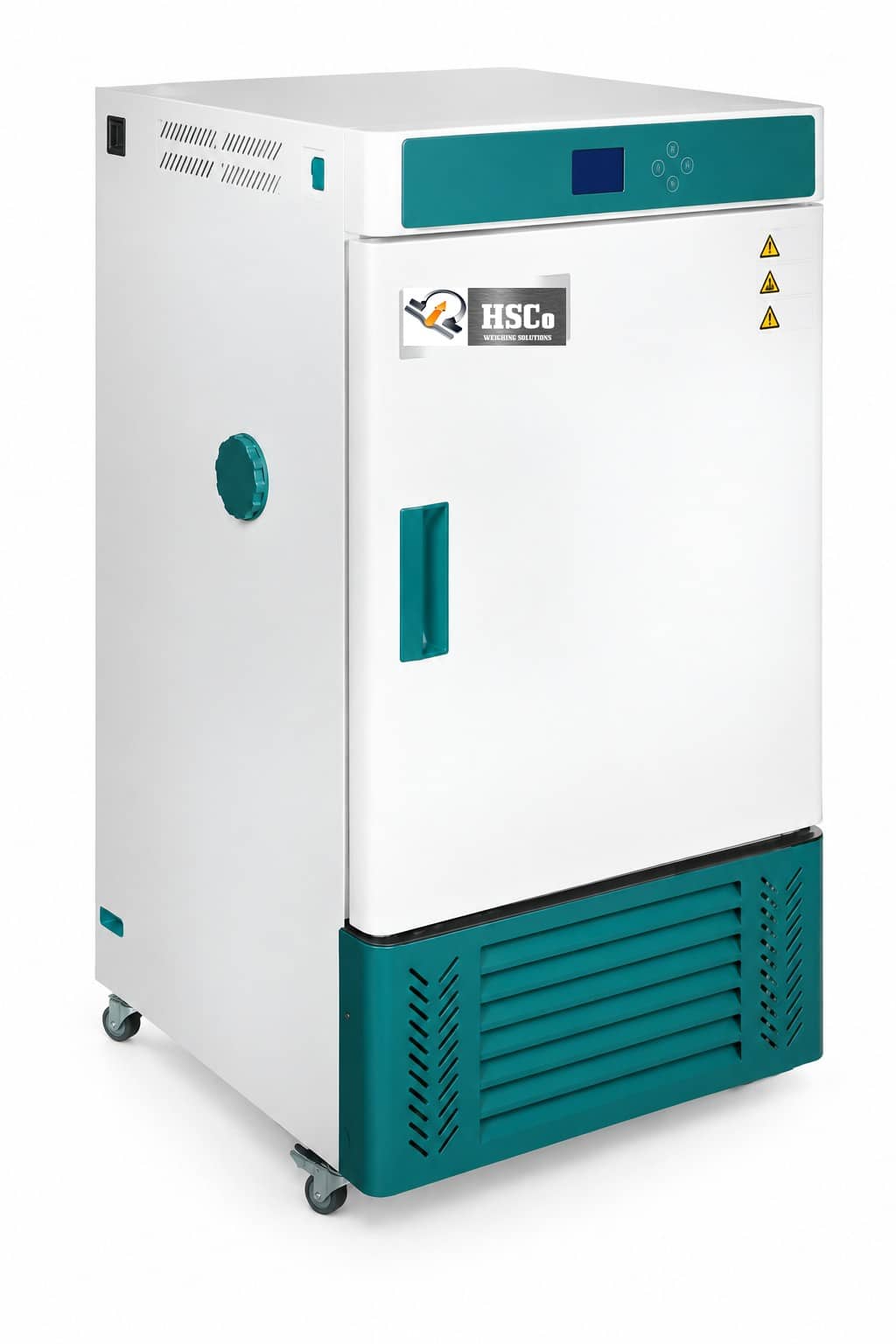

The HSCo HSC-I-CIRIBI cooling incubator, also called a refrigerated or BOD incubator, holds samples at any temperature from 0 to 65 °C, for BOD tests, keeping microbial cultures, pharmaceutical stability studies and incubating sensitive samples. An air-cooled hermetic compressor with R134a refrigerant cools, stainless-steel heaters warm, and a PID controller with a PT100 sensor holds the setting within ±0.5 °C (±1 °C at low temperatures). The chamber is mirror stainless steel with polyurethane insulation and automatic defrosting. Three sizes, 70, 150 and 250 L; BIII models run at a fixed temperature, BX models run 10-step programs.
Why labs choose the CIRIBI
- 0 to 65 °C, cooling and heating in one cabinet.
- Stable: ±0.5 °C (high), ±1 °C (low); uniformity ±1.5 °C.

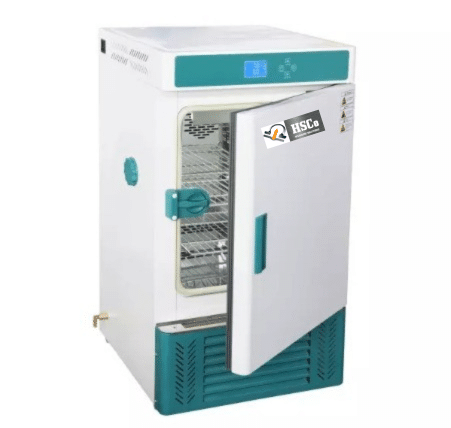

- Mirror stainless-steel chamber, polyurethane insulation.
- Automatic defrost.
- Program models: BX runs 10-step programs.
Specifications
| 70BIII / 70BX | 150BIII / 150BX | 250BIII / 250BX | |
|---|---|---|---|
| Volume | 70 L | 150 L | 250 L |
| Inner size (W × L × H) | 415 × 350 × 500 mm | 490 × 400 × 750 mm | 500 × 515 × 950 mm |
| Outer size (W × L × H) | 571 × 591 × 1,051 mm | 646 × 641 × 1,301 mm | 656 × 741 × 1,501 mm |
| Heater | 0.8 kW | 1.0 kW | 1.2 kW |
| Current (220 V) | 2.3 A | 3.6 A | 5.5 A |
| Maximum shelves | 5 | 9 | 12 |
| Net / gross weight | 69 / 92 kg | 86 / 114 kg | 100 / 139 kg |
| Temperature range | 0 – 65 °C |
|---|---|
| Resolution / fluctuation / uniformity | 0.1 °C / ±0.5 °C high, ±1 °C low / ±1.5 °C |
| Cooling | Air-cooled hermetic compressor, R134a; automatic defrost |
| Chamber / insulation | Mirror stainless steel / polyurethane; outer cold-rolled steel, electrostatic spray |
| Control | BIII: single-stage LCD PID, fixed temperature; BX: 10-step LCD program; PT100 sensor; touch keys |
| Timer | 0 – 99.9 h (BX: 10 segments), with timing wait |
| Functions | LED light, deviation correction, key lock, power-failure memory; over-temperature alarm |
| Ports | Test hole 43 mm; universal socket outside, waterproof socket inside |
| Shelves | 2 supplied, 15 kg each, 60 mm spacing; 4 shelf frames |
| Options | Extra shelf, RS485 port, printer, recorder, remote control, wireless message alarm, U-disk storage |
| Warranty | 1 year |
Which incubator?
For −10 °C and a colour or touch-screen program controller, see the cooling / BOD incubator HSC-I-CIBODIRI; for larger chambers (90 – 440 L), the BOD incubator HSC; with humidity control, the mould cultivation cabinet. Browse all ovens and furnaces.
Where it is used
BOD testing, keeping microbial cultures, pharmaceutical stability studies and incubating sensitive samples.
Questions buyers ask
From 0 to 65 °C, cooling or heating as needed.
BIII models hold one set temperature; BX models run 10-step programs.
70, 150 and 250 litres.
