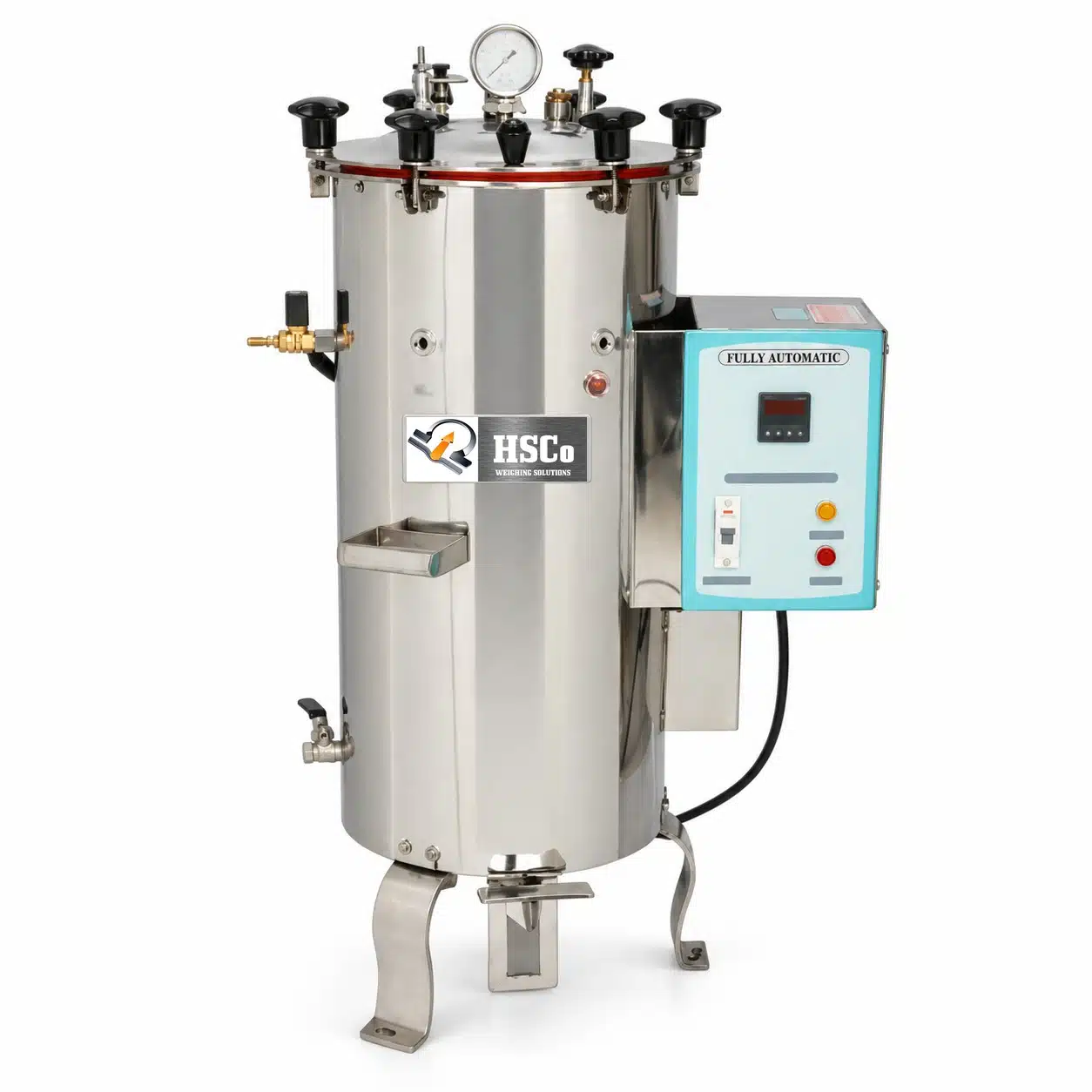

The HSC-ACVF fully automatic vertical autoclave sterilises lab ware, media and instruments at 121–125 °C. A microprocessor PID controller runs the whole cycle: it starts automatically, times the hold, purges air and releases steam through a solenoid valve at the end. The chamber is double-walled stainless steel 304, and sizes run from 25 to 215 litres.
Why labs choose it
- Fully automatic cycle. Auto start, 0–99 min timer, automatic air purging and steam release.
- Double-walled SS 304 construction.
- Safe. Two safety valves, pressure gauge, low-water cut-off for the heater.
- Clear control. PID with LED temperature display.
- Tight seal. Jointless silicone rubber gasket; foot-operated lid lift.
- Seven sizes from 25 to 215 L.
Sizes
| Chamber size | Capacity (approx.) | Rating |
|---|---|---|
| 10″ × 18″ | 25 L | 2 kW |
| 12″ × 20″ | 35 L | 2 kW |
| 14″ × 22″ | 50 L | 3 kW |
| 18″ × 24″ | 95 L | 4 kW |
| 18″ × 30″ | 120 L | 4.5 kW |
| 22″ × 30″ | 178 L | 5 kW |
| 24″ × 30″ | 215 L | 6 kW |
Specifications
| Construction | Double-walled, stainless steel 304 |
|---|---|
| Working pressure | Up to 15 psi |
| Temperature | 121 – 125 °C |
| Controller | Microprocessor PID, LED display, digital timer 0 – 99 min, auto cycle start, auto steam release |
| Valves | Automatic purging and steam release (solenoid valve); steam release valve; drain valve at bottom; 2 safety valves |
| Safety | Low-water cut-off for heater; pressure gauge |
| Lid | Jointless silicone rubber gasket; foot-operated lifting |
| Power | 230 V AC, 50 Hz, single phase |
| Options | Stainless-steel basket; single-channel data logger with scanner (3,00,000 readings) and pen-drive attachment |
| Warranty | 1 year |
Where it is used
Microbiology and research labs, hospitals, clinics and pharmaceutical plants. Browse all ovens and furnaces.
Questions buyers ask
121 – 125 °C, up to 15 psi.
It starts, times, purges air and releases steam by itself.
25, 35, 50, 95, 120, 178 and 215 litres.
Yes, with the optional data logger and pen-drive attachment.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the size you need. Hindustan Scale Company, Mumbai, since 1955.
