Laboratory Microscope HSC-MLI – Light (up to 1000×) or Inverted (up to 600×)
Price on Request
Laboratory microscopes: HSC-LM1 light microscope, 40–1,000×, mechanical XY stage; HSC-IM1 inverted microscope, 40–600×, for cell cultures in flasks and dishes. Achromatic or plan objectives, 10×/15× eyepieces, LED or halogen lighting, coarse and fine focus. Camera, trinocular, phase contrast and fluorescence options. 1-year warranty.

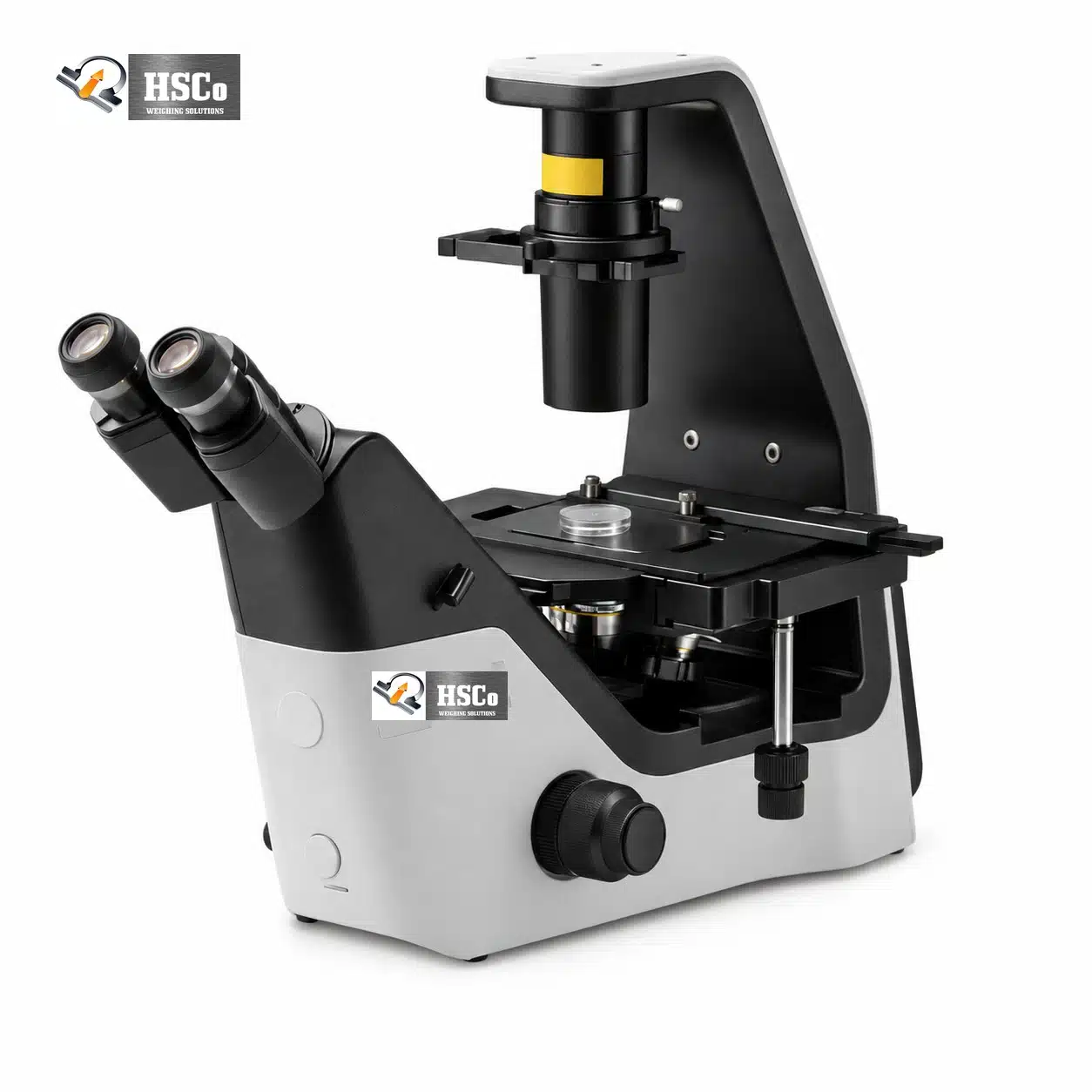

HSCo laboratory microscopes come in two types: the HSC-LM1 light microscope, up to 1,000× for slides in teaching, pathology and microbiology, and the HSC-IM1 inverted microscope, up to 600×, which looks up through the bottom of flasks and dishes for live cell cultures. Both have achromatic or plan-achromatic objectives, adjustable LED or halogen lighting, coarse and fine focus, and a heavy metal body.
Why labs choose them
- Two types: light (upright) for slides, inverted for cultures in flasks and dishes.
- Sharp optics: achromatic or plan-achromatic objectives, 10× or 15× widefield eyepieces.
- Adjustable lighting: LED or halogen, with a dimmer.
- Precise focus: coarse and fine knobs with tension adjustment.
- Room to grow: camera, trinocular head, phase contrast and fluorescence attachments available.
Specifications
| Specification | HSC-LM1 light microscope | HSC-IM1 inverted microscope |
|---|---|---|
| Magnification | 40× – 1,000× | 40× – 600× |
| Stage | Mechanical XY stage with micrometer | Fixed stage with specimen holder |
| Optics | Achromatic or plan-achromatic objectives |
|---|---|
| Eyepieces | 10× or 15× widefield |
| Objectives | 4×, 10×, 40×, 100× (oil immersion optional) |
| Illumination | LED or halogen, brightness adjustable |
| Condenser | Abbe, with iris diaphragm |
| Focus | Coarse and fine, with tension adjustment |
| Body | Heavy-duty metal, anti-corrosion finish |
| Power | 230 V AC ±10%, 50 Hz |
| Options | Camera attachment, trinocular head, phase contrast kit, fluorescence attachment |
| Warranty | 1 year |
Other laboratory instruments
To count colonies on plates, see the colony counter; to work with cultures safely, the biosafety cabinet. Browse all laboratory analytical instruments.
Where it is used
Schools, colleges and universities, pathology and clinical labs, microbiology and cell-culture labs, and research institutes.
Questions buyers ask
For slides, choose the light microscope. For live cells in flasks, dishes or plates, choose the inverted microscope, which views from below.
Up to 1,000× on the light microscope and 600× on the inverted microscope.
Yes. A camera attachment and a trinocular head are available.
Ask for a quotation
Tell us which type and options you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
