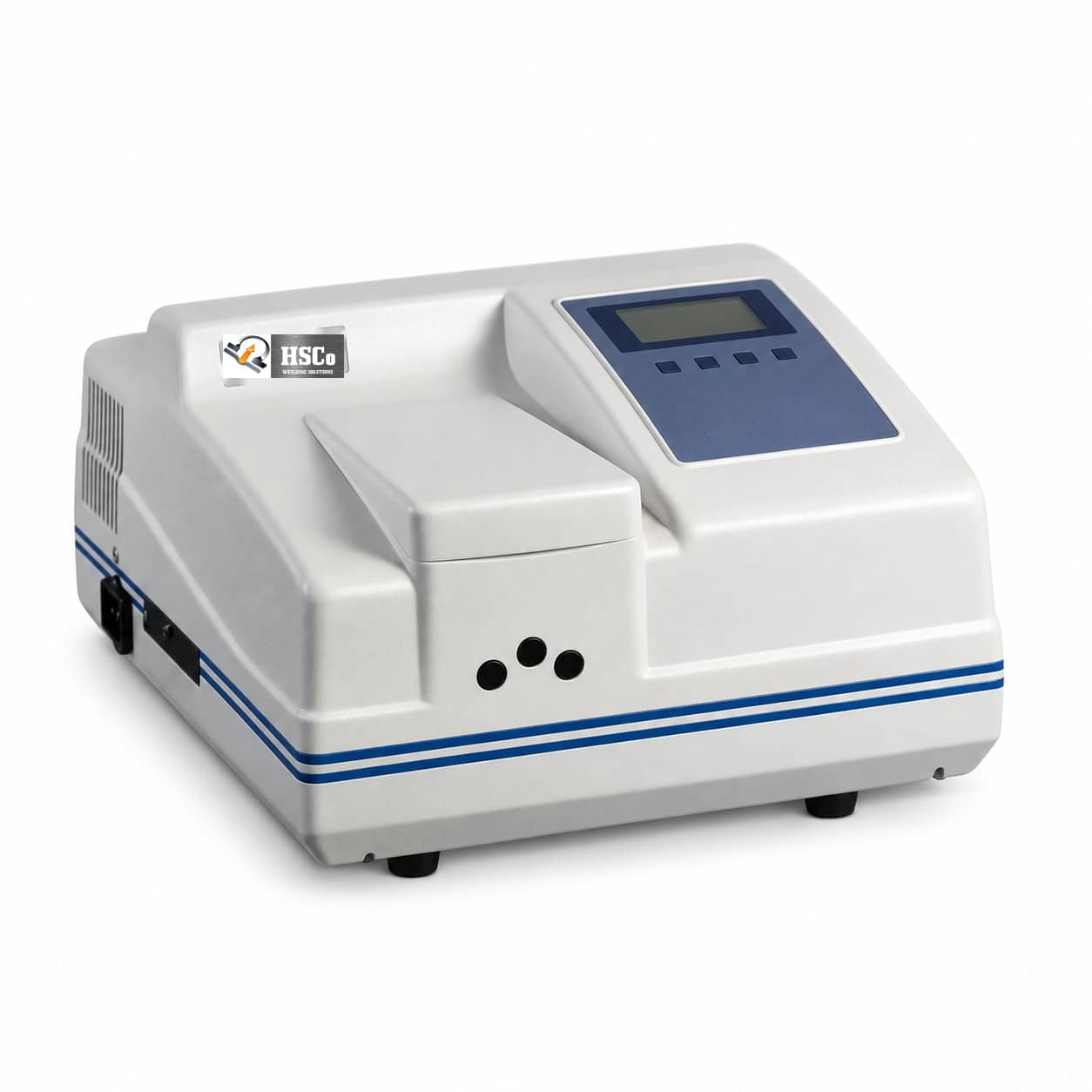

The HSC spectrofluorometer is a benchtop fluorescence spectrophotometer for detecting fluorescent compounds down to trace levels. It scans excitation and emission from 200 to 900 nm with ±1 nm accuracy, uses a xenon or LED source with a photomultiplier or photodiode detector, and is run from Windows software over USB or RS232. It is used in biochemistry, molecular biology, pharma, environmental and food labs.
Why labs choose it
- Wide range. Excitation and emission from 200 to 900 nm.
- Sensitive. Water Raman signal detected at ≥ 1.5 × 10⁻¹² W RMS (350 nm excitation), with a dynamic range of 10⁶ or more.
- Precise wavelengths. ±1.0 nm accuracy, ±0.5 nm repeatability.
- Flexible scanning. Adjustable bandwidth of 1–20 nm and scan speed of 100–3,000 nm/min.
- Complete software. Spectral analysis, calibration and data export on a Windows PC.
Specifications
| Series | HSC-SFM |
|---|---|
| Type | Benchtop / compact fluorescence spectrophotometer |
| Excitation / emission range | 200 – 900 nm / 200 – 900 nm |
| Wavelength accuracy / repeatability | ±1.0 nm / ±0.5 nm |
| Spectral bandwidth | 1 – 20 nm, adjustable (depends on model) |
| Light source | Xenon arc lamp or LED |
| Detector | Photomultiplier tube or silicon photodiode (depends on configuration) |
| Sensitivity | ≥ 1.5 × 10⁻¹² W RMS (water Raman, 350 nm excitation) |
| Dynamic range / linearity | ≥ 10⁶ / ±1% |
| Scan speed | 100 – 3,000 nm/min |
| Sample compartment | Standard 10 mm cuvettes |
| Interface | USB, RS232; Windows software |
| Power | AC 220 V ±10%, 50 / 60 Hz |
| Size and weight | About 500 × 400 × 250 mm; 15 – 25 kg, depending on model |
Where it is used
Quantitative and qualitative fluorescence analysis, biochemical assays and molecular biology research, pharmaceutical and chemical QC, and environmental and food testing. Browse more lab glassware and accessories.
Questions buyers ask
200 to 900 nm for both excitation and emission.
Standard 10 mm cuvettes.
From Windows software over USB or RS232, with spectral analysis and data export.
A xenon arc lamp or LED, depending on configuration.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your application and the configuration you need. Hindustan Scale Company, Mumbai, since 1955.
