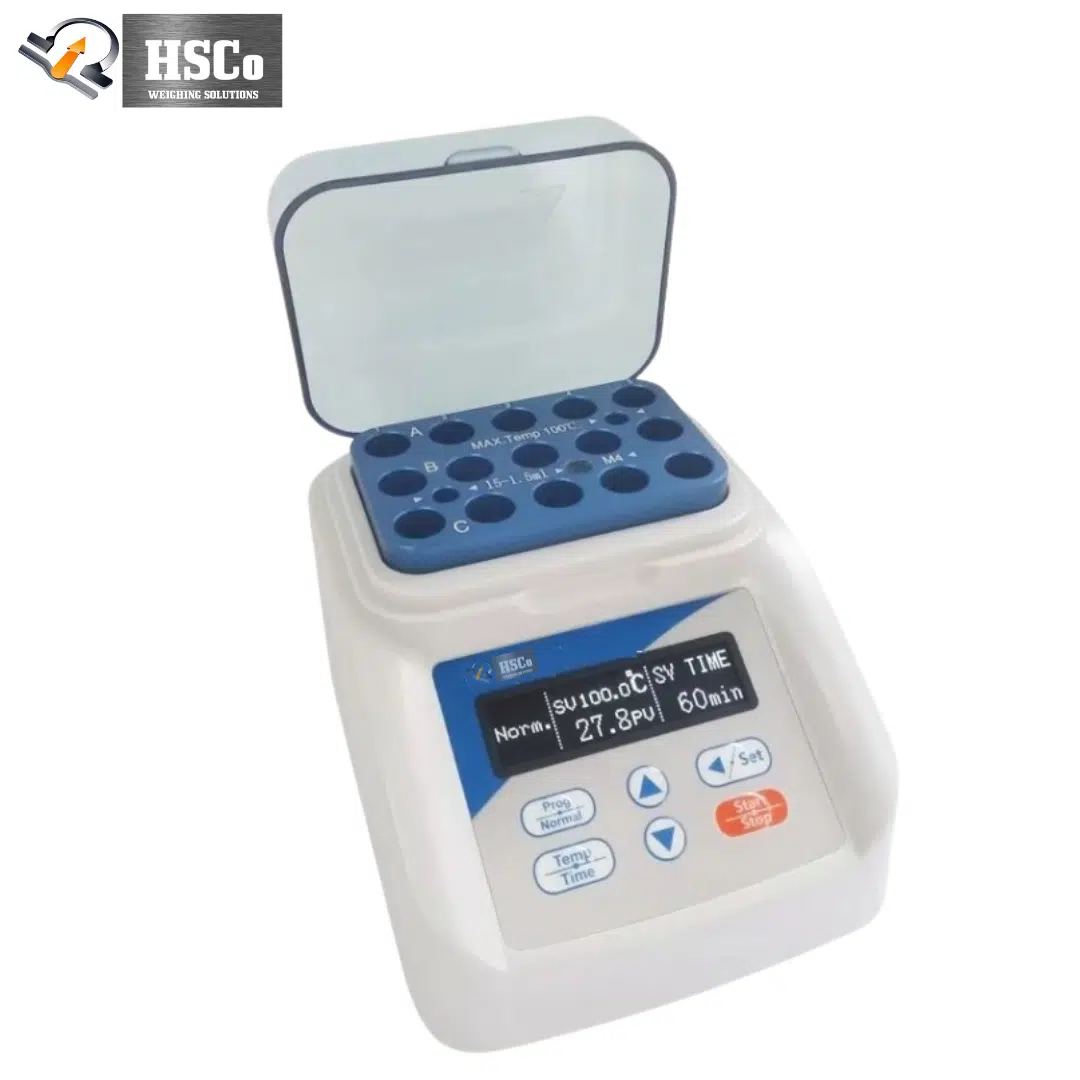

HSC-DB100 PRO Temperature Controlled Dry Bath – Technical Specifications
At Hindustan Scale Company, the HSC-DB100 PRO Temperature Controlled Dry Bath is designed for today’s demanding laboratory environments where precision, safety, and reliability are non-negotiable. Engineered with state-of-the-art PID digital temperature control and advanced safety features, this desktop dry bath delivers outstanding performance for a wide range of applications including molecular biology, clinical diagnostics, pharmaceuticals, and research labs.
Key Features:
Advanced Temperature Control:
PID digital system ensures fast, accurate, and consistent temperature regulation with minimal fluctuations.Superior Safety Standards:
Operates at a safe DC 24V power supply, ensuring complete safety for lab personnel during operation.Outstanding Temperature Stability & Uniformity:
Uniform heating across all sample tubes guarantees reproducible experimental results.High-Precision Display:
OLED large screen offers real-time temperature readings with 0.1°C display accuracy, allowing easy and intuitive operation.Rapid Heating Performance:
25°C to 37°C in ≤ 4 minutes
25°C to 100°C in ≤ 15 minutes
Dual Safety System:
Auto shut-off and alarm for over-temperature protection.
Fast forced cooling system to protect valuable samples.
Professional Grade Aluminum Modules:
High-precision machining ensures excellent thermal conductivity for fast, even heating.Easy Calibration:
Dual-point temperature correction: ±5°C zero correction and full-range correction for maximum accuracy.Auto Self-Tuning:
One-key automatic tuning (AT) function adapts to various environmental conditions for consistently stable performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | HSC-DB100 PRO |
| Temperature Setting Accuracy | 0.1°C |
| Display Accuracy | 0.1°C |
| Temperature Control Accuracy | ±0.3°C |
| Heating Rate | 25°C |
| Cooling Method | Fan cooling |
| Timer Settings | 99h 59m 59s / Hold Mode |
| Display Mode | OLED |
| Dimensions (L×W×H) | 114 × 140 × 107 mm |
| Net Weight | 0.8 kg |
| Power Supply | DC 24V |
| Overall Power | 56W |
| Safety Features | Auto power off & alarm on over-temperature |
| Ambient Conditions | Tested at 23°C ambient temperature |
Available Interchangeable Modules
| Model | Tube Compatibility | Capacity | Notes |
|---|---|---|---|
| HSC-DB100 PRO-1 | 1.5ml Tubes | 15 Tubes | Standard |
| HSC-DB100 PRO-2 | 2.0ml Tubes | 15 Tubes | Optional |
| HSC- DB100 PRO-3 | 0.5ml Tubes | 24 Tubes | Optional |
| HSC-DB100 PRO-4 | 0.2ml PCR Tubes | 40 Tubes | Optional |
| HSC-DB100 PRO-5 | 5ml Tubes | 6 Tubes | Optional |
Why Choose Hindustan Scale Company?
ISO 9001:2015 Certified, CE Certified
In-house manufacturing for full quality control
Professional technical support throughout product life cycle
Customizable solutions for special client requirements
Competitive pricing with premium quality standards
