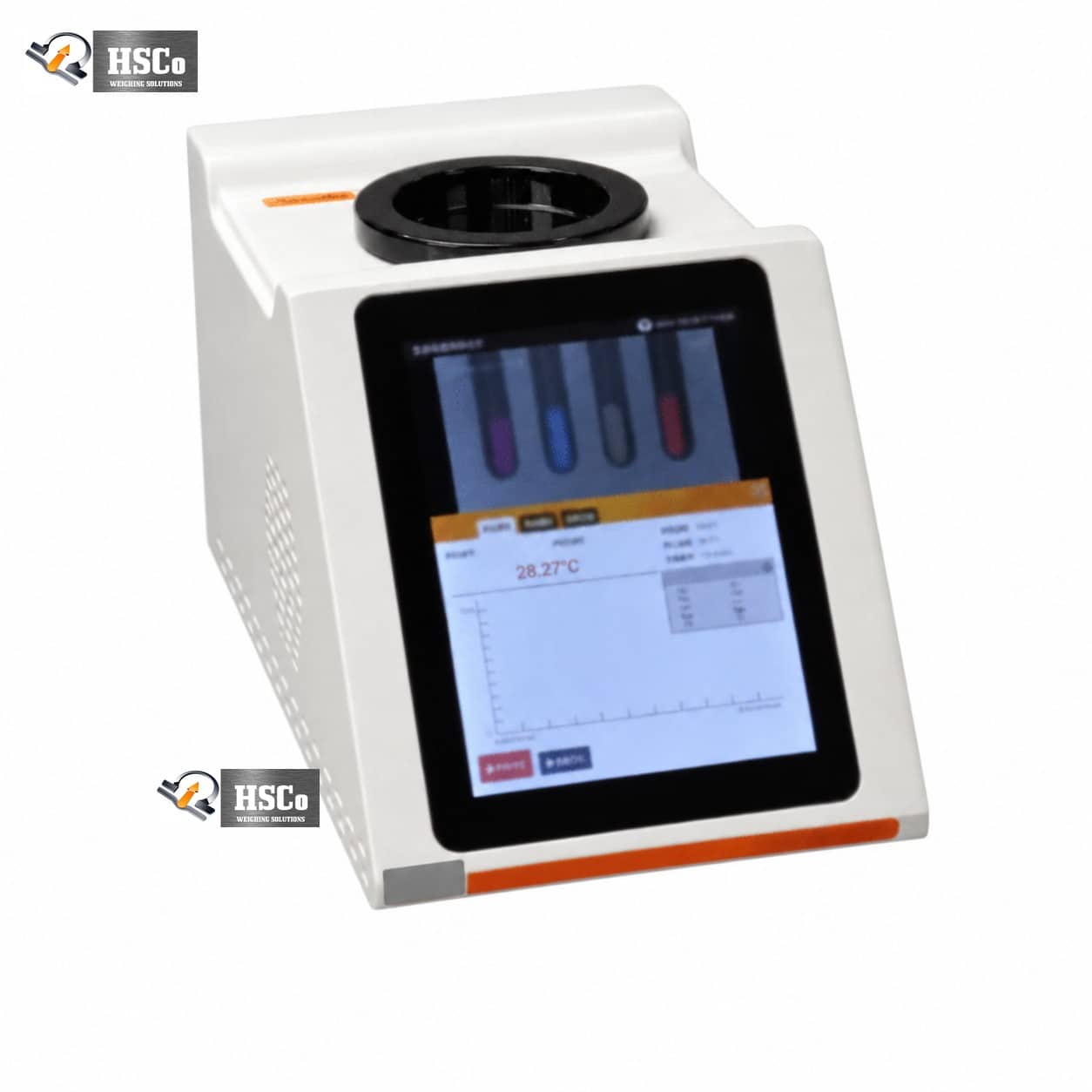

The HSCo HSC-MPA is a digital melting point apparatus for pharmaceutical QC, chemical testing, research and teaching labs. Up to 3 – 4 capillary tubes heat together at a programmed rate, and a high-sensitivity optical sensor detects the melting point automatically, while the large touch screen shows a live view, the temperature graph and the reading. It works from ambient to 350 °C with 0.1 °C resolution and ±0.5 °C accuracy.
Why labs choose the HSC-MPA
- Automatic detection. An optical sensor finds the melting point; you can also watch it visually.
- Several samples at once. 3 – 4 capillary tubes per run.
- Precise heating. Programmable rate from 0.1 to 10 °C per minute.
- Accurate. 0.1 °C resolution, ±0.5 °C, auto calibration with reference substances.
- Clear display. Large touch screen with real-time temperature graph.
- Safe. Over-temperature protection with automatic shutdown.

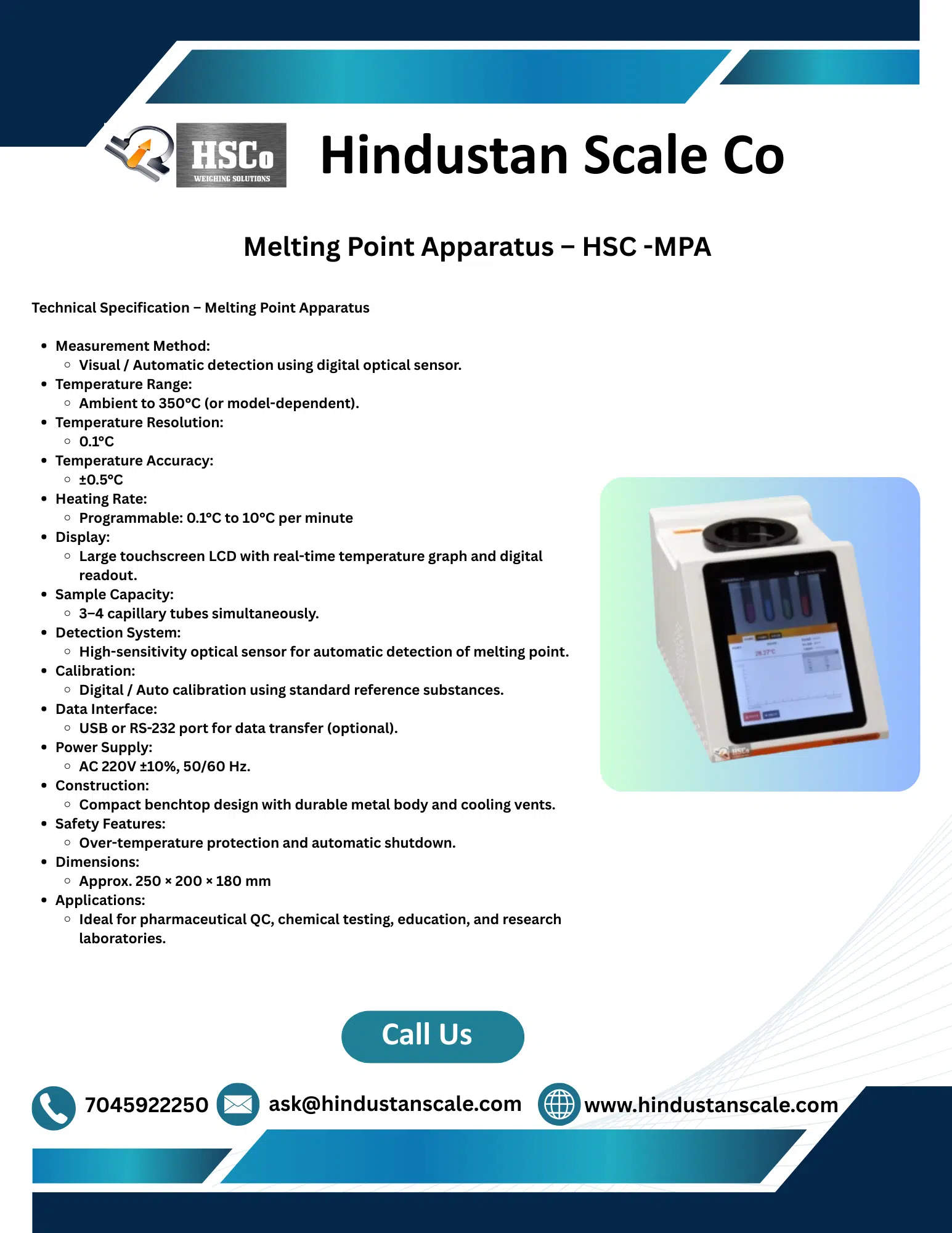

Specifications
| Model | HSC-MPA |
|---|---|
| Method | Automatic optical detection; visual observation possible |
| Temperature range | Ambient to 350 °C |
| Resolution / accuracy | 0.1 °C / ±0.5 °C |
| Heating rate | 0.1 – 10 °C per minute, programmable |
| Samples | 3 – 4 capillary tubes at once |
| Display | Large touch-screen LCD with temperature graph and digital readout |
| Calibration | Digital / auto calibration with standard reference substances |
| Data | USB or RS-232 (optional) |
| Power | 220 V AC ±10%, 50/60 Hz |
| Body | Compact benchtop, metal body with cooling vents |
| Safety | Over-temperature protection, automatic shutdown |
| Size | About 250 × 200 × 180 mm |
| Warranty | 1 year |
Where it is used

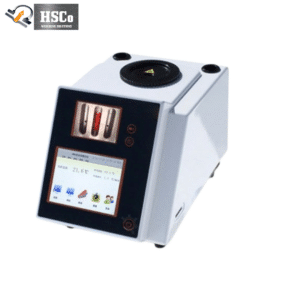

Pharmaceutical quality control, chemical testing, education and research. For grease and oil dropping points, see the grease and oil melting point detector. Browse all laboratory analytical instruments.
Questions buyers ask
An optical sensor watches the capillaries and records the temperature at which each sample melts.
3 to 4 capillary tubes.
From ambient up to 350 °C, with 0.1 °C resolution.
Yes, with the optional USB or RS-232 port.
