FTIR Spectrometer HSC-FTIR – 4,000 to 400 cm⁻¹, 0.5 to 4 cm⁻¹ Resolution, ATR and Transmission
Price on Request
FTIR spectrometer HSC-FTIR: 4,000 – 400 cm⁻¹ (7,800 – 350 cm⁻¹ optional), 0.5 – 4 cm⁻¹ resolution, S/N ≥ 40,000:1, Michelson interferometer, DTGS or MCT detector, ATR, liquid, gas and diffuse-reflectance sampling, library-matching software. For chemical, pharma, polymer and environmental labs. 1-year warranty.

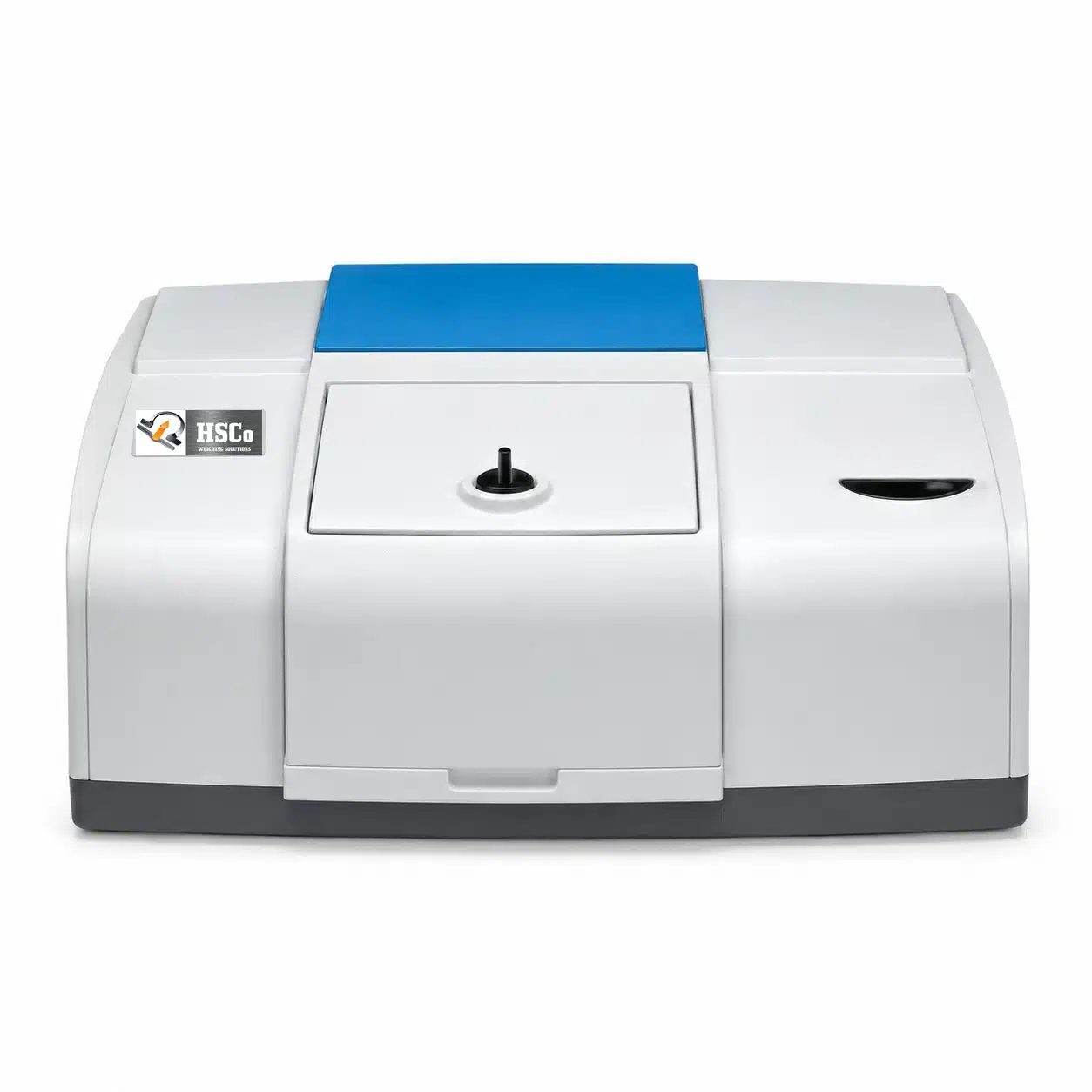

The HSCo HSC-FTIR spectrometer identifies organic and inorganic compounds from their infrared spectrum, for chemical, pharmaceutical, polymer and environmental labs. It is used to check what a sample is made of, find impurities and confirm that products are consistent. A stable Michelson interferometer covers 4,000 to 400 cm⁻¹ as standard (7,800 to 350 cm⁻¹ as an option) at 0.5 to 4 cm⁻¹ resolution, with a signal-to-noise ratio of at least 40,000:1. Accessories take solids, liquids and gases, and the software matches spectra against libraries and prints reports.
Why labs choose it
- Wide range: 4,000 – 400 cm⁻¹, extendable to 7,800 – 350 cm⁻¹.
- Sharp spectra: 0.5 – 4 cm⁻¹ resolution, S/N ≥ 40,000:1.
- Solids, liquids and gases: ATR, liquid cells, gas cells, diffuse reflectance.
- Library matching, quantitative and qualitative analysis, automatic baseline correction.
- Compact, vibration-resistant design.
Specifications
| Spectral range | 4,000 – 400 cm⁻¹ (typical); 7,800 – 350 cm⁻¹ optional |
|---|---|
| Resolution | 0.5 – 4 cm⁻¹, selectable |
| Signal-to-noise | ≥ 40,000:1 (peak to peak) |
| Interferometer | Michelson, high stability |
| Detector | DTGS, or MCT (liquid-nitrogen cooled) |
| Source | Mid-IR (Globar or ceramic) |
| Sampling | ATR; transmission cells for liquids; gas cells; diffuse reflectance for solids |
| Scan speed | 0.1 – 32 scans per second |
| Software | Acquisition, processing, library matching; quantitative and qualitative analysis; baseline correction, peak identification |
| Data output | USB, Ethernet or direct PC connection |
| Power | 220 – 240 V, 50 / 60 Hz |
| Warranty | 1 year |
Which instrument?
For UV and visible absorbance, see the double beam UV-Vis spectrophotometer; for fluorescence, the spectrofluorometer HSC-SFM; to separate volatile compounds, the gas chromatograph HSC-HPGC. Browse all laboratory equipment.
Where it is used
Chemical, pharmaceutical, polymer and environmental labs: identifying compounds, detecting impurities and quality control.
Questions buyers ask
Organic and inorganic compounds, from their infrared spectrum, with library matching.
Yes. It takes ATR, liquid transmission cells, gas cells and a diffuse-reflectance accessory for solids.
DTGS, or MCT cooled with liquid nitrogen. Tell us your application and we will advise.
Ask for a quotation
Tell us your samples and the accessories you need. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
