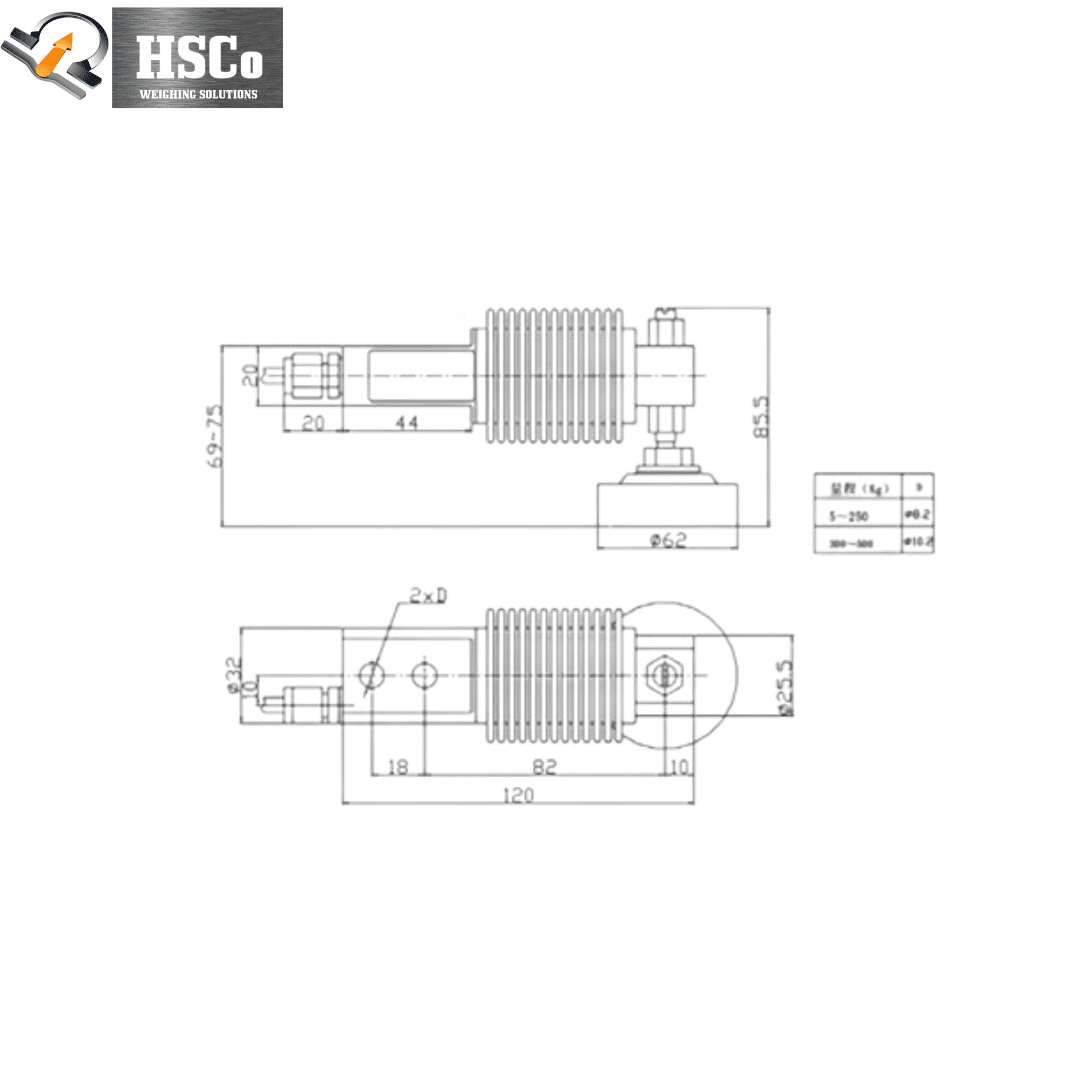

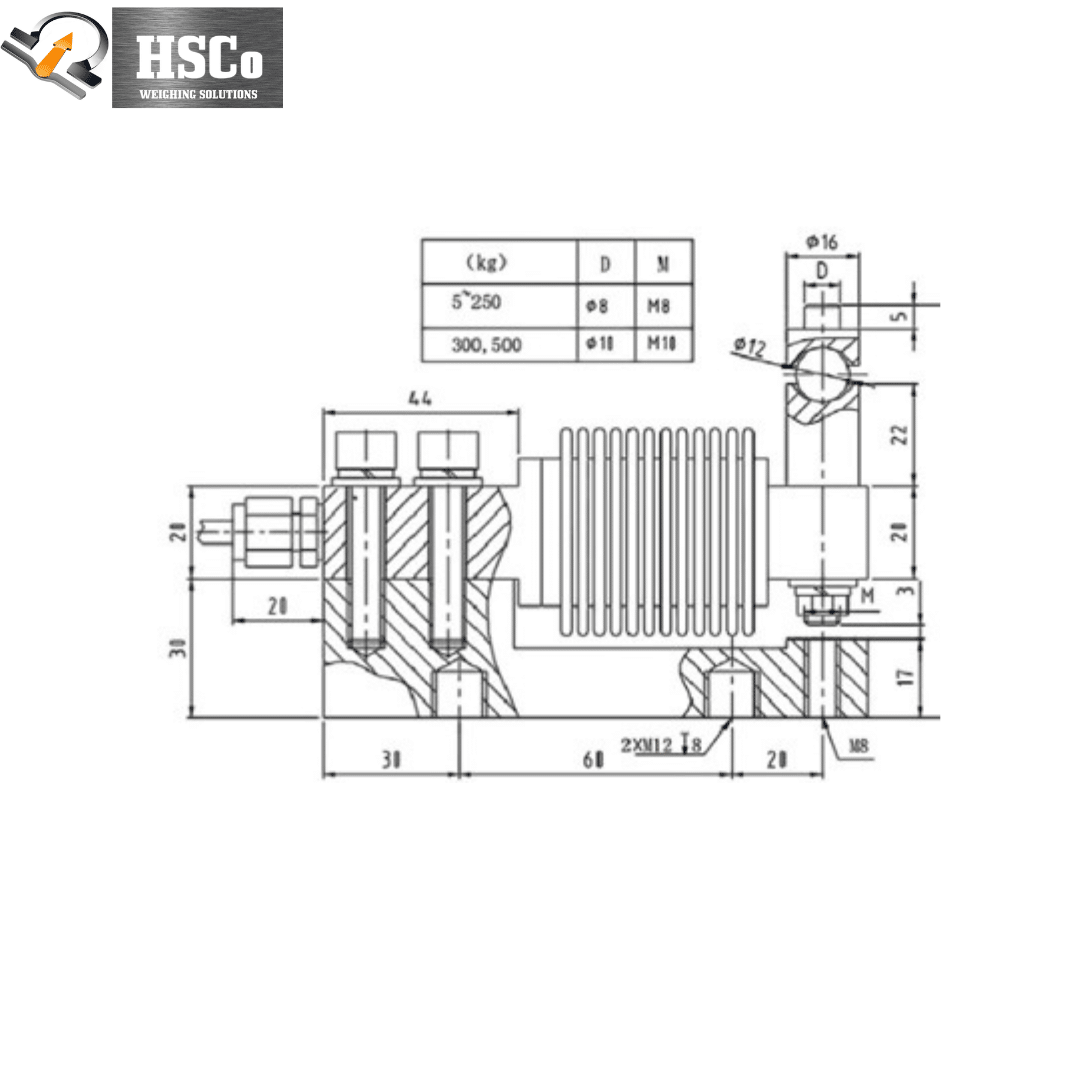

The HSCo HSC-LCX-7-JZM is a bellows-type beam load cell supplied in a mounting module, for small hoppers, tanks, platforms and machines. The sealed bellows protect the gauges inside, and the module’s top and base plates carry the load onto the cell and bolt straight to your structure, so the scale goes together quickly. The drawings give the mounting dimensions. Tell us your load and we will confirm the capacity.
Why machine and scale builders choose it
- Bellows-sealed cell in a ready mounting module.
- Bolts straight on: top and base plates with fixing holes.
- For small tanks, hoppers and platforms.
- Standard wiring with shield.
Specifications
| Model | HSC-LCX-7-JZM |
|---|---|
| Type | Bellows-type beam load cell with mounting module |
| Mounting | Top and base plates with fixing holes (see drawings) |
| Wiring | Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Capacity | Tell us your load – we confirm the version |
| Warranty | 1 year |
Which load cell?
For a bellows weigh module for tanks from 200 to 500 kg, see the HSC BWGM; for the bellows cell on its own, the bellow type shear beam load cell; for a shear beam cell with mounting kit, the HSC-LCX-1-FJ/JZM. Browse all load cells.
Where it is used
Small hoppers and tanks, filling and dosing machines, platforms and process weighing.
Questions buyers ask
A beam cell whose gauges are sealed inside a metal bellows, protecting them from moisture and dirt.
It carries the load onto the cell and bolts to your structure, so fitting is quick.
Tell us the full weight to be carried and the number of supports; we will confirm the version.
Order or ask for a quotation
Tell us what you need it for and we will suggest the right model and size. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
