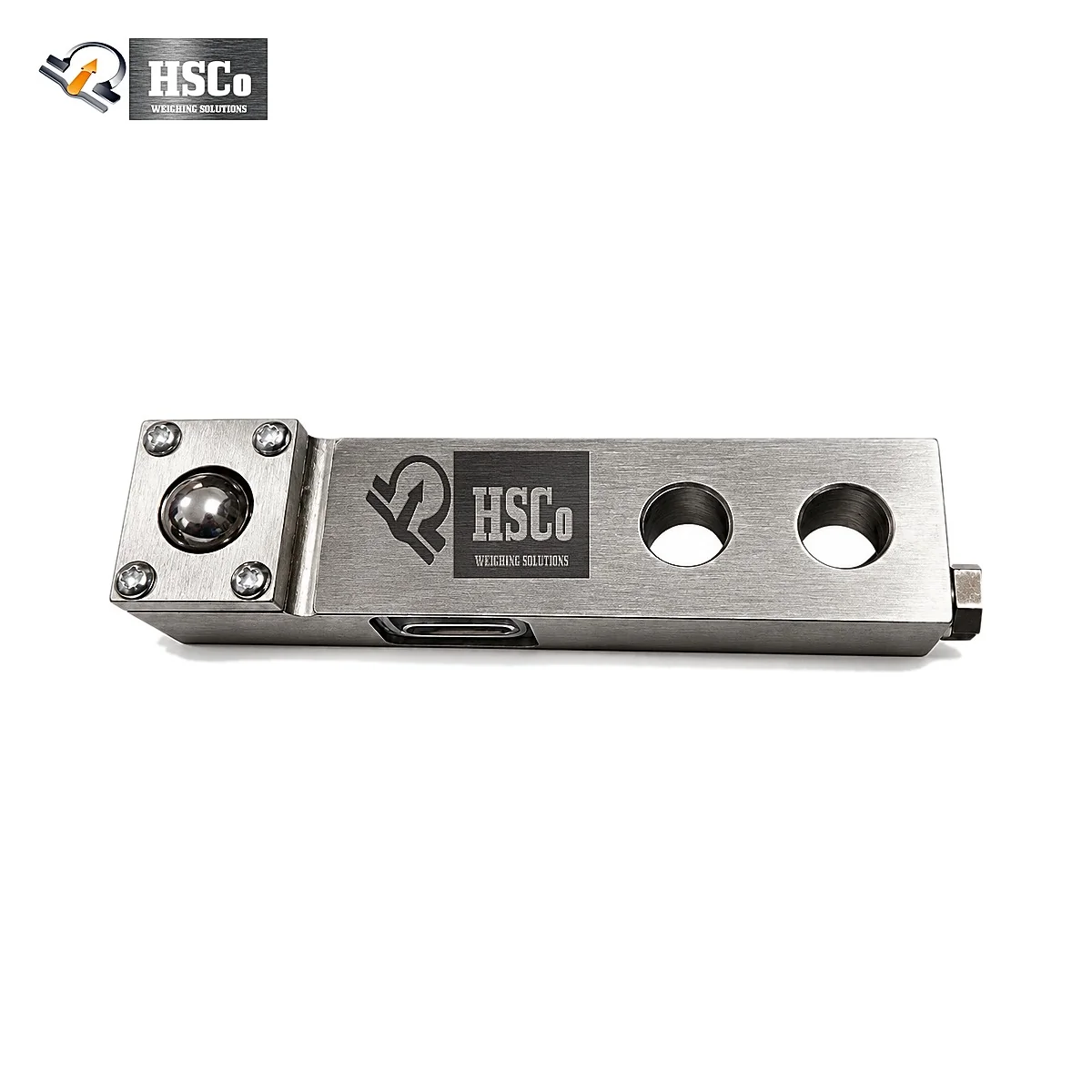

The HSC LCX-6-A is an alloy-steel cantilever beam load cell: one end is bolted down and the other takes the load through a ball button, and it centres itself under force. It is well sealed to IP66, easy to install and interchangeable, and comes in 1 t and 2 t. It is used to build ultra-thin truck scales, monorail crane scales and hopper scales.
Why scale makers choose it
- 1 t and 2 t capacities.
- Self-centring ball-button loading.
- Sealed to IP66.
- Overload margin: safe 120%, limit 180% of full scale.
- Easy to fit and interchangeable; made to OIML R60.
Specifications
| Model | HSC LCX-6-A |
|---|---|
| Type | Cantilever beam, ball-button loading |
| Capacities | 1 t, 2 t |
| Sensitivity | 2.0 ± 0.03 mV/V |
| Total error | ±0.03% FS (±0.05% FS max) |
| Creep (30 min) | 0.03% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.03% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 120% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Impedance | Input 400 ± 10 Ω; output 352 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ |
| Protection | IP66 |
| Material | Alloy steel |

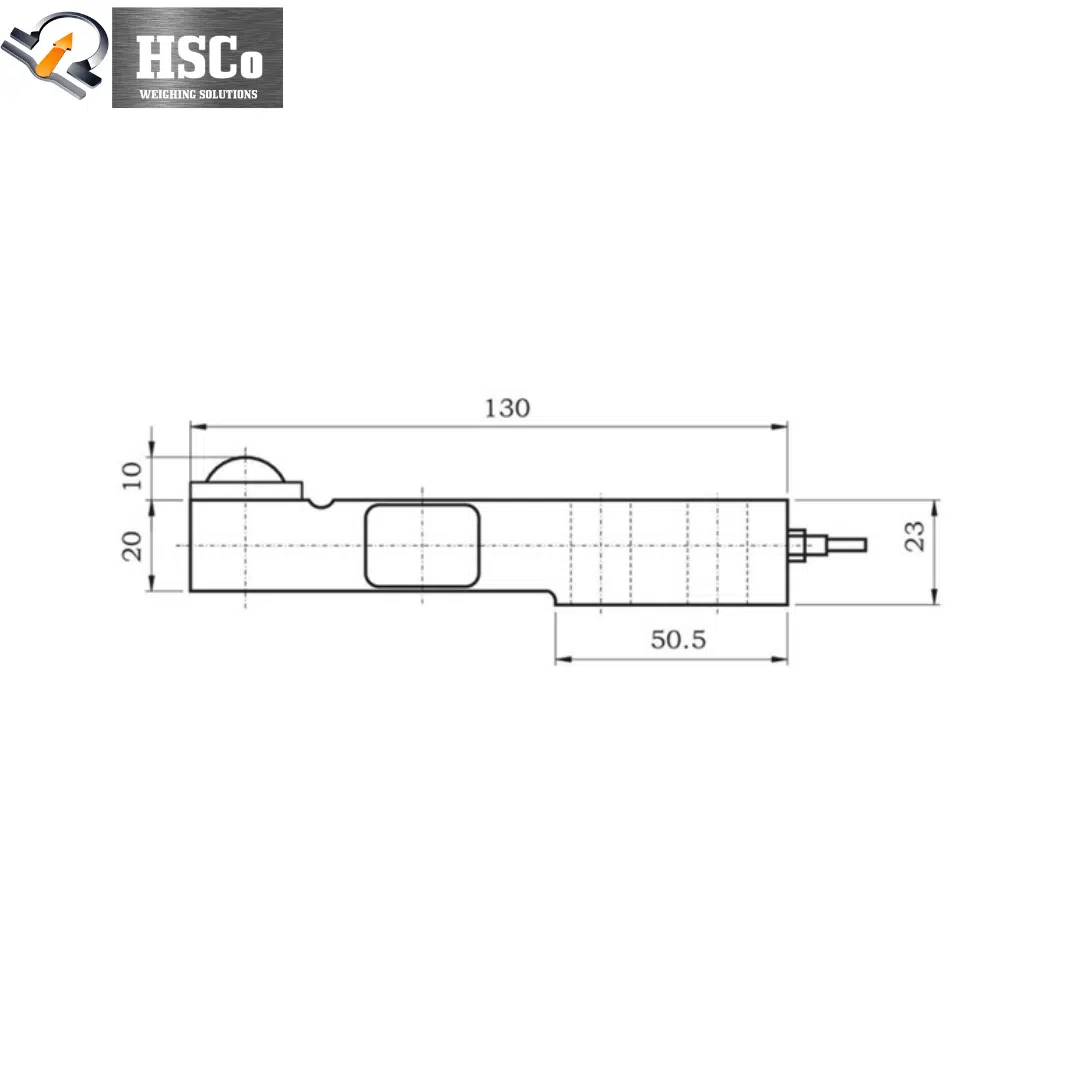

| Main sizes (drawing) | Length 130 mm; two Ø 13.5 mm mounting holes |
| Cable | 3 m, Ø 5 mm |
| Wiring | Exc + red, Exc − black, Sig + green, Sig − white, shield yellow |
| Standard | Made to OIML R60 |
| Warranty | 1 year |
Which load cell?
From 500 kg to 3 t, see the LCX-3 (IP67); for a low installation height, the LCX-2-S. Browse all load cells.
Where it is used
Ultra-thin truck scales, monorail crane scales and hopper scales.
Questions buyers ask
1 t and 2 t.
To IP66.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield; 3 m cable.
