Single Ended Shear Beam Load Cell HSC LCX-1-FJ/JZM – 1 t and 2 t, Alloy Steel, IP67
Price on Request
Single-ended shear beam load cell HSC LCX-1-FJ/JZM: 1 t or 2 t, alloy steel, IP67, 2.0 mV/V, ±0.02% FS, operating −35 to +70 °C, 2 m cable, OIML R60. For platform, floor and hopper scales. 1-year warranty.
The HSC LCX-1-FJ/JZM is an alloy-steel single-ended shear beam load cell, sealed to IP67, for platform scales, floor scales, hoppers and process weighing. It comes in 1 t and 2 t capacities, with ±0.02% FS total error and a wide operating range from −35 to +70 °C.
Why scale makers choose it
- Single-ended shear beam in alloy steel.
- Sealed to IP67.
- Accurate: ±0.02% FS total error.
- Wide temperature range: −35 to +70 °C operating.
- Standard wiring and OIML R60.
Specifications
| Model | HSC LCX-1-FJ/JZM |
|---|---|
| Type | Single-ended shear beam |
| Capacities | 1 t, 2 t |
| Sensitivity | 2.0 ± 0.04 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −35 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 380 ± 5 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 |
| Material | Alloy steel |

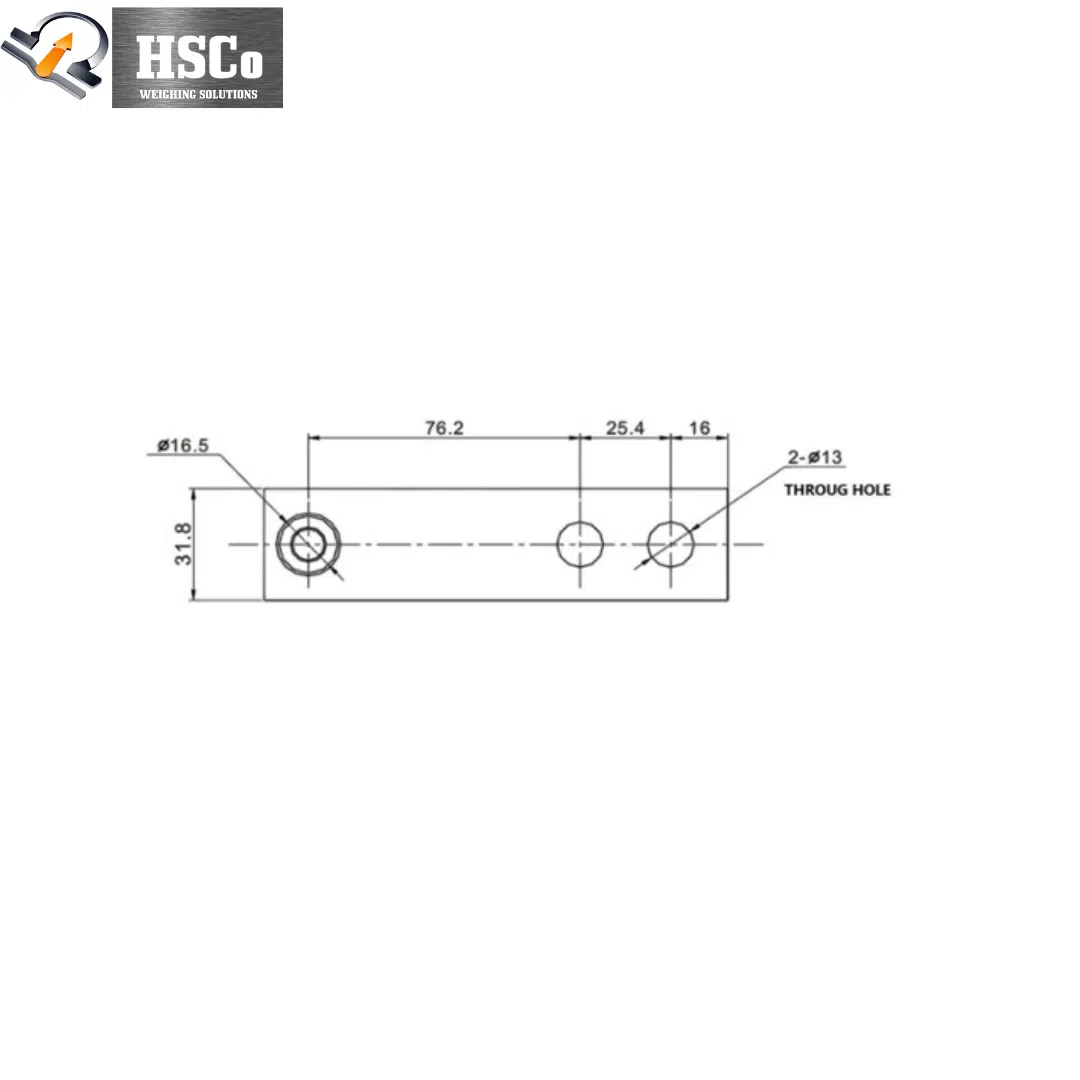

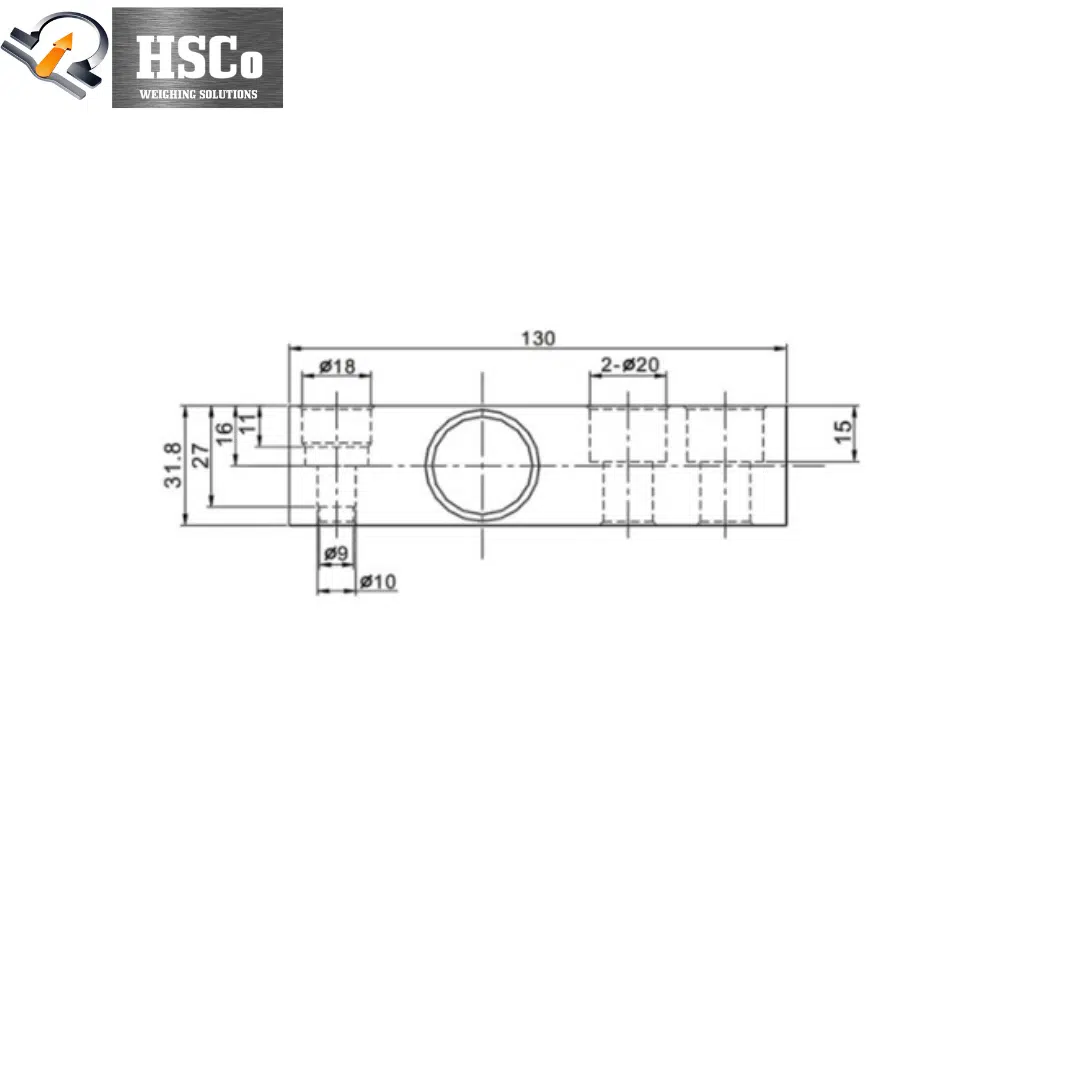

| Size | 130 mm long; 31.8 mm high |
| Cable | 2 m, Ø5.7 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
See also the LCX-1 cantilever beam (50 kg – 3 t) and the LCX-2-S (0.3 – 3 t). Browse all load cells.
Where it is used
Platform and floor scales, hopper and tank weighing, and industrial process weighing.
Questions buyers ask
1 t and 2 t.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Yes, to IP67.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 500 kg |
|---|
