Cantilever Beam Load Cell HSC LCX-2-S – 0.3 to 3 t, Low Height, Nickel-Plated Alloy Steel
Price on Request
Cantilever beam load cell HSC LCX-2-S: 0.3 to 3 t, low installation height, self-stabilising, nickel-plated alloy steel, IP67/IP68, 2.0 mV/V, ±0.02% FS, 300% limit overload, OIML R60. For floor scales and batching. 1-year warranty.
The HSC LCX-2-S is a nickel-plated alloy-steel cantilever beam load cell with a low installation height and a self-stabilising structure. It gives high overall accuracy and good long-term stability, and is used in floor (ground) scales and in batching control for building materials and other ingredients. Capacities run from 0.3 to 3 tonnes.
Why scale makers choose it
- Low installation height for thin floor scales.
- Self-stabilising structure, good long-term stability.
- Nickel-plated alloy steel, sealed against moisture.
- High limit overload: 300% of capacity.
- 0.3 to 3 t capacities.
Specifications
| Model | HSC LCX-2-S |
|---|---|
| Type | Cantilever (single-ended) beam |
| Capacities | 0.3, 0.5, 1, 2, 3 t |
| Sensitivity | 2.0 ± 0.004 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +60 °C |
| Overload | Safe 150% FS; limit 300% FS |
| Excitation | 10 – 12 V DC recommended; 20 V DC maximum |
| Input / output impedance | 381 ± 4 Ω / 350 ± 1 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel, nickel plated |

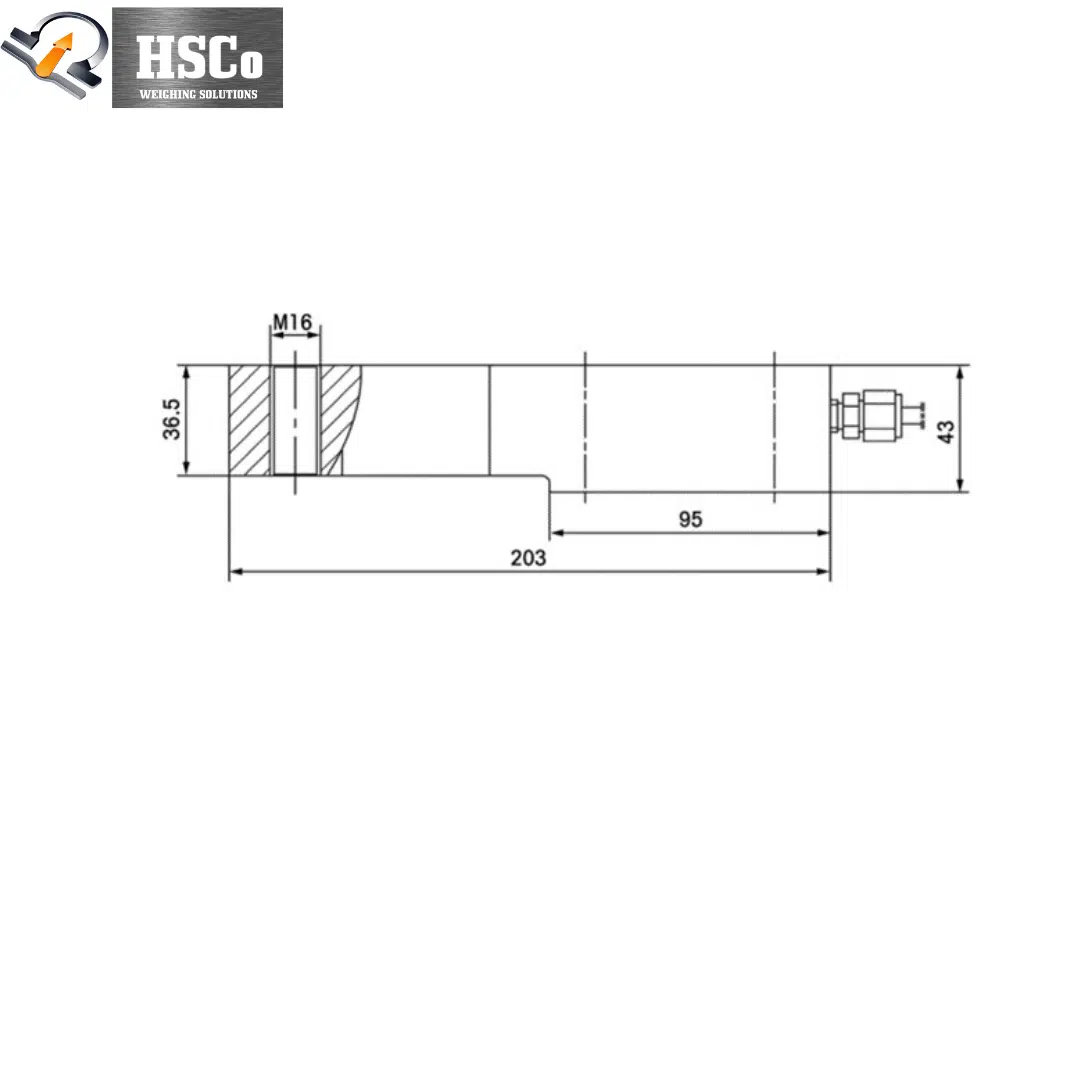

| Size | 203 mm long; M16 mounting threads |
| Cable | 4 m, Ø5.2 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
See also the LCX-6-A cantilever beam (500 kg – 3 t) and the LCX-1 (50 kg – 3 t). Browse all load cells.
Where it is used
Floor (ground) scales, batching and ingredient weighing for building materials, hoppers and industrial weighing systems.
Questions buyers ask
0.3, 0.5, 1, 2 and 3 tonnes.
It lets floor scales be built thin, so loads roll on easily.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
