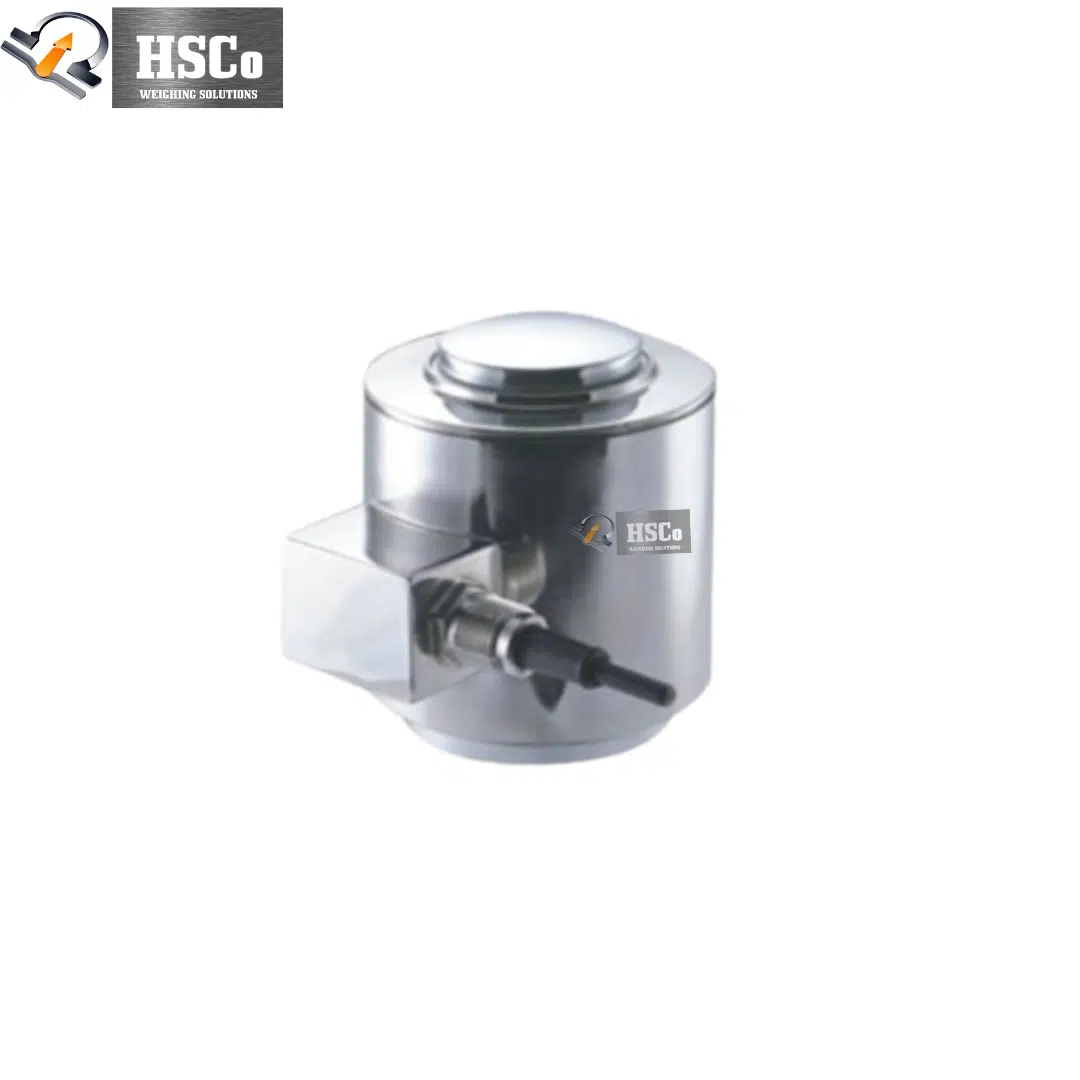

The HSC LCZ-1 is a heavy-duty column load cell for very large loads, from 5 up to 450 tonnes. It is fully sealed by argon-arc welding, waterproof and dustproof to IP68, and takes the load through a ball on its upper face. It responds fast, stands up well to overload and is easy to install. It is used to build electronic truck scales (weighbridges), dynamic rail scales and large hopper scales.
Why scale makers choose it
- 5 to 450 t capacities.
- Fully welded, IP68: waterproof and dustproof.
- Accurate: ±0.02% FS total error.
- Upper ball loading with fast response and strong overload resistance.

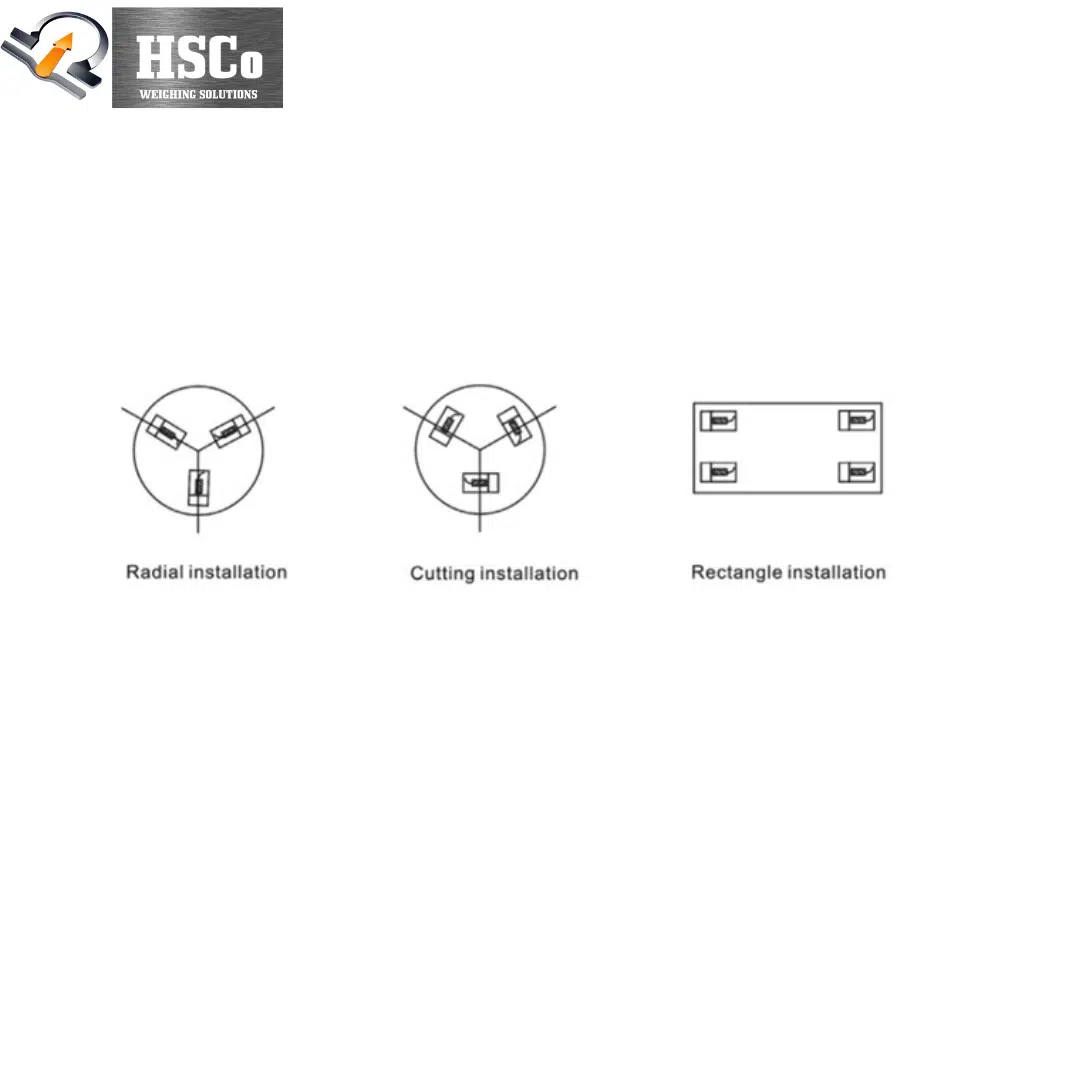

- Radial, tangential or rectangular installation layouts.
Specifications
| Model | HSC LCZ-1 |
|---|---|
| Type | Column, compression, upper ball loading |
| Capacities | 5, 20, 45, 90, 120, 160, 180, 225, 450 t |
| Sensitivity | 1.5 ± 0.02 mV/V or 2.0 ± 0.02 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Safe overload | 150% FS |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Protection | IP68, argon-arc welded |

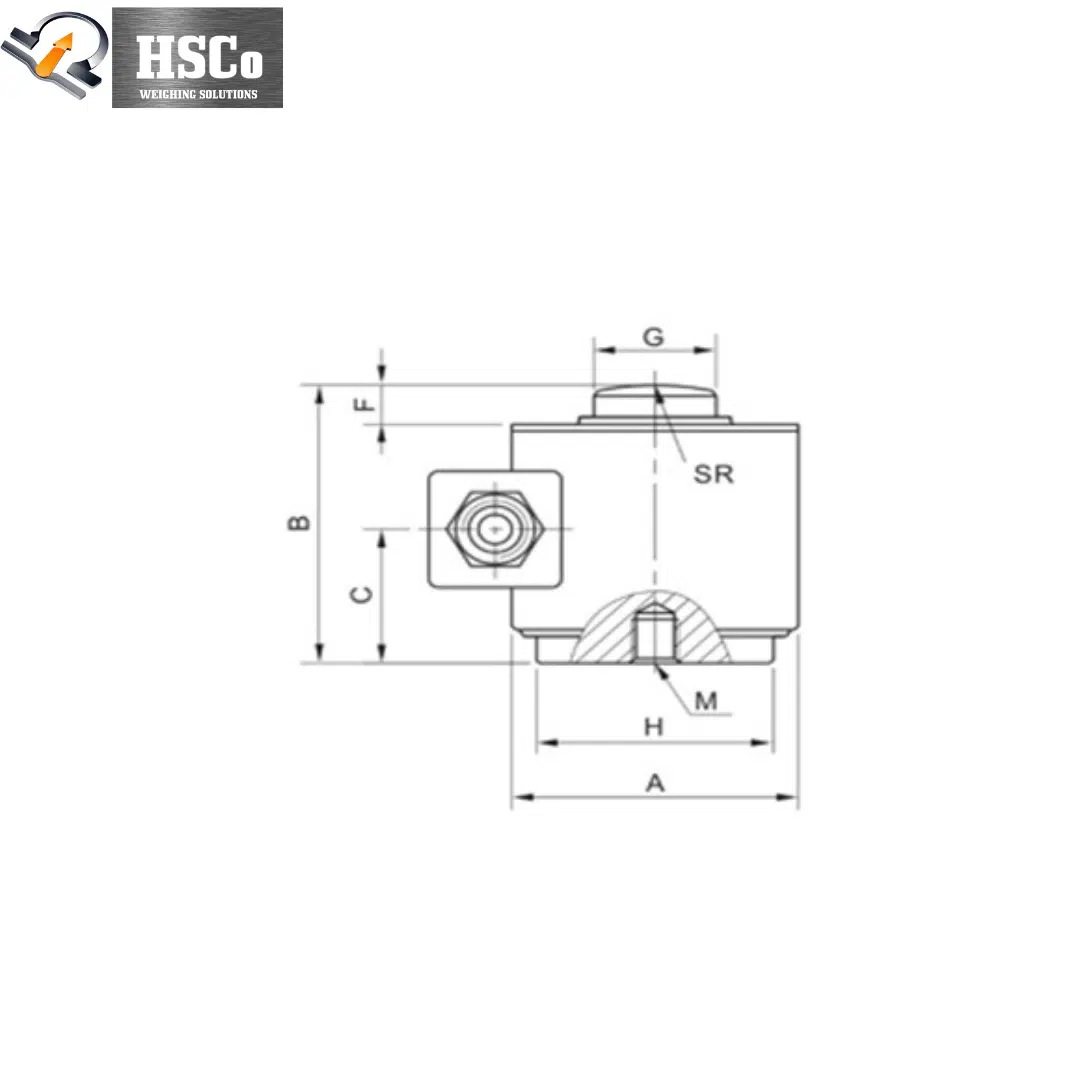

| Mounting threads | 5 – 20 t: ½-20 / M12 × 1.75; 45 t: ¾-16 / M18 × 1.5; 90 – 450 t: ¾-16 / M20 × 1.5 |

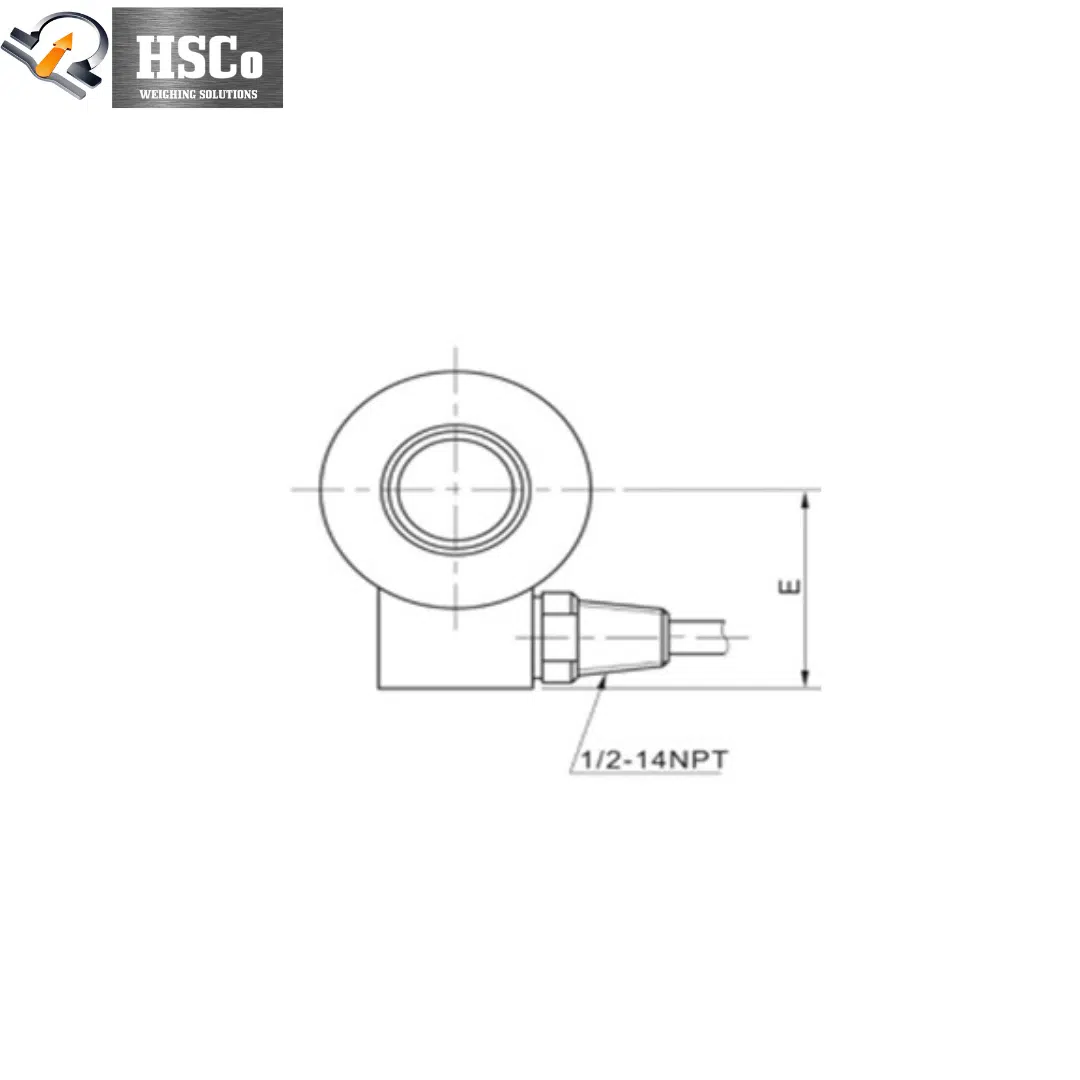

| Cable entry | ½-14 NPT |
| Wiring | Input + red, input − black, output + green, output − white, shield yellow |
| Warranty | 1 year |
Which load cell?
For weighbridges up to 60 t, see the double ball-head LCZ-4 or the flanged LCZ-5. Browse all load cells.
Where it is used
Electronic truck scales (weighbridges), dynamic rail scales and large hopper scales.
Questions buyers ask
5, 20, 45, 90, 120, 160, 180, 225 and 450 tonnes.
Yes. It is fully sealed by argon-arc welding to IP68.
Input + red, input − black, output + green, output − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
