Static Outdoor Tank Weighing System HSCSOTWS – Tank and Silo Stock in kg or Litres
Price on Request
Outdoor tank and silo weighing system: load cells under the tank show the contents in kg or litres at any time; self-balancing load cells replaced without emptying the tank; Bluetooth alerts on limits; ERP link; water, vibration and heat resistant; anti-corrosion coating; installed by HSCo technicians. 1-year warranty.

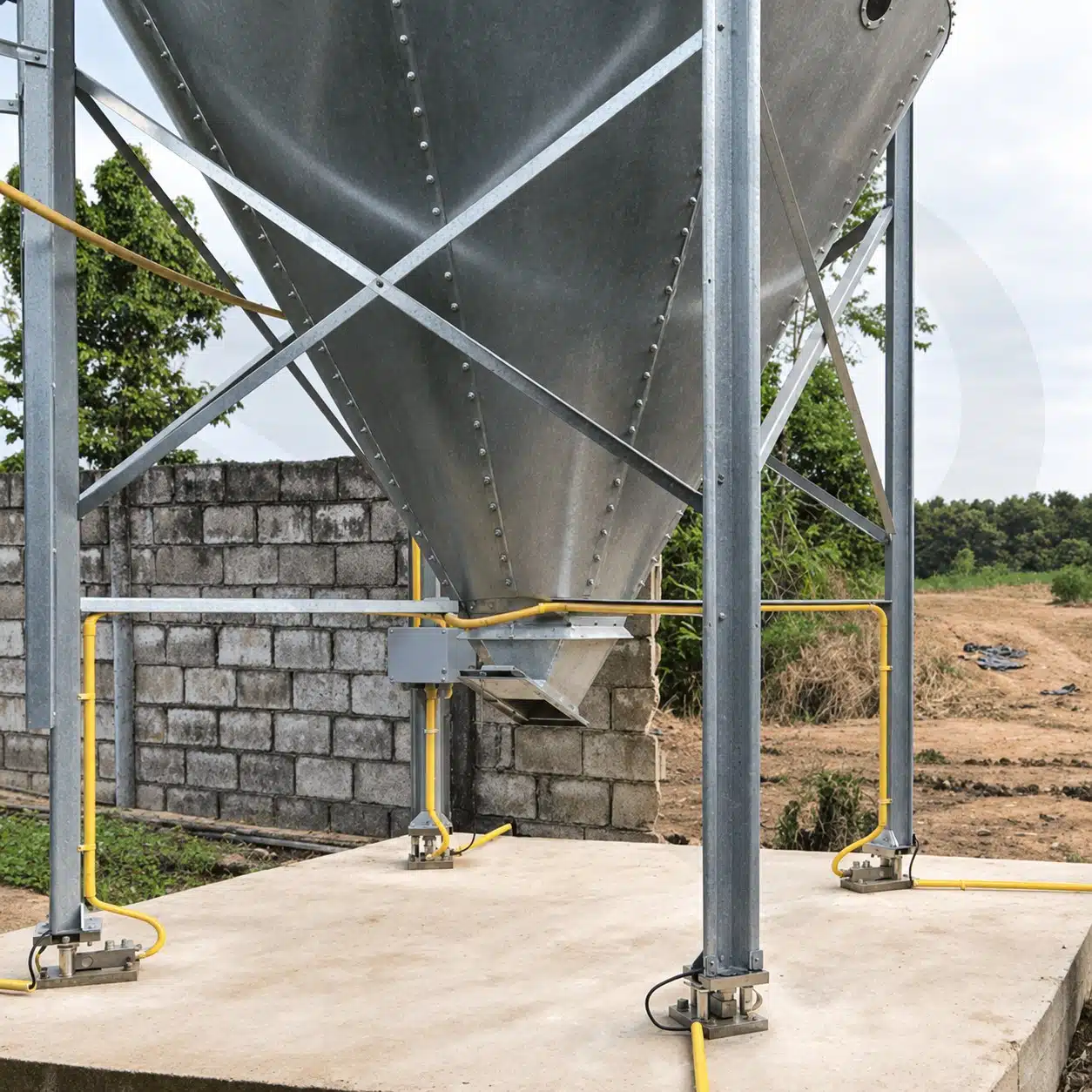

The HSCo HSCSOTWS static outdoor tank weighing system puts an outdoor tank or silo on load cells, so an indicator shows at any moment how much it holds, in kg for powders or litres for liquids. You can see when to reorder, stop overfilling and control mixing in a continuous process. The system uses self-balancing, water- and vibration-resistant load cells that can be replaced without emptying the tank, sends alerts when the level goes outside your limits, and can be linked to your ERP. It is installed by HSCo’s own technicians.
Why plants choose it
- Know the stock at any time, even while material flows in and out.
- Self-balancing load cells: replace one without emptying the tank or recalibrating.
- Alerts over Bluetooth when the contents go above or below the limits you set.
- ERP link to control production flow from a computer.
- Stable, surge-resistant electronics in the terminal and junction box.
- Built for outdoors: water and vibration resistant, anti-corrosion coating, unaffected by hot tank contents.
Specifications
| System | HSCSOTWS static outdoor tank weighing system |
|---|---|
| Reading | kg (powders) or litres (liquids) |
| Load cells | Self-balancing, hermetically sealed, heat resistant; replaceable in the working plant |
| Electronics | High-precision terminal and junction box, resistant to surges and fluctuations |
| Connectivity | Bluetooth alerts; ERP interface |
| Build | Water and vibration resistant components; special anti-corrosion coating |
| Installation | By HSCo technicians |
| Warranty | 1 year |
Which tank weighing system?
For tanks indoors, see the HSCSITWS static indoor tank weighing system. The load-cell mounts are also sold on their own: the HSC-MNDQ (2.5 – 100 t) and HSC-ZSD (10 – 50 t) assemblies. Browse all tank weighing scales.
Where it is used
Outdoor tanks and silos for liquids and powders: chemical, food, feed and process plants, and any continuous-flow system where material goes in and product comes out.
Questions buyers ask
How does it work?
The tank stands on load cells. As it fills or empties, the indicator shows the contents in kg or litres.
Do I have to empty the tank to replace a load cell?
No. The load cells are self-balancing: a new HSCo cell is connected in the junction box without emptying the tank or recalibrating.
Will hot liquid affect the reading?
No. The system is built to take hot tank contents for long periods without affecting the reading.
Why must HSCo install it?
Dead load, sealing, rust and binding all have to be handled correctly; a badly set-up system reads wrong and can be unsafe. Our technicians install it.
Ask for a quotation
Tell us about your tank: size, full weight, legs and what it holds. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
