The HSC LCX-1 is a steel cantilever (single shear) beam load cell: one end is bolted down and the other takes the load. It comes in capacities from 50 kg to 3 tonnes, sealed to IP66 / IP68, and is used to build low-profile floor and truck scales, monorail and hopper scales. Its sealed construction, easy mounting and good interchangeability make it a common choice for scale builders.
Why scale builders choose it
- Wide capacity range. 50 kg to 3 t in one series.
- Sealed for tough sites. IP66 / IP68 protection.
- Accurate and stable. Total error within ±0.02% FS, with temperature compensation from −10 to +40 °C.
- Easy to fit and swap. Simple bolt-down mounting and good interchangeability.
- Built to OIML R60.
Specifications
| Capacities | 50, 100, 200, 250, 500 kg; 1, 2, 3 t |
|---|---|
| Sensitivity | 2.0 ± 0.002 mV/V or 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS max |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS; span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −35 to +80 °C |
| Overload | Safe 150% FS; limit 200% FS |
| Excitation | 5 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 380 ± 10 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP66 / IP68 |
| Material | Alloy steel or stainless steel |
| Cable | 3 m, 5.2 mm diameter; Exc+ red, Exc− black, Sig+ green, Sig− white |
| Standard | OIML R60 |
| Warranty | 1 year |

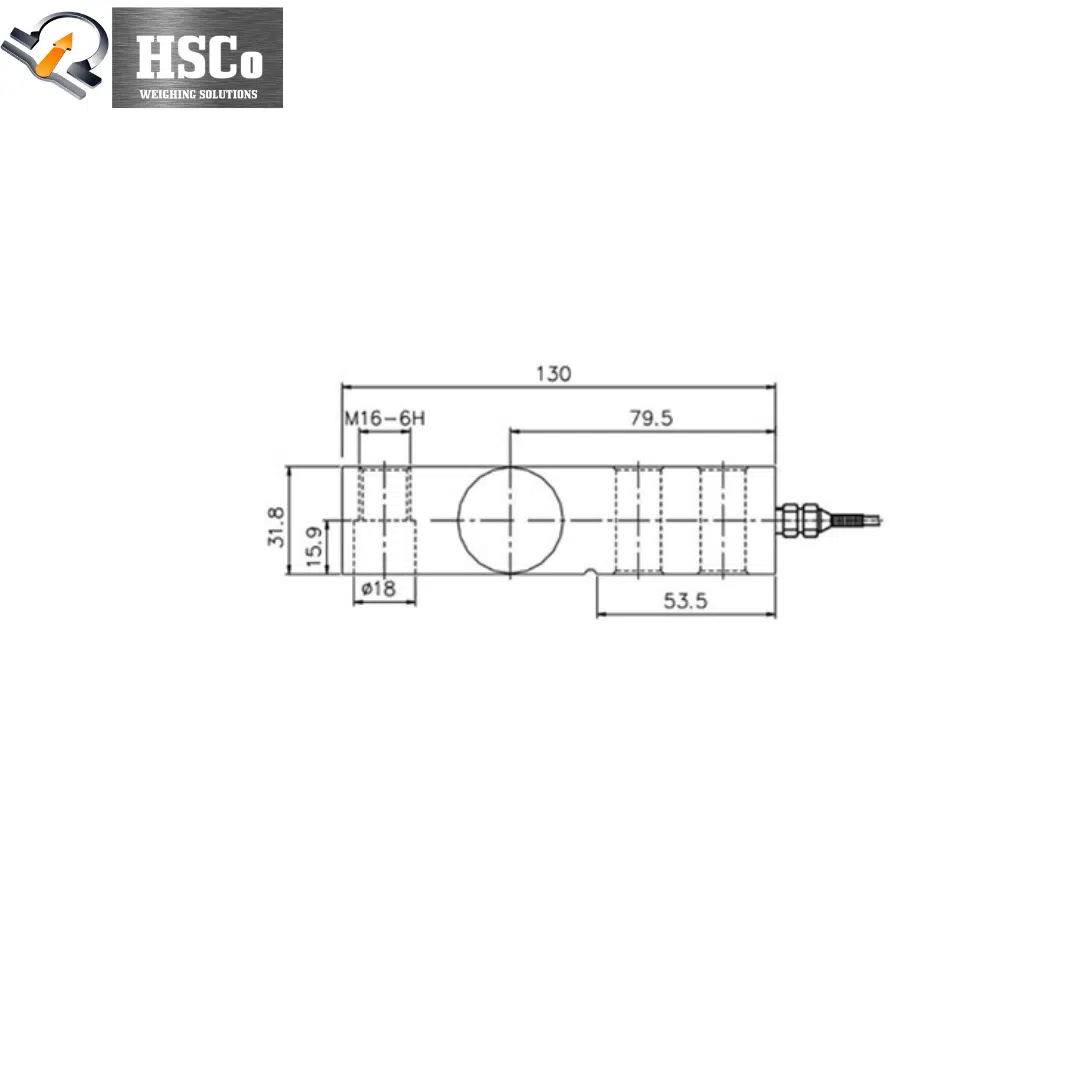

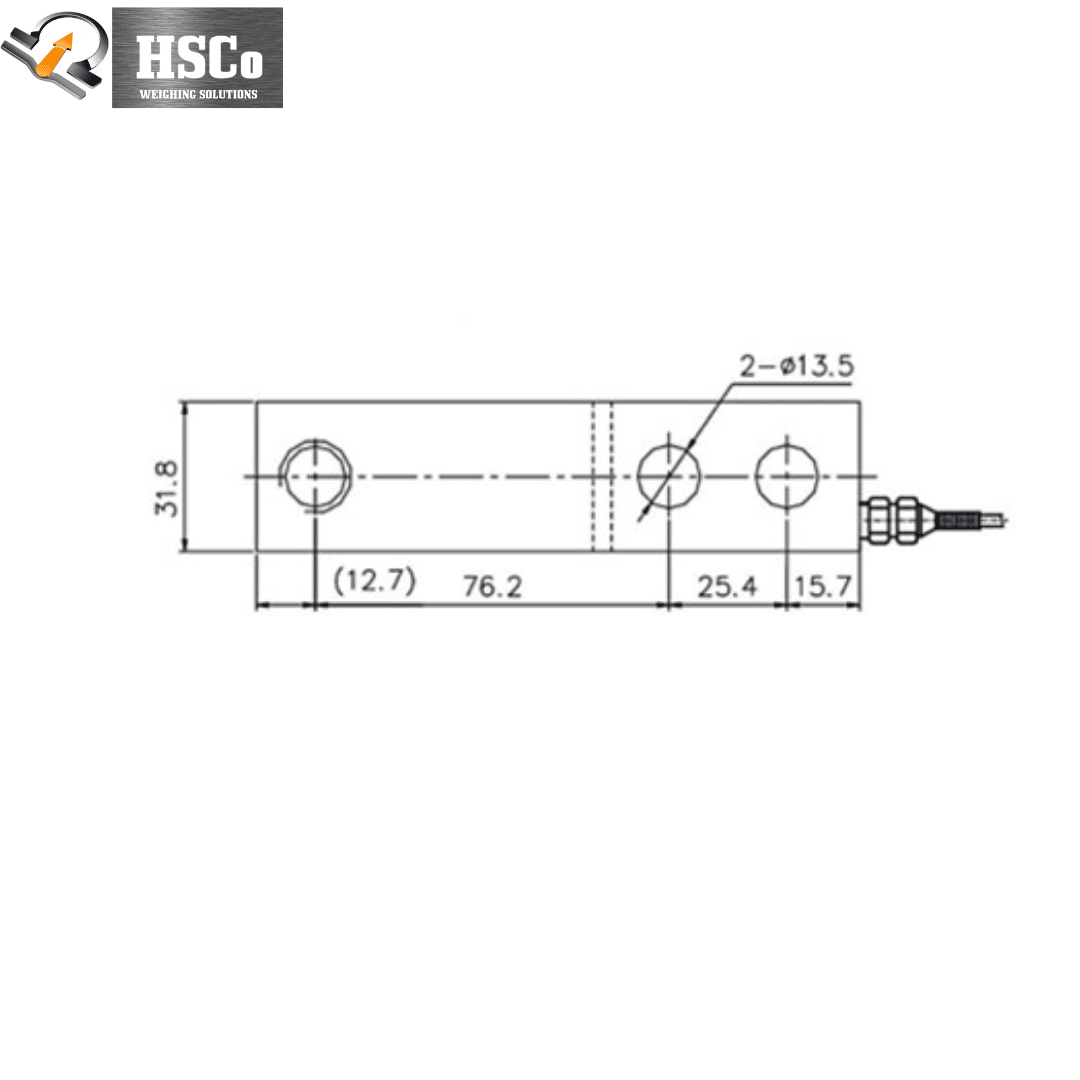

Dimensions (mm)
| Capacity (t) | A | B | C | D | E | F | G | Mounting thread |
|---|---|---|---|---|---|---|---|---|
| 0.05 – 3 | 130.0 | 32.0 | 15.7 | 25.4 | 76.2 | 57.0 | 13.5 | M12 × 1.75 / M16 × 1.5 / ½-20 |
Where it is used
Ultra-thin truck and floor scales, monorail crane scales, hopper and tank scales, and industrial weighing systems. Use with our junction boxes, or browse all load cells.
Questions buyers ask
A load cell fixed at one end and loaded at the other; the bending is measured to give the weight.
50 kg to 3 t: 50, 100, 200, 250 and 500 kg, and 1, 2 and 3 t.
It is sealed to IP66 / IP68.
Exc+ red, Exc− black, Sig+ green, Sig− white.
