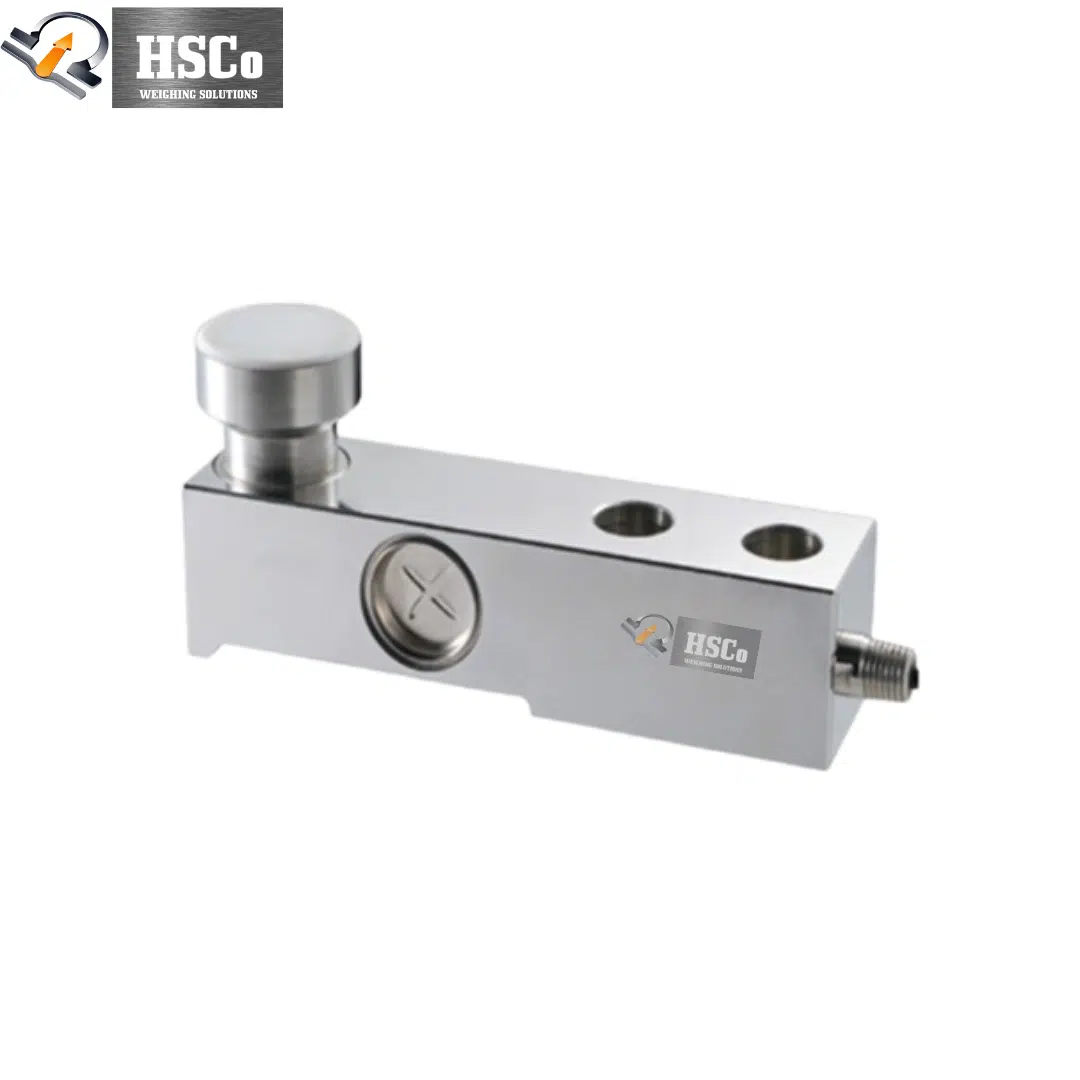

Cantilever Beam Load Cell HSC LCX 3

LCX-3 Steel Cantilever Beam Load at One End Loaded at and Transmitted by a Cylindrical Indenter with a Good Sealing Structure. After the Force is Automatically Adjusted, the Installation is Easy, the Application is Convenient is, and the Interchangeability is Good. It Can be Used to Make Various Ultra-Thin Electronic Truck Scala, Monorail Crane, Hopper Scale.

📞 Talk to Our Specialists

For inquiries, product information, pricing, or technical assistance, please contact us using the details below. Our team will be happy to assist you.

Contact Us

Compare
Description

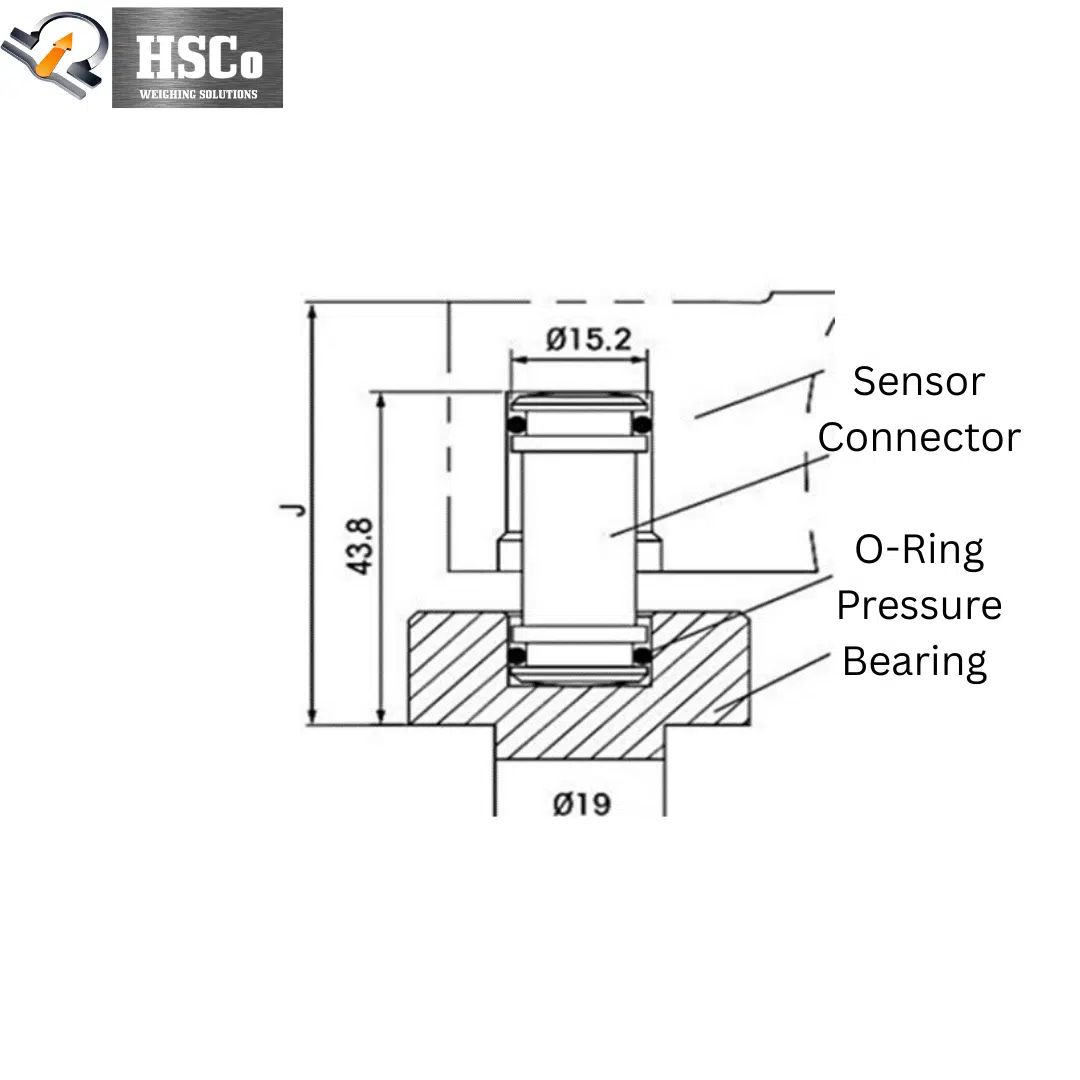

Dimensions

Rate Loaded (T)

ΦA1

ΦA2

ΦA3

B

C

D

E

F1

G

H

I

J



558.200

16

22

12.5

57.8

38.2

35

133.4

25.4

15.4

22

17

55.3



1000

16

22

12.5

58.2

36.2

36.6

137

25.4

18.4

23.7

17

24.6



2000

16

22

12.5

58.2

36.2

36.6

137

25.4

18.4

23

17

55.3



3000

16

22

12.5

58.2

36.2

36.6

137

25.4

18.4

23

17

55.3







                                                                                         TECHNICAL PARAMETERS

Rated Capacities

500,1000,2000,3000(KG)

Temperature Range Compensated

-10°C to +40°C

Sensitivity

2.0±.0.004mV/V

Temperature Range Operating

-30°C to +60°C

Total Error

±0.02%F. S ±0.05%F. S

MAX Safety Overload

150 % F. S

Creep Error

0.02%F. S (30min)

Limited Overload

300 % F. S

Zero Balance

±1%F. S

Excitation Voltage (Recommend)

5-15V DC









TCO

±0.02%F. S/10° C

Excitation Voltage (Maximum)

20V DC

TC SPAN

±0.02%F. S/10 °C

Protection Class

IP67

Input Impedance

381 ± 4 Ω

Construction

(Alloy Steel)

Output Impedance

350± 1 Ω

Cable

Length: 4m

Diameter:  Φ 5.2mm

Additional information
Capacity

500 kg, 1000 kg
