Single-Ended Shear Beam Load Cell HSC – 0.3 t to 25 t, Size Table
Price on Request
Single-ended shear beam load cell HSC: 0.3 t to 25 t, bolt-down at one end, full size table by capacity (M10 to M24 mounting), three assembly layouts, standard 5-wire colour code. 1-year warranty.

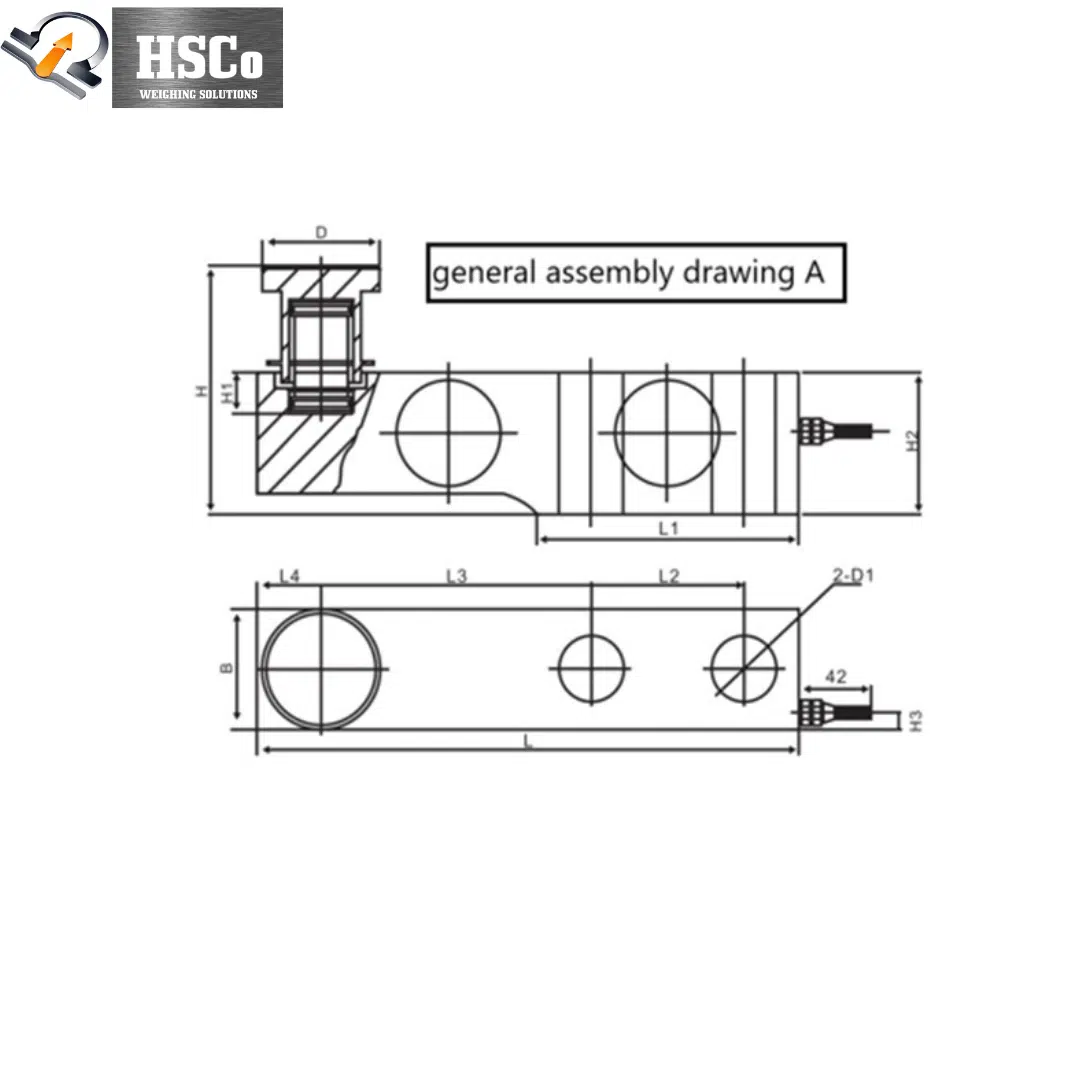

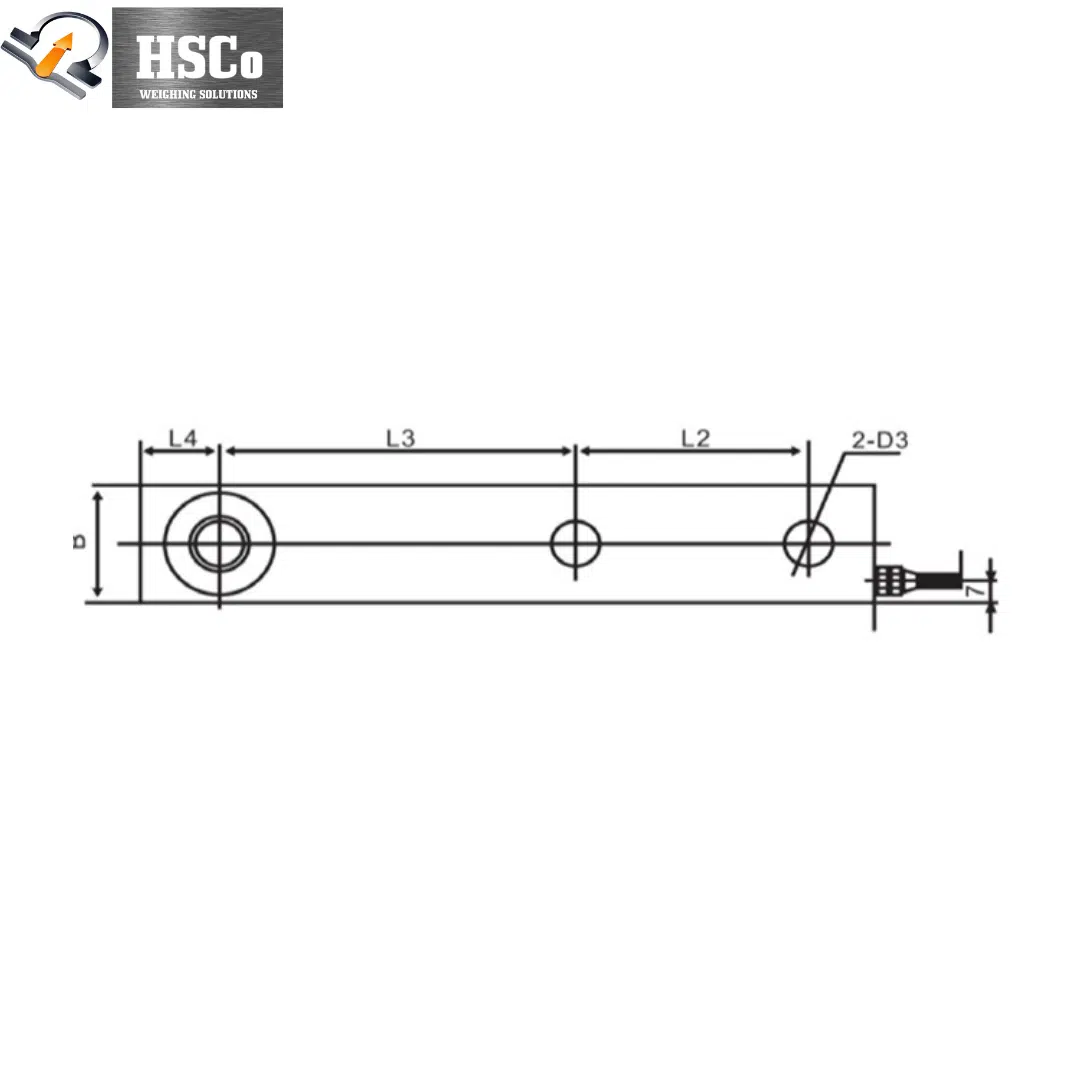

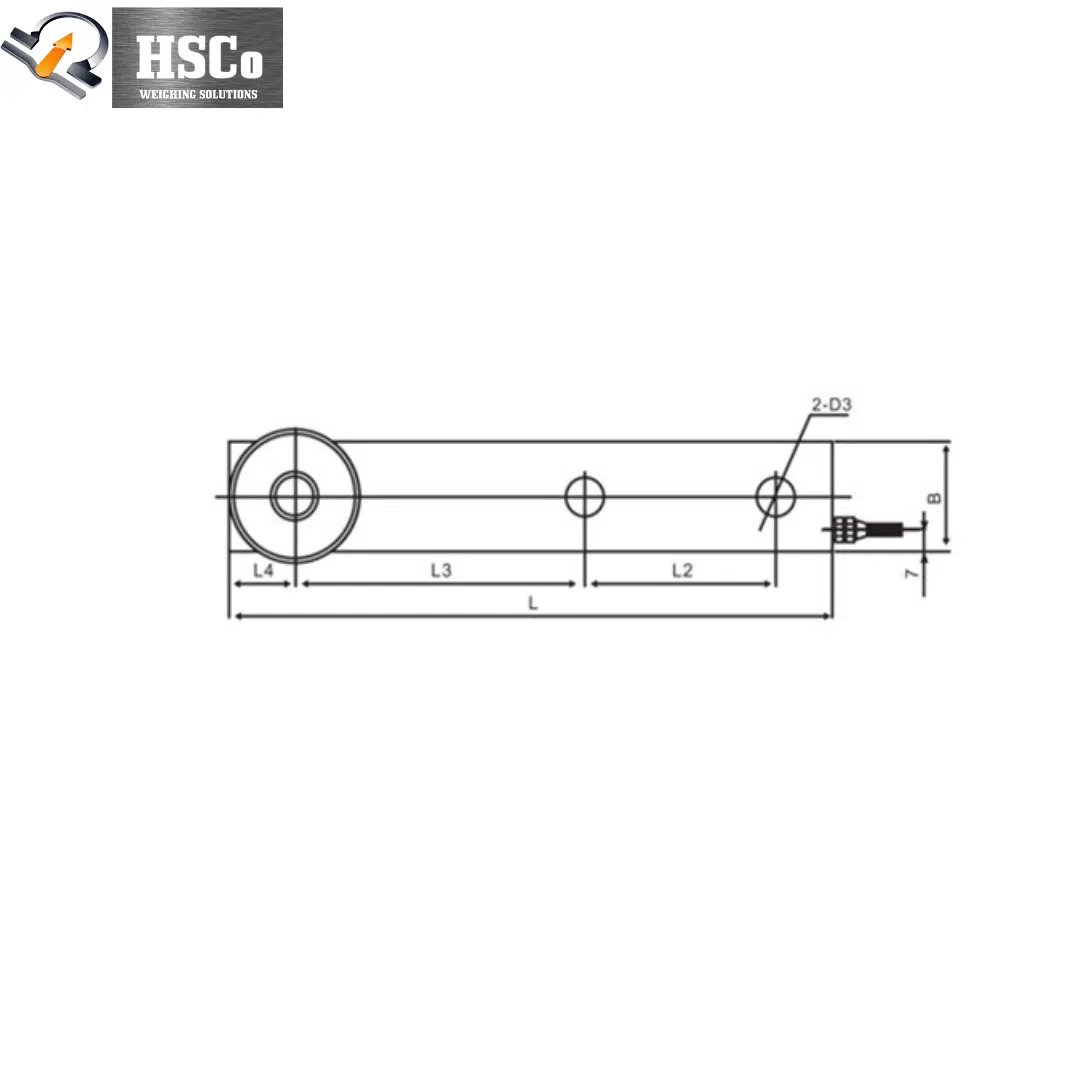

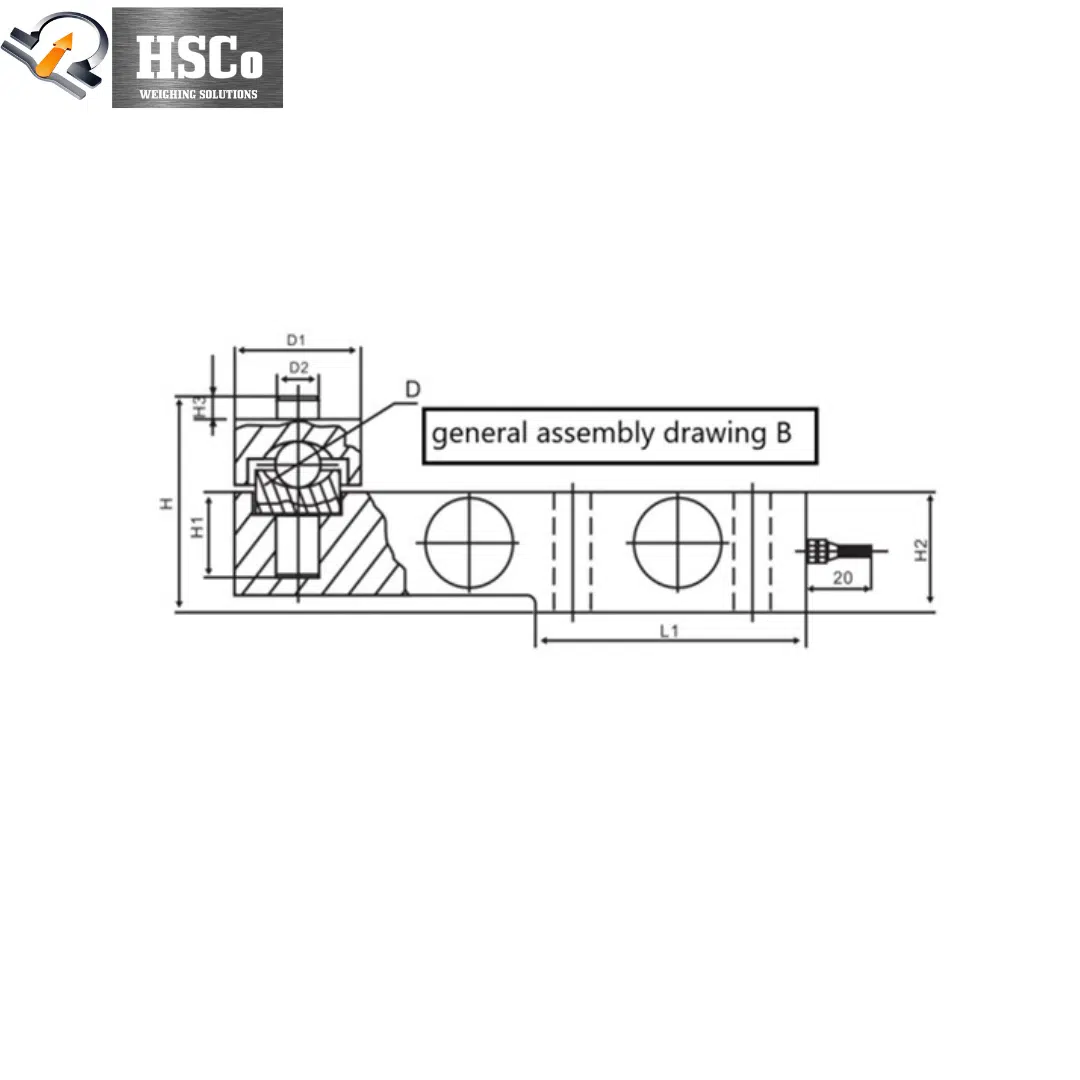

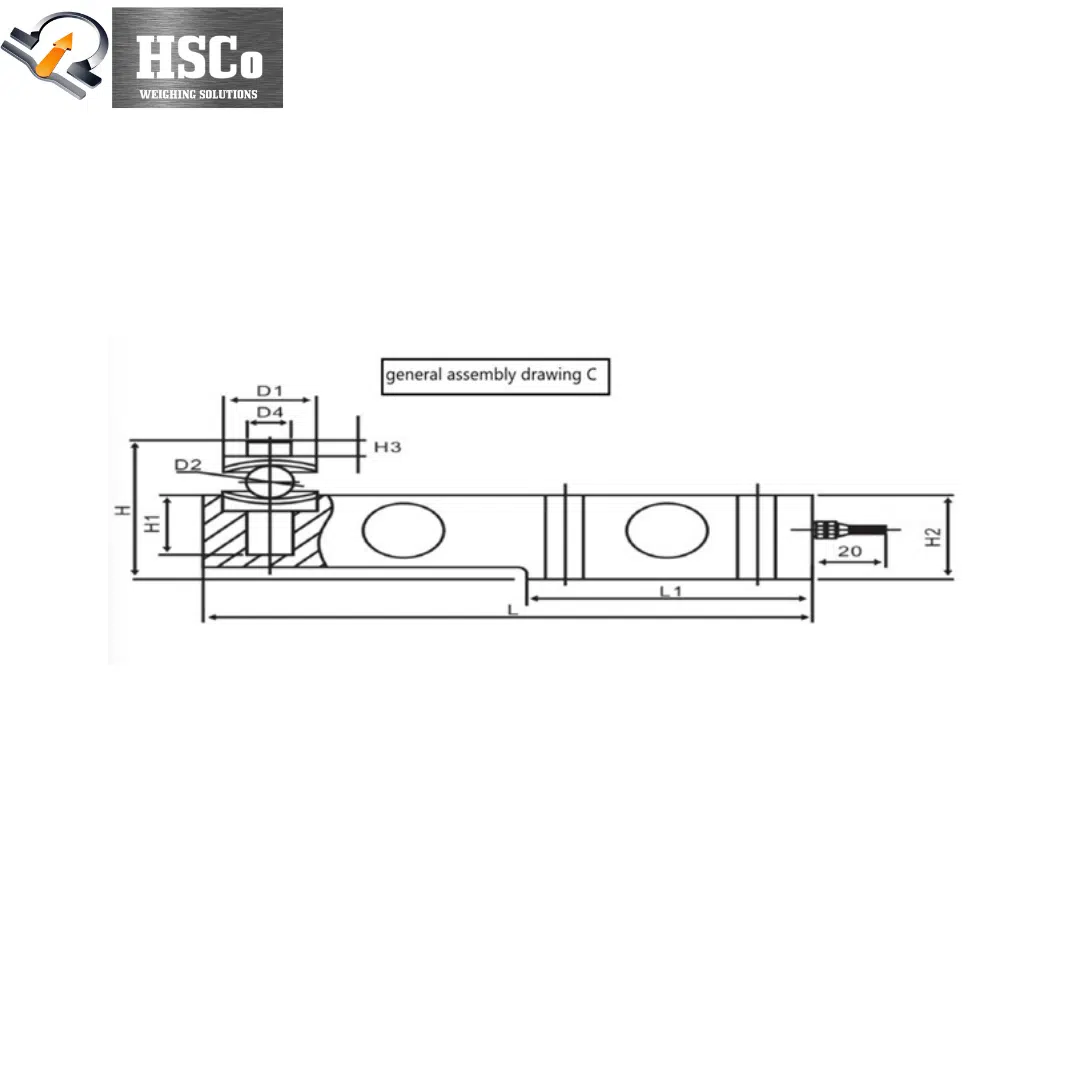

The HSC single-ended shear beam load cell is bolted down at one end and takes the load at the other, and is used to build weighing scales. It comes in capacities from 0.3 t up to 25 t, with the mounting and overall sizes for each range in the table below, and three general assembly layouts are shown in the drawings.
Why scale makers choose it
- 0.3 t to 25 t in one family.
- Single-ended shear beam: simple bolt-down mounting.
- Full size table for each capacity range.
- Three assembly layouts shown in the drawings.
Specifications
Sizes by capacity (mm), letters as on the drawing:
| Capacity | A | A1 | B | B2 | L0 | L1 | L2 | C | C1 | H | H1 | H2 | G | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3 – 3 t | 150 | 124 | 128 | 102 | 286 | 32 | 226 | 112 | 80 | 102 | 28 | 23 | M10 | 13 |
| 5 – 8 t | 178 | 146 | 152 | 120 | 317.5 | 32 | 257 | 152 | 102 | 129.5 | 38 | 29.5 | M16 | 17 |
| 10 t | 184 | 152 | 154 | 122 | 360 | 32 | 295 | 154 | 106 | 168 | 45 | 45 | M20 | 21 |
| 15 – 25 t | 220 | 170 | 220 | 170 | 400 | 25 | 350 | 220 | 170 | 213 | 55 | 55 | M24 | 26 |
| Type | Single-ended shear beam |
|---|---|
| Capacities | 0.3 t to 25 t |
| Wiring | Input + red, input − black, output + green, output − white, shield yellow |
| Warranty | 1 year |
Which load cell?
For a cantilever beam with full published accuracy data, see the LCX-3 (500 kg – 3 t); for heavy compression loads, the LCZ-1 column cell (5 – 450 t). Browse all load cells.
Where it is used
Building electronic weighing scales.
Questions buyers ask
From 0.3 t up to 25 t; see the size table for each range.
Input + red, input − black, output + green, output − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
