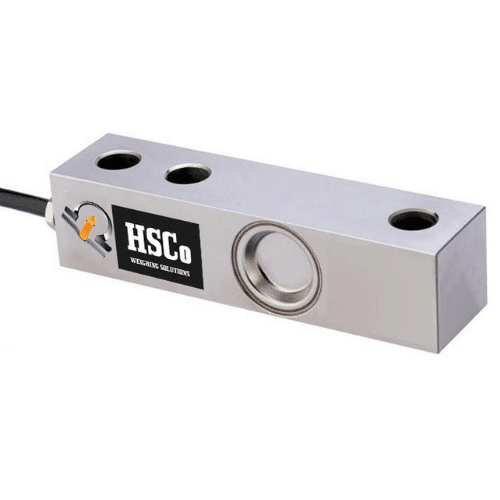

The HSCo shear beam load cell is a low-profile load cell for platform scales above 1,200 × 1,200 mm, hoppers, tanks, baggage scales and industrial automation. It is made of tool-steel alloy with electroless nickel plating against corrosion and jerk loads, and it is hermetically sealed to IP67. IP68 with laser welding and a stainless-steel version are also available. It comes in nine capacities from 300 kg to 10,000 kg, with a 2.0 mV/V output, non-linearity under ±0.025% and temperature compensation from 0 to +60 °C.
Why buyers choose it
- Low profile for flat platform scales and compact mounts.
- Nine capacities from 300 kg to 10,000 kg.
- Accurate. Non-linearity and 30-minute creep both under ±0.025% of full scale.
- Sealed. IP67 hermetic sealing; IP68 with laser welding optional.
- Protected steel. Electroless nickel-plated tool steel, or stainless steel on request.
- Overload margin. Safe load 150%, ultimate load 200% of rated capacity.
Specifications
| Type | Shear beam, low profile |
|---|---|
| Capacities | 300, 500, 750, 1,000, 1,500, 2,000, 3,000, 5,000, 10,000 kg |
| Rated output | 2.0 mV/V |
| Excitation | 10 V DC; maximum 15 V DC |
| Safe / ultimate load | 150% / 200% of rated capacity |
| Non-linearity | < ±0.025% FSO |
| Creep (30 min) | < ±0.025% FSO |
| Zero balance | < ±1% FSO |
| Input / output resistance | 396 ± 10 Ω / 350 ± 5 Ω |
| Insulation resistance | Above 5,000 MΩ |
| Temperature range | 0 to +60 °C, temperature compensated |
| Material | Electroless nickel-plated tool steel; stainless steel available |
| Protection | IP67, hermetically sealed; IP68 with laser welding optional |
| Warranty | 1 year |
Which load cell?
For a double-ended version, see the double-ended shear beam load cell; for tension and compression, the S type load cell HSC-LCS-4; for weighbridges, the weighbridge load cell. Browse all load cells.
Where it is used
Low-profile platform scales above 1,200 × 1,200 mm, hopper and tank weighing systems, baggage weighing and industrial automation.
Questions buyers ask
Which capacities are available?
300, 500, 750, 1,000, 1,500, 2,000, 3,000, 5,000 and 10,000 kg.
Is it waterproof?
It is sealed to IP67, and IP68 with laser welding is available.
What overload can it take?
Safe load 150% and ultimate load 200% of its rated capacity.
Is there a stainless-steel version?
Yes, it is also available in stainless steel.
