S-Type Load Cell HSC LCS-6 – 20 kg to 10 t, IP66 / IP68, OIML R60
Price on Request
S-type load cell HSC LCS-6: 20 kg to 10 t, 2.0 or 3.0 mV/V, ±0.02% FS, safe overload 150% / limit 180%, IP66 or IP68, alloy or stainless steel, threads M8 to M30 × 2 by capacity, OIML R60. For batching, hook and process scales. 1-year warranty.

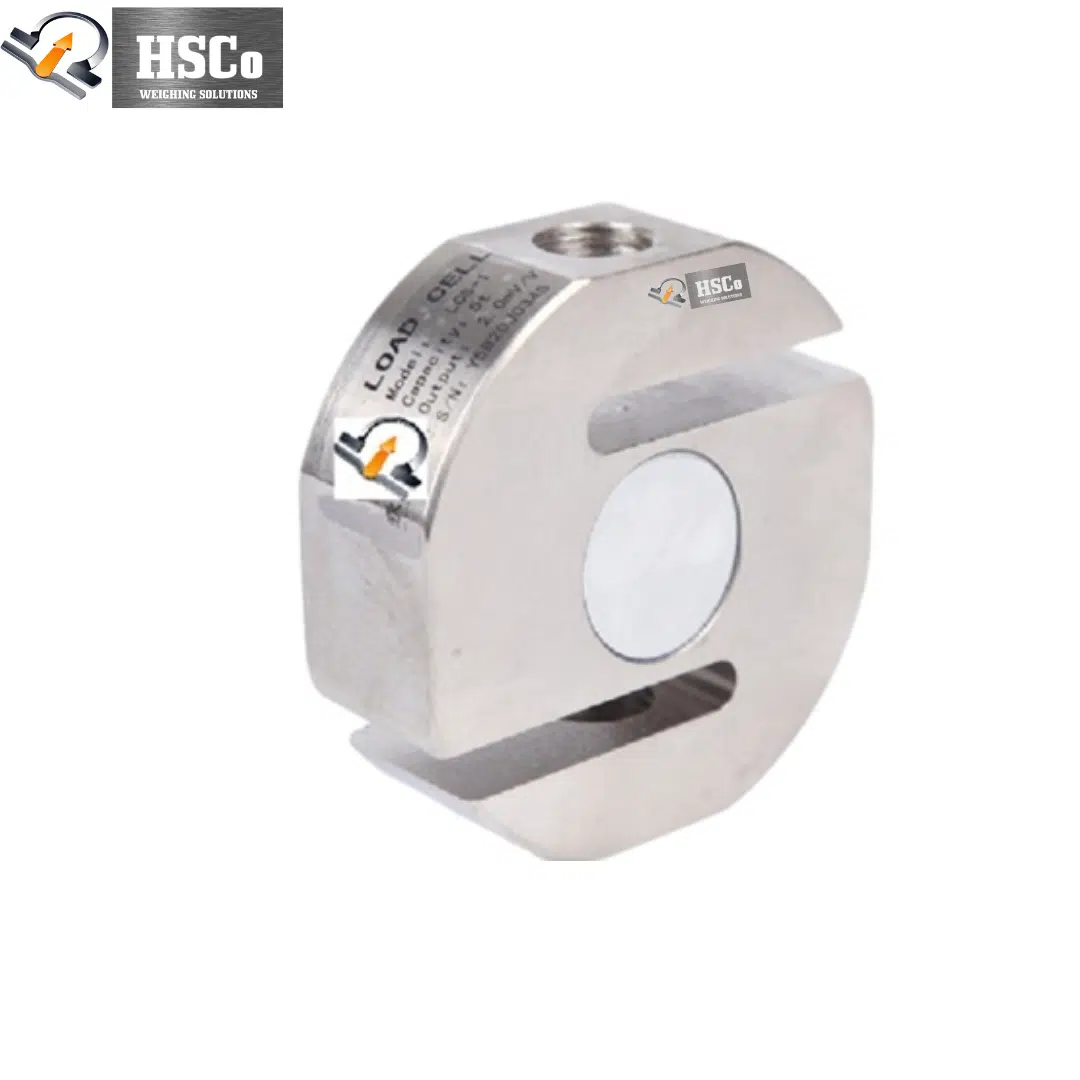

The HSC LCS-6 is an S-type load cell with a compact body that is easy to install. It covers a very wide range, from 20 kg to 10 t, is accurate to ±0.02% of full scale and is sealed to IP66 or IP68. It is used to build batching and ingredient scales, hook scales, process scales and special weighing systems.
Why scale makers choose it
- 20 kg to 10 t in one family.
- Compact S shape, easy to mount.
- Accurate: ±0.02% FS.
- Sealed to IP66 or IP68; alloy steel or stainless steel.
- Easy to install with threaded holes top and bottom.
Specifications
| Model | HSC LCS-6 |
|---|---|
| Type | S-type |
| Rated capacities | 0.02, 0.05, 0.1, 0.15, 0.2, 0.3, 0.5, 0.75, 1, 2, 2.5, 7.5 t (size table to 10 t) |
| Sensitivity | 2.0 ± 0.002 mV/V or 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Impedance | Input 350 ± 10 Ω or 380 ± 10 Ω; output 350 ± 3 Ω or 350 ± 5 Ω |
| Insulation | ≥ 5,000 MΩ at 50 V DC |
| Protection | IP66 or IP68 |
| Material | Alloy steel or stainless steel |
| Cable | 3.5 or 5 m, Ø 5.2 mm |
| Wiring | Exc + red, Exc − black, Sig + green, Sig − white, shield yellow |
| Standard | Made to OIML R60 |
| Warranty | 1 year |

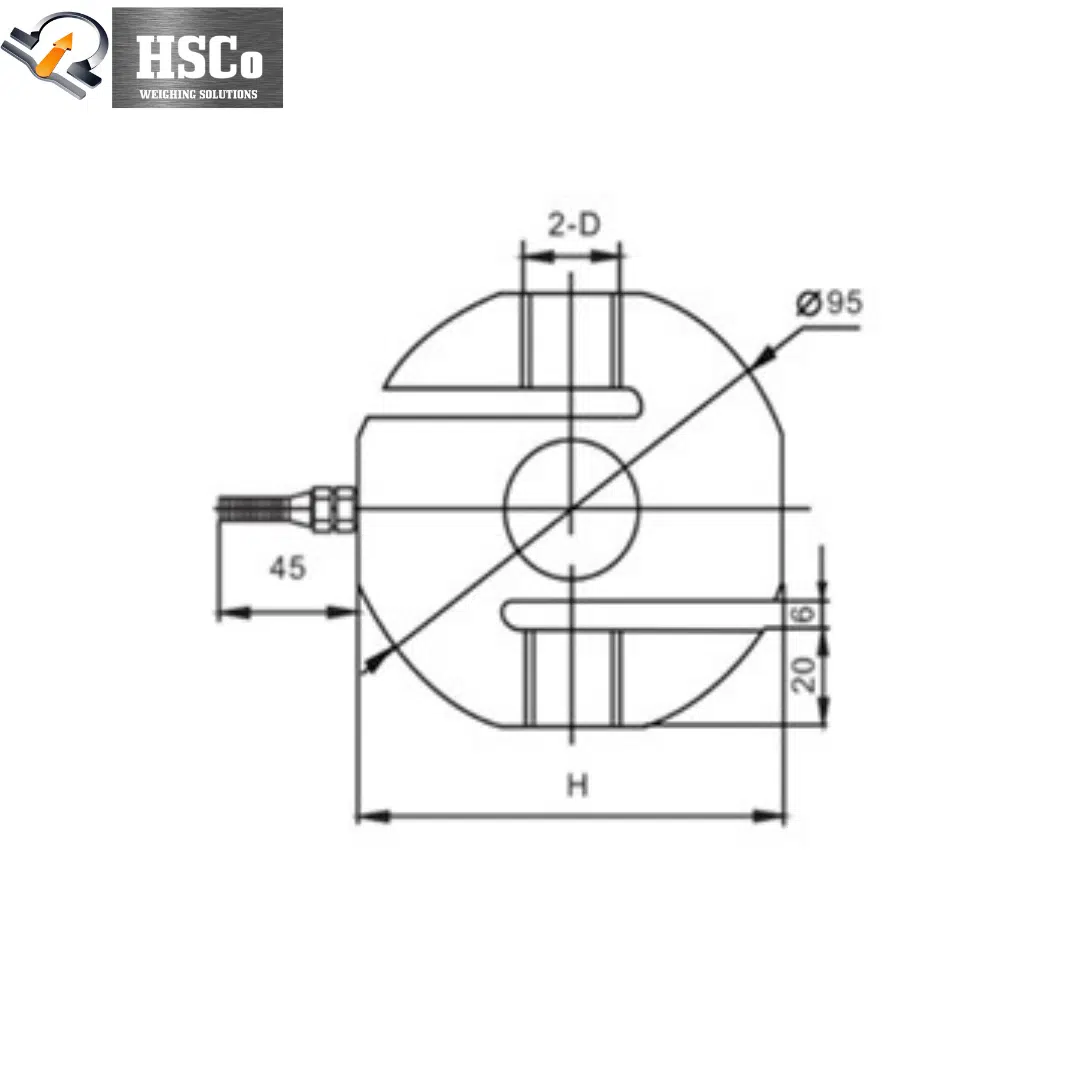

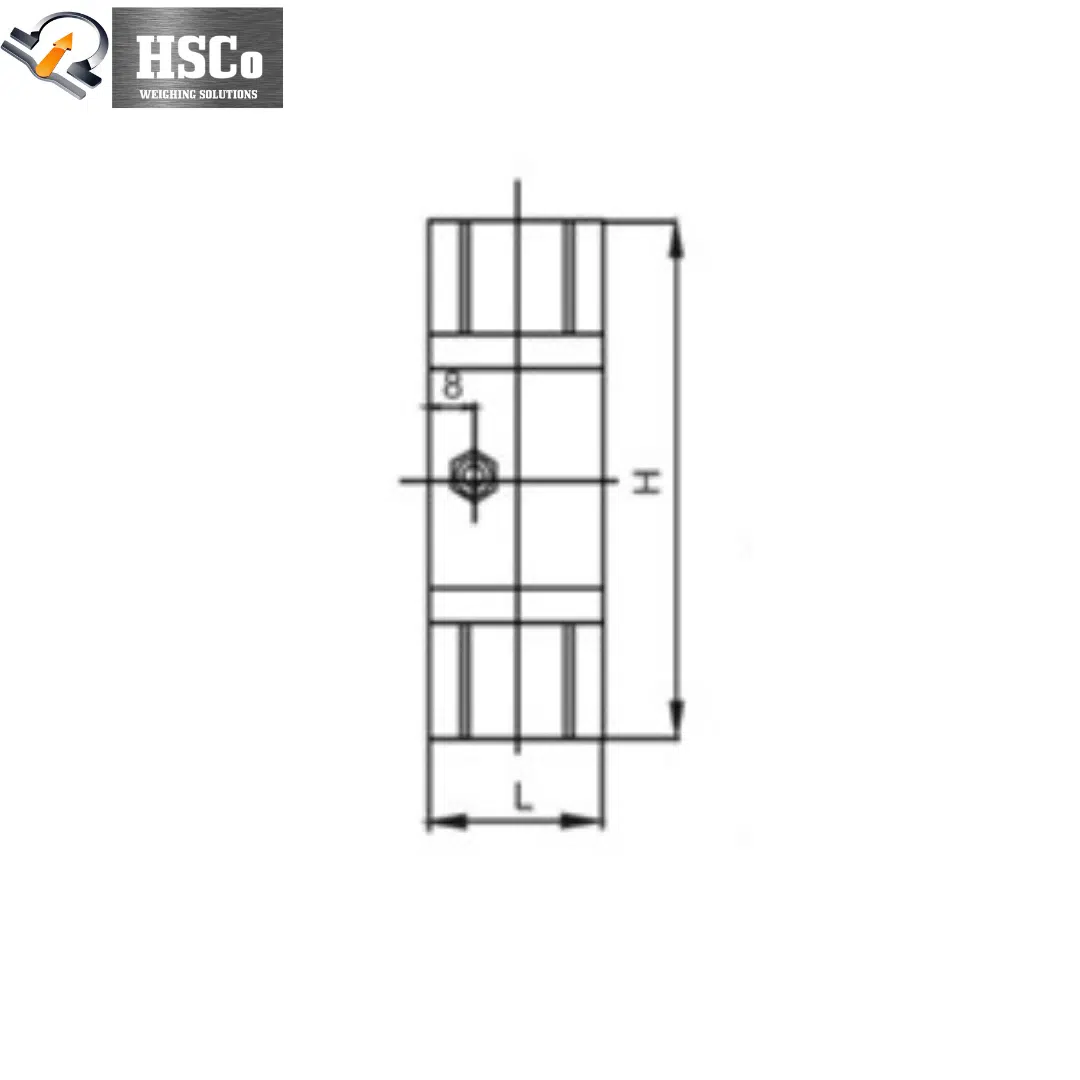

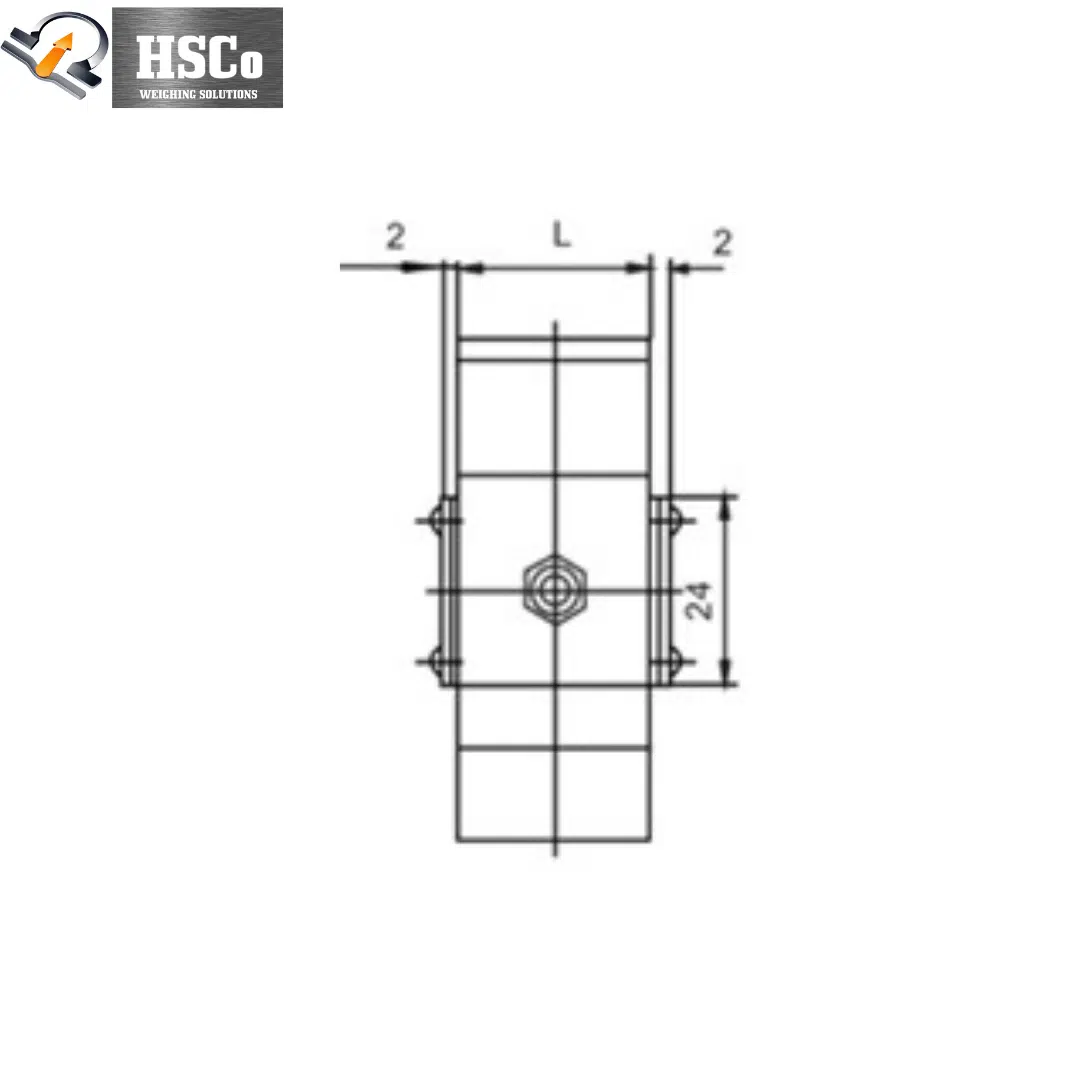

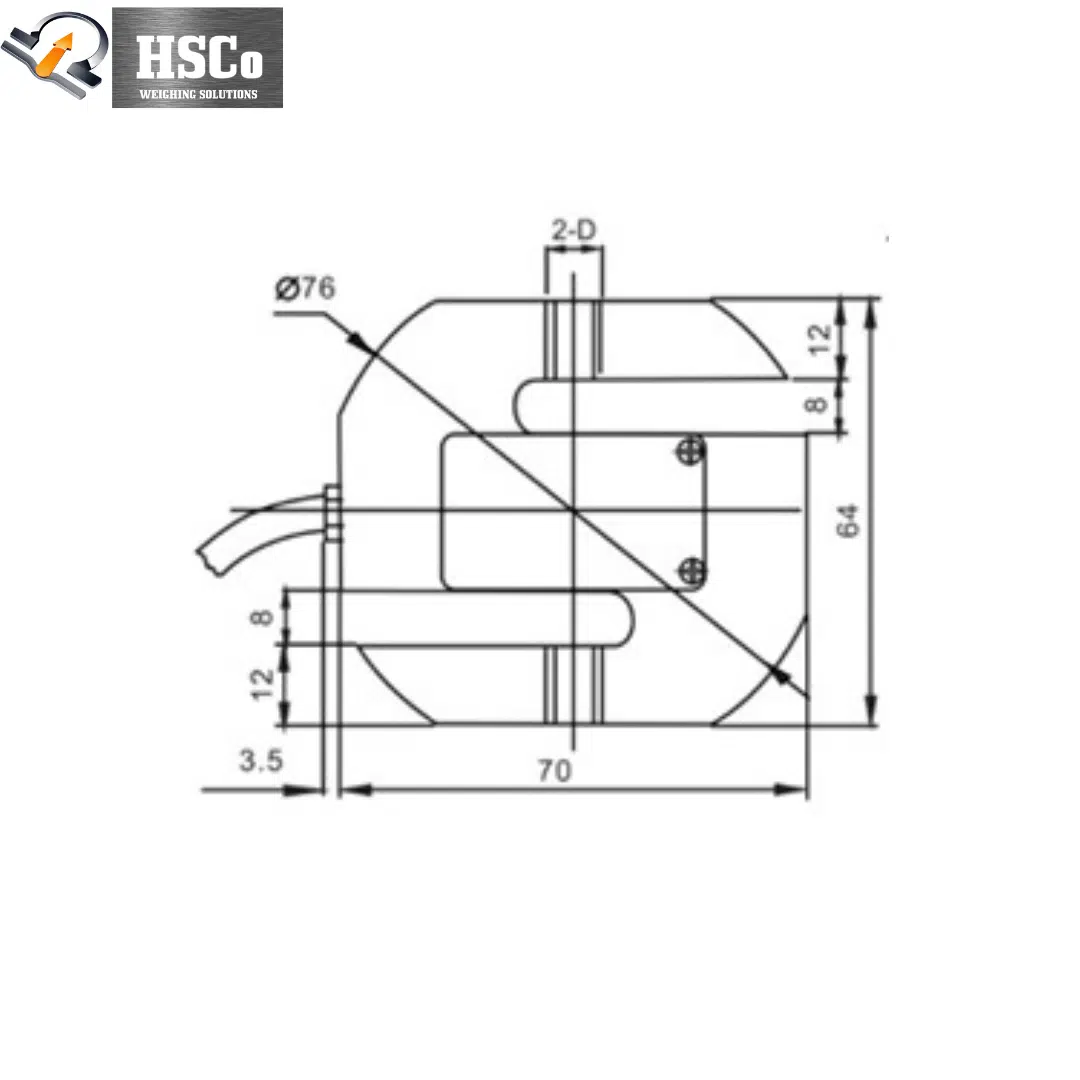

Sizes by capacity (mm):
| Capacity | H | L | Thread (2-D) |
|---|---|---|---|
| 20 – 150 kg | 64 | 12 | M8 |
| 200 – 500 kg | 64 | 20 | M12 |
| 700 – 1,000 kg | 64 | 25 | M12 |
| 1.2 – 5 t | 90 | 32 | M20 |
| 7.5 t | 90 | 40 | M24 |
| 10 t | 110 | 50 | M30 × 2 |
Where it is used
Ingredient and batching scales, hook scales, process scales and special weighing systems.
Questions buyers ask
From 20 kg up to 10 t; see the size table for thread and height by capacity.
By threaded holes top and bottom: M8 to M30 × 2 depending on capacity.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity and quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
