The HSC LCS-2 is an S-type load cell that works in tension and compression, with good output symmetry and a compact body that is easy to install. It covers a wide span of capacities, from 100 kg to 20 tonnes, and is used in hook (hanging) scales, hopper scales and special-purpose scales. It is sealed to IP66 or IP68 and made to the OIML R60 standard.
Why scale makers choose it
- Tension and compression in one cell.
- 100 kg to 20 t capacities.
- Accurate: ±0.02% FS total error.
- Sealed to IP66 or IP68.
- Compact and simple to fit, with threaded holes top and bottom.
Specifications
| Model | HSC LCS-2 |
|---|---|
| Type | S-type, tension and compression |
| Capacities | 100, 200, 300, 500, 750 kg; 1, 1.5, 2, 2.5, 7.5, 10, 15, 20 t |
| Sensitivity | 2.0 ± 0.004 mV/V or 3.0 ± 0.005 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.023% or ±0.015% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 350 ± 5 Ω or 380 ± 10 Ω / 350 ± 3 Ω (350 ± 5 Ω with cable over 15 m) |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP66 or IP68 |
| Material | Alloy steel or stainless steel |
| Cable | 3.5 m or 5 m, Ø5.2 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |

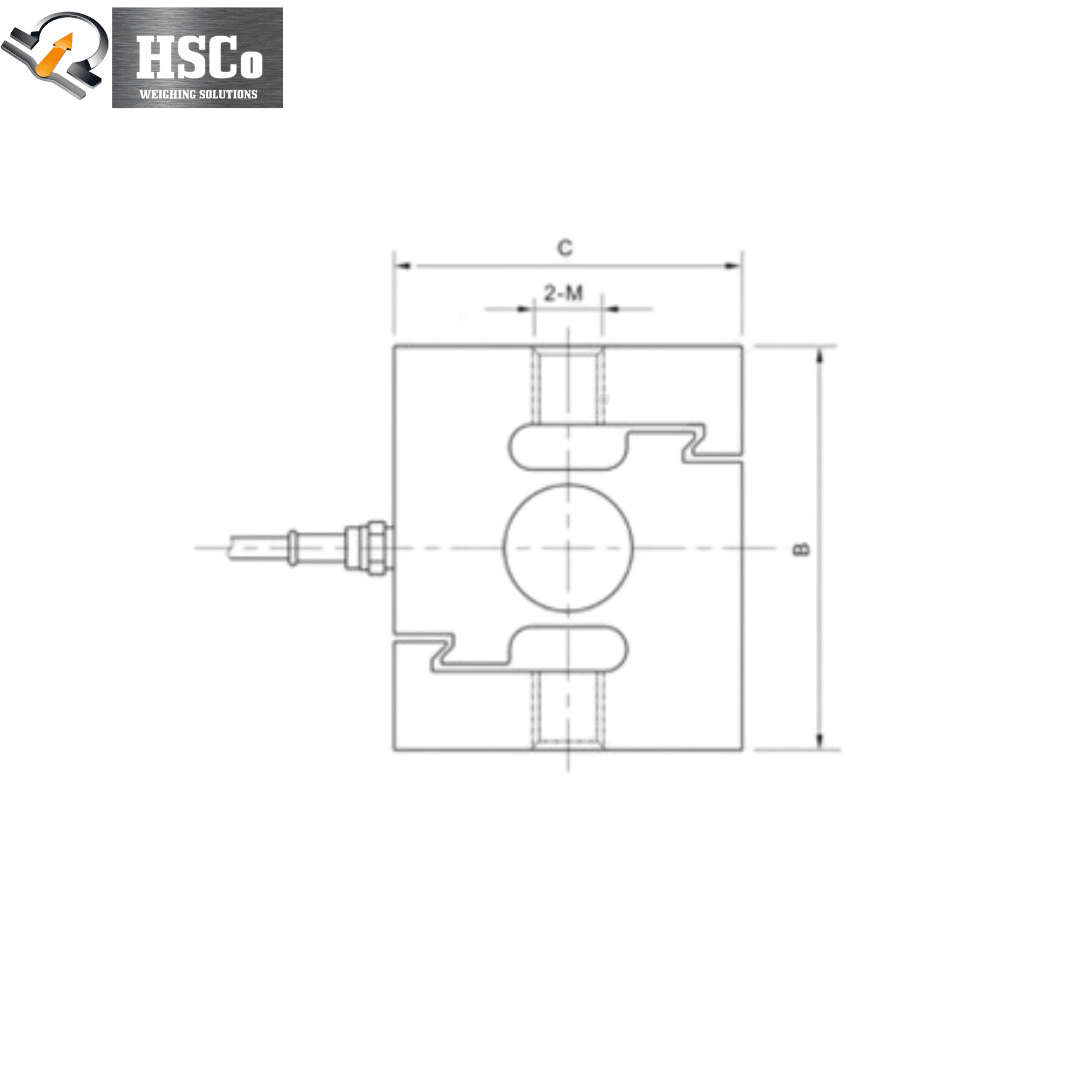

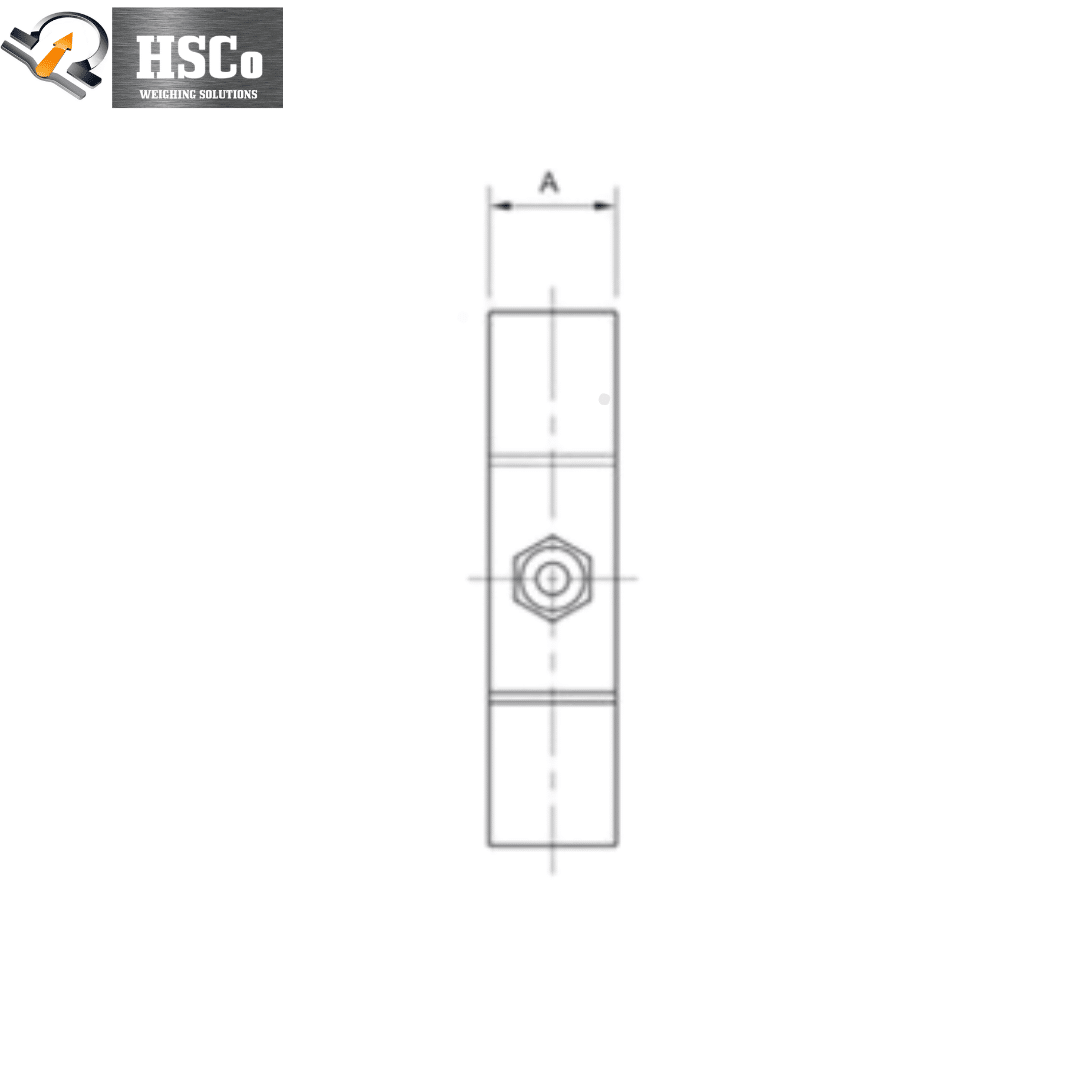

Dimensions (mm), from the drawing:
| Capacity | A | B | C | Thread |
|---|---|---|---|---|
| 0.1 – 0.75 t | 19.1 | 80 | 70 | M12 × 1.75 |
| 1 – 1.5 t | 25.4 | 80 | 70 | M16 × 2 |
| 2 – 5 t | 25.4 | 108 | 92 | M18 × 1.5 |
| 7.5 t | 32 | 140 | 100 | M24 × 2 |
| 10 t | 51 | 178 | 130 | M30 × 2 |
| 20 t | 60 | 190 | 160 | M39 × 2 |
Which S-type load cell?
See also the LCS-1 and the LCS-4 (100 kg to 1,000 kg). Browse all load cells.
Where it is used
Hook and hanging scales, hopper and tank scales, force measurement, and special-purpose industrial scales.
