Ladle Load Cell HSC LCQ-7 – 10 to 50 t, High-Temperature Type to 300 °C
Price on Request
Shear-beam ladle and crane-scale load cell HSC LCQ-7: 10 to 50 t, heat and damp resistant, high-temperature type compensated 20 – 200 °C and working to 300 °C, 1.2 – 1.8 mV/V, ±0.02% FS, safe 150% / limit 180%, IP67 or IP68. 1-year warranty.

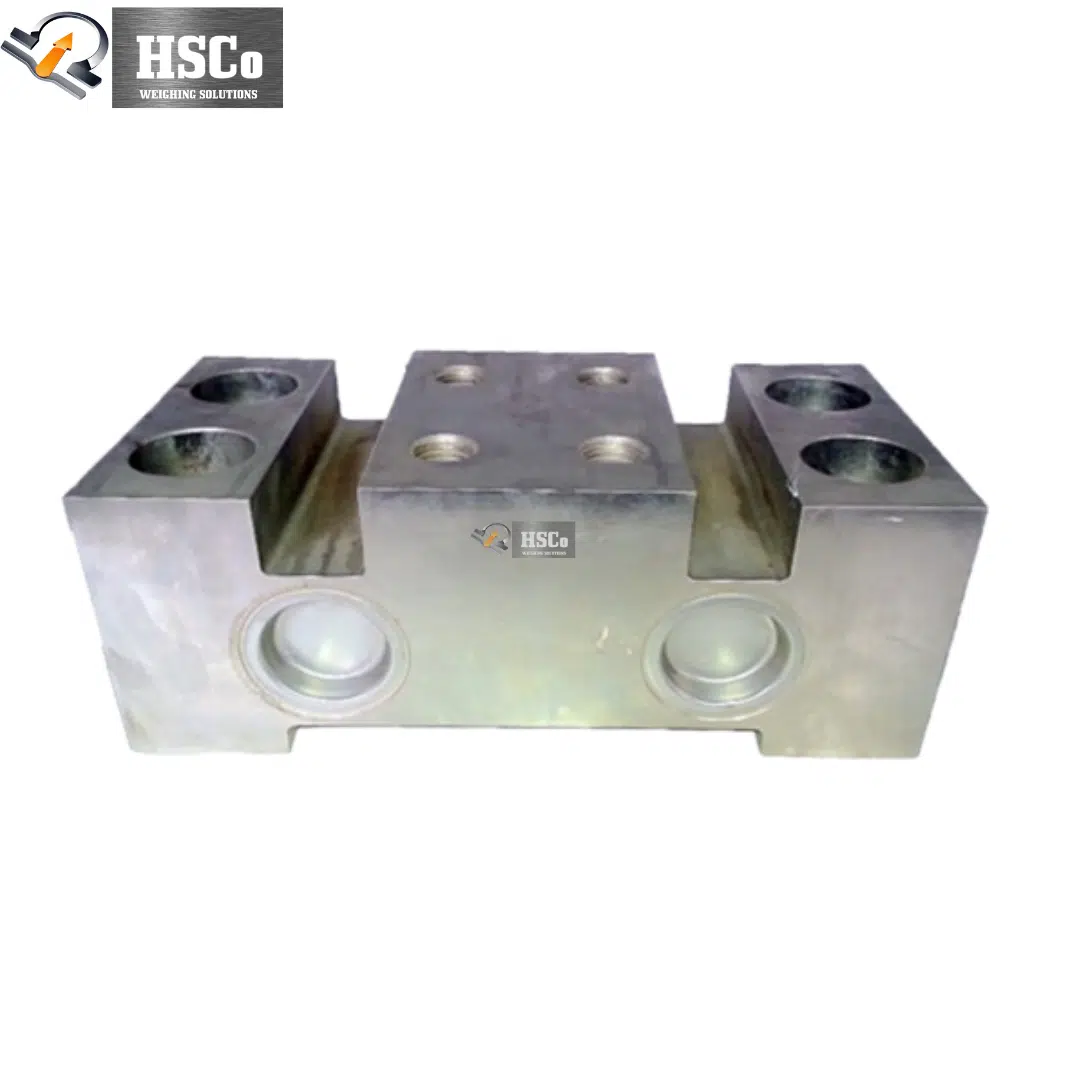

The HSC LCQ-7 is a shear-beam (bridge-type) load cell for ladle scales and crane scales, from 10 to 50 tonnes. It is built to stand heat and damp: besides the standard type, a high-temperature type is listed, compensated from 20 to 200 °C and working up to 300 °C. Sensitivity is 1.2 – 1.8 mV/V with ±0.02% FS total error, and it is sealed to IP67 or IP68.
Why scale makers choose it
- Made for ladles and crane scales, 10 to 50 t.
- Heat and damp resistant; high-temperature type to 300 °C.
- Sealed: IP67 or IP68.
- Accurate: ±0.02% FS total error.
Specifications
| Model | HSC LCQ-7 |
|---|---|
| Type | Shear beam, bridge type, for ladle and crane scales |
| Capacities | 10, 20, 30, 40, 50 t |
| Sensitivity | 1.2 – 1.8 ± 0.005 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero and span ±0.02% FS / 10 °C |
| Temperature range | Standard: compensated −10 to +40 °C, operating −30 to +70 °C. High-temperature type: compensated 20 to 200 °C, operating 20 to 300 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC max |
| Input / output impedance | 750 ± 10 Ω / 702 ± 3 Ω (703 ± 5 Ω with cable over 15 m) |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP67 or IP68 |
| Material | Alloy steel or stainless steel |
| Cable | 10 m or 16 m, Ø6 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |

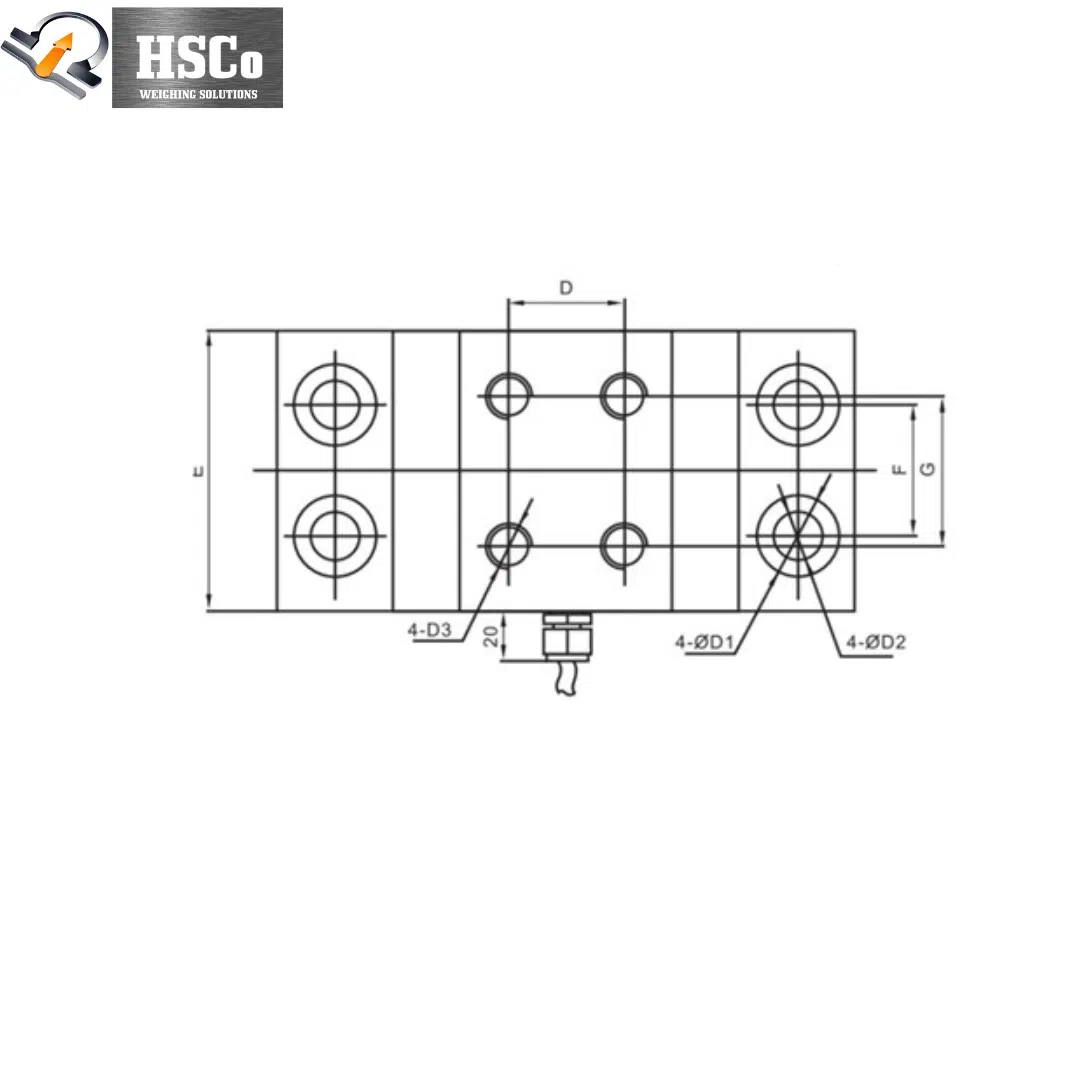

| Mounting thread (D3) | M16 for 10 t; M24 for 20 – 50 t |
| Standard | OIML R60 |
| Warranty | 1 year |
Which load cell?
For another ladle cell, see the LCQ-4; for crane-scale cells, the LCD-1. Browse all load cells.
Where it is used
Ladle scales and crane scales, where heat and damp are present.
Questions buyers ask
A high-temperature type is listed, compensated from 20 to 200 °C and working up to 300 °C.
10, 20, 30, 40 and 50 tonnes.
Excitation + red, excitation − black, signal + green, signal − white, and a yellow shield.
Order or ask for a quotation
Tell us the capacity, the working temperature and the quantity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
