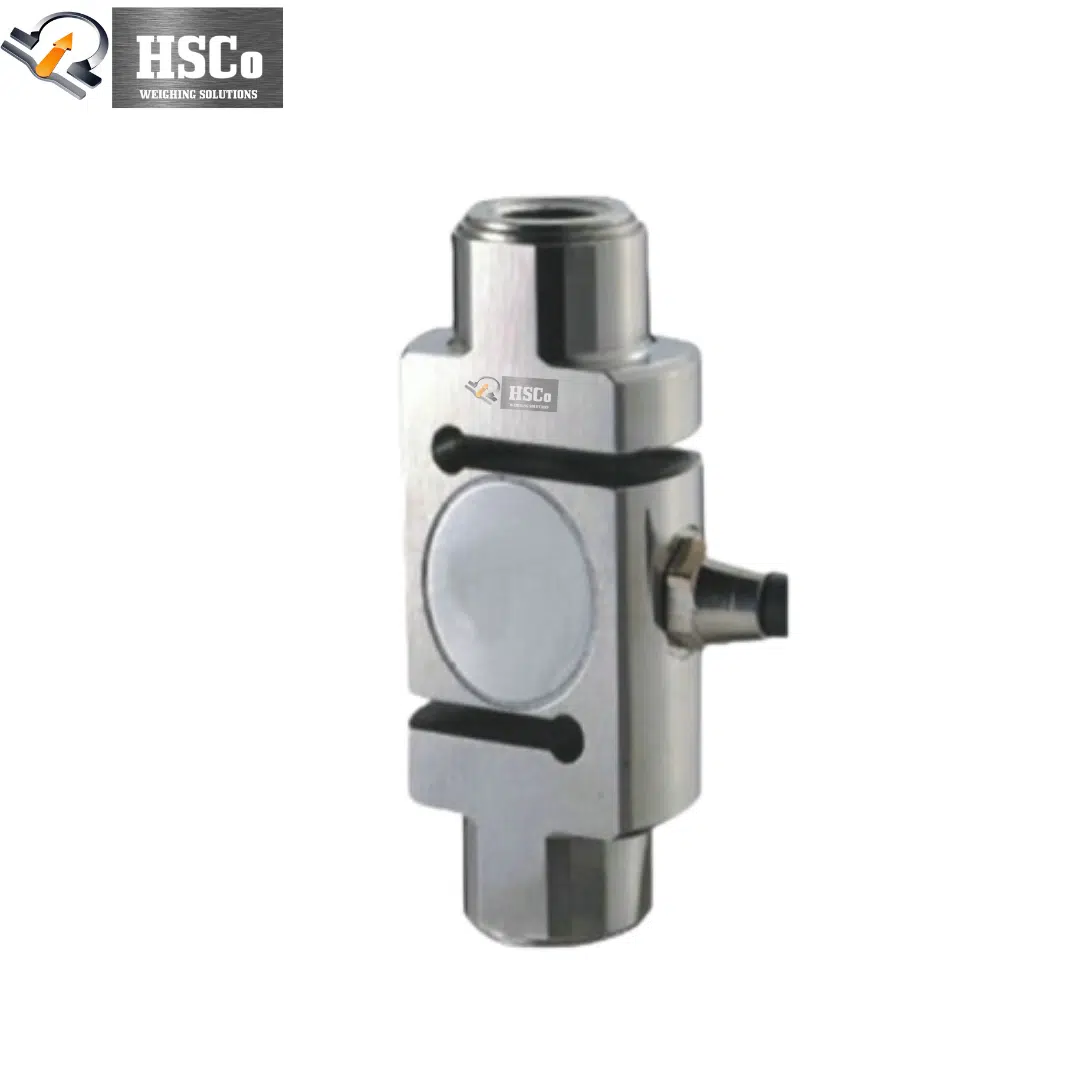

S Type Load Cell HSC-LCS-4 – 100 kg to 1,000 kg, IP66/IP68
Price on Request
S-type load cell for tension and compression: 100, 200, 300, 500, 700 and 1,000 kg, IP66/IP68, ±0.02% FS, safe 150% overload, M16 × 1.5 threads, OIML R60. For batching, hook and process scales. 1-year warranty.
The HSC-LCS-4 is an S-type load cell for tension and compression from 100 kg to 1,000 kg. It is sealed to IP66 / IP68, accurate to ±0.02% of full scale, and takes 150% of its rated load safely. Its compact shape and M16 × 1.5 threads make it easy to fit in batching and ingredient scales, hook and hanging scales, and process scales.
Why builders choose it
- Six capacities. 100, 200, 300, 500, 700 and 1,000 kg.
- Sealed. IP66 / IP68 protection.
- Accurate. ±0.02% FS total error (±0.05% FS max); OIML R60.
- Overload margin. Safe 150%, limit 180% of full scale.
- Easy to install with M16 × 1.5 threads top and bottom.
- 2 or 3 mV/V output on a colour-coded 3.5 m or 5 m cable.
Specifications
| Type | S-type, tension and compression |
|---|---|
| Rated capacities | 100, 200, 300, 500, 700, 1,000 kg |
| Sensitivity | 2.0 ± 0.002 mV/V or 3.0 ± 0.002 mV/V |
| Total error | ±0.02% FS (±0.05% FS max) |
| Creep (30 min) | 0.02% FS |
| Zero balance | ±1% FS |
| Temperature effect | Zero ±0.02% FS / 10 °C; span ±0.02% FS / 10 °C |
| Temperature range | Compensated −10 to +40 °C; operating −30 to +70 °C |
| Overload | Safe 150% FS; limit 180% FS |
| Excitation | 10 – 12 V DC recommended; 15 V DC maximum |
| Input / output impedance | 350 ± 5 Ω or 380 ± 10 Ω / 350 ± 3 Ω |
| Insulation | ≥ 5,000 MΩ at 100 V DC |
| Protection | IP66 / IP68 |

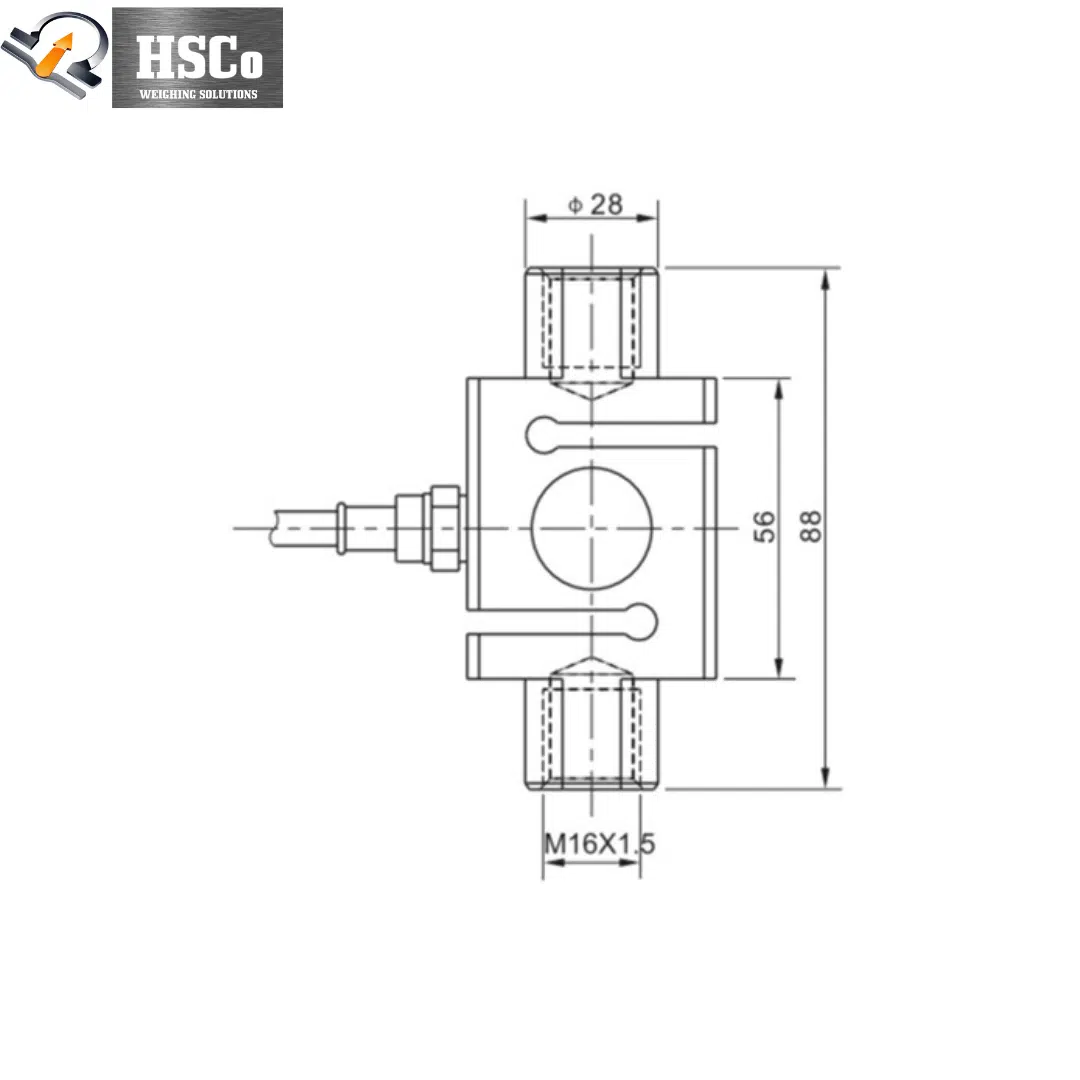

| Size | 88 mm high, Ø44 mm; thickness 20 mm (100 kg), 26 mm (200 – 500 kg), 28 mm (700 kg), 30 mm (1,000 kg); M16 × 1.5 threads |
| Cable | 3.5 m or 5 m, Ø5.2 mm; Exc+ red, Exc− black, Sig+ green, Sig− white, shield yellow |
| Standard | OIML R60 |
| Warranty | 1 year |
Where it is used
Ingredient and batching scales, hook and hanging scales, special and process scales. For 2 – 5 t, see the LCS-5 S type load cell; for 10 kg – 5 t, the LCS-1. Browse all load cells.
Questions buyers ask
100, 200, 300, 500, 700 and 1,000 kg.
Yes. As an S-type cell it measures both pull and push through its threaded ends.
It is sealed to IP66 / IP68.
M16 × 1.5 at both ends.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity, quantity and application. Hindustan Scale Company, Mumbai, since 1955.
