Weighbridge Load Cell – Double Ended Shear Beam, Steel Ball, C3
Price on Request
Double-ended shear beam weighbridge load cell with steel-ball centring: hardened nickel-plated tool steel, side-load tolerant, C2/C3, 12 m cable. For truck, rail and ground scales.

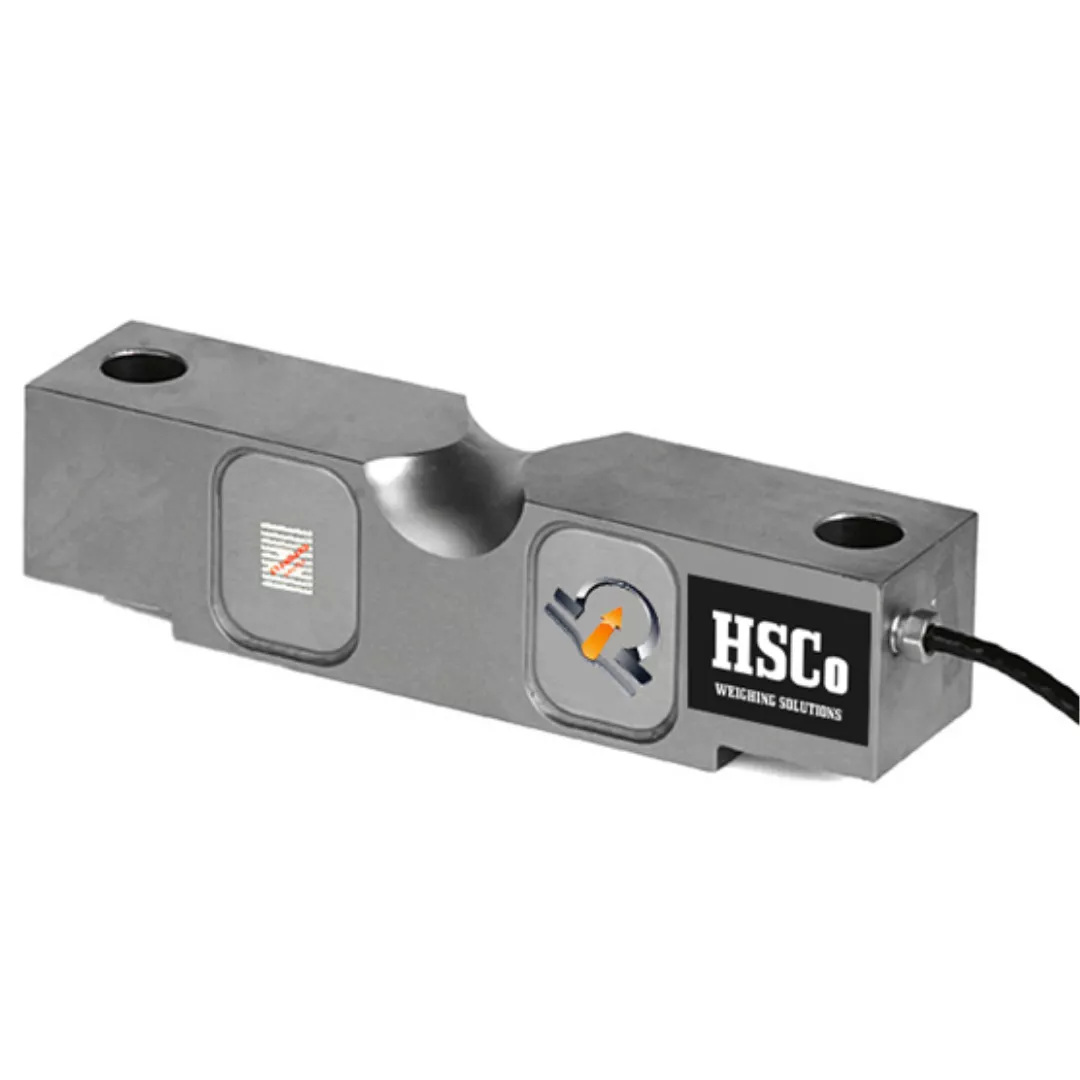

The HSCo weighbridge load cell is a double-ended shear beam (bridge type) cell with a steel-ball centre design that lets it self-centre under the platform. Made of hardened, electroless nickel-plated tool steel, it offers high accuracy, good tolerance of side loads and stable performance for truck, rail and ground scales.
Why builders choose it
- Double-ended shear beam with steel-ball centring.
- Side-load tolerant and stable under traffic.
- Rugged. Hardened tool steel with electroless nickel plating, for harsh sites.
- C2 or C3 accuracy.
- 12 m cable as standard.
Specifications
| Type | Double-ended shear beam, steel-ball centre |
|---|---|
| Accuracy class | C2 / C3 |
| Non-linearity | < ±0.03% FSO |
| Creep (30 min) | < ±0.025% FSO |
| Zero balance | < ±1.5% FSO |
| Excitation | 9 V DC; maximum 12 V DC |
| Capacity | 30 t |
| Safe / ultimate load | 120% / 150% of rated capacity |
| Input / output resistance | 770 ± 20 Ω / 700 ± 10 Ω |
| Temperature compensation | −10 to +40 °C |
| Insulation resistance | Above 5,000 MΩ |
| Material | Electroless nickel-plated tool steel |
| Cable | 12 m |

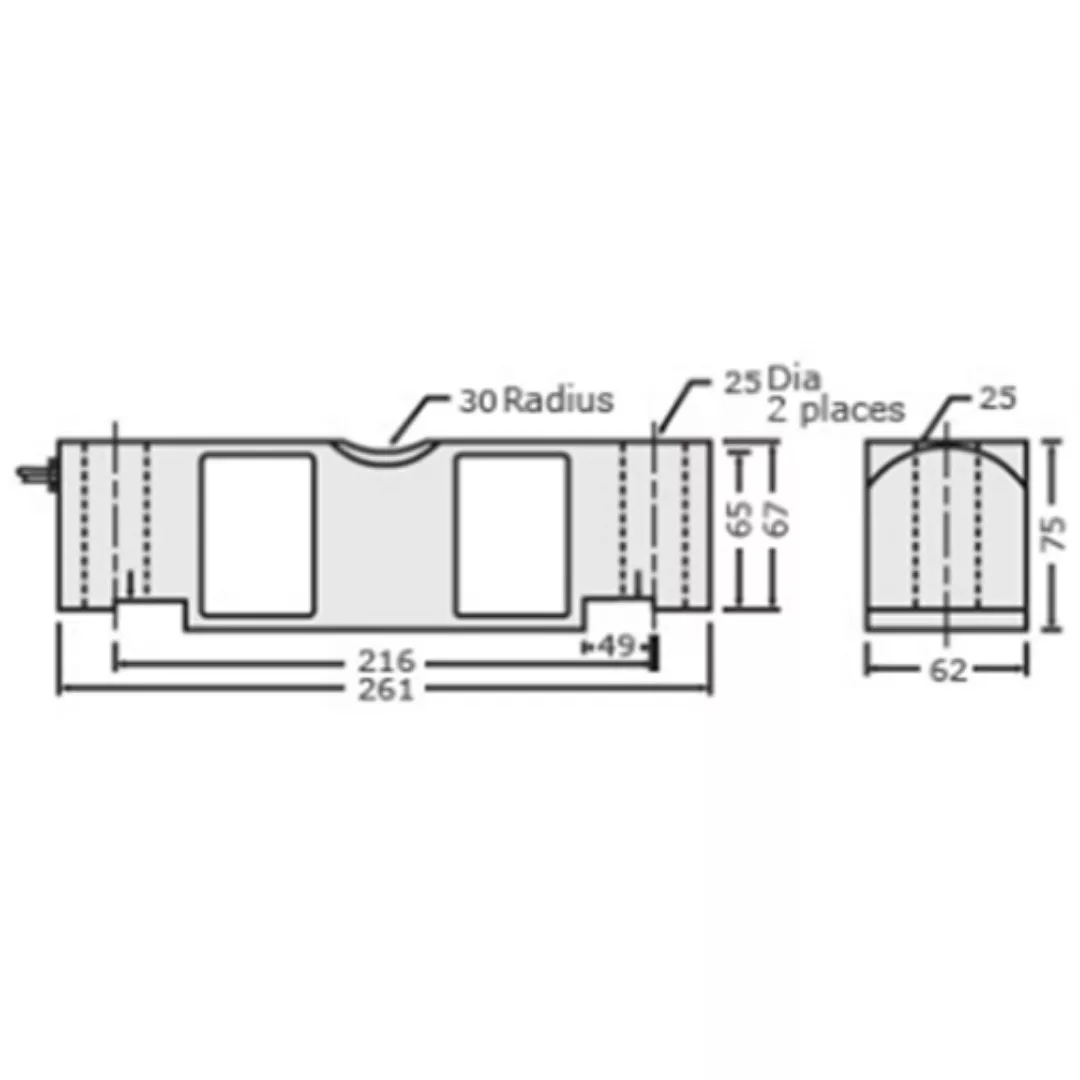

| Main dimensions (as drawn) | Length 261 mm; mounting holes 216 mm apart, 25 mm dia.; height 75 mm; width 62 mm |
| Warranty | 1 year |
Where it is used
Electronic truck weighbridges, rail scales, ground scales and other heavy weighing systems. See also the LCQ-10 weighbridge load cell and the LCL-2 spoke load cell; browse all load cells.
Questions buyers ask
What type of load cell is this?
A double-ended shear beam with a steel-ball centre, the classic weighbridge design.
What accuracy class is it?
C2 or C3.
What is it made of?
Hardened tool steel with electroless nickel plating.
How long is the cable?
12 m.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity, quantity and weighbridge size. Hindustan Scale Company, Mumbai, since 1955.
