High Speed Homogenizer up to 23000 rpm

High Speed Homogenizer HSC-H-HSH – up to 23,000 rpm, 30 ml to 13 L, Three Models

(ex. GST)

High-speed rotor-stator homogenizers on stands: HS200E and HS200E-SHE (300–23,000 rpm, 30–1,500 ml, 200 W) and HS300E-SHE (300–18,000 rpm, 100 ml–13 L, 300 W); heads Ø12 to Ø36 mm. For emulsions, dispersions and tissue homogenisation. 1-year warranty.

The HSCo HSC-H-HSH high-speed homogenizers mix, emulsify, disperse and homogenise samples with a rotor-stator head spinning at up to 23,000 rpm. There are three models on stands: the HS200E and HS200E-SHE (300 – 23,000 rpm, 30 – 1,500 ml) and the more powerful HS300E-SHE (300 – 18,000 rpm, 100 ml up to 13 litres). They are used in biotechnology, pharmaceuticals, food science, cosmetics and chemical research.

Why labs choose it

Up to 23,000 rpm for fast emulsions and dispersions.
Three models for 30 ml up to 13 litres.
Working heads from Ø12 to Ø36 mm, by model.
Stand-mounted with a height clamp.
Variable speed from 300 rpm.

Specifications

Model	HSC-H-HS200E	HSC-H-HS200E-SHE	HSC-H-HS300E-SHE
Speed	300 – 23,000 rpm	300 – 23,000 rpm	300 – 18,000 rpm
Volume	30 – 1,500 ml	30 – 1,500 ml	100 – 13,000 ml
Input / output power	280 W / 200 W	280 W / 200 W	510 W / 300 W
Rated torque	83 N·cm	68 N·cm	68 N·cm
Working heads	Ø12, Ø18 mm	Ø12, Ø18 mm	Ø28, Ø36 mm
Size	325 × 225 × 647 mm	315 × 200 × 780 mm	315 × 200 × 780 mm
Operation	Intermittent	Intermittent	Intermittent
Power supply	220 V AC, 50 Hz	220 V AC, 50 Hz	220 V AC, 50 Hz

Warranty	1 year

Which homogenizer?

For cell disruption by ultrasound, see the intelligent ultrasonic homogenizer; for sterile bag samples, the paddle homogenizer; for large-volume mixing, the overhead stirrer. Browse all homogenizers and stirrers.

Where it is used

Biotechnology, pharmaceutical, food, cosmetics and chemical labs: emulsions, creams, suspensions, tissue homogenisation and dispersing powders into liquids.

Questions buyers ask

Which model do I need?

For 30 ml to 1.5 litres, the HS200E or HS200E-SHE; for 100 ml up to 13 litres, the HS300E-SHE.

How fast does it run?

Up to 23,000 rpm (18,000 rpm on the HS300E-SHE).

Can it run non-stop?

It is rated for intermittent operation.

Order or ask for a quotation

The price shown is for the smallest model; call us for the others. Choose the model, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.

-29%

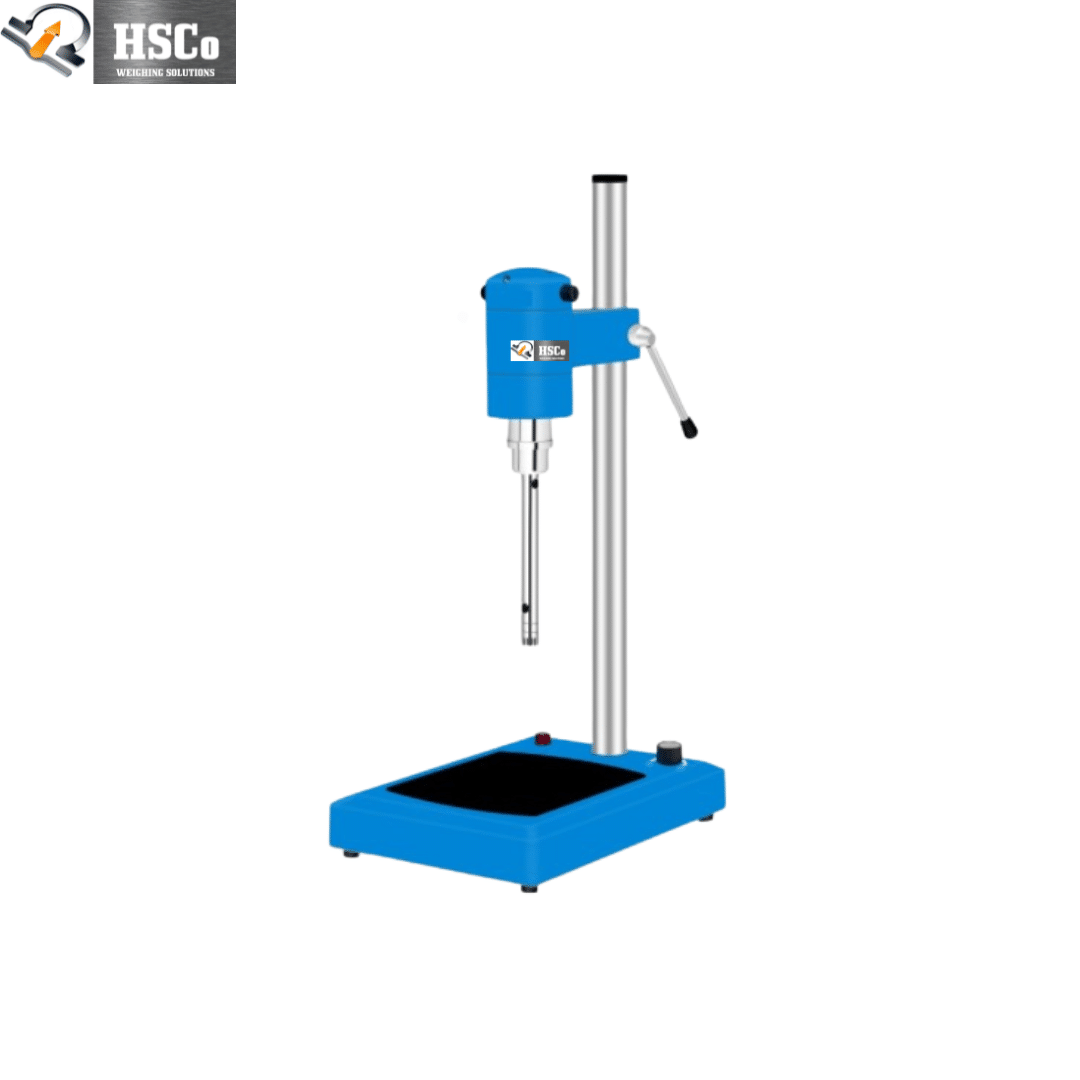

HSCo high speed homogenizer HS200E on a blue stand

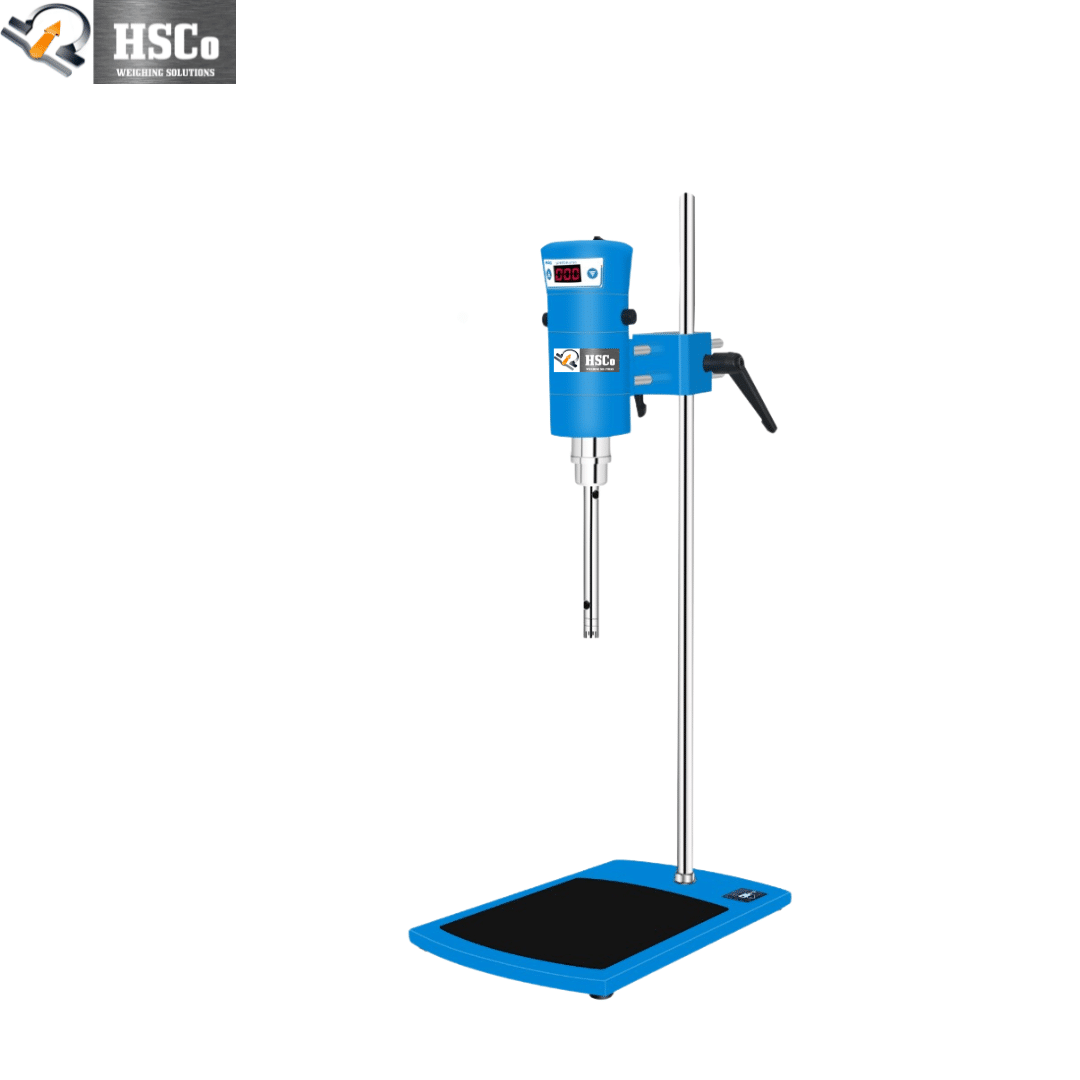

HSCo high speed homogenizer HS200E-SHE with display, on a stand

Click to enlarge

HSCo high speed homogenizer HS300E-SHE with display, on a stand

Back to products

Price range: ₹45,000.00 through ₹51,500.00 (ex. GST)

Model	Clear

Compare

Description
Additional information

Description

Model	HSC-H-HS200E	HSC-H-HS200E-SHE	HSC-H-HS300E-SHE
Speed	300 – 23,000 rpm	300 – 23,000 rpm	300 – 18,000 rpm
Volume	30 – 1,500 ml	30 – 1,500 ml	100 – 13,000 ml
Input / output power	280 W / 200 W	280 W / 200 W	510 W / 300 W
Rated torque	83 N·cm	68 N·cm	68 N·cm
Working heads	Ø12, Ø18 mm	Ø12, Ø18 mm	Ø28, Ø36 mm
Size	325 × 225 × 647 mm	315 × 200 × 780 mm	315 × 200 × 780 mm
Operation	Intermittent	Intermittent	Intermittent
Power supply	220 V AC, 50 Hz	220 V AC, 50 Hz	220 V AC, 50 Hz

Warranty	1 year

Additional information

Model	HSC-H-HS200E, HSC-H-HS200E-SHE, HSC-H-HS300E-SHE
