The HSC-H-OS overhead stirrer mixes liquids of low to high viscosity in laboratories, research centres and production. It is used in pharmaceuticals, biotechnology, chemicals, food and cosmetics. Four models handle batches of 20 to 100 litres and viscosities up to 100,000 mPa·s, with 40 to 100 N·cm of torque. You set the speed from 30 to 2,200 rpm (30 – 1,600 rpm on the largest model) with coarse and fine adjustment, accurate to ±1 rpm, and an LCD shows speed and time. It stops by itself and shows the fault if the motor is overloaded.
Why labs choose it
- Four sizes for 20, 40, 60 and 100 litre batches.
- Handles thick mixes up to 100,000 mPa·s, with up to 100 N·cm of torque.
- Precise speed. 30 – 2,200 rpm, ±1 rpm, coarse and fine tuning.
- Timed runs from 1 to 9,999 minutes, shown on the LCD.
- Protected. Motor and overload protection with automatic stop and fault display; chuck protector and anti-slip pad.
- Any mains supply: 100 – 240 V, 50 – 60 Hz.
Models
| Model | HSC-H-OS50 | HSC-H-OS100 | HSC-H-OS150 | HSC-H-OS200 |
|---|---|---|---|---|
| Capacity | 20 L | 40 L | 60 L | 100 L |
| Speed | 30 – 2,200 rpm | 30 – 2,200 rpm | 30 – 2,200 rpm | 30 – 1,600 rpm |
| Max torque | 40 N·cm | 60 N·cm | 80 N·cm | 100 N·cm |
| Max viscosity | 10,000 mPa·s | 50,000 mPa·s | 80,000 mPa·s | 100,000 mPa·s |
| Input / output power | 60 / 50 W | 120 / 100 W | 160 / 150 W | 400 / 200 W |
| Motor voltage | 24 V | 24 V | 24 V | 36 V |
| Weight (stirrer / complete set) | 4.4 / 7 kg | 4.7 / 7.5 kg | 5 / 8 kg | 6 / 9 kg |

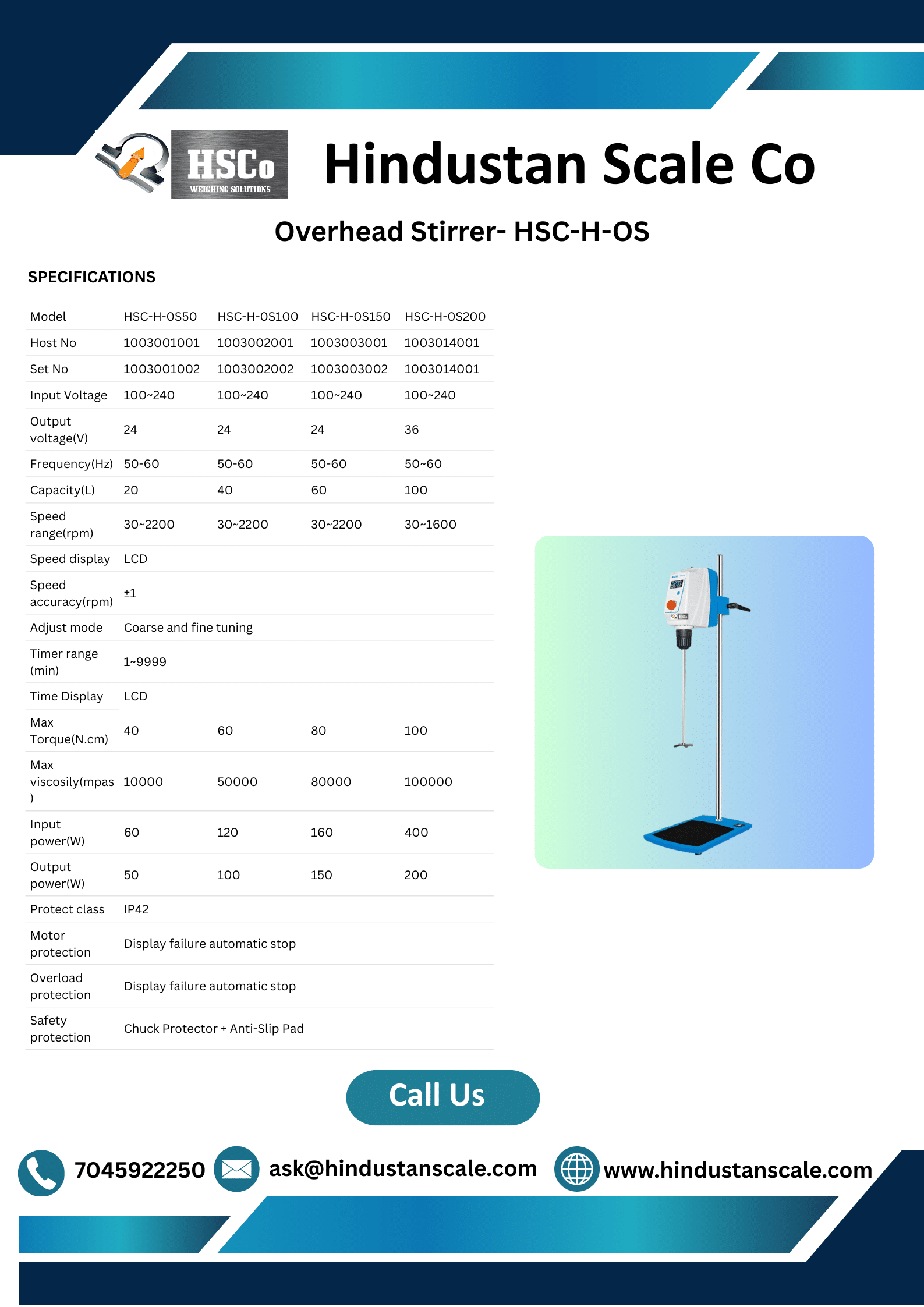

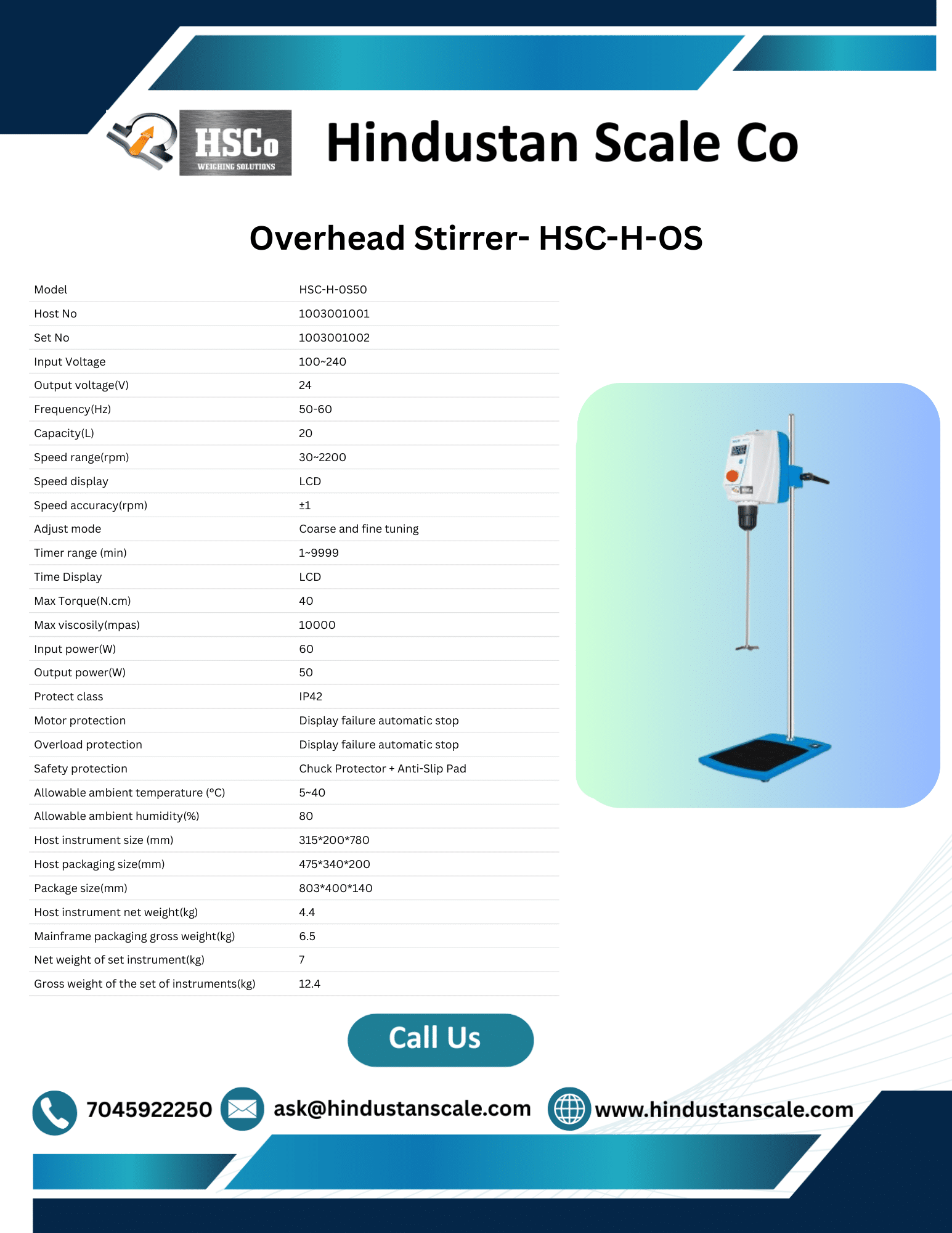

Specifications
| Input voltage | 100 – 240 V, 50 – 60 Hz |
|---|---|
| Speed display / accuracy | LCD / ±1 rpm |
| Speed adjustment | Coarse and fine |
| Timer | 1 – 9,999 min, LCD |
| Protection | IP42; motor and overload protection with fault display and automatic stop |
| Safety | Chuck protector, anti-slip pad |
| Stirrer size | 315 × 200 × 780 mm |
| Working conditions | 5 – 40 °C; up to 80% RH |
| Warranty | 1 year |
Which stirrer?
For heavier torque and a touchscreen, see the high-torque overhead stirrer; for air-driven mixing, the pneumatic mixer. Browse all homogenizers and stirrers.
Where it is used
Pharmaceutical, biotechnology, chemical, food and cosmetic labs and plants: routine mixing, sample preparation and formulation development.
Questions buyers ask
Choose by batch size and thickness: the OS50 for 20 L up to 10,000 mPa·s, up to the OS200 for 100 L up to 100,000 mPa·s.
±1 rpm, set with coarse and fine adjustment and shown on the LCD.
It stops automatically and shows the fault on the display.
Yes, from 1 to 9,999 minutes.
Order or ask for a quotation
Choose the model and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
