High-Shear Homogenizer up to 25,000 rpm, 15 L

High-Shear Homogenizer HSC-H-HSH – 600 to 1,500 W, up to 25,000 rpm, 0.1 ml to 15 L

Price on Request

High-shear homogenizer HSC-H-HSH (HR-25AS / 30AS / 40AS): 600 – 1,500 W brushless DC motor, up to 25,000 rpm, 0.1 ml to 15 L, 4.3-inch touch screen, 3-stage programs, timer to 8 h, sample temperature probe, soft start, USB and RS-485. For emulsions, dispersions and cell disruption. 1-year warranty.

Price on Request

Ask for a quotation

Or call +91-7045922250 or use the WhatsApp button.

The HSCo HSC-H-HSH high-shear homogenizer emulsifies, disperses, homogenizes and breaks down cells in samples from 0.1 ml up to 15 litres, for pharmaceutical, biotechnology, cosmetic, food and chemical work. Three models (HR-25AS, HR-30AS and HR-40AS) give 600 to 1,500 W from a brushless DC motor, up to 25,000 rpm, with soft start and continuous running. A 4.3-inch touch screen sets 3-stage speed-and-time programs and a timer up to 8 hours, a probe reads sample temperature, and Type-C USB and RS-485 allow remote control and data logging.

Why labs choose it

Up to 25,000 rpm, 600 – 1,500 W brushless DC motor.
0.1 ml to 15 litres across three models.
Touch screen with 3-stage programs and a timer up to 8 h.
Temperature measurement of the sample, −160 to 600 °C.
Soft start and continuous duty.
Connects: Type-C USB and RS-485 for remote control and data.

Specifications

Model	HR-25AS	HR-30AS	HR-40AS
Capacity	0.1 – 10,000 ml	0.2 – 10,000 ml	500 – 15,000 ml
Speed (no load)	2,000 – 25,000 rpm	2,000 – 25,000 rpm	2,000 – 18,000 rpm
Maximum tip speed	32.7 m/s	32.7 m/s	24 m/s
Output power	600 W	1,000 W	1,500 W
Working head	Ø 25 (Ø 30 optional)	Ø 30 optional	Ø 40 optional
Net weight (unit / kit)	6 / 12 kg	6 / 12 kg	8 / 14 kg

Series	HSC-H-HSH
Display	4.3-inch LED capacitive touch screen
Motor	Brushless DC; soft start; continuous duty
Programs	3-stage (speed and time)
Timer	0 – 8 h (h:min:s)
Temperature measurement	−160 to 600 °C
Interfaces	Type-C USB, RS-485 (remote control and data management)
Standard kit	Main unit, working head, flat stand
Power	230 V, 50/60 Hz
Size	410 × 100 × 290 mm; packed 475 × 340 × 200 mm
Working conditions	5 – 40 °C; up to 80% humidity
Warranty	1 year

Which homogenizer?

For small samples on the move, see the portable homogenizer HSC-H-PH; for bench work, the lab homogenizer HSC-H-LH. Browse all homogenizers and stirrers.

Where it is used

Pharmaceutical, biotechnology, cosmetic, food and chemical labs and pilot production: emulsions, dispersions, homogenization and cell disruption.

Questions buyers ask

What volume can it handle?

From 0.1 ml up to 10 litres (HR-25AS, HR-30AS) or 15 litres (HR-40AS).

Can I program it?

Yes: 3-stage speed-and-time programs and a timer up to 8 hours.

Can it run all day?

Yes. It is rated for continuous work.

Order or ask for a quotation

Tell us your sample volume and viscosity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.

HSCo high-shear homogenizer on a stand with touch screen

Click to enlarge

Back to products

Compare

Description

Model	HR-25AS	HR-30AS	HR-40AS
Capacity	0.1 – 10,000 ml	0.2 – 10,000 ml	500 – 15,000 ml
Speed (no load)	2,000 – 25,000 rpm	2,000 – 25,000 rpm	2,000 – 18,000 rpm
Maximum tip speed	32.7 m/s	32.7 m/s	24 m/s
Output power	600 W	1,000 W	1,500 W
Working head	Ø 25 (Ø 30 optional)	Ø 30 optional	Ø 40 optional
Net weight (unit / kit)	6 / 12 kg	6 / 12 kg	8 / 14 kg

Series	HSC-H-HSH
Display	4.3-inch LED capacitive touch screen
Motor	Brushless DC; soft start; continuous duty
Programs	3-stage (speed and time)
Timer	0 – 8 h (h:min:s)
Temperature measurement	−160 to 600 °C
Interfaces	Type-C USB, RS-485 (remote control and data management)
Standard kit	Main unit, working head, flat stand
Power	230 V, 50/60 Hz
Size	410 × 100 × 290 mm; packed 475 × 340 × 200 mm
Working conditions	5 – 40 °C; up to 80% humidity
Warranty	1 year

High Shear Homogenizer, Economy HSC-H-HS300SL – 2,000 to 15,000 rpm, 13 or 40 L, 500 W

Homogenizers and Stirrers

(ex. GST)

High shear homogenizer, economy model HSC-H-HS300SL: stand-mounted, 2,000 – 15,000 rpm with stepless knob and LED display, batches up to 13 or 40 L, up to 6,000 cp, 500 W, Ø 28 / 36 / 70 mm working heads. For emulsifying, dispersing and cell disruption. 1-year warranty.

Add to cart

Quick view

-29%

HSCo high speed homogenizer HS200E on a blue stand

HSCo high speed homogenizer HS200E-SHE with display, on a stand

High Speed Homogenizer HSC-H-HSH – up to 23,000 rpm, 30 ml to 13 L, Three Models

High-speed rotor-stator homogenizers on stands: HS200E and HS200E-SHE (300–23,000 rpm, 30–1,500 ml, 200 W) and HS300E-SHE (300–18,000 rpm, 100 ml–13 L, 300 W); heads Ø12 to Ø36 mm. For emulsions, dispersions and tissue homogenisation. 1-year warranty.

Select options

-47%

HSCo HSC-H-I650 ultrasonic homogenizer in its soundproof box with touch screen

Intelligent Ultrasonic Homogenizer HSC-H-I650 – 6.5 to 650 W, 0.1 to 500 ml, Touch Screen, Soundproof Box

Intelligent ultrasonic homogenizer (probe sonicator) HSC-H-I650: 6.5 – 650 W, 20 – 25 kHz, 0.1 – 500 ml, 7-inch touch screen, pulse 0.1 – 99.9 s on / off, temperature watch 0 – 100 °C with alarms, 20 programs, Ø 6 mm horn, soundproof box. 1-year warranty.

-36%

HSC-H-IUH-A ultrasonic homogenizer in its soundproof box with touch screen

Intelligent Ultrasonic Homogenizer with Remote HSC-H-IUH-A – 650 to 1,800 W

Ultrasonic homogenizer in a soundproof box with remote electric lift: four models from 650 to 1,800 W, 0.1–1,200 ml, 20–25 kHz, 7-inch touch screen, pulse and temperature control, 20 programs. 1-year warranty.

-42%

HSCo portable hand-held homogenizer with working head

Portable Homogenizer HSC-H-PH (HH10B) – 5,000 to 30,000 rpm, 0.2 to 150 ml, Carry Case

Portable hand-held homogenizer HSC-H-HH10B: 5,000 - 30,000 rpm stepless over 6 gears, 0.2 - 150 ml micro-batches, SUS316L sample-contact parts and PTFE bearings, interchangeable working heads, 12 V DC adapter, 2.1 kg, aluminium carrying case. 1-year warranty.

-35%

HSC-H-PSH paddle sterile homogenizer with touch screen and glass door

Paddle Sterile Homogenizer HSC-H-PSH – 3 to 400 ml, 3–12 Strokes per Second

Paddle homogenizer for microbiology: blends 3–400 ml in a sealed 17 × 30 cm sterile bag, 3–12 strokes/s, 0–50 mm paddle gap, 4.3-inch touch screen with 8-step programs, safety door with anti-pinch stop. PS4, PS4M (UV) and PS4GM (UV + up to 60 °C). 1-year warranty.

HSC-H-PM2 pneumatic mixer on a stand with air filter-regulator and stirring paddle

Pneumatic Mixer HSC-H-PM2 – Air-Driven, 3,000 rpm, 50 ml to 30 L

Air-driven laboratory and process mixer: up to 3,000 rpm, 80 N·cm torque, 0–6 bar air, 50 ml–30 L, viscosity up to 5,000 cP, self-locking chuck, stand and air filter-regulator. For chemical, pharma, paint and food work where electric motors are unsuitable. 1-year warranty.

-34%

HSC-H-OS overhead stirrer on stand with paddle and base

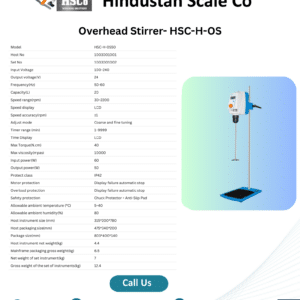

Overhead stirrer HSC-H-OS leaflet with specification table
