Pneumatic Mixer, Air-Driven Stirrer 3000 rpm

Pneumatic Mixer HSC-H-PM2 – Air-Driven, 3,000 rpm, 50 ml to 30 L

Price on Request

Air-driven laboratory and process mixer: up to 3,000 rpm, 80 N·cm torque, 0–6 bar air, 50 ml–30 L, viscosity up to 5,000 cP, self-locking chuck, stand and air filter-regulator. For chemical, pharma, paint and food work where electric motors are unsuitable. 1-year warranty.

Price on Request

Ask for a quotation

Or call +91-7045922250 or use the WhatsApp button.

The HSC-H-PM2 pneumatic mixer is driven by compressed air instead of an electric motor, for mixing where electrical equipment is not suitable. It is used in chemical, pharmaceutical, paint, coating and food plants. It runs at up to 3,000 rpm with no load and delivers up to 80 N·cm of stirring torque. It handles 50 ml to 30 litres, at viscosities up to 5,000 cP, on 0 – 6 bar of air. The paddle is held in a self-locking chuck on a stand, and the air supply passes through a filter-regulator unit.

Why buyers choose it

Air powered. No electric motor at the mixer, for areas where electrical equipment is not suitable.
Wide range of batches. 50 ml to 30 litres.
Handles thick liquids up to 5,000 cP, with up to 80 N·cm torque.
Adjustable speed up to 3,000 rpm, on 0 – 6 bar air.
Quick paddle change with a self-locking chuck.

Specifications

Model	HSC-H-PM2
Drive	Compressed air (pneumatic motor), 150 W
Air pressure	0 – 6 bar
No-load speed	Up to 3,000 rpm
Stirring torque	≤ 80 N·cm
Viscosity	Up to 5,000 cP
Capacity	50 – 30,000 ml
Paddle fixing	Self-locking chuck
Size	315 × 200 × 800 mm (packed 803 × 400 × 140 mm)
Weight	9.5 kg net / 11.5 kg gross
Working conditions	5 – 40 °C; up to 80% RH
Warranty	1 year

Which mixer?

For electrically driven high-speed homogenizing, see the lab homogenizer HSC-H-LH. Browse all homogenizers and stirrers.

Where it is used

Chemical, pharmaceutical, paint, coating and food industries, especially where solvents or flammable materials make electric stirrers unsuitable.

Questions buyers ask

Why a pneumatic mixer?

It runs on compressed air, so there is no electric motor at the mixer, which suits places where electrical equipment is not allowed.

What air supply does it need?

Compressed air at up to 6 bar.

How much can it mix?

From 50 ml to 30 litres, at viscosities up to 5,000 cP.

How fast does it run?

The speed is adjustable, up to 3,000 rpm with no load.

Ask for a quotation

Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your batch size and material. Hindustan Scale Company, Mumbai, since 1955.

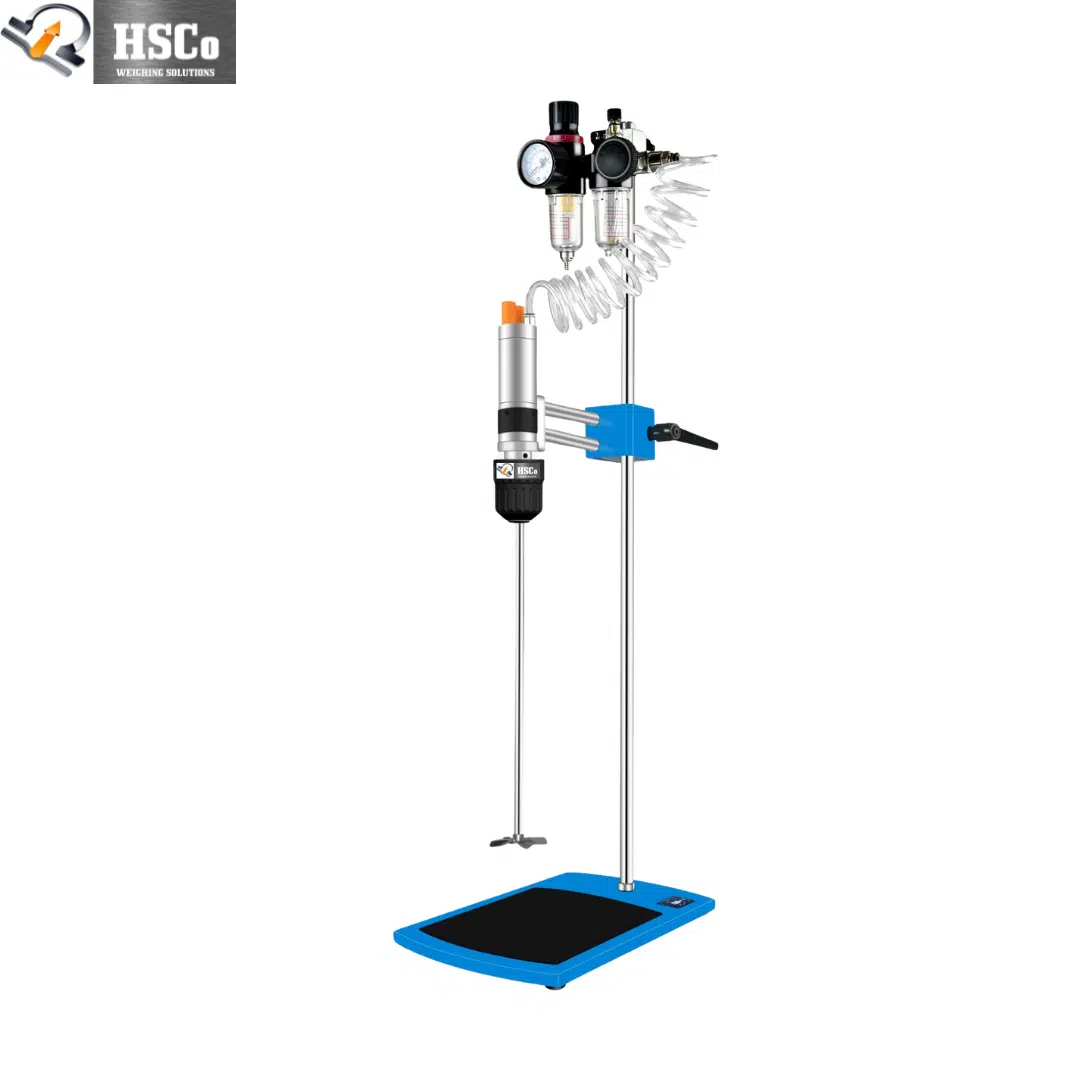

HSC-H-PM2 pneumatic mixer on a stand with air filter-regulator and stirring paddle

Click to enlarge

Back to products

Compare

Description

Model	HSC-H-PM2
Drive	Compressed air (pneumatic motor), 150 W
Air pressure	0 – 6 bar
No-load speed	Up to 3,000 rpm
Stirring torque	≤ 80 N·cm
Viscosity	Up to 5,000 cP
Capacity	50 – 30,000 ml
Paddle fixing	Self-locking chuck
Size	315 × 200 × 800 mm (packed 803 × 400 × 140 mm)
Weight	9.5 kg net / 11.5 kg gross
Working conditions	5 – 40 °C; up to 80% RH
Warranty	1 year
