High-Shear Homogenizer HSC-H-HSH – 600 to 1,500 W, up to 25,000 rpm, 0.1 ml to 15 L
Price on Request
High-shear homogenizer HSC-H-HSH (HR-25AS / 30AS / 40AS): 600 – 1,500 W brushless DC motor, up to 25,000 rpm, 0.1 ml to 15 L, 4.3-inch touch screen, 3-stage programs, timer to 8 h, sample temperature probe, soft start, USB and RS-485. For emulsions, dispersions and cell disruption. 1-year warranty.

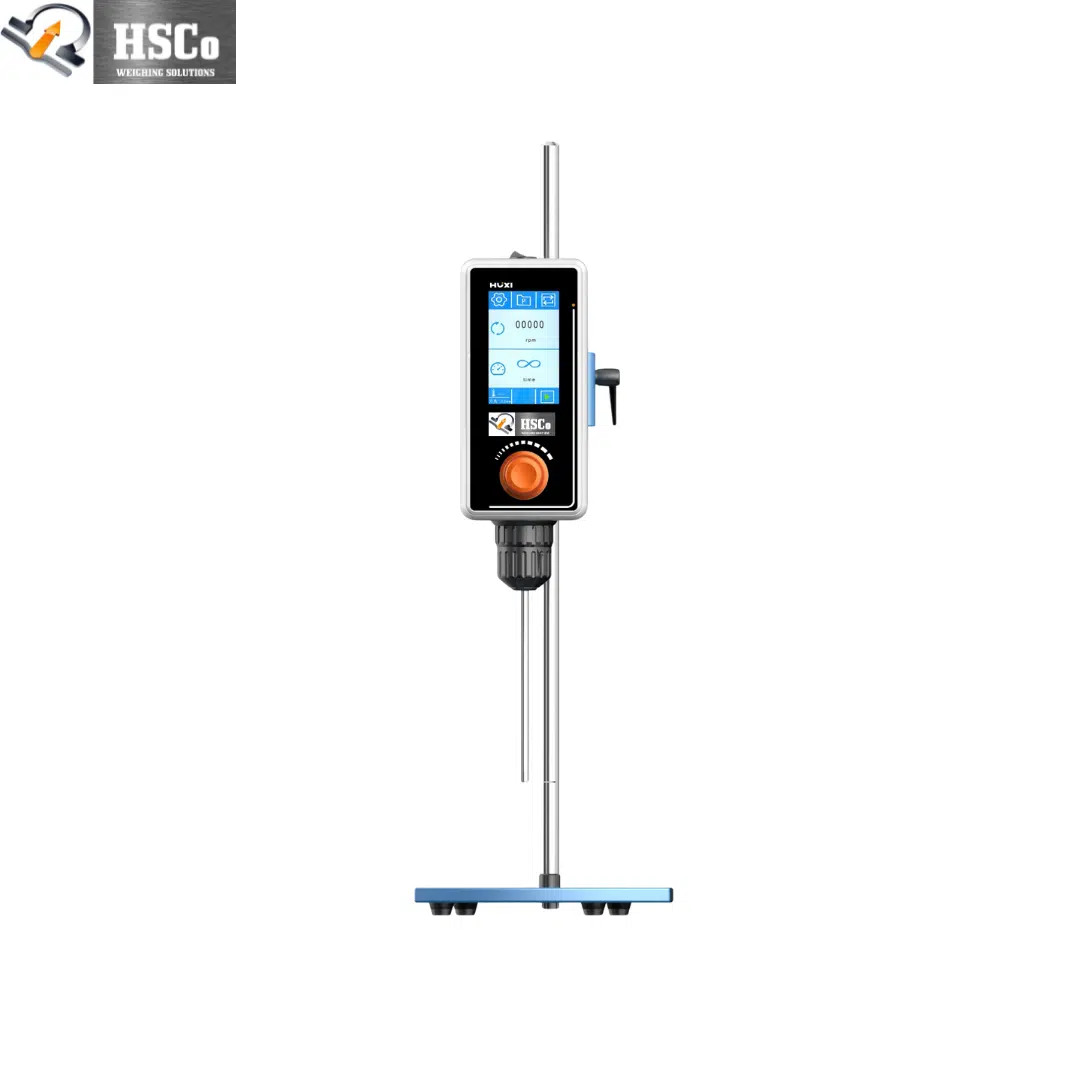

The HSCo HSC-H-HSH high-shear homogenizer emulsifies, disperses, homogenizes and breaks down cells in samples from 0.1 ml up to 15 litres, for pharmaceutical, biotechnology, cosmetic, food and chemical work. Three models (HR-25AS, HR-30AS and HR-40AS) give 600 to 1,500 W from a brushless DC motor, up to 25,000 rpm, with soft start and continuous running. A 4.3-inch touch screen sets 3-stage speed-and-time programs and a timer up to 8 hours, a probe reads sample temperature, and Type-C USB and RS-485 allow remote control and data logging.
Why labs choose it
- Up to 25,000 rpm, 600 – 1,500 W brushless DC motor.
- 0.1 ml to 15 litres across three models.
- Touch screen with 3-stage programs and a timer up to 8 h.
- Temperature measurement of the sample, −160 to 600 °C.
- Soft start and continuous duty.
- Connects: Type-C USB and RS-485 for remote control and data.
Specifications
| Model | HR-25AS | HR-30AS | HR-40AS |
|---|---|---|---|
| Capacity | 0.1 – 10,000 ml | 0.2 – 10,000 ml | 500 – 15,000 ml |
| Speed (no load) | 2,000 – 25,000 rpm | 2,000 – 25,000 rpm | 2,000 – 18,000 rpm |
| Maximum tip speed | 32.7 m/s | 32.7 m/s | 24 m/s |
| Output power | 600 W | 1,000 W | 1,500 W |
| Working head | Ø 25 (Ø 30 optional) | Ø 30 optional | Ø 40 optional |
| Net weight (unit / kit) | 6 / 12 kg | 6 / 12 kg | 8 / 14 kg |
| Series | HSC-H-HSH |
|---|---|
| Display | 4.3-inch LED capacitive touch screen |
| Motor | Brushless DC; soft start; continuous duty |
| Programs | 3-stage (speed and time) |
| Timer | 0 – 8 h (h:min:s) |
| Temperature measurement | −160 to 600 °C |
| Interfaces | Type-C USB, RS-485 (remote control and data management) |
| Standard kit | Main unit, working head, flat stand |
| Power | 230 V, 50/60 Hz |
| Size | 410 × 100 × 290 mm; packed 475 × 340 × 200 mm |
| Working conditions | 5 – 40 °C; up to 80% humidity |
| Warranty | 1 year |
Which homogenizer?
For small samples on the move, see the portable homogenizer HSC-H-PH; for bench work, the lab homogenizer HSC-H-LH. Browse all homogenizers and stirrers.
Where it is used
Pharmaceutical, biotechnology, cosmetic, food and chemical labs and pilot production: emulsions, dispersions, homogenization and cell disruption.
Questions buyers ask
From 0.1 ml up to 10 litres (HR-25AS, HR-30AS) or 15 litres (HR-40AS).
Yes: 3-stage speed-and-time programs and a timer up to 8 hours.
Yes. It is rated for continuous work.
Order or ask for a quotation
Tell us your sample volume and viscosity. Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
