This HSCo crane load cell is a compact tension load cell for crane scales and in-line force measurement, in 20 tf and 30 tf capacities. It works in tension only, linked into the lifting line with a dee or bow shackle and hook. Heat-treated alloy tool steel resists shock and overload, and its perpendicular-hole design reduces the effect of side forces for safer, more accurate weighing.
Why builders choose it
- Compact and portable for crane and hanging scales.
- Tough. Heat-treated alloy tool steel, electroless nickel-plated, IP65.

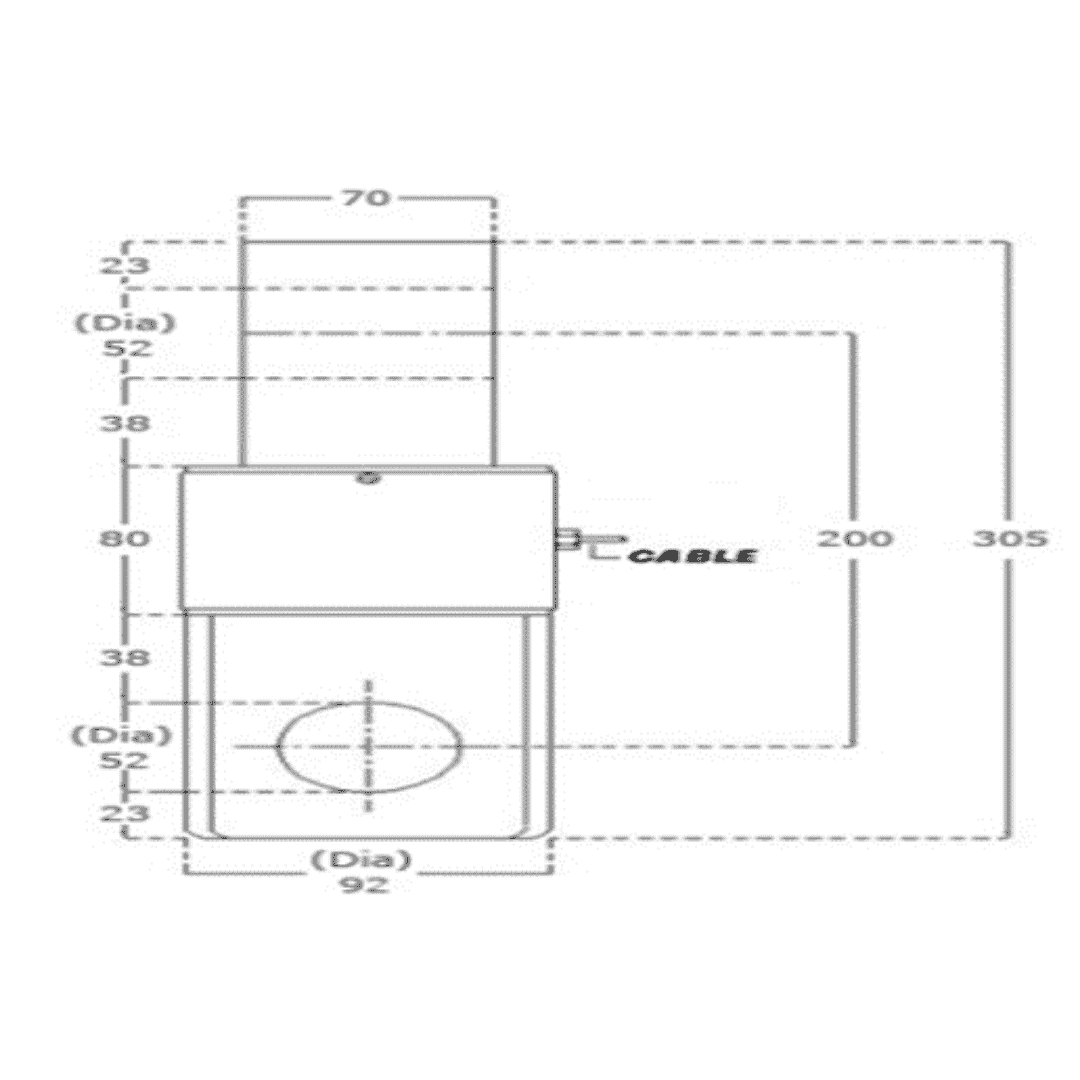

- Accurate in the line. Perpendicular holes minimise external moments.
- Safety margin. Safe load 150%, ultimate load 200% of rated capacity.
Specifications
| Mode | Tension only |
|---|---|
| Capacities | 20 tf and 30 tf |
| Rated output | 1.0 mV/V |
| Excitation | 10 V DC (maximum 15 V DC) |
| Non-linearity | < ±0.05% of full-scale output |
| Creep (30 min) | < ±0.05% of full-scale output |
| Zero balance | < ±1% of full-scale output |
| Input / output resistance | 775 ± 15 Ω / 700 ± 10 Ω |
| Insulation resistance | Above 5,000 MΩ |
| Safe / ultimate load | 150% / 200% of rated capacity |
| Protection | IP65 |
| Temperature compensated | 0 to +60 °C |
| Material | Electroless nickel-plated alloy tool steel |
| Connection | Dee / bow shackle and hook |
| Warranty | 1 year |
Where it is used
Crane and hanging scales, rope tension measurement as an in-line link, cargo handling in shipyards, towing force of vehicles and ships, and tension dynamometers. See the finished CRHLC dynamometer, or browse all load cells.
Questions buyers ask
Can it be used in compression?
No. It is designed for tension only.
Which capacities are available?
20 tf and 30 tf.
How is it connected?
With a dee or bow shackle and hook, as a link in the line.
Is it weatherproof?
It is rated IP65.
