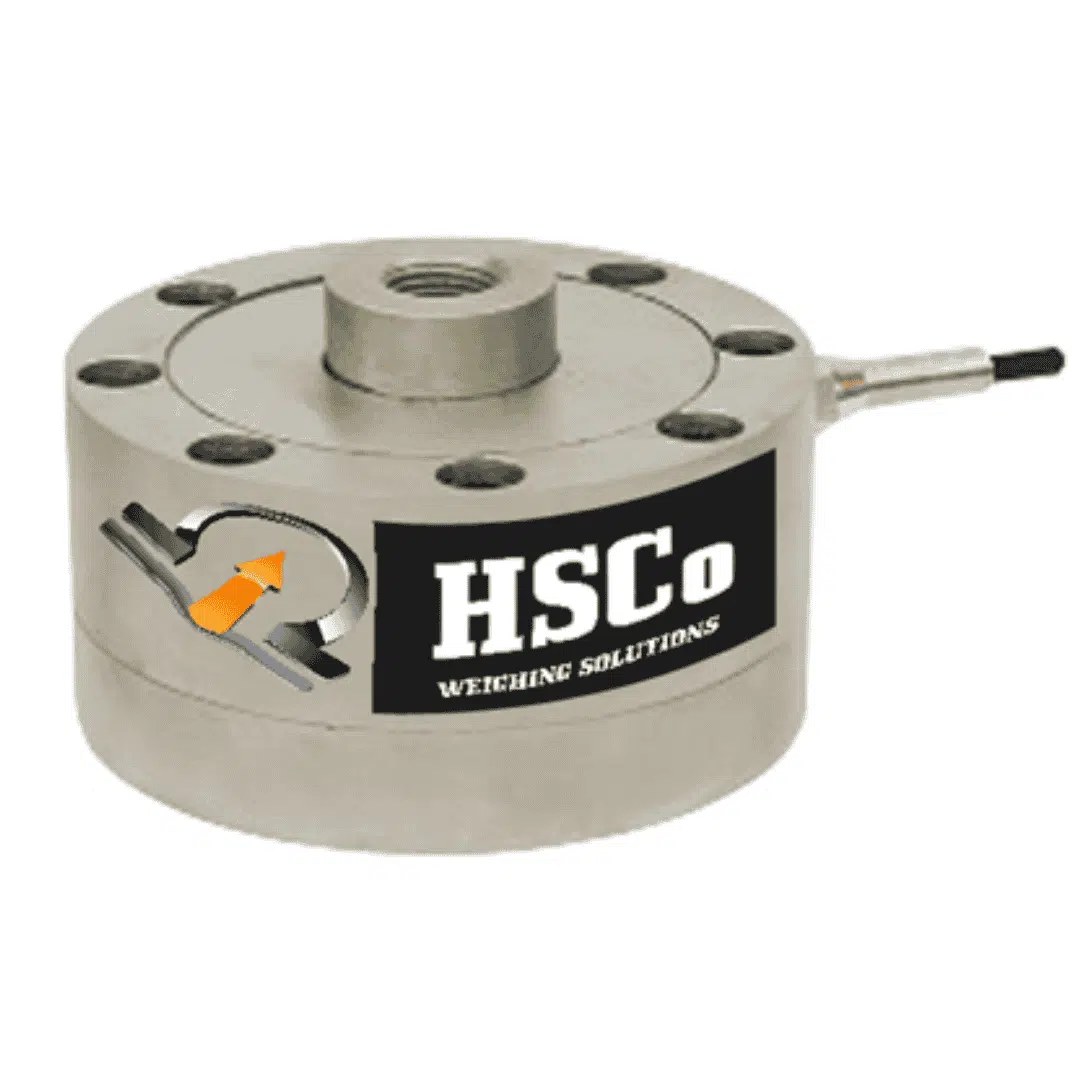

PAN CAKE TYPE LOAD CELL
PAN CAKE TYPE LOAD CELL
Click to enlarge
PAN CAKE TYPE LOAD CELL
PAN CAKE TYPE LOAD CELL
Crane Loadcell
Crane Load Cell - New
Back to products
moisture measure
Soil Moisture Meters ₹360.00

Pancake Type Load Cell

📞 Talk to Our Specialists

For inquiries, product information, pricing, or technical assistance, please contact us using the details below. Our team will be happy to assist you.

Contact Us

STANDARD CAPACITY (Kg.): 80, 120, 150

STANDARD SPECIFICATION

  • Nominal Output 2.0m ± 0.004 mV/V
  • Precision C3
  • Excitation Voltage 9 VDC – Maximum 12 VDC
  • Safe Load 120% of Rated Capacity
  • Ultimate Load 150% of Rated Capacity
  • Non Linearity <±0.03% of FSO (Full Scale Output)
  • Creep (30 minutes) <±0.03% of FSO
  • Zero Balance <±1% of FSO
  • Input Resistance 700 ± 10 ohms
  • Output Resistance 700 ± 5 ohms
  • Temperature Compensation -10oC to +60oC
  • Material alloy steel and Stainless Steel
  • Insulation Resistance Above 5000 Mega ohms
  • Cable 4mm, 12 mts
Compare
Description

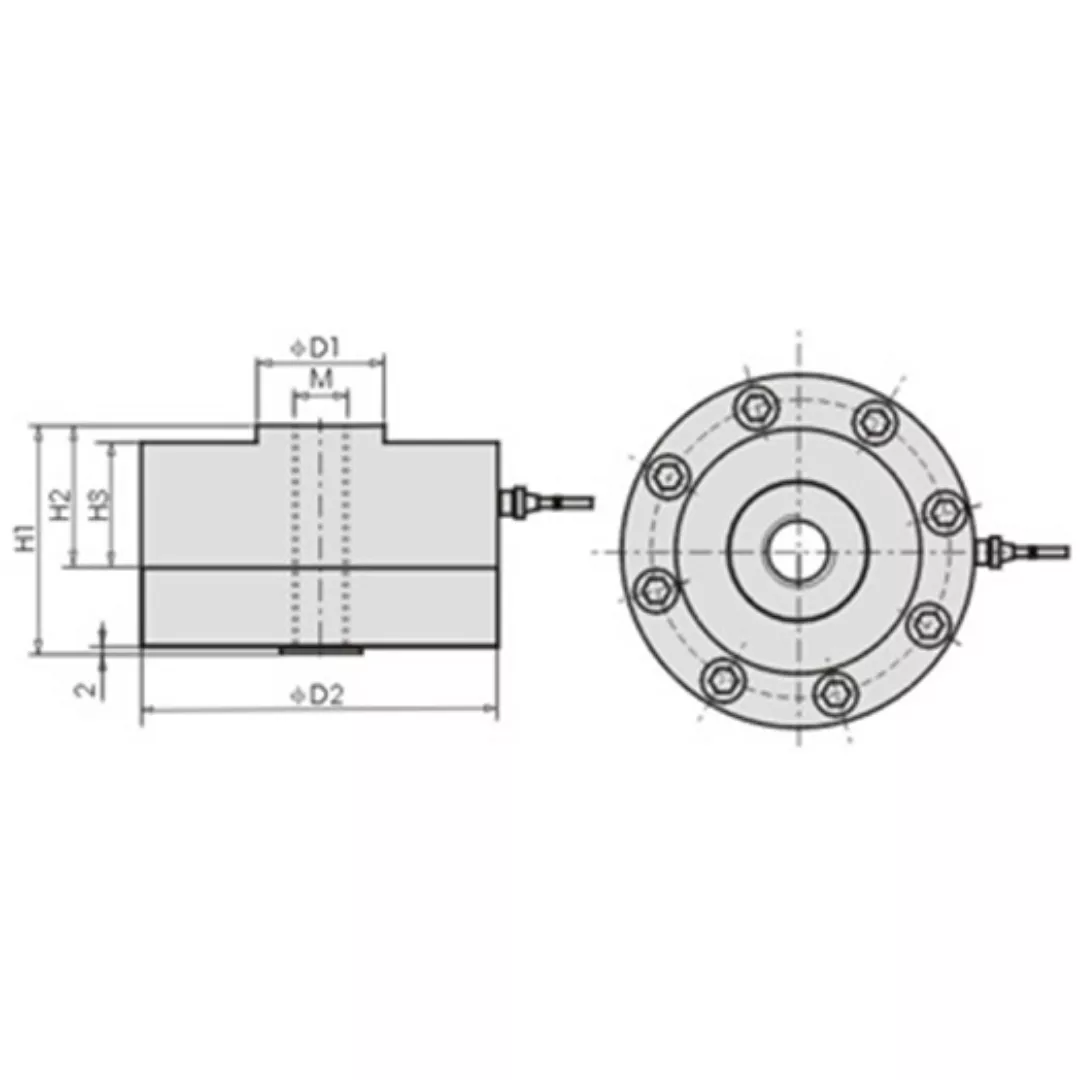

This is a Low profile compression and tension wheel-style loadcell. Its heat-treated alloy steel construction makes it very rugged and capable of absorbing shock loads. It is used for electronic truck scale, rail scale, tensile testing, impact testing, tank and silos level monitoring, material testing, and other industrial weighing systems.

FEATURES

  • Heat-treated alloy steel construction makes it very rugged Nickel plated
  • Suitable for multiform environments
  • Easy to Install & Use

APPLICATION

  • Electronic Truck Scales
  • Truck Scales, Hopper Scales
  • Other Electronic Weighing Devices
